Tangio TPE-500 Series Standard Force Sensor Data Sheet
v1.8
|
Apr 2018
www.tangio.ca
2
Force Sensing Resistor
TPE-500 /
TPE-500s
ø7.62
ø5.60 Active area

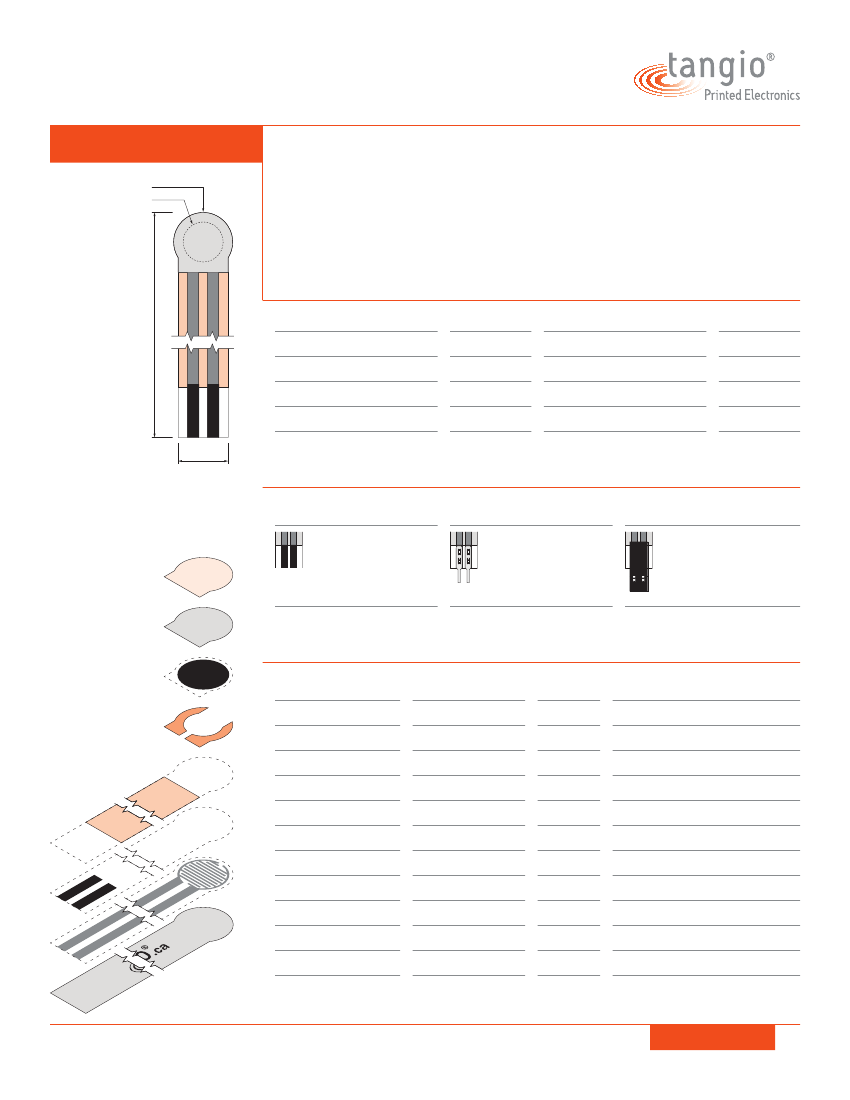

Mechanical data
Active area
Thickness (inc. 0.05mm adhesive)
ø5.60mm
0.325 /
0.250mm
Shunt
7.62mm
15.80mm
Trace width
Trace pitch
Spacer height
Tail length
Tail width
0.25mm
0.50mm
0.125 /
0.050mm
9.00mm
6.35mm
15.80
Mode
Sensor overall width
Top view
Scale 2:1
Sensor overall length
6.35
Interconnect options and part numbers
TPE-500A /
TPE-500sA
Exposed carbon traces
A
Stacked view
A
B
C
D
E
F
Adhesive
PET
FSR
Spacer
Tail carbon
Silver conductive
TPE-500B /
TPE-500sB
YIDA. bronze/tin
plated solder tab
P/N# YD-1-254-10
TPE-500C /
TPE-500sC
CNT female phos. bronze/tin
plated termination pins
P/N# 3043-001-00
w/HX standard housing
P/N# HX-25406-2Y
B
C
Device characteristics
Characteristic
Description
Force to reach 10M
linear region of log/log
1kg for 48hrs
100 actuations of 1kg
100 sensors same batch
–20°C for 250hrs
+85°C for 250hrs
+85°C/85%RH for 250hrs
1kg force at 3Hz
100 actuations of 1kg
100 cycles at 0.5kg
Value Notes
< 30g /
< 10g
Up to 5kg
< 2%
2%
+/– 4%
8%
4%
8%
7%
5%
–20 to +85°C
Average of 100 samples
Higher forces can be achieved with
custom sensor and actuation methods
Per log time
1 standard deviation/mean
1 standard deviation/mean
Avg. change in resistance of 5 sensors
Avg. change in resistance of 5 sensors
Avg. change in resistance of 5 sensors
Avg. change in resistance of 4 sensors
Avg. change in resistance of 100 samples
D
Actuation force
Force range
E
Long term dri
Single part repeatability
F
Part to part repeatability
Low temp. storage
B
High temp. storage
High humidity storage
Lifecycle durability (10M)
Hysteresis
Operational temp. range
Device characteristics and mechanical data stated in orange text refer to TPE-500s.
All values typical, and quoted at 10N applied force unless otherwise stated. Force dependent on actuation interface, mechanics, and measurement electronics.
Tangio TPE-500 Series Standard Force Sensor Data Sheet
v1.8
|
Apr 2018
www.tangio.ca
3
ø7.62
ø5.60 Active area
Force Sensing Resistor
ø7.62
ø5.60 Active area
ø7.62
ø5.60 Active area
TPE-501 /
TPE-501s
38.10
38.10
38.10
Mechanical data
Active area
Thickness (inc. 0.050mm adhesive)
Mode
Sensor overall width
ø5.60mm
0.325 /
0.250mm
Shunt
7.62mm
38.10mm
Trace width
Trace pitch
Spacer height
Tail length
Tail width
0.25mm
0.50mm
0.125 /
0.050mm
30.00mm
6.35mm
Top view
Scale 2:1
Sensor overall length
6.35
6.35
Interconnect options and part numbers
TPE-501A /
TPE-501sA
Exposed carbon traces
A
Stacked view
A
B
C
D
E
F
G
Adhesive
PET
FSR
Spacer
Dielectric
Tail carbon
Silver conductive
TPE-501B /
TPE-501sB
YIDA. bronze/tin
plated solder tab
P/N# YD-1-254-10
TPE-501C /
TPE-501sC
CNT female phos. bronze/tin
plated termination pins
P/N# 3043-001-00
w/HX standard housing
P/N# HX-25406-2Y
6.35
B
C
Device characteristics
Characteristic
Description
Force to reach 10M
linear region of log/log
1kg for 48hrs
100 actuations of 1kg
100 sensors same batch
–20°C for 250hrs
+85°C for 250hrs
+85°C/85%RH for 250hrs
1kg force at 3Hz
100 actuations of 1kg
100 cycles at 0.5kg
Value Notes
< 30g /
< 10g
Up to 5kg
< 2%
2%
+/– 4%
8%
4%
8%
7%
5%
–20 to +85°C
Average of 100 samples
Higher forces can be achieved with
custom sensor and actuation methods
Per log time
1 standard deviation/mean
1 standard deviation/mean
Avg. change in resistance of 5 sensors
Avg. change in resistance of 5 sensors
Avg. change in resistance of 5 sensors
Avg. change in resistance of 4 sensors
Avg. change in resistance of 100 samples
D
Actuation force
Force range
E
Long term dri
Single part repeatability
F
Part to part repeatability
Low temp. storage
G
High temp. storage
High humidity storage
B
Lifecycle durability (10M)
Hysteresis
Operational temp. range
Device characteristics and mechanical data stated in orange text refer to TPE-501s.
Note: All values typical, and quoted at 10N applied force unless otherwise stated. Force dependent on actuation interface, mechanics, and measurement electronics.
Tangio TPE-500 Series Standard Force Sensor Data Sheet
v1.8
|
Apr 2018
www.tangio.ca
4
Force Sensing Resistor
TPE-502
Mechanical data
ø18.00
ø14.70 Active area
Active area
Thickness (inc. 0.05mm adhesive)
Mode
25.00
Top view
Scale 1:1
ø14.70mm
0.375mm
Shunt
18.00mm
25.00mm
Trace width
Trace pitch
Spacer height
Tail length
Tail width
0.25mm
0.50mm
0.125mm
9.00mm
7.62mm
Sensor overall width
Sensor overall length
7.62
Interconnect options and part numbers
TPE-502A
Exposed carbon traces
A
Stacked view
A
B
C
D
E
F
Adhesive
PET
FSR
Spacer
Tail carbon
Silver conductive
TPE-502B
YIDA. bronze/tin
plated solder tab
P/N# YD-1-254-10
TPE-502C
CNT female phos. bronze/tin
plated termination pins
P/N# 3043-001-00
w/HX standard housing
P/N# HX-25406-2Y
B
C
Device characteristics
Characteristic
Description
Force to reach 10M
linear region of log/log
1kg for 48hrs
100 actuations of 1kg
100 sensors same batch
–20°C for 250hrs
+85°C for 250hrs
+85°C/85%RH for 250hrs
1kg force at 3Hz
100 actuations of 1kg
100 cycles at 0.5kg
Value Notes
< 15g
Up to 5kg
< 1%
2%
+/– 4%
7%
3%
12%
3%
5%
–20 to +85°C
Average of 100 samples
Higher forces can be achieved with
custom sensor and actuation methods
Per log time
1 standard deviation/mean
1 standard deviation/mean
Avg. change in resistance of 5 sensors
Avg. change in resistance of 5 sensors
Avg. change in resistance of 5 sensors
Avg. change in resistance of 4 sensors
Avg. change in resistance of 100 samples
D
Actuation force
Force range
E
Long term dri
Single part repeatability
F
Part to part repeatability
Low temp. storage
B
High temp. storage
High humidity storage
Lifecycle durability (10M)
Hysteresis
Operational temp. range
Note: All values typical, and quoted at 10N applied force unless otherwise stated. Force dependent on actuation interface, mechanics, and measurement electronics.
