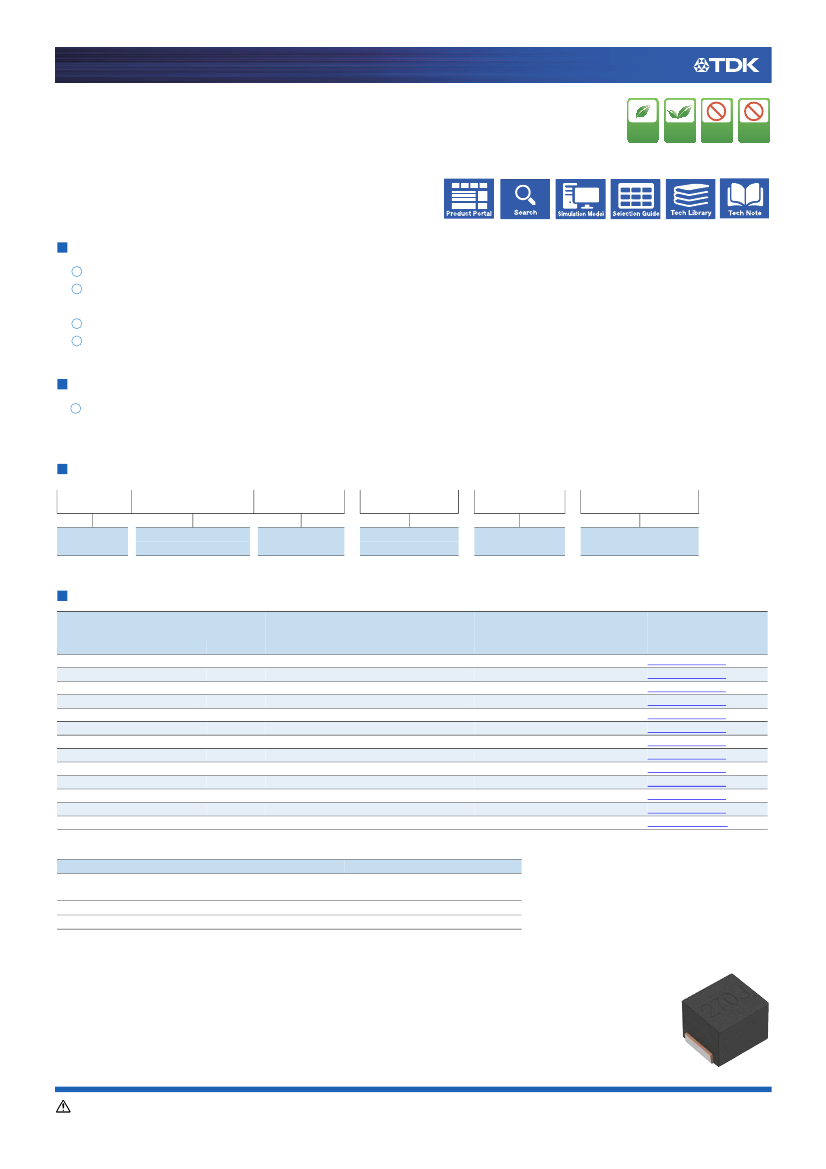

Resin mold type wound inductor for standard circuits.
E-12 series, wide lineup compatible with J (±5%) tolerance, can be used for applications that need to meet strict L tolerance such as fil-
ter circuits.
Has excellent inductance temperature characteristics in the operating temperature range.
Operating temperature range: –40 to +105°C (including self-temperature rise)
APPLICATION
Smart meters, AV equipment, xDSL, electronic devices for communications infrastructure such as mobile base stations, industrial equip-
ment, other
PART NUMBER CONSTRUCTION
NLV
Series name
32
L×W×H dimensions
3.2×2.5×2.2 mm
T
Packaging style
-
010
Inductance
(µH)
-
J
Inductance
tolerance
-
EF
Internal code
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.1
Tolerance
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Q
min.
15
17
19
21
23
23
25
25
26
26
27
27
28
L, Q measuring
frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
Self-resonant
frequency
(MHz)min.
2500
2300
2100
1900
1700
1500
1400
1300
1200
1100
1000
900
700
DC resistance
(Ω )max.
0.13
0.14
0.16
0.18
0.2
0.22
0.24
0.27
0.3
0.33
0.36
0.4
0.44
Rated current
(mA)max.
450
450
450
450
450
450
450
450
450
450
450
450
450
Part No.
NLV32T-010J-EF
NLV32T-012J-EF
NLV32T-015J-EF
NLV32T-018J-EF
NLV32T-022J-EF
NLV32T-027J-EF
NLV32T-033J-EF
NLV32T-039J-EF
NLV32T-047J-EF
NLV32T-056J-EF
NLV32T-068J-EF
NLV32T-082J-EF
NLV32T-R10J-EF
Measurement equipment
Measurement item
Product No.
4294A+16197A
L, Q
4294A+16093B
Self-resonant frequency
E5063A
DC resistance
AX-114N
＊
Equivalent measurement equipment may be used.
Manufacturer
Keysight Technologies
Keysight Technologies
ADEX
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(1/6)
20180920
inductor_commercial_standard_nlv32-ef_en.fm
I N D U C T O R S
NLV32-EF type
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
Tolerance
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Q
min.
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
20
20
20
20
20
20
20
20
20
L, Q measuring
frequency
(MHz)
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
Self-resonant
frequency
(MHz)min.
500
450
400
350
320
300
250
220
180
160
140
120
100
85
80
75
70
60
55
50
45
40
35
30
20
20
20
20
20
17
16
15
13
12
11
10
10
8
7
7
6
5
5
4
DC resistance
(Ω )max.
0.22
0.25
0.28
0.32
0.36
0.4
0.45
0.5
0.55
0.6
0.65
0.7
0.75
0.85
0.9
1
1.1
1.2
1.3
1.5
1.6
1.8
2
2.1
2.5
2.8
3.3
3.7
5
5.6
6.4
7
8
9
10
10
11
15
17
21
28
34
36
40
Rated current
(mA)max.
450
450
450
450
450
450
450
450
450
450
450
400
390
370
350
320
290
260
250
220
200
180
170
150
140
130
120
110
80
70
65
60
55
50
45
40
70
65
60
50
45
40
35
25
Part No.
NLV32T-R12J-EF
NLV32T-R15J-EF
NLV32T-R18J-EF
NLV32T-R22J-EF
NLV32T-R27J-EF
NLV32T-R33J-EF
NLV32T-R39J-EF
NLV32T-R47J-EF
NLV32T-R56J-EF
NLV32T-R68J-EF
NLV32T-R82J-EF
NLV32T-1R0J-EF
NLV32T-1R2J-EF
NLV32T-1R5J-EF
NLV32T-1R8J-EF
NLV32T-2R2J-EF
NLV32T-2R7J-EF
NLV32T-3R3J-EF
NLV32T-3R9J-EF
NLV32T-4R7J-EF
NLV32T-5R6J-EF
NLV32T-6R8J-EF
NLV32T-8R2J-EF
NLV32T-100J-EF
NLV32T-120J-EF
NLV32T-150J-EF
NLV32T-180J-EF
NLV32T-220J-EF
NLV32T-270J-EF
NLV32T-330J-EF
NLV32T-390J-EF
NLV32T-470J-EF
NLV32T-560J-EF
NLV32T-680J-EF
NLV32T-820J-EF
NLV32T-101J-EF
NLV32T-121J-EF
NLV32T-151J-EF
NLV32T-181J-EF
NLV32T-221J-EF
NLV32T-271J-EF
NLV32T-331J-EF
NLV32T-391J-EF
NLV32T-471J-EF
Measurement equipment
Product No.
4294A+16197A
L, Q
4294A+16093B
Self-resonant frequency
E5063A
DC resistance
AX-114N
＊
Equivalent measurement equipment may be used.
Measurement item
Manufacturer
Keysight Technologies
Keysight Technologies
ADEX
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(2/6)
20180920
inductor_commercial_standard_nlv32-ef_en.fm
I N D U C T O R S
NLV32-EF type

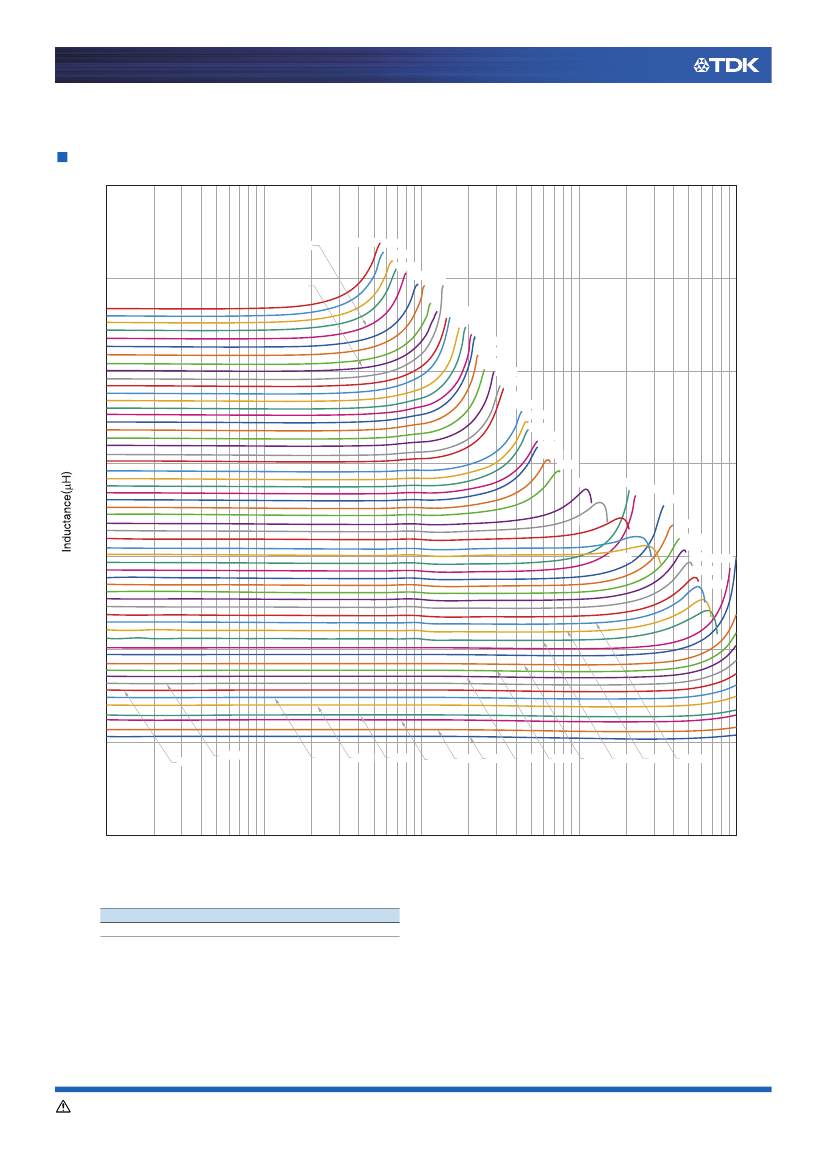

L FREQUENCY CHARACTERISTICS
10000
221J
471J
391J
331J
271J
181J
151J
820J
680J
560J
470J
390J
330J
270J
220J
180J
150J
120J
100J
8R2J
6R8J
5R6J
4R7J
3R9J
3R3J
2R7J
2R2J
1R8J
1R5J
1R2J
R82J
R68J
R56J
R47J
R39J
R33J
R27J
082J
R22J
R10J
1000
101J
121J
100
10
1
1R0J
0.1
0.01
033J
039J
027J
022J
018J
015J
012J
010J
047J
056J
068J
R12J
R15J
R18J
0.001
0.1
1
10
Frequency(MHz)
100
1000
Measurement equipment
Product No.
Manufacturer
4294A
Keysight Technologies
＊
Equivalent measurement equipment may be used.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(3/6)
20180920
inductor_commercial_standard_nlv32-ef_en.fm
I N D U C T O R S
NLV32-EF type

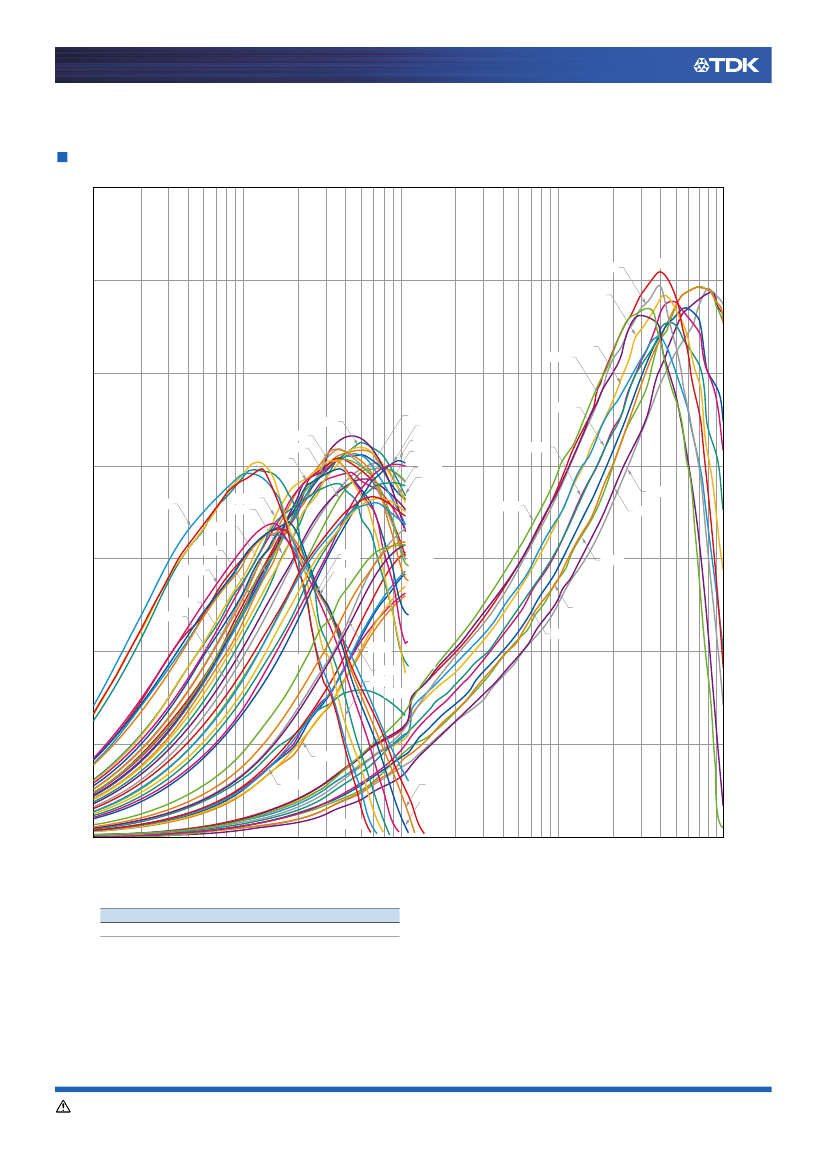

Q FREQUENCY CHARACTERISTICS
70
068J
056J
60
039J
047J
082J
50
033J
100J
220J
4R7J
8R2J
180J
1R2J
6R8J
1R0J
270J
1R5J
027J
40
391J
820J
120J
5R6J
010J
1R8J
2R7J
2R2J
R82J
R56J
R39J
330J
R15J
390J
R12J
470J
560J
680J
022J
R10J
012J
Q
30
150J
221J
3R3J
3R9J
271J
121J
015J
018J
20
R47J
R68J
R18J
331J
R22J
10
R27J
R33J
101J
151J
181J
471J
0
0.1
1
10
Frequency(MHz)
100
1000
Measurement equipment
Product No.
Manufacturer
4294A
Keysight Technologies
＊
Equivalent measurement equipment may be used.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(4/6)
20180920
inductor_commercial_standard_nlv32-ef_en.fm
I N D U C T O R S
NLV32-EF type

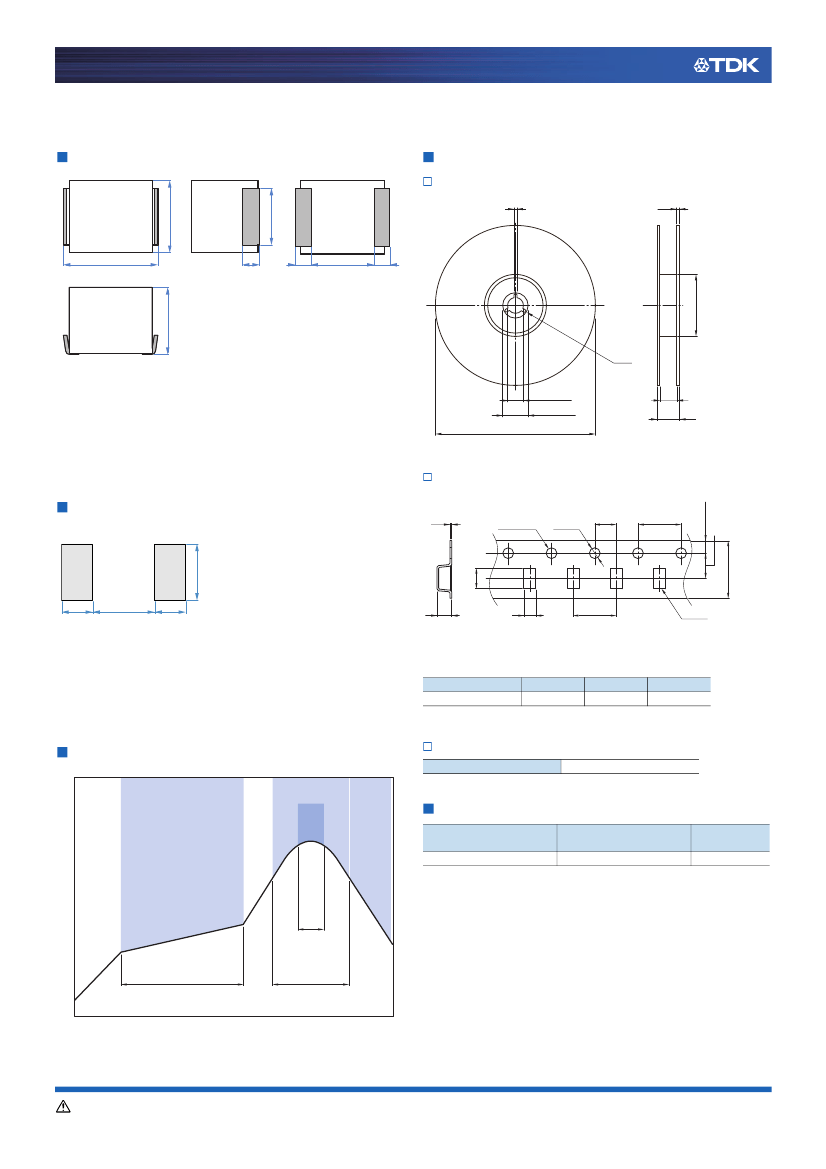

SHAPE & DIMENSIONS
PACKAGING STYLE
REEL DIMENSIONS
2.5±0.2
470J
3.2±0.2
1.9±0.1
2.0±0.5
0.5
0.55
(0.55)
(2.1)
(0.55)
2.2±0.2
(1.0)
Dimensions in mm
ø13.0±0.5
ø21.0±0.8
ø180
Dimensions in mm
9
13
TAPE DIMENSIONS
ø60
0.4
Sprocket
hole
1.5
+0.1
–0
2.00±0.05
4.00±0.10
1.75±0.1
Cavity
RECOMMENDED LAND PATTERN
1.2
2
1.2
K
A
4.00±0.10
Dimensions in mm
Dimensions in mm
Type
NLV32-EF
A
2.8
B
3.5
K
2.3
RECOMMENDED REFLOW PROFILE
Preheating
Soldering
Peak
Natural
cooling
PACKAGE QUANTITY
Package quantity
2000 pcs/reel
TEMPERATURE RANGE, INDIVIDUAL WEIGHT
Operating
Storage
Individual
temperature range
temperature range
weight
–40 to +105 °C
–40 to +105 °C
50 mg
Operating temperature range includes self-temperature rise.
The storage temperature range is for after the assembly.
255°C
Temperature
230
°C
230
°C
180
°C
150
°C
90 to 120s
10s max.
40s
Time
8.00±0.30
2
B
3.50±0.05
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
