Resin mold type wound inductor for standard circuits.
E-12 series, wide lineup compatible with J (±5%) tolerance, can be used for applications that need to meet strict L tolerance such as fil-
ter circuits.
Has excellent inductance temperature characteristics in the operating temperature range.
Operating temperature range: –40 to +105°C (including self-temperature rise)
Compliant with AEC-Q200
APPLICATION
Vehicle accessories (car navigation systems, car audio, ETC)
PART NUMBER CONSTRUCTION
NLV
Series name
25
L×W×H dimensions
2.5×2.0×1.8 mm
T
Packaging style
-
010
Inductance
(µH)
-
J
Inductance
tolerance
-
EFD
Internal code
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
Tolerance
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Q
min.
15
15
15
15
15
15
20
20
20
20
20
20
L, Q measuring
frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
Self-resonant
frequency
(MHz)min.
2150
2050
2000
1850
1650
1550
1450
1350
1200
1100
1050
900
DC resistance
(Ω )max.
0.26
0.27
0.29
0.31
0.37
0.4
0.42
0.45
0.5
0.6
0.65
0.75
Rated current
(mA)max.
530
500
480
450
420
410
400
380
360
340
320
300
Part No.
NLV25T-010J-EFD
NLV25T-012J-EFD
NLV25T-015J-EFD
NLV25T-018J-EFD
NLV25T-022J-EFD
NLV25T-027J-EFD
NLV25T-033J-EFD
NLV25T-039J-EFD
NLV25T-047J-EFD
NLV25T-056J-EFD
NLV25T-068J-EFD
NLV25T-082J-EFD
Measurement equipment
Measurement item
Product No.
4294A+16197A
L, Q
4294A+16093B
Self-resonant frequency
E5063A
DC resistance
AX-114N
＊
Equivalent measurement equipment may be used.
Manufacturer
Keysight Technologies
Keysight Technologies
ADEX
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(1/6)
20180920
inductor_automotive_standard_nlv25-efd_en.fm
I N D U C T O R S
NLV25-EFD type
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
0.1
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
Tolerance
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Q
min.
20
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
25
25
25
25
25
25
25
25
25
25
20
20
20
20
20
15
L, Q measuring
frequency
(MHz)
100
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
Self-resonant
frequency
(MHz)min.
800
700
550
500
450
425
400
375
350
325
300
260
245
230
182
135
105
70
55
48
43
42
39
36
33
30
26
24
22
21
20
18
17
16
15
13
12
DC resistance
(Ω )max.
0.8
0.3
0.35
0.4
0.5
0.55
0.6
0.65
0.68
0.75
0.85
1
1.1
1.2
1.3
1.45
1.55
1.7
1.9
2.1
2.3
2.5
2.7
3.05
3.5
3.8
4.4
4.8
5.5
6.3
7.1
9.5
11.1
12.1
16.6
19
21
Rated current
(mA)max.
280
550
500
460
430
420
400
375
350
325
300
260
245
230
220
210
200
195
185
180
175
170
165
160
155
150
140
130
125
115
110
90
80
75
70
66
60
Part No.
NLV25T-R10J-EFD
NLV25T-R12J-EFD
NLV25T-R15J-EFD
NLV25T-R18J-EFD
NLV25T-R22J-EFD
NLV25T-R27J-EFD
NLV25T-R33J-EFD
NLV25T-R39J-EFD
NLV25T-R47J-EFD
NLV25T-R56J-EFD
NLV25T-R68J-EFD
NLV25T-R82J-EFD
NLV25T-1R0J-EFD
NLV25T-1R2J-EFD
NLV25T-1R5J-EFD
NLV25T-1R8J-EFD
NLV25T-2R2J-EFD
NLV25T-2R7J-EFD
NLV25T-3R3J-EFD
NLV25T-3R9J-EFD
NLV25T-4R7J-EFD
NLV25T-5R6J-EFD
NLV25T-6R8J-EFD
NLV25T-8R2J-EFD
NLV25T-100J-EFD
NLV25T-120J-EFD
NLV25T-150J-EFD
NLV25T-180J-EFD
NLV25T-220J-EFD
NLV25T-270J-EFD
NLV25T-330J-EFD
NLV25T-390J-EFD
NLV25T-470J-EFD
NLV25T-560J-EFD
NLV25T-680J-EFD
NLV25T-820J-EFD
NLV25T-101J-EFD
Measurement equipment
Product No.
4294A+16197A
L, Q
4294A+16093B
Self-resonant frequency
E5063A
DC resistance
AX-114N
＊
Equivalent measurement equipment may be used.
Measurement item
Manufacturer
Keysight Technologies
Keysight Technologies
ADEX
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(2/6)
20180920
inductor_automotive_standard_nlv25-efd_en.fm
I N D U C T O R S
NLV25-EFD type

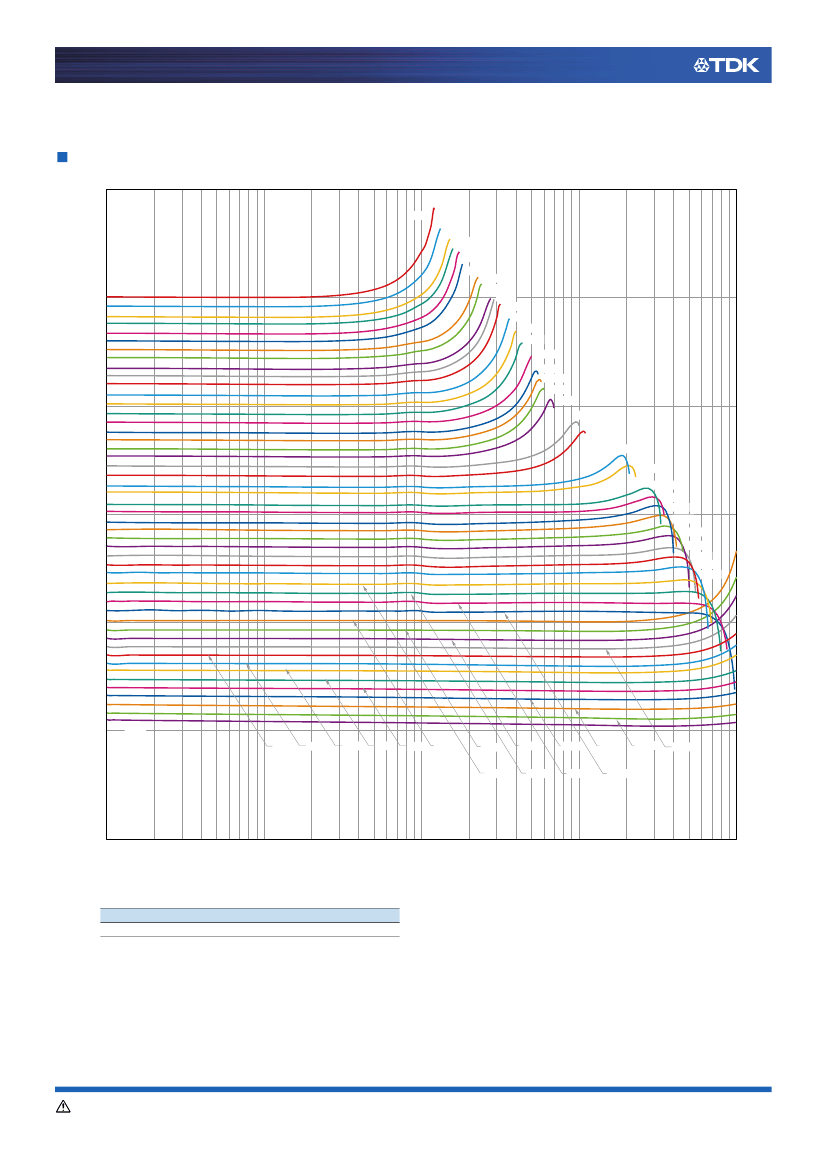

L FREQUENCY CHARACTERISTICS
1000
101J
820J
680J
560J
470J
390J
330J
270J
220J
180J
150J
120J
100J
8R2J
6R8J
5R6J
4R7J
3R9J
3R3J
2R7J
2R2J
1R8J
1R5J
100
10
Inductance(
µH
)
1
1R2J
1R0J
R82J
R68J
R56J
R47J
R39J
R33J
R27J
0.1
0.01
010J
047J
039J
033J
027J
022J
R10J
082J
R22J
068J
R18J
018J
R15J
015J
R12J
012J
056J
0.001
0.1
1
10
Frequency(MHz)
100
1000
Measurement equipment
Product No.
Manufacturer
4294A
Keysight Technologies
＊
Equivalent measurement equipment may be used.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(3/6)
20180920
inductor_automotive_standard_nlv25-efd_en.fm
I N D U C T O R S
NLV25-EFD type

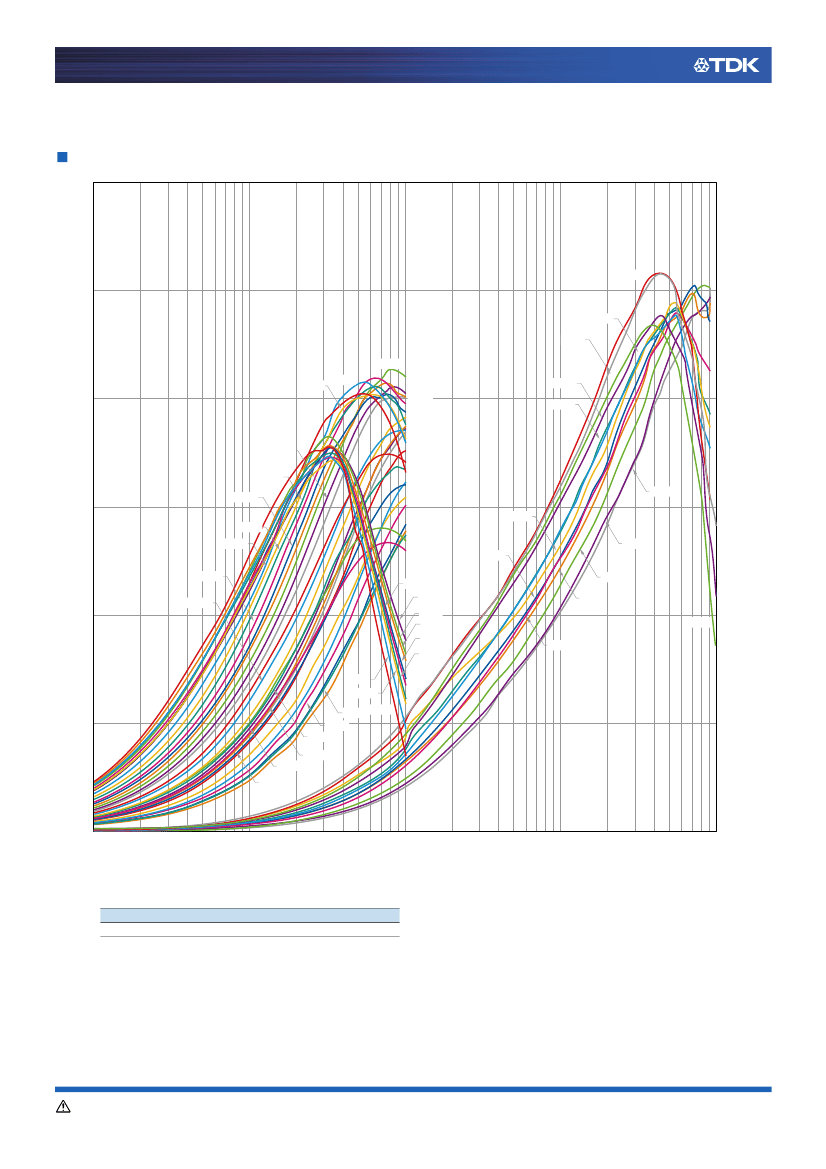

Q FREQUENCY CHARACTERISTICS
60
056J
50
047J
068J
4R7J
1R8J
150J
3R3J
180J
3R9J
100J
6R8J
R33J
R39J
2R7J
1R0J
R27J
R15J
R12J
R68J
1R2J
470J
220J
270J
330J
390J
560J
820J
680J
027J
039J
012J
022J
015J
018J
R10J
010J
082J
033J
40
30
5R6J
120J
8R2J
2R2J
Q
20
10
R22J
101J
R18J
1R5J
R82J
R56J
R47J
0
0.1
1
10
Frequency(MHz)
100
1000
Measurement equipment
Product No.
Manufacturer
4294A
Keysight Technologies
＊
Equivalent measurement equipment may be used.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(4/6)
20180920
inductor_automotive_standard_nlv25-efd_en.fm
I N D U C T O R S
NLV25-EFD type

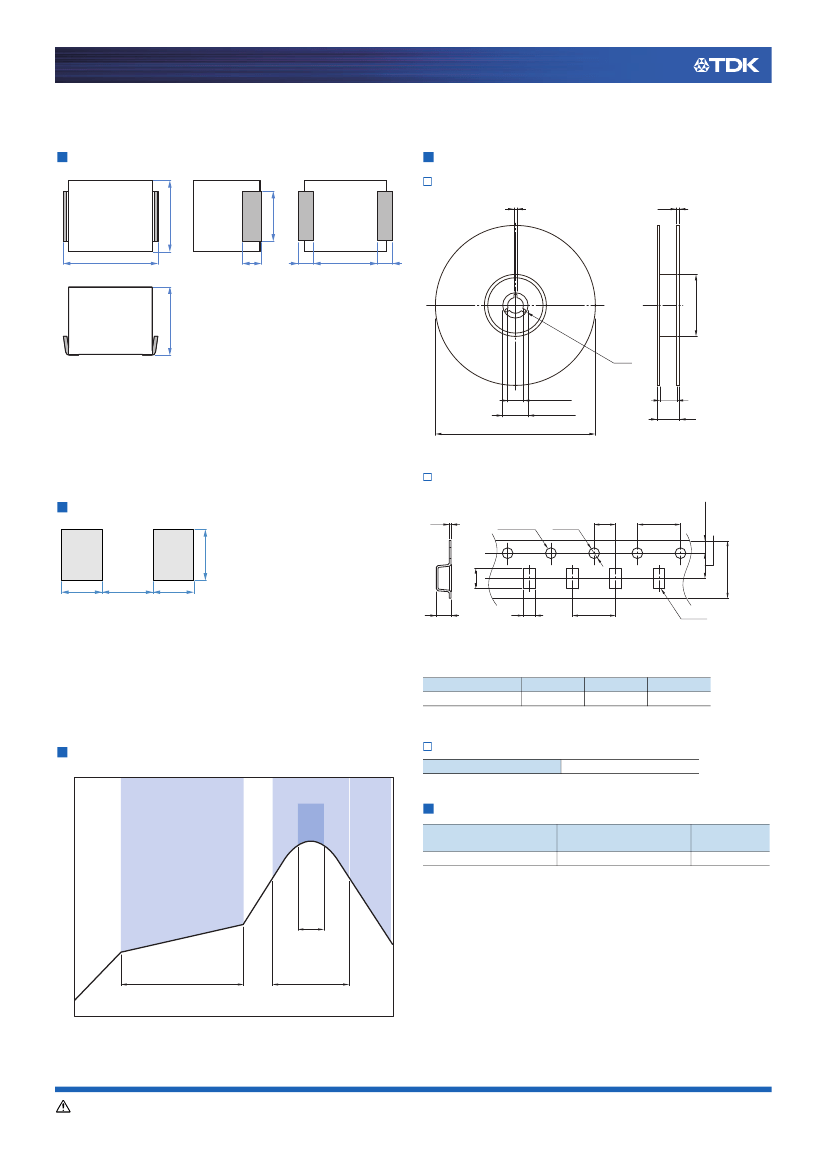

SHAPE & DIMENSIONS
PACKAGING STYLE
REEL DIMENSIONS
2.0±0.5
0.5
100J
2.5±0.2
1.4±0.1
2±0.1
0.55
(0.4)
(1.7)
(0.4)
1.8±0.1
(1.0)
Dimensions in mm
ø13.0±0.5
ø21.0±0.8
ø180
Dimensions in mm
9
13
TAPE DIMENSIONS
ø60
0.4
Sprocket
hole
1.5
+0.1
–0
2.00±0.05
4.00±0.10
1.75±0.1
Cavity
RECOMMENDED LAND PATTERN
1.5
1.0
1.5
1.0
Dimensions in mm
K
A
4.00±0.10
Dimensions in mm
Type
NLV25-EFD
A
2.3
B
2.7
K
2
RECOMMENDED REFLOW PROFILE
Preheating
Soldering
Peak
Natural
cooling
PACKAGE QUANTITY
Package quantity
2000 pcs/reel
TEMPERATURE RANGE, INDIVIDUAL WEIGHT
Operating
Storage
Individual
temperature range
temperature range
weight
–40 to +105 °C
–40 to +105 °C
50 mg
Operating temperature range includes self-temperature rise.
The storage temperature range is for after the assembly.
255°C
Temperature
230
°C
230
°C
180
°C
150
°C
90 to 120s
10s max.
40s
Time
8.00±0.30
B
3.50±0.05
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
