MMZ1005S121CT000 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> MMZ1005S121CT000

MMZ1005S121CT000: DescriptionImpedance @ Frequency: 120Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 500mA DC Resistance (DCR) (Max): 220mΩ; CategoryAnalog mixed-signal IC filter; File Size364KB，11 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MMZ1005S121CT000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MMZ1005S121CT000	-	-	View	Buy Now

MMZ1005S121CT000 Overview

Impedance @ Frequency: 120Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 500mA DC Resistance (DCR) (Max): 220mΩ

MMZ1005S121CT000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
shell code	0402
Maximum DC resistance	0.25 Ω
filter type	FERRITE CHIP
maximum frequency	300 MHz
minimum frequency	40 MHz
high	0.5 mm
length	1 mm
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	120 OHM Ω
method of packing	TAPE AND REEL
physical size	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)
Rated current	0.5 A
width	0.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

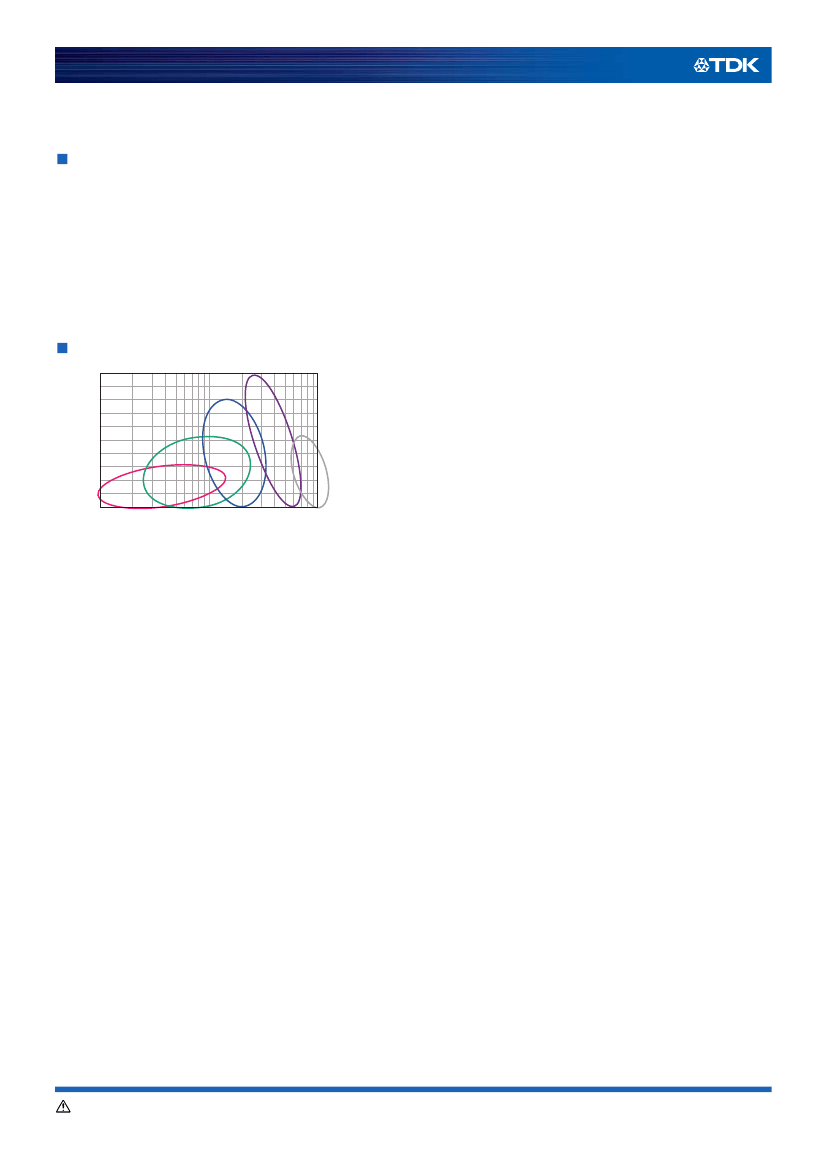

E M C

C o m p o n e n t s

July 2016

片式磁珠

一般信号线用

MMZ系列

MMZ1005

1005[0402 inch]*

表示尺寸代码。

JIS[EIA]

型

MMZ1005S121CT000 Related Products

	MMZ1005S121CT000	MMZ1005Y400CT000	MMZ1005Y601CT000	PRA100I8-2K64DPB	MMZ1005Y121CT000	MMZ1005S800CT000	MMZ1005S241CT000	MMZ1005Y471CT000	MMZ1005S102CT000
Description	Impedance @ Frequency: 120Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 500mA DC Resistance (DCR) (Max): 220mΩ	Impedance @ Frequency: 40Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 550mA DC Resistance (DCR) (Max): 100mΩ	Impedance @ Frequency: 600Ω @ 100MHz Number of lines: 1 Rated current (max): 250mA DC resistance (DCR) (max): 540mΩ SMD beads	Array/Network Resistor, Isolated, Thin Film, 0.1W, 2640ohm, 50V, 0.5% +/-Tol, -10,10ppm/Cel, 3206,	Impedance @ Frequency: 120Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 400mA DC Resistance (DCR) (Max): 180mΩ	Impedance @ Frequency: 80Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 500mA DC Resistance (DCR) (Max): 120mΩ	Impedance @ Frequency: 240Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 400mA DC Resistance (DCR) (Max): 280mΩ SMD Beads	Impedance @ Frequency: 470Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 250mA DC Resistance (DCR) (Max): 470mΩ SMD Beads	Impedance @ Frequency: 1kΩ @ 100MHz Number of Lines: 1 Rated Current (Max): 200mA DC Resistance (DCR) (Max): 750mΩ
Is it Rohs certified?	conform to	conform to	conform to	incompatible	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum operating temperature	125 °C	125 °C	125 °C	155 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	Box	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
shell code	0402	0402	0402	-	0402	0402	0402	0402	0402
Maximum DC resistance	0.25 Ω	0.12 Ω	0.56 Ω	-	0.21 Ω	0.2 Ω	0.4 Ω	0.5 Ω	1 Ω
filter type	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	-	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP
maximum frequency	300 MHz	400 MHz	400 MHz	-	400 MHz	300 MHz	300 MHz	400 MHz	300 MHz
minimum frequency	40 MHz	80 MHz	80 MHz	-	80 MHz	40 MHz	40 MHz	80 MHz	40 MHz
high	0.5 mm	0.5 mm	0.5 mm	-	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
length	1 mm	1 mm	1 mm	-	1 mm	1 mm	1 mm	1 mm	1 mm
Material	Ferrite	Ferrite	Ferrite	-	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	-	1	1	1	1	1
Output impedance	120 OHM Ω	40 OHM Ω	600 OHM Ω	-	-	80 OHM Ω	240 OHM Ω	470 OHM Ω	1000 OHM Ω
physical size	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	-	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)
Rated current	0.5 A	0.55 A	0.25 A	-	0.4 A	0.5 A	0.4 A	0.25 A	0.2 A
width	0.5 mm	0.5 mm	0.5 mm	-	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Base Number Matches	1	-	-	-	1	1	1	-	1
Maker	-	TDK Corporation	TDK Corporation	-	TDK Corporation	-	TDK Corporation	TDK Corporation	-
package instruction	-	EIA STD PACKAGE 0402, 2 PIN	EIA STD PACKAGE 0402, 2 PIN	SMT, 3206	EIA STD PACKAGE 0402, 2 PIN	EIA STD PACKAGE 0402, 2 PIN	EIA STD PACKAGE 0402, 2 PIN	EIA STD PACKAGE 0402, 2 PIN	-
Factory Lead Time	-	10 weeks	10 weeks	-	10 weeks	-	10 weeks	10 weeks	10 weeks
