Common mode filters
Automotive signal line (for infotainment)
ACM series
AEC-Q200
ACM2012 type

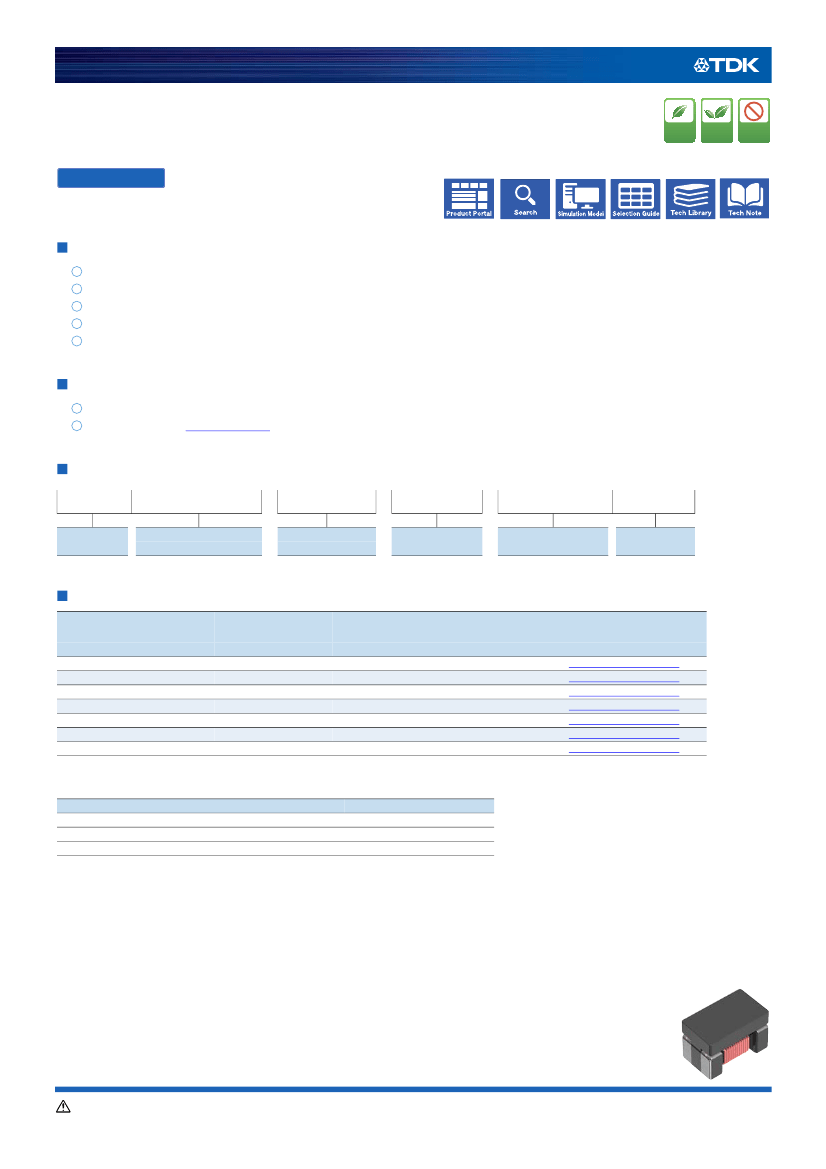

FEATURES
Highly reliable with a temperature range of –40 to +105°C.
Impedance variation: Extensive lineup are available for compatibility with various usages
Common mode EMI measure: Possible to suppress waveform common mode EMI without straining the waveform.
Operating temperature range: –40 to +105°C
Compliant with AEC-Q200
APPLICATION
Radiated noise suppression for car multimedia interfaces (MOST, USB2.0, IDB-1394, etc.).
Application guides:
Car Infotainment
PART NUMBER CONSTRUCTION
ACM
Series name
2012
L x W dimensions
2.0×1.2 mm
-
900
Impedance
() at 100MHz
-
2P
Number of lines
-
T
Packaging style
001
Internal code
CHARACTERISTICS SPECIFICATION TABLE
Common mode impedance
DC resistance
Rated current
(mA)max.
400
370
350
220
200
190
150
Rated voltage
(V)max.
50
50
50
50
50
50
50
Part No.
[1 line]
[100MHz]
( )min.
( )typ.
( )max.
65
90
0.19
90
120
0.22
150
200
0.25
270
360
0.50
510
680
1.3
750
1000
1.5
1500
2200
2.5
・Operating
temperature range: –40 to +105°C
Measurement equipment
Measurement item
Product No.
Common mode impedance
4991A
DC resistance
4338A
Insulation resistance
4339A
＊
Equivalent measurement equipment may be used.
Manufacturer
Keysight Technologies
Keysight Technologies
Keysight Technologies
ACM2012-900-2P-T001
ACM2012-121-2P-T001
ACM2012-201-2P-T001
ACM2012-361-2P-T001
ACM2012-681-2P-T001
ACM2012-102-2P-T001
ACM2012-222-2P-T001
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(1/4)
20181015
cmf_automotive_signal_acm2012_en.fm

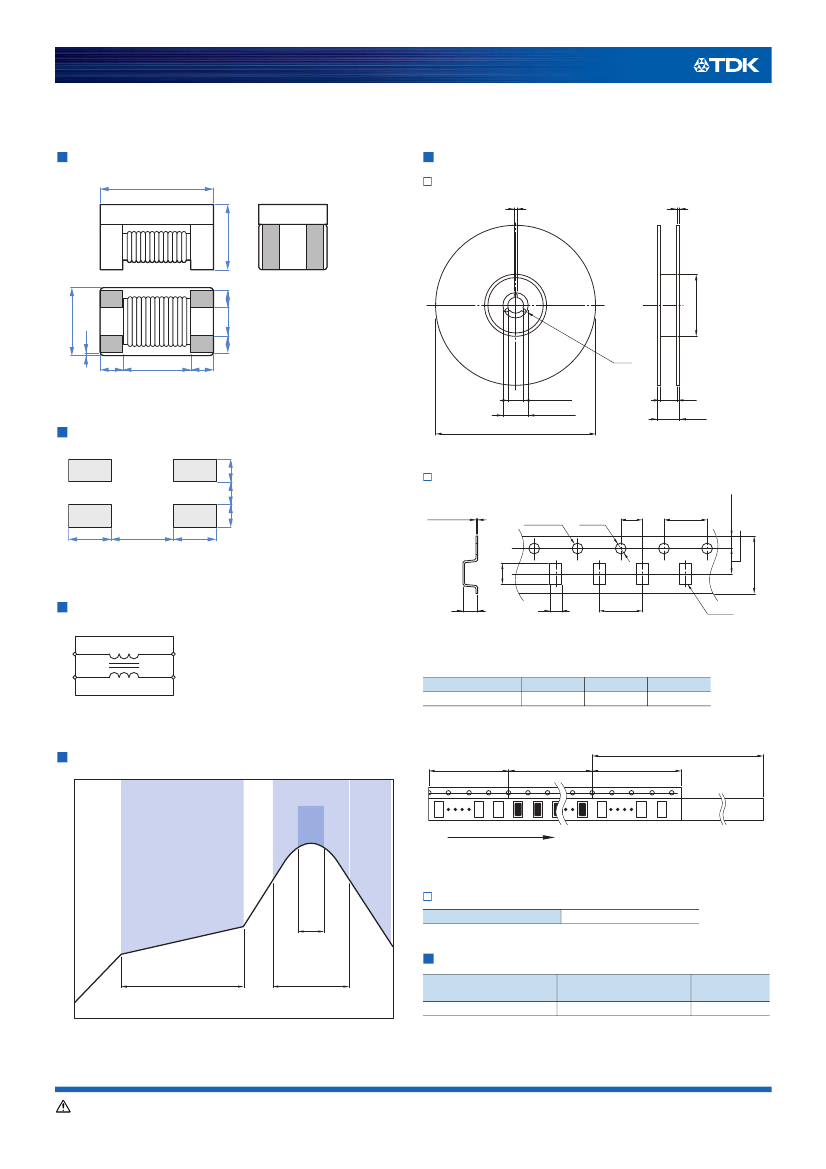

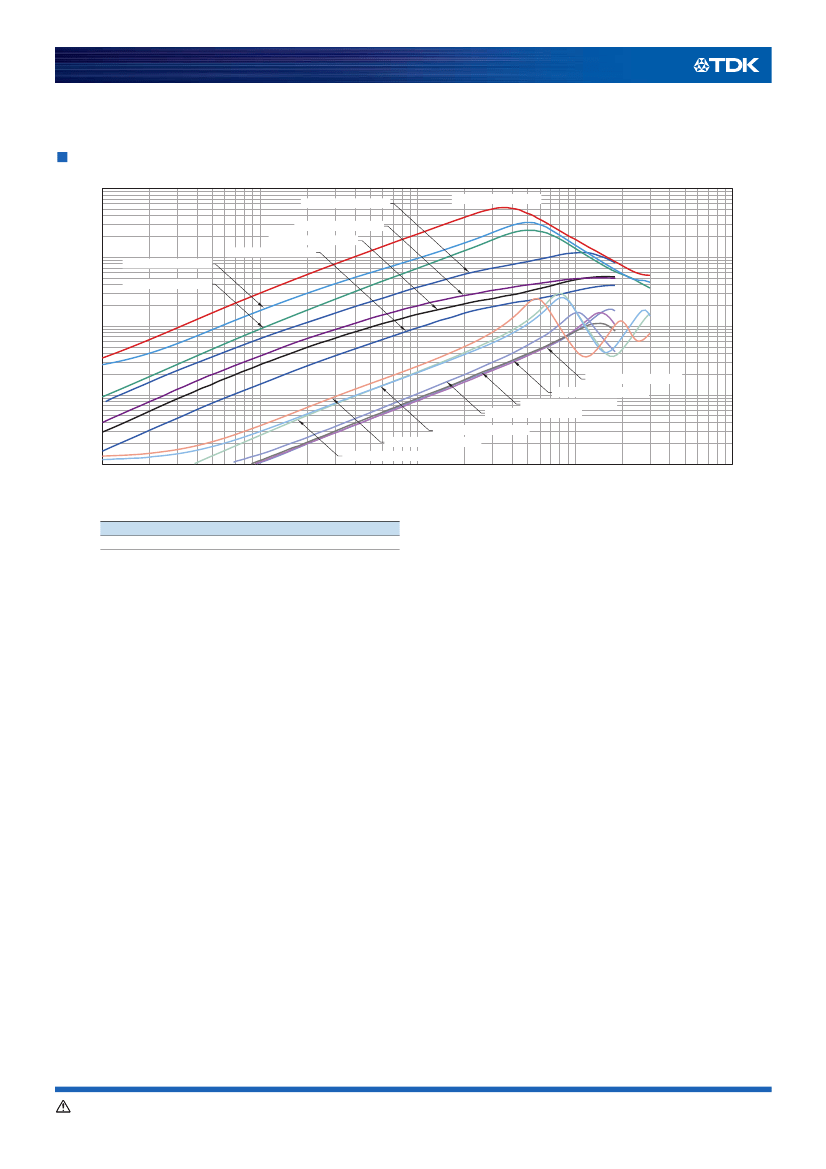

E M C
C o m p o n e n t s
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
SAFETY REMINDERS
Please pay sufficient attention to the warnings for safe designing when using this products.
REMINDERS
The storage period is less than 6 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or
less).
If the storage period elapses, the soldering of the terminal electrodes may deteriorate.
Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.).
Before soldering, be sure to preheat components.
The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature
does not exceed 150°C.
Soldering corrections after mounting should be within the range of the conditions determined in the specifications.
If overheated, a short circuit, performance deterioration, or lifespan shortening may occur.
When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to
the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions.
Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal
design.
Carefully lay out the coil for the circuit board design of the non-magnetic shield type.
A malfunction may occur due to magnetic interference.
Use a wrist band to discharge static electricity in your body through the grounding wire.
Do not expose the products to magnets or magnetic fields.
Do not use for a purpose outside of the contents regulated in the delivery specifications.
The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equip-
ment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equip-
ment, industrial robots) under a normal operation and use condition.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or qual-
ity require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society,
person or property.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in the each catalog, please contact us.
(1) Aerospace/aviation equipment
(2) Transportation equipment (electric trains, ships, etc.)
(3) Medical equipment
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing pro-
tection circuit/device or providing backup circuits in your equipment.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(4/4)
