Transient Voltage Suppressors
SMF Series
Working Voltage: 5.0 to
220
V
Peak Pulse Power: 200 W
Features
●
●
SOD-123
0.114 2.90
0.102 2.60
Glass passivated chip
200 W peak pulse power capability with a
10/1000 μs waveform, repetitive rate (duty
cycle):0.01 %
Low leakage
Uni and Bidirectional unit
Excellent clamping capability
Very fast response time
RoHS compliant
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Solderable per MIL-STD-750, method
2026
Polarity: Color band denotes cathode end
except Bipolar
Mounting position: Any
[
1.20
]
0.70
[ ]
0.075 1.90
0.063 1.60
[ ]
●
●
●
●
●
0.154 3.90
0.138 3.50
[ ]
0.051 1.30
0.037 0.95
Mechanical Data
●
●
●
[ ]
0.01 0.25
0.002 0.05
[ ]
0.039 1.00
0.023 0.60
[ ]
Dimensions : inch [ mm ]
●
●
Maximum Ratings(T
A
=25℃ unless otherwise noted)
Parameter
Peak power dissipation with a 10/1000μs waveform
(1)
Peak power dissipation with a 8/20μs waveform
(1)
Peak pulse current wih a 10/1000μs waveform
(1)
Power dissipation on infinite heatsink at T
L
= 75 °C
Peak forward surge current, 8.3 ms single half sine-
wave unidirectional only
(2)
Maximum instantaneous forward voltage at 25 A for
unidirectional only
Operating junction and storage temperature range
Note:
(1)Non-repetitive current pulse per Fig.5 and derated above T
A
= 25 °C per Fig.1
(2)Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum
Value
Symbol
P
PP
200
P
PP
1000
I
PP
See Next Table
P
D
0.4
I
FSM
V
F
T
J
, T
STG
20
3.5
–55 to +150
UNIT
W
W
A
W
A
V
°C
ht
t
p
:
//
Revision:20170701-P1
www.lgesemi
.c
o
m
mail:lge@lgesemi.com
Transient Voltage Suppressors
SMF Series
Electrical Characteristics(T
A
=25
Part Number Part Number
(Uni)
(Bi)
SMF5.0A
SMF6.0A
SMF6.5A
SMF7.0A
SMF7.5A
SMF8.0A
SMF8.5A
SMF9.0A
SMF10A
SMF11A
SMF12A
SMF13A
SMF14A
SMF15A
SMF16A
SMF17A
SMF18A
SMF19A
SMF20A
SMF22A
SMF24A
SMF26A
SMF28A
SMF30A
SMF33A
SMF36A
SMF40A
SMF43A
SMF45A
SMF48A
SMF51A
SMF54A
SMF58A
SMF60A
SMF64A
SMF70A
SMF75A
SMF78A
SMF80A
SMF85A
SMF90A
SMF100A
SMF110A
SMF120A
SMF130A
SMF140A
SMF150A
SMF160A
SMF170A
SMF180A
SMF190A
SMF200A
SMF220A
SMF5.0CA
SMF6.0CA
SMF6.5CA
SMF7.0CA
SMF7.5CA
SMF8.0CA
SMF8.5CA
SMF9.0CA
SMF10CA
SMF11CA
SMF12CA
SMF13CA
SMF14CA
SMF15CA
SMF16CA
SMF17CA
SMF18CA
SMF19CA
SMF20CA
SMF22CA
SMF24CA
SMF26CA
SMF28CA
SMF30CA
SMF33CA
SMF36CA
SMF40CA
SMF43CA
SMF45CA
SMF48CA
SMF51CA
SMF54CA
SMF58CA
SMF60CA
SMF64CA
SMF70CA
SMF75CA
SMF78CA
SMF80CA
SMF85CA
SMF90CA
SMF100CA
SMF110CA
SMF120CA
SMF130CA
SMF140CA
SMF150CA
SMF160CA
SMF170CA
SMF180CA
SMF190CA
SMF200CA
SMF220CA
Device
Marking
Code
Uni
FE
FG
FK
FM
FP
FR
FT
FV
FX
FZ
HE
HG
HK
HM
HP
HR
HT
HB
HV
HX
HZ
JE
JG
JK
JM
JP
JR
JT
JV
JX
JZ
XE
XG
XK
XM
XP
XR
XT
XB
XV
XX
XZ
TE
TG
TK
TB
TM
TP
TR
TT
TV
TX
TZ
Bi
KE
KG
KK
KM
KP
KR
KT
KV
KX
KZ
LE
LG
LK
LM
LP
LR
LT
LB
LV
LX
LZ
ME
MG
MK
MM
MP
MR
MT
MV
MX
MZ
NE
NG
NK
NM
NP
NR
NT
NB
NV
NX
NZ
PE
PG
PK
PB
PM
PP
PR
PT
PV
PX
PZ
unless otherwise noted)
Maximum Working
Maximum Maximum
Clamping
Breakdown Voltage V
BR
@I
T
Reverse Peak Reverse Reverse
Leakage I
R
Voltage
Surge
Voltage V
C
V
RWM
Current I
PP
@V
RWM
@I
PP
Min (V) Max (V) I
T
(mA)
(V)
(A)
(uA)
(V)
6.40
7.00
10
400
5.0
21.74
9.2
6.67
7.37
10
400
6.0
19.42
10.3
7.22
7.98
10
250
6.5
17.86
11.2
7.78
8.60
10
100
7.0
16.67
12.0
8.33
9.21
1
50
7.5
15.50
12.9
8.89
9.83
1
25
8.0
14.71
13.6
9.44
10.40
1
10
8.5
13.89
14.4
10.00
11.10
1
5
9.0
12.99
15.4
11.10
12.30
1
2.5
10.0
11.76
17.0
12.20
13.50
1
2.5
11.0
10.99
18.2
13.30
14.70
1
2.5
12.0
10.05
19.9
14.40
15.90
1
1
13.0
9.30
21.5
15.60
17.20
1
1
14.0
8.62
23.2
16.70
18.50
1
1
15.0
8.20
24.4
17.80
19.70
1
1
16.0
7.69
26.0
18.90
20.90
1
1
17.0
7.25
27.6
20.00
22.10
1
1
18.0
6.85
29.2
21.10
23.30
1
1
19.0
6.54
30.6
22.20
24.50
1
1
20.0
6.17
32.4
24.40
26.90
1
1
22.0
5.63
35.5
26.70
29.50
1
1
24.0
5.14
38.9
28.90
31.90
1
1
26.0
4.75
42.1
31.10
34.40
1
1
28.0
4.41
45.4
33.30
36.80
1
1
30.0
4.13
48.4
36.70
40.60
1
1
33.0
3.75
53.3
40.00
44.20
1
1
36.0
3.44
58.1
44.40
49.10
1
1
40.0
3.10
64.5
47.80
52.80
1
1
43.0
2.88
69.4
50.00
55.30
1
1
45.0
2.75
72.7
53.30
58.90
1
1
48.0
2.58
77.4
56.70
62.70
1
1
51.0
2.43
82.4
60.00
66.30
1
1
54.0
2.30
87.1
64.40
71.20
1
1
58.0
2.14
93.6
66.70
73.70
1
1
60.0
2.07
96.8
71.10
78.60
1
1
64.0
1.94
103.0
77.80
86.00
1
1
70.0
1.77
113.0
83.30
92.10
1
1
75.0
1.65
121.0
86.70
95.80
1
1
78.0
1.59
126.0
88.80
97.60
1
1
80.0
1.55
129.0
94.40
104.00
1
1
85.0
1.46
137.0
100.00
111.00
1
1
90.0
1.37
146.0
111.00
123.00
1
1
100.0
1.23
162.0
122.00
135.00
1
1
110.0
1.13
177.0
133.00
147.00
1
1
120.0
1.04
193.0
144.00
159.00
1
1
130.0
0.96
209.0
155.00
171.00
1
1
140.0
0.89
224.0
167.00
185.00
1
1
150.0
0.82
243.0
178.00
197.00
1
1
160.0
0.77
259.0
189.00
209.00
1
1
170.0
0.73
275.0
200.00
220.00
1
1
180.0
0.68
292.0
211.00
232.00
1
1
190.0
0.65
308.0
224.00
247.00
1
1
200.0
0.62
324.0
246.00
272.00
1
1
220.0
0.56
356.0
1. The available parts are "A" type only,the parts without A(V
BR
is ±10%) is not available
2. Add suffix 'C 'or ' CA ' after part number to specify Bi-directional devices
3. For Bi-Directional devices having V
R
of 10 volts and under, the I
R
limit is double
Note:
ht
t
p
:
//
Revision:20170701-P1
www.lgesemi
.c
o
m
mail:lge@lgesemi.com
Transient Voltage Suppressors

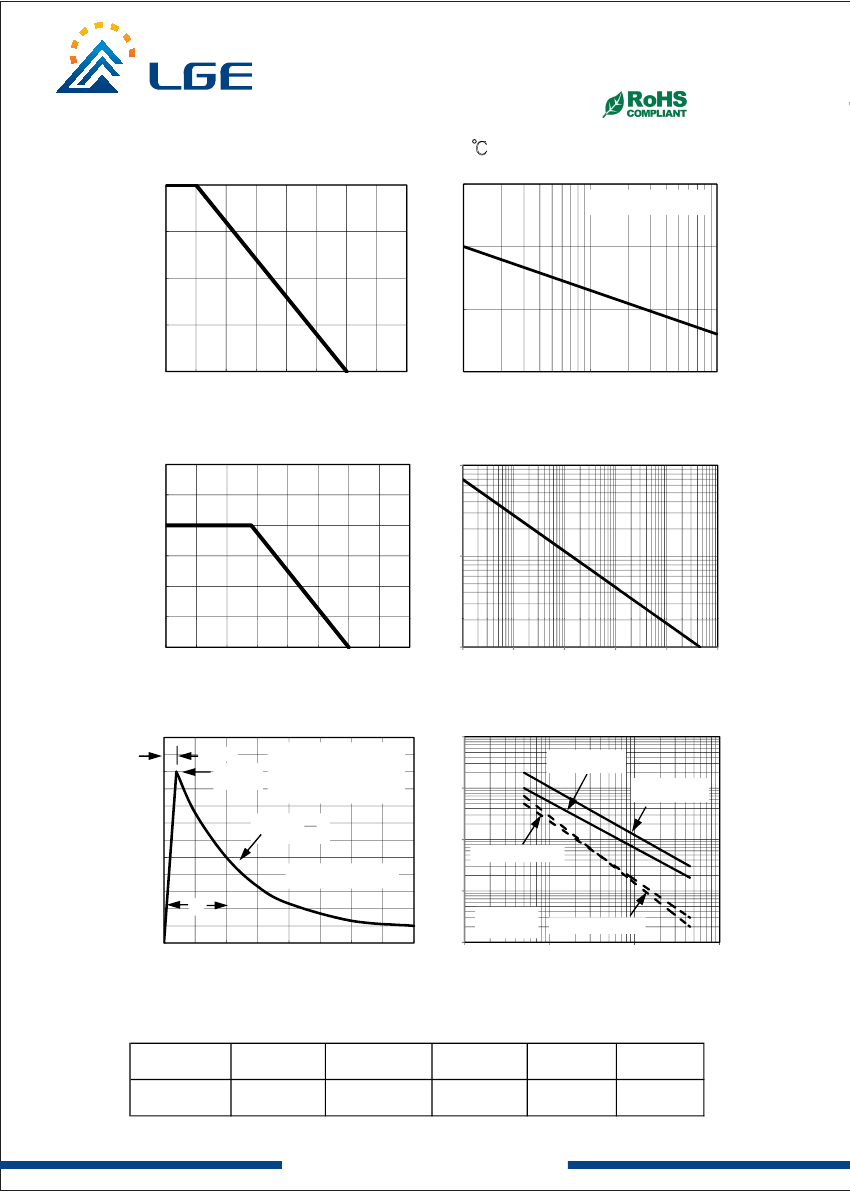

Ratings and Characteristics Curves (T
A
=25
Peak Pulse Derating in Percentage of Peak
Power or Current, (%)
SMF Series
unless otherwise noted)
1
20
T
J
= T
J
max.
6
8.3 ms Single Half Sine-Wave
AVERAGE FORWARD CURRENT, (A)
AMBIEN
100
0
25
75
30
Peak Forward Surge Current, (A)
100
100
0
150
100
20
50
10
25
0
0
25
50
75
100
125
150
175
200
0
1
10
Number of Cycles at 60 Hz
100
Ambient Temperature ,T
A
( )
Fig. 1 - Pulse Derating Curve
0.6
10
Fig. 2 - Maximum Non-Repetitive
Surge Current
0.1
4500
7
0.1
0
Stea
Steady State Power Dissipation, (W)
0.4
0
Peak Power (kW)
1
70
0.5
0.4
0.4
0.3
0.2
0.1
0.0
0.1
##
0
25
50
75
100
125
150
175
200
0.1
01
1
10
100
1000
10000
Lead Temperature , T
L
( )
Pulse Width ,t
d
( s)
Fig. 3 - Steady State Power Derating Curve
10000
Tr=10 s
100
Peak Pulse Current , (% )
Peak Value
(Ipp)
T
J
= 25 C
Pulse Width (td) is defined as the
point where the peak current decays
to 50
0
of Ipp
0
%
Fig. 4 - Peak Pulse Power Rating Curve
Bi-directional
@zero bias
1000
Junction Capacitance,C
J
(pF)
Uni-directional
@zero bias
50
td
0.2
100
0.5
Half Value = Ipp
76
1
2
50
1.5
33
10/1000 sec. Waveform
2
defined
23
R.E.A.
as
by
3
13
4
10
1
2
3
4
100
Uni-directional @V
RWM
10
T
J
=25 °C
f=1.0MHz
1
1
10
Bi-directional @V
RWM
100
1000
0
0
Time , (ms)
Reverse Breakdown Voltage,V
BR
(V)
Fig. 5 - Pulse Waveform
Fig. 6 - Typical Junction Capacitance
PACKAGE
SOD-123
SPQ/PCS
3000/REEL
CARTON
SPQ/PCS
90000
CARTON
SIZE/CM
40X20X22
CARTON
GW/KG
5.00
CARTON
NW/KG
4.00
ht
t
p
:
//
Revision:20170701-P1
www.lgesemi
.c
o
m
mail:lge@lgesemi.com
