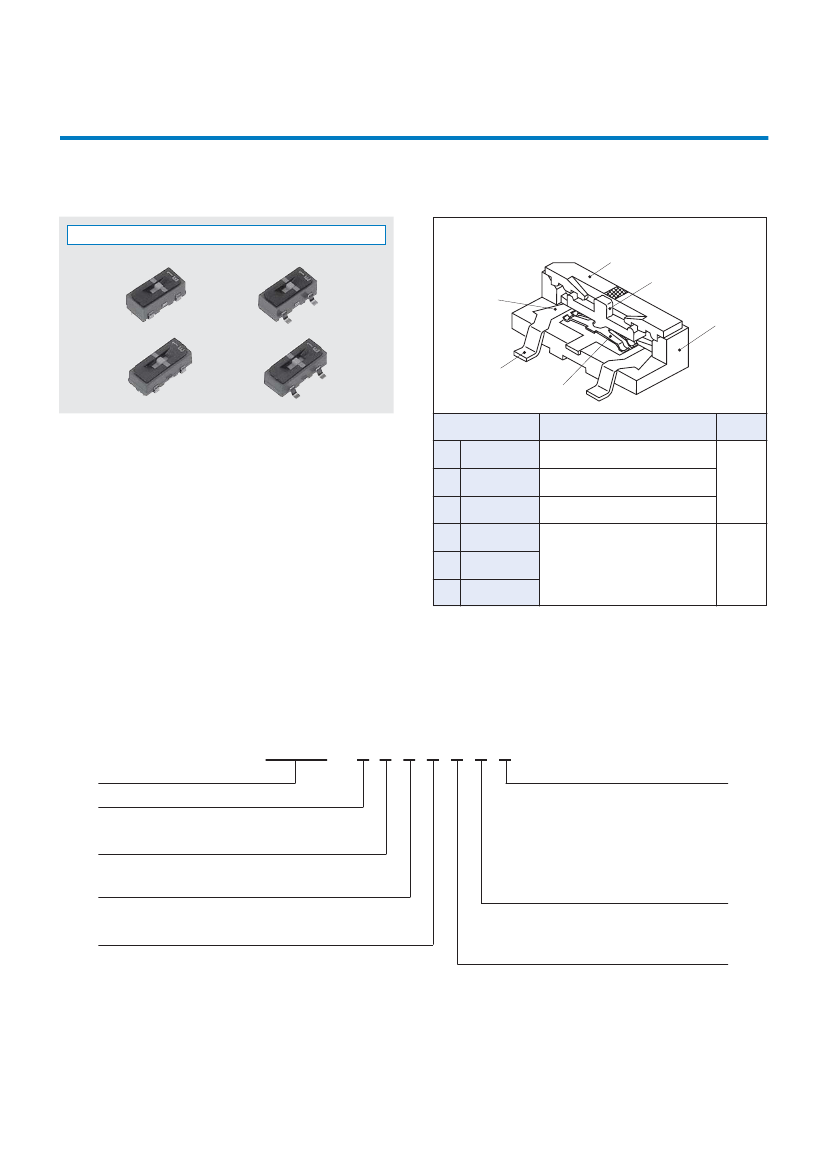

SLIDE SWITCHES (SMD)
CJS
INTERNAL STRUCTURE
①
②
⑤
③
RoHS compliant
⑥
④
Part name
Material
Polyphenylenesulphide
Polyamide
Polyphenylenesulphide
UL94V-0
Flammability
■
FEATURES
O
RoHS compliant
O
Easy to set slider with line marking
O
With neutral detent type lined up to 1 pole 2contacts
switch
O
Compatible with most automatic pick & place machinery
O
Compact and space saving SMD type
①
②
③
④
⑤
⑥
Cover
Slider
Housing
Slider contact
Fixed contact
Terminal pin
Copper alloy, Gold-plated
—
■
PART NUMBER DESIGNATION
C J S - 1 2 0 1 T B 1
Series name
No. of poles
1
：
1 pole
(SPDT)
Structure
1：
Non-washable type (Without seal tape)
Standard type
2：
Non-washable type (With seal tape)
Blank : Washable type (With seal tape)
No. of contacts
2
：
2 contacts
Setting position
0
：
Top setting
Shape of terminal
A
：
J-hook
B
：
Gull wing
Neutral detent
0
：
Without neutral detent
1
：
With neutral detent
Form of packaging
T
：
Taping (Reel)
Blank
：
Bulk in plastic bag
SPDT : Single Pole Double Throw
※
Please refer to the LIST OF PART NUMBERS when placing orders.
CJS
SLIDE SWITCHES (SMD)
■
LIST OF PART NUMBERS
No. of
poles
No. of
contacts
Setting
position
Neutral
detent
Form of
packaging
Non-washable type (Without seal tape)
Non-washable type (With seal tape)
Pieces in
package
A
(J-hook)
B
(Gull wing)
A
(J-hook)
B
(Gull wing)
Without
neutral
detent
Taping
Plastic bag
Taping
Plastic bag
CJS-1200TA1
CJS-1200A1
CJS-1201TA1
CJS-1201A1
CJS-1200TB1
CJS-1200B1
CJS-1201TB1
CJS-1201B1
CJS-1200TA2
CJS-1200A2
CJS-1201TA2
CJS-1201A2
CJS-1200TB2
CJS-1200B2
CJS-1201TB2
CJS-1201B2
1000pcs./reel
100pcs./pack
1000pcs./reel
100pcs./pack
1
2
Top setting
With
neutral
detent
No. of
poles
No. of
contacts
Setting
position
Neutral
detent
Form of
packaging
Washable type (With seal tape)
A
(J-hook)
B
(Gull wing)
Pieces in
package
Without
neutral
detent
Taping
Plastic bag
Taping
Plastic bag
CJS-1200TA
CJS-1200A
CJS-1201TA
CJS-1201A
CJS-1200TB
CJS-1200B
CJS-1201TB
CJS-1201B
1000pcs./reel
100pcs./pack
1000pcs./reel
100pcs./pack
1
2
Top setting
With
neutral
detent
※
Verify the above part numbers when placing orders.
Taping version can be supplied only in reel unit.
CJS
SLIDE SWITCHES (SMD)
■
STANDARD SPECIFICATIONS
Operating temp. range
−
40 ~ 85 °C
Storage temp. range
Sealing
Net weight
Washable type available with seal tape
Approx. 0.05g (CJS-1200)
Approx. 0.06g (CJS-1201)
■
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
Contact resistance
Insulation resistance
Dielectric strength
DC50 V 100 mA
DC6 V, 100 mA DC24 V, 25 mA
DC20 mV 1
μA
100 mΩ maximum
100 MΩ (DC100 V) minimum
AC250 V, 60 s
■
MECHANICAL CHARACTERISTICS
Operating force
Stop strength
Solderability
5.9 N {0.6 kgf} maximum
10 N {1.02 kgf}, 60 s
245
±
3 °C, 2 ~ 3 s
Reflow：255 °C (Peak temperature)
（Please
refer to the profile below）
■
ENVIRONMENTAL CHARACTERISTICS
Vibration
Shock
Load life
Humidity
High temp. exposure
Low temp. exposure
Thermal shock
(Amplitude) 1.5 mm or (Acceleration) 98 m/s
2
,
10-500 Hz, 3 directions for 10 cycles each
490 m/s
2
, 11 ms
6 directions for 3 times each
Continuous load 200 cycles,
DC6
±
0.5 V, 100
±
10 mA
−10
~ 65 °C, Relative humidity 0 ~ 96 %,
24 h for 10 cycles
85 °C, 96 h
−40
°C, 96 h
−40
(0.5 h) ~ 85 °C (0.5 h), 5 cycles
Soldering heat
Manual soldering：350
±
10 °C, 3 ~ 4 s
Shear (Adhesion)
Substrate bending
Pull-off strength
5 N {0.51 kgf} 10 s
Width 90 mm, bend 3 mm, 5 s, 1 time
5 N {0.51 kgf} 10 s
{ } : Reference only
〈
Reflow profile for soldering heat evaluation
〉
(C)
250
Temperature
200
150
100
50
Peak : 250
+5
0
C
Over 230 C
180 C
150 C
90 30 s
30 10 s
Heating time
Soldering Zone
Pre Heating Zone
Reflow : two times maximum
CJS
SLIDE SWITCHES (SMD)
■
OUTLINE DIMENSIONS
O
CJS-1200A1
3 – 0.6
+0.1
–0.05
Unless otherwise specified, tolerance :
±
0.3 (Unit : mm)
O
CJS-1200B1
3 – 0.6
Production date code
C
②
+0.1
–0.05
Production date code
C
②
2
–
C
2
0.
5
–
C
①
③
Terminal No.1
Terminal No.1
0.
5
①
③
Schematic
2.8
+0.3
0
2.5
0.3
Schematic
5.4
Stroke 0.6
5.4
Stroke 0.6
0.3
4.2
2.5
0.15
+0.1
–0.05
2.5 max.
0
–0.1
2.5 max.
0.1
O
CJS-1201A1
3 – 0.6
+0.1
–0.05
O
CJS-1201B1
3 – 0.6
Production date code
C
②
+0.1
–0.05
0.1
3.5
1.1
0
–0.1
3.5
0.15
+0.1
–0.05
0.4 min.
0.4 min.
Production date code
C
②
2
–
C
2
0.
5
–
C
①
③
Terminal No.1
Stroke
6
0.3
0.6
0.6
Terminal No.1
0.
5
①
③
Schematic
Stroke
2.8
+0.3
0
Schematic
6
0.3
0.6
0.6
4.2
2.5
2.5
0.15
+0.1
–0.05
2.5 max.
0
–0.1
2.5 max.
0.1
3.5
1.1
0
0.1
–0.1
3.5
0.15
+0.1
–0.05
0.4 min.
0.4 min.
■
RECOMMENDED P.C.B. PAD OUTLINE DIMENSIONS
1.3
A Type
1.6
3-1
B Type
3-1
(Unit : mm)
0.7
0
2.6
0
1.6
1.3
3.5
3.5
Note) The zero point is the center of mounting.
CJS
SLIDE SWITCHES (SMD)
■
PACKAGING SPECIFICATIONS
<Taping packaging specifications>
O
Taping version is packaged in 1000 pcs. per reel.
Orders will be accepted for units of 1000 pcs., i.e., 1000,
2000, 3000 pcs., etc.
O
Taping version is boxed with two reels (2000 pcs.).
Maximum number of consecutive missing pieces=2
Leader length and reel dimension are shown in the
diagrams below:
O
Embossed tape dimensions
O
Reel dimensions
(Unit: mm)
(Conforms to JIS C 0806)
17.4
±
1
Empty
Filled
Empty
φ
13±0.2
End
40 mm min.
Head
20 pitches min.
Leader
400 mm min.
Direction of feed
φ
21±0.8
21.4
±
1
O
CJS-1200TA□ , 1200TB□ , 1201TA□ , 1201TB□
1.75 0.1
(Unit: mm)
(Conforms to JIS C 0806)
φ
1.5
+0.1
0
8 0.1
4 0.1
2 0.1
0.3 0.1
7.5 0.1
(CJS-1200B1)
Installation example
16
Terminal No.1
3
Direction of feed
<Bulk pack specifications>
O
Boxing of bulk pack in a plastic bag is performed with
100 pcs. (standard 500 pcs.) per box.
φ
254
±
2
φ
50 min.
2±0.5
