LAMP
333-2UTC/S400-A6
Features
•Popular 5mm package
•High luminous power
•Typical chromaticity coordinates x=0.29, y=0.30
according to CIE1931
•Bulk, available taped on reel.
•The product itself will remain within RoHS compliant version
•Compliance with EU REACH
•Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
Description
•The series is designed for application required high luminous intensity.
•The phosphor filled in the reflector converts the blue emission of InGaN chip to ideal white.
Applications
•Message panels
•Optical Indicators
•Backlighting
•Marker Lights
1
Copyright © 2010, Everlight All Rights Reserved. Release Date :Dec 11. 2014. Issue No: DLE-0001289_Rev.2
Ver.:2
Release Date:12/16/2014
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
LAMP
333-2UTC/S400-A6
Device Selection Guide
Chip
Materials
InGaN
Emitted Color
White
Resin Color
White clear
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current (Duty 1/10 @ 1KHZ)
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Zener Reverse Current
Soldering Temperature
Symbol
IF
IFP
VR
Pd
T
opr
Tstg
I
z
T
sol
Rating
30
100
5
100
-40 ~ +85
-40 ~ +100
100
260
℃
for 5 sec.
Unit
mA
mA
V
mW
℃
℃
mA
2
Copyright © 2010, Everlight All Rights Reserved. Release Date :Dec 11. 2014. Issue No: DLE-0001289_Rev.2
Ver.:2
Release Date:12/16/2014
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
LAMP
333-2UTC/S400-A6
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Zener Reverse Voltage
Luminous Intensity
Viewing Angle
Chromaticity Coordinates
Symbol
VF
IR
VZ
IV
2θ1/2
Min.
2.8
-----
5.3
3600
----
----
----
Typ.
-----
-----
-----
----
15
0.29
0.30
Max.
3.6
50
7.1
9000
----
----
----
Unit
V
uA
V
mcd
deg
----
----
Condition
I
F
=20mA
VR=5V
Iz=5mA
I
F
=20mA
I
F
=20mA
IF=20mA
x
y
Measurement
Uncertainty of Luminous Intensity: ±10%
Bin Range of Luminous Intensity
Bin Code
Min.
Max.
Unit
Condition
Q
R
S
T
Note:
Tolerance of Luminous Intensity: ±10%
3600
4500
5650
7150
4500
5650
7150
9000
mcd
I
F
=20mA
Forward Voltage Combination
Bin Code
0
1
2
3
Min.
2.8
3.0
3.2
3.4
Max.
3.0
3.2
3.4
3.6
Unit
Condition
V
I
F
=20mA
Note:
Measurement Uncertainty of Forward Voltage：±0.1V
3
Copyright © 2010, Everlight All Rights Reserved. Release Date :Dec 11. 2014. Issue No: DLE-0001289_Rev.2
Ver.:2
Release Date:12/16/2014
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
LAMP
333-2UTC/S400-A6

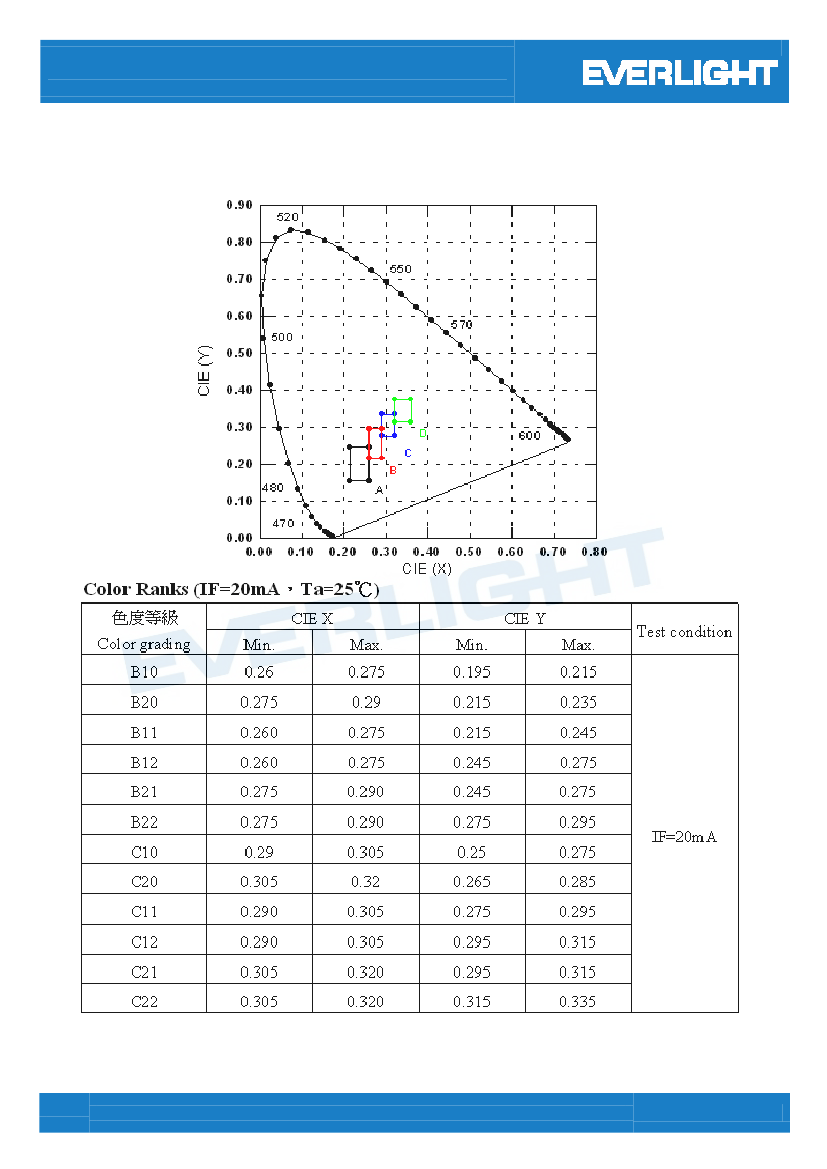

CIE Chromaticity Diagram
Note:
1. Measurement uncertainty of the color coordinates：±0.01
4
Copyright © 2010, Everlight All Rights Reserved. Release Date :Dec 11. 2014. Issue No: DLE-0001289_Rev.2
Ver.:2
Release Date:12/16/2014
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
LAMP
333-2UTC/S400-A6

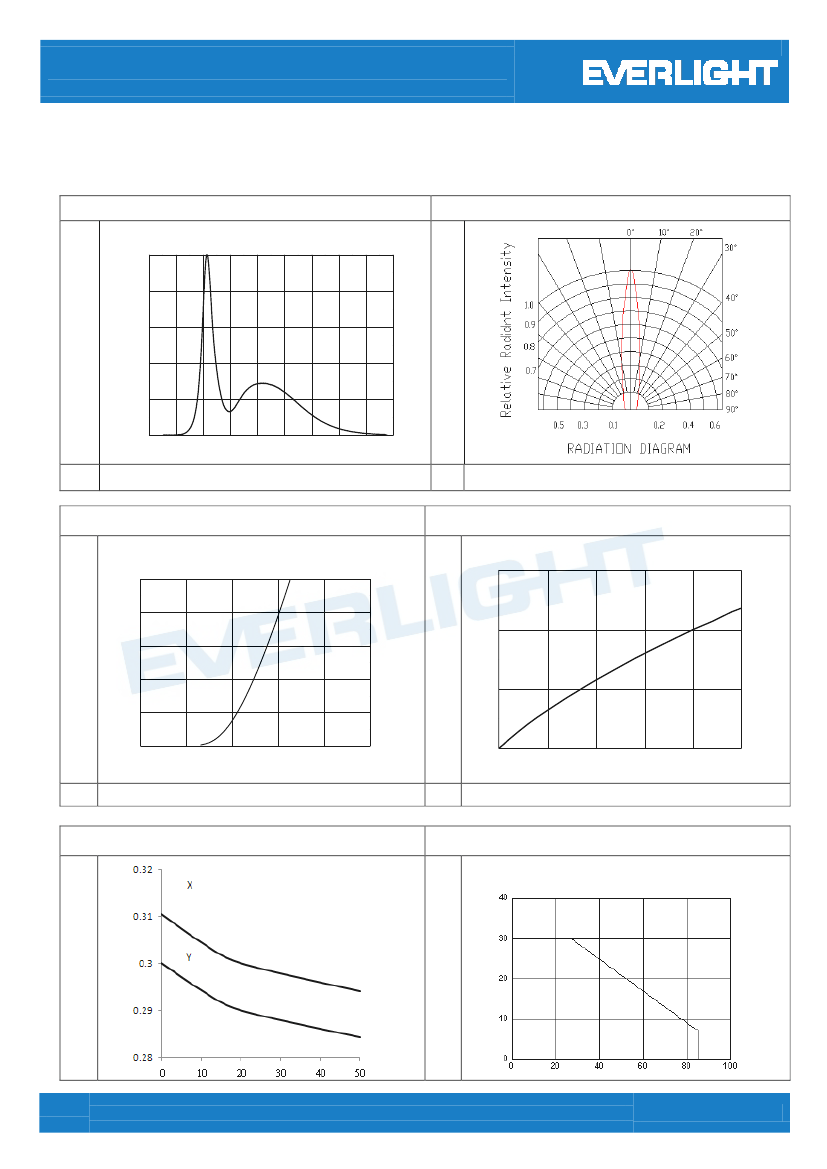

Typical Electro-Optical Characteristcs Curves
Relative Intensity vs. Wavelength (Ta=25℃)
Directivity (Ta=25℃)
1.0
Relative Intensity (a.u.)
Relative Intensity(a.u.)
0.6
0.4
0.2
0.0
350
400
450
500
550
600
650
700
750
800
Wavelength(nm)
Wavelength (nm)
Forward Current vs. Forward Voltage (Ta=25℃)
Radiation Angle
0.8
Relative Intensity (a.u.)
Relative Intensity vs. Forward Current (Ta=25℃)
25
20
15
10
5
0
2.0
1 .5
Relative Intensity(a.u.)
2.5
3.0
3.5
4.0
4.5
Forward Current (mA)
Forward Current(mA)
1 .0
0 .5
0 .0
0
5
10
15
20
25
Forward Voltage(V)
Forward Voltage (V)
Chromaticity Coordinate vs. Forward Current(Ta=25℃)
Forward Current (mA)
Forward Current vs. Ambient Temp.
5
Forward Current (mA)
Chromaticity Coordinate
