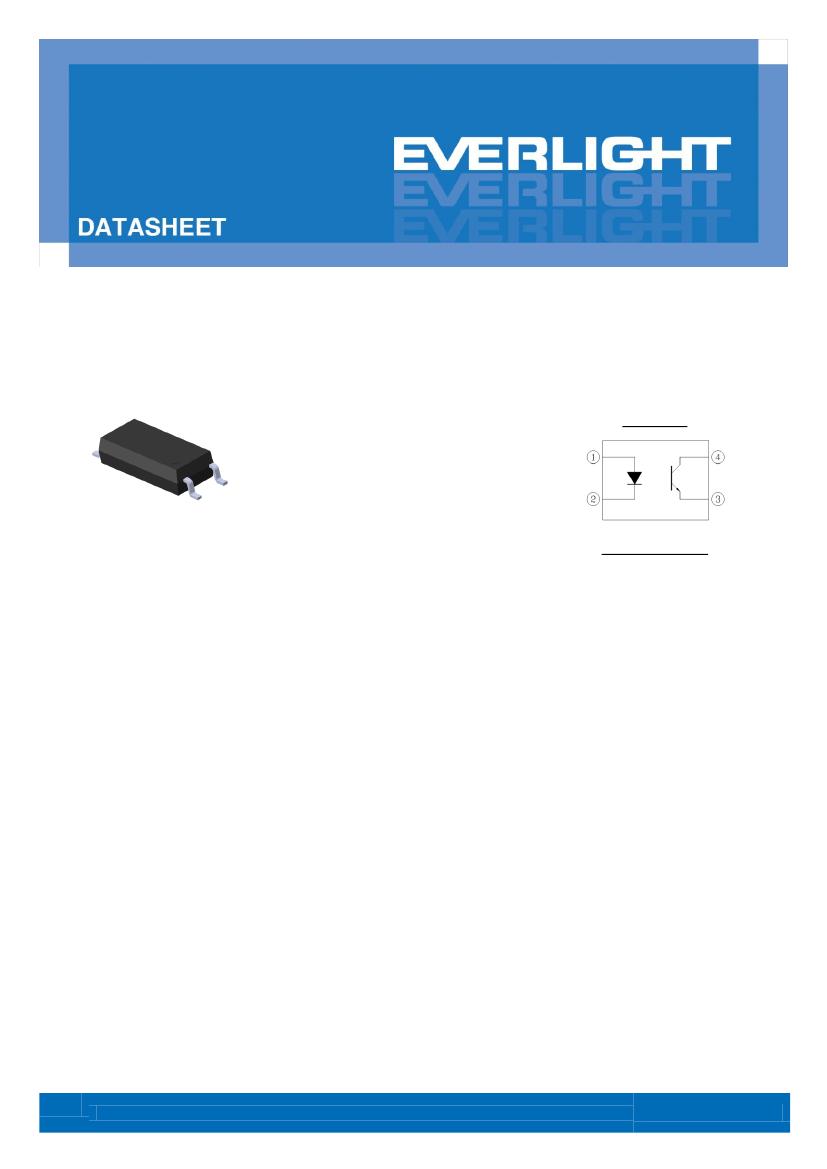

4 PIN LONG CREEPAGE SOP
PHOTOTRANSISTOR PHOTOCOUPLER
EL101X-G Series
Schematic
Features:
•
Free halogens compliant
•
Current transfer ratio
(CTR: 50~600% at I
F
=5mA, V
CE
=5V)
(CTR: 63~320% at I
F
=10mA, V
CE
=5V)
•
High isolation voltage between input
and output (Viso=5000 V rms )
•
Compact 4 Pin SOP with a 2.0 mm profile
•
8mm long creepage distance
•
Pb free and RoHS compliant.
•
UL approved (No. E214129)
•
VDE approved (No. 40028391)
•
SEMKO approved
•
NEMKO approved
•
DEMKO approved
•
FIMKO approved
Pin Configuration
1. Anode
2. Cathode
3. Emitter
4. Collector
Description
The EL101X-G series devices consist of an infrared emitting
diode, optically coupled to a phototransistor detector. Compound
use free halogens and Sb
2
O
3.
They are packaged in a 4-pin SOP package
Applications
Programmable controllers
System appliances, measuring instruments
Telecommunication equipments
Home appliances, such as fan heaters, etc.
Signal transmission between circuits of different potentials and impedances
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : August 24, 2013. Issue No: DPC-0000037 Rev.4
www.everlight.com
DATASHEET
4 PIN LONG CREEPAGE SOP
PHOTOTRANSISTOR PHOTOCOUPLER
EL101X-G Series
Absolute Maximum Ratings (Ta=25℃)
Parameter
Forward current
Peak forward current (1us, pulse)
Input
Reverse voltage
Power dissipation
Power dissipation
Collector current
Output
Collector-Emitter voltage
Emitter-Collector voltage
Total Power Dissipation
Isolation Voltage*
1
Symbol
I
F
I
FP
V
R
P
D
P
C
I
C
V
CEO
V
ECO
P
TOT
V
ISO
T
OPR
T
STG
Rating
60
1.5
6
100
150
50
80
7
250
5000
-55 to 110
-55 to 125
260
Unit
mA
A
V
mW
mW
mA
V
V
mW
Vrms
°C
°C
°C
Operating Temperature
Storage Temperature
Soldering Temperature*
2
T
SOL
Notes:
*1
AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2 are shorted together, and pins 3, 4 are shorted together.
*
2 For 10 seconds
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : August 24, 2013. Issue No: DPC-0000037 Rev.4
www.everlight.com
DATASHEET
4 PIN LONG CREEPAGE SOP
PHOTOTRANSISTOR PHOTOCOUPLER
EL101X-G Series
Electro-Optical Characteristics (Ta=25℃ unless specified otherwise)
Input
Parameter
Forward Voltage
Reverse current
Input capacitance
Symbol
V
F
Min.
-
-
-
Typ.
1.45
-
50
Max.
1.5
10
-
Unit
V
µA
pF
Condition
I
F
=50mA
V
R
= 6V
V = 0, f = 1kHz
I
R
C
in
Output
Parameter
Collector-Emitter dark
current
Collector-Emitter
breakdown voltage
Emitter-Collector
breakdown voltage
Symbol
I
CEO
BV
CEO
BV
ECO
Min
-
80
7
Typ.
-
-
-
Max.
100
-
-
Unit
nA
V
V
Condition
V
CE
= 20V, I
F
= 0mA
I
C
= 0.1mA
I
E
= 0.1mA
Transfer Characteristics
Parameter
EL1010
EL1017
CTR
EL1018
EL1019
Current
Transfer
ratio
EL1012
EL1013
EL1014
CTR
EL1012
EL1013
EL1014
Collector-Emitter
saturation voltage
Isolation resistance
Floating capacitance
V
CE(sat)
R
IO
C
IO
22
34
56
-
5×10
-
10
Symbol
Min
50
80
130
200
63
100
160
Typ.
-
-
-
-
-
-
-
-
-
-
-
-
-
Max.
600
160
Unit
Condition
%
260
400
125
200
320
%
-
-
-
0.3
-
1.0
V
pF
I
F
= 5mA ,V
CE
= 5V
I
F
= 10mA ,V
CE
= 5V
I
F
= 1mA ,V
CE
= 5V
I
F
=10mA ,I
C
= 1mA
V
IO
= 500Vdc,
40~60% R.H.
V
IO
= 0, f = 1MHz
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : August 24, 2013. Issue No: DPC-0000037 Rev.4
www.everlight.com
DATASHEET
4 PIN LONG CREEPAGE SOP
PHOTOTRANSISTOR PHOTOCOUPLER
EL101X-G Series
Transfer Characteristics
Parameter
Turn on time
Turn off time
Rise time
Fall time
* Typical values at T
a
= 25°C
Symbol
Ton
Toff
t
r
t
f
Min
-
-
-
-
Typ.
4
3
2
3
Max.
-
µs
-
18
µs
18
Unit
Condition
V
CE
= 5V, I
C
= 5mA,
R
L
= 100
V
CE
= 5V, I
C
= 5mA,
R
L
= 100
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : August 24, 2013. Issue No: DPC-0000037 Rev.4
www.everlight.com
DATASHEET
4 PIN LONG CREEPAGE SOP
PHOTOTRANSISTOR PHOTOCOUPLER
EL101X-G Series

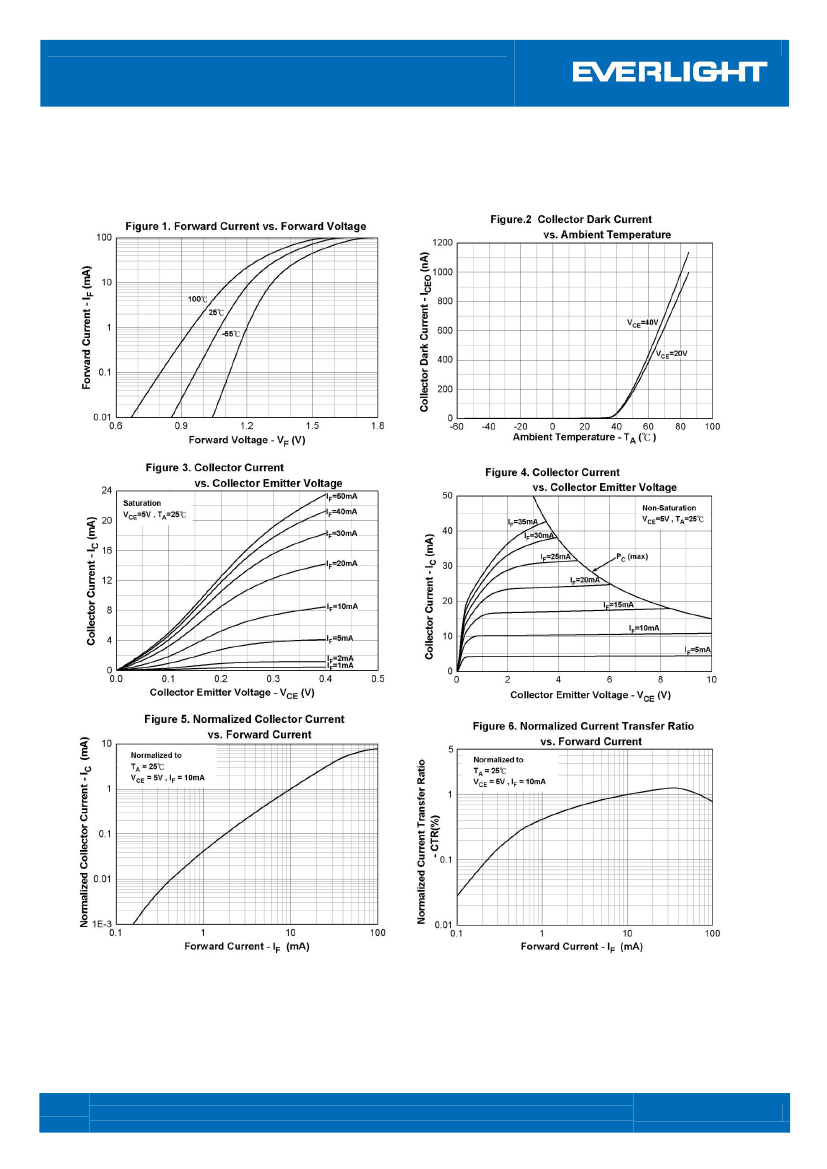

Typical Electro-Optical Characteristics Curves
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : August 24, 2013. Issue No: DPC-0000037 Rev.4
www.everlight.com
