DATASHEET
ELCH08-NB5565J6J7283910-F1S(FUT)
ELCH08-NB5565J6J7283910-F1S(FUT)

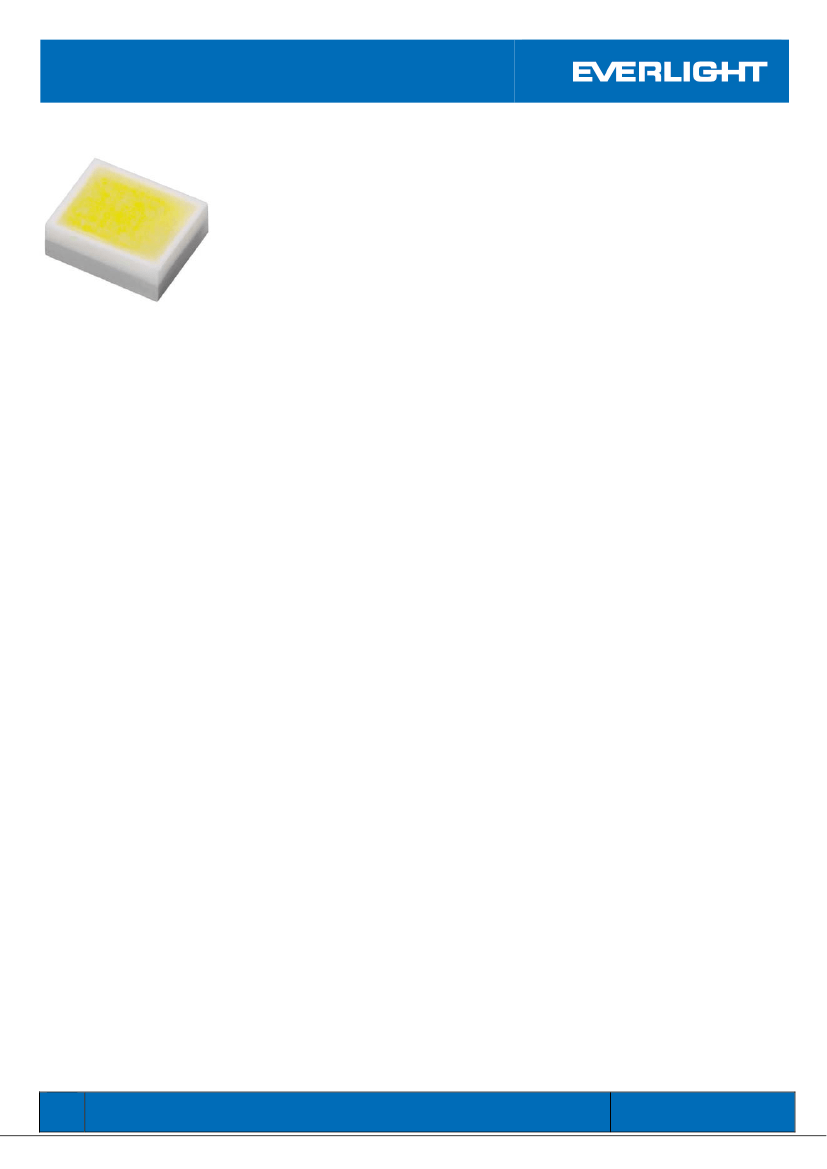

Features
• Feature of the device:small package with high efficiency
•
Typical luminous flux@ 1A:250 lm
• Optical efficiency@1A:73.53 lm/W
• ESD protection (according to JEDEC 3b) (HBM air or contact discharge)up to 8KV
• Binning Parameters:Brightness, Forward Voltage and Chromaticity
• Grouping parameter: total luminous flux, color coordinates.
• RoHS compliant & Pb free.
Applications
• Mobile Phone Camera Flash(Camera flash light /strobe light for mobile devices )
• Torch light for DV(Digital Video) application
• Indoor lighting applications
• Signal and symbol luminaries for orientation maker lights (e.g. steps, exit ways, etc.)
• TFT backlighting
• Exterior and interior illumination applications
• Decorative and Entertainment Lighting
• Exterior and interior automotive illumination
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : Mar.27.2015
Issue No: DHE-0002755
www.everlight.com
DATASHEET
ELCH08-NB5565J6J7283910-F1S(FUT)
Device Selection Guide
Chip Materials
InGaN
Emitted Color
Cool White
Absolute Maximum Ratings
Parameter
DC Forward Current (Torch Mode)
Peak Pulse Current
(400 ms on / 3600 ms off / 30000 cycle )
ESD Resistance (JEDEC 3b)
Reverse Voltage
Junction Temperature
Operating Temperature
Storage Temperature
Soldering Temperature
Allowable Reflow Cycles
Substrate Temperature
Viewing Angle
(2)
Power Dissipation (Pulse Mode)
Notes:
1.
2.
3.
4.
5.
6.
7.
The CHIN series LEDs are not designed for reverse bias used.
View angle measurement tolerance±5°
Avoid operating CHIN series LEDs at maximum operating temperature exceed 1 hour.
All specification are assured by reliability test for 1000hr, IV degradation less than 30%.
All reliability items are tested under good thermal management with 1.0x 1.0 cm2
MCPCB.
Peak pulse current shall be applied under conditions as max duration time 400ms and max duty cycle 10%
Operate LED component at maximum rating conditions continuously will cause possible permanent damage and
de-rating parameters. Exercise multiple maximum rating parameters simultaneously should not be allowed. When
maximum rating parameters are applied over a long period will result potential reliability issue.
Symbol
I
F
I
Pulse
V
B
V
R
TJ
T
Opr
T
Stg
T
Sol
n/a
T
s
2θ
1/2
P
d
Rating
350
1500
8000
Note 1
150
-40 ~ +85
-40 ~ +100
260
2
70(IF=1000mA)
120
6.5
Unit
mA
mA
V
V
℃
℃
℃
℃
Cycles
℃
Deg
W
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : Mar.27.2015
Issue No: DHE-0002755
www.everlight.com
DATASHEET
ELCH08-NB5565J6J7283910-F1S(FUT)
JEDEC Moisture Sensitivity
Floor Life
Level
Time ( hours )
1
Unlimited
Conditions
≦30℃
/ 85% RH
Time ( hours )
168 (+5/-0)
Conditions
85℃ / 85% RH
Soak Requirements Standard
Electro-Optical Characteristics (Ts=25℃)
Parameter
Luminous Flux
(1)
Forward Voltage
(2)(3)
Color Temperature
Symbol
Iv
V
F
CCT
Min.
220
2.85
5500
Typ.
250
----
6000
Max.
----
3.95
6500
Unit
lm
V
K
I
F
=1000mA
Condition
Forward Voltage Binning
Bin
2832
3235
3539
Symbol
V
F
V
F
V
F
Min.
2.85
3.25
3.55
Typ.
----
----
----
Max.
3.25
3.55
3.95
V
I
F
=1000mA
Unit
Condition
Luminous Flux Binning
Bin
J6
J7
Symbol
Iv
Iv
Min.
220
250
Typ.
----
----
Max.
250
300
Unit
lm
Condition
I
F
=1000mA
Notes:
1.
2.
3.
4.
5.
Luminous Flux, illuminance measurement tolerance:±10%
Forward voltage measurement tolerance:±0.1V
Electric and optical data is tested at 50 ms pulse condition.
Low current voltage measurement tolerance: ±10%
Temperature of solder pad
:
25℃
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : Mar.27.2015
Issue No: DHE-0002755
www.everlight.com
DATASHEET
ELCH08-NB5565J6J7283910-F1S(FUT)
Cool White Bin Structure
0.40
0.38
5500
0.36
6500
0.34
CIE-Y
y
0.32
0.30
0.28
0.28
0.30
0.32
0.34
0.36
0.38
0.40
x
CIE-X
Bin
CIE-X
0.3330
CIE-Y
0.3727
0.3511
0.2989
0.3129
Reference Range
5565
0.3097
0.3170
0.3325
5500K ~ 6500K
Notes:
1.
2.
Color coordinates measurement allowance:±0.01
Color bins are defined at IF=1000mA operation.
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : Mar.27.2015
Issue No: DHE-0002755
www.everlight.com
