IMP3223
Key Features
·
Floating channel designed for bootstrap operation
·
Fully operational to +200V
·
Tolerant to negative transient voltage dV/dt immune
·
Gate drive supply range from 10 to 20V
·
Undervoltage lockout
·
3.3V, 5V and 15V input logic compatible
·
Cross-conduction prevention logic
·
Matched propagation delay for both channels
·
Internally set deadtime
·
High side output in phase with HIN input
·
Low side output in phase with LIN input
HALF-BRIDGE DRIVE
General Description
The IMP3223 is high voltage, high speed
power MOSFET and IGBT driver with de-
pendent high and low side referenced output
channels. Proprietary HVIC and latch immune
CMOS technologies enable ruggedized mono-
lithic construction. The logic input is compati-
ble with standard CMOS or LSTTL output,
down to 3.3V logic. The output drivers feature a
high pulse current buffer stage designed for
minimum driver cross-conduction. The floating
channel can be used to drive an N-channel
power MOSFET or IGBT in the high side con-
figuration which operates up to 200 volts.

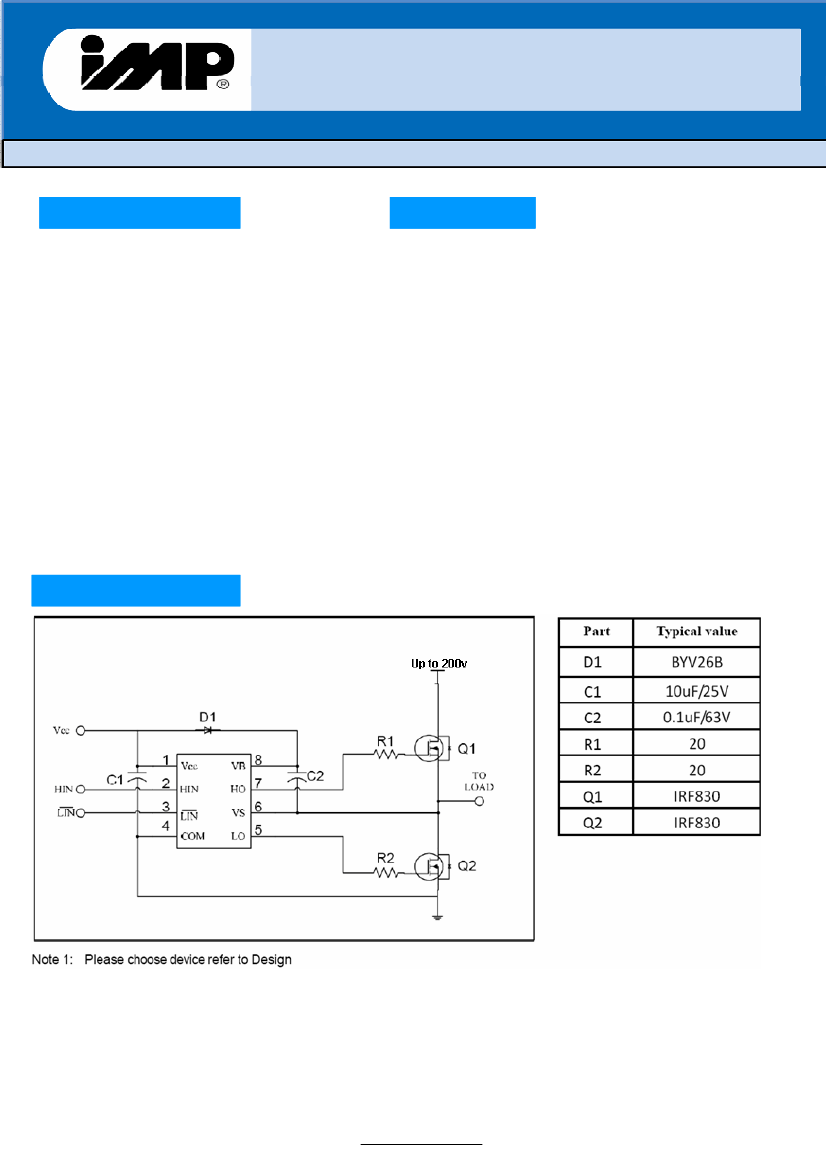

Typical Application
Daily Silver IMP
www.ds-imp.com.cn
1
ISO 9001 System Registered
IMP3223
HALF-BRIDGE DRIVE
Pin Assignments
Vcc
HIN
LIN
COM
VB
HO
VS
LO
Pin Function
Number
Symbol
Description
1
2
3
4
5
6
7
8
VCC
HIN
LIN
COM
LO
VS
HO
VB
Low side and logic fixed supply
Logic input for high side gate driver outputs (HO), in phase
Logic input for low side gate driver outputs (LO), out of phase
Low side return
Low side gate drive output
High side floating supply return
High side gate drive output
High side floating supply
Daily Silver IMP
www.ds-imp.com.cn
2
ISO 9001 System Registered
IMP3223
HALF-BRIDGE DRIVE
Absolute Maximum Ratings
Absolute maximum ratings indicate sustained limits beyond which damage to the device may
occur. All voltage parameters are absolute voltages referenced to COM. The thermal resistance
and power dissipation ratings are measured under board mounted and still air conditions.
Symbol
VB
VS
VHO
VLO
Vcc
VIN
dVS/dt
Definition
High side floating absolute voltage
High side floating supply offset voltage
High side floating output voltage
Low side output voltage
Low side and logic fixed supply voltage
Logic input voltage (HIN & LIN )
Allowable offset supply voltage transient
Package power dissipation @ TA
£
+25°C
，DIP-8
P
D
Package power dissipation @ TA
£
+25°C
，SOP-8
Package power dissipation @ TA
£
+25°C
，MSOP-8
Thermal resistance, junction to ambient
，DIP-8
Rth
JA
Thermal resistance, junction to ambient
，SOP-8
Thermal resistance, junction to ambient
，MSOP-8
T
A
TS
TL
Operating temperature range
Storage temperature
Lead temperature (soldering, 10 seconds)
-40
-55
Min.
-0.3
VB-25
VS-0.3
-0.3
-0.3
-0.3
－
Max.
225
VB+0.3
VB+0.3
VCC+0.3
25
Vcc+0.3
50
0.8
0.5
0.45
125
200
220
125
150
300
°C
°C/W
W
V
V
V/ns
Units
V
Recommended Operating Conditions
The Input/Output logic timing diagram is shown in Figure 1. For proper operation the device should
be used within the recommended conditions. The VS offset rating is tested with all supplies biased at
15V differential.
Symbol
VB
VS
VHO
VCC
VLO
VIN
T
A
Definition
High side floating supply absolute voltage
High side floating supply offset voltage
High side floating output voltage
Low side and logic fixed supply voltage
Low side output voltage
Logic input voltage (HIN&LIN )
Operating temperature range
www.ds-imp.com.cn
Min.
VS + 10
-0.3
VS
10
0
0
-25
Max.
VS + 20
200
VB
20
VCC
VCC
125
V
V
V
°C
3
V
Units
Daily Silver IMP
ISO 9001 System Registered
IMP3223
HALF-BRIDGE DRIVE
Block Diagram
Electrical Characteristic
V
CC
= V
BS
= V
BIAS
= 15V, CL＝1000pF，TA = 25°C , unless otherwise specified.
Symbol
ton
toff
tr
tf
DT
MT
Definition
Turn-on propagation delay
Turn-off propagation delay
Turn-on rise time
Turn-off fall time
Deadtime, LS turn-off to HS turn-on &
HS turn-on to LS turn-off
Delay matching, HS & LS turn-on/off
Min. Typ. Max. Units Test Conditions
—
680 820
VS = 0V
—
150 220
VS = 200V
—
100 170
ns
—
50
90
400 520 650
—
—
60
Daily Silver IMP
www.ds-imp.com.cn
4
ISO 9001 System Registered
IMP3223
HALF-BRIDGE DRIVE
Electrical Characteristic
V
CC
= V
BS
= V
BIAS
= 15V，TA = 25°C
，
unless otherwise specified.
Symbol
VIH
VIL
VOH
VOL
ILK
IQBS
IQCC
IIN+
IIN-
VCCUV+
VCCUV-
IO+
IO-
Definition
Logic
“1”
(HO) & Logic
“0”
(LO) input
voltage
Logic
“0”
(HO) & Logic
“1”
(LO) input
voltage
High level output voltage, VBIAS - VO
Low level output voltage, VO
Offset supply leakage current
Quiescent VBS supply current
Quiescent VCC supply current
Logic
“1”
input bias current
Logic
“0”
input bias current
VCC supply undervoltage positive going
threshold
VCC supply undervoltage negative going
threshold
Output high short circuit pulsed current
Output low short circuit pulsed current
Min.
3
－
－
－
－
－
－
－
－
8
7.4
130
270
Typ.
－
－
－
－
－
30
150
3
－
8.9
8.2
210
360
Max.
－
V
0.8
100
100
50
50
270
10
1
9.8
V
9
－
mA
－
Vo＝0V，VIN＝VIL
PW≦10us
Vo＝0V，VIN＝VIL
PW≦10us
uA
mV
VCC＝10V—20V
Io＝0A
Io＝0A
VB＝VS＝200V
Vin＝0V或5V
Vin＝0V或5V
HIN＝5V，LIN＝0V
HIN＝0V，LIN＝5V
Units
Test Conditions
VCC＝10V—20V
Daily Silver IMP
www.ds-imp.com.cn
5
