VRB4805XD-10WR2: DescriptionNumber of voltage output groups: 1 Maximum input voltage: 75V Output voltage: 5V Output current (maximum value/full load): 2A DC-DC module, input range: 36V~75V, single group output: 5V/2000mA; CategoryPower/power management DC - DC power supply module; File Size2MB，6 Pages; ManufacturerMORNSUN; Websitehttp://www.mornsun-power.com

Download Datasheet Parametric Compare View All

VRB4805XD-10WR2 Overview

Number of voltage output groups: 1 Maximum input voltage: 75V Output voltage: 5V Output current (maximum value/full load): 2A DC-DC module, input range: 36V~75V, single group output: 5V/2000mA

VRB4805XD-10WR2 Parametric

Parameter Name	Attribute value
Power module type	Isolated Module
Number of voltage output groups	1
Conversion efficiency	82%
Minimum input voltage	36V
Maximum input voltage	75V
Isolation voltage	1.5kVDC
Total output power	10W
The output voltage	5V
Output current (max/full load)	2A

Preview

Download Datasheet

View All

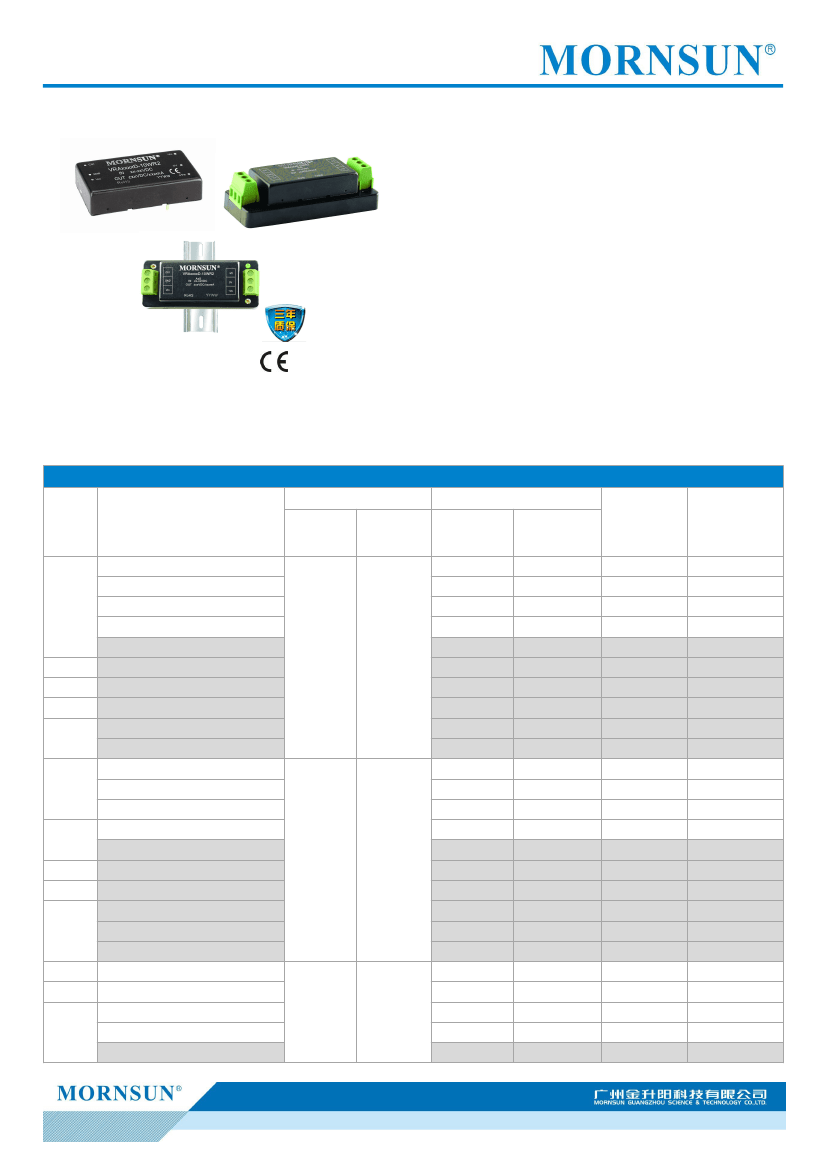

DC/DC

模块电源

VRA_(X)D-10WR2 & VRB_(X)D-10WR2

系列

10W，½电压输入，隔离稳压

DC/DC

模块电源

产品特点



½输入电压范围（2:1）

效率高达

90%

隔离电压

1500VDC

输出过压保护、短路保护

工½温度：-40℃½+85℃

金属六面屏½封装

A2S（接线式）和 A4S（导½式）产品型号具有输入

防反接功½

裸机满足

CISPR22/EN55022 CLASS A

通过

EN60950

认证

½际标准引脚方式

专利保护

RoHS

VRA_(X)D-10WR2 & VRB_(X)D-10WR2

系列产品输出功率为

10W，2:1

超½电压输入范围，效率高达

90%，1500VDC

的常规隔离电

压，允许工½温度--40℃~+85℃，输出过压保护，输出短路保护功½，裸机满足

CISPR22/EN55022 CLASS A，产品型号中包含 XD

表

示不带

Ctrl

引脚功½，只包含

表示带

Ctrl

引脚功½，A2S 和

A4S

封装拓展系列具有输入防反接保护，广泛应用于电池供电设备、

工控、电力、仪器仪表、通信等领域。

选型表

输入电压

(VDC)

认证

产品型号

①

输出

②

③

标称值

（范围值）

最大值

输出电压

(VDC)

±5

±12

±15

±24

3.3

±5

±12

±15

±24

3.3

±5

±12

输出电流

(mA)

(Max./Min.)

±1000/±50

±416/±21

±333/±16

±208/±10

2400/120

2000/100

1111/55

833/42

667/33

416/21

±1000/±50

±416/±21

±333/±16

±208/±10

2400/120

2000/100

1111/55

833/42

667/33

416/21

±1000/±50

±416/±21

±333/±16

±208/±10

2400/120

效率

④

(%,Min./Typ.

最大容性负½½

)

(µF)

@满½½

80/82

84/86

85/87

75/77

80/82

83/85

84/86

85/87

86/88

81/83

84/86

86/88

85/87

75/77

82/84

84/86

86/88

88/90

85/87

81/83

86/88

87/89

86/88

76/78

680

220

100

2200

470

220

100

680

330

220

100

2200

470

680

330

100

680

470

220

100

2200

VRA1205(X)D-10WR2

VRA1212(X)D-10WR2

VRA1215(X)D-10WR2

VRA1224(X)D-10WR2

VRB1203(X)D-10WR2

VRB1205(X)D-10WR2

VRB1209XD-10WR2

VRB1212(X)D-10WR2

VRB1215(X)D-10WR2

VRB1224(X)D-10WR2

VRA2405(X)D-10WR2

VRA2412(X)D-10WR2

VRA2415(X)D-10WR2

VRA2424(X)D-10WR2

VRB2403(X)D-10WR2

VRB2405(X)D-10WR2

VRB2409XD-10WR2

VRB2412(X)D-10WR2

VRB2415(X)D-10WR2

VRB2424(X)D-10WR2

VRA4805(X)D-10WR2

VRA4812(X)D-10WR2

VRA4815(X)D-10WR2

VRA4824(X)D-10WR2

VRB4803(X)D-10WR2

(36-75)

(18-36)

(9-18)

±15

±24

3.3

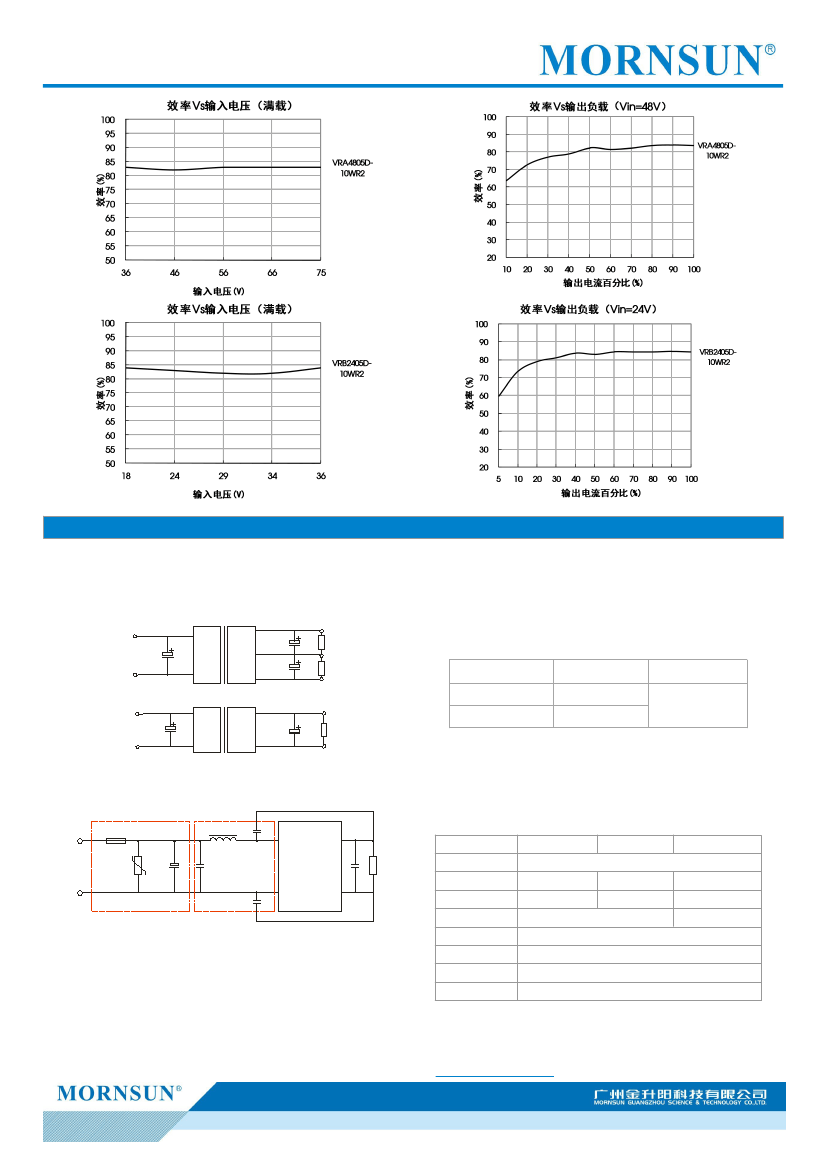

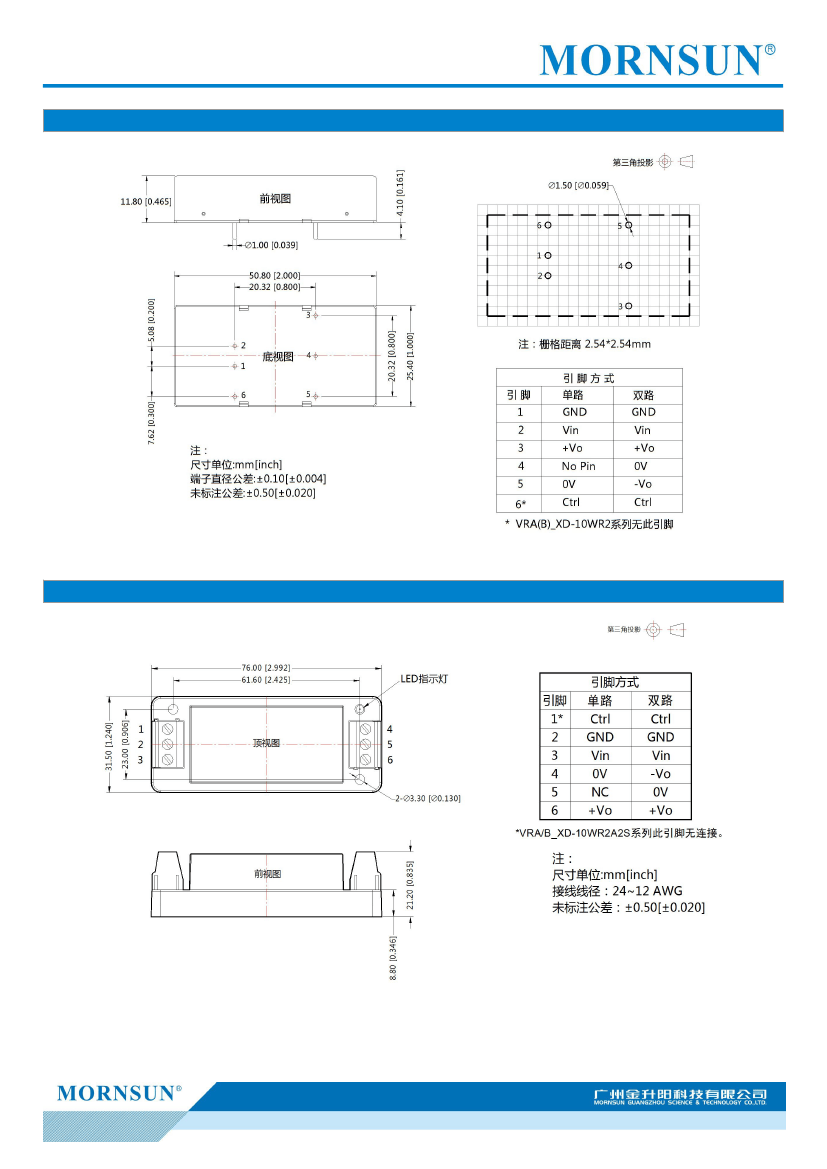

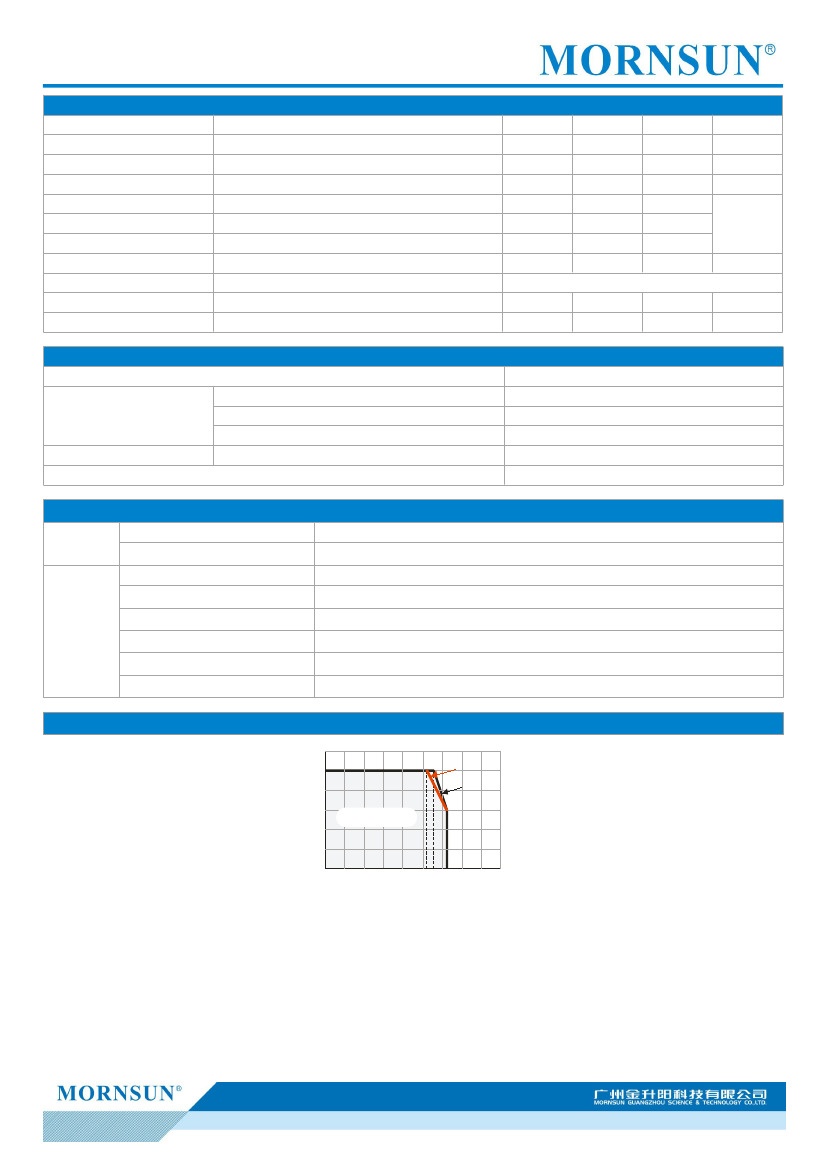

2016.01.13-B/4

第

页共

页

该版权及产品最终解释权½广州金升阳科技有限公司所有

VRB4805XD-10WR2 Related Products

	VRB4805XD-10WR2	VRB2405XD-10WR2	VRB2412XD-10WR2
Description	Number of voltage output groups: 1 Maximum input voltage: 75V Output voltage: 5V Output current (maximum value/full load): 2A DC-DC module, input range: 36V~75V, single group output: 5V/2000mA	DC-DC Regulated Power Supply Module	DC-DC Regulated Power Supply Module
Minimum input voltage	36V	18 V	18 V
Maximum input voltage	75V	36 V	36 V
Is it Rohs certified?	-	conform to	conform to
Objectid	-	8191995464	8191995494
package instruction	-	, MODULE,4LEAD,.8	, MODULE,4LEAD,.8
Reach Compliance Code	-	unknown	unknown
ECCN code	-	EAR99	EAR99
YTEOL	-	2	2
Analog Integrated Circuits - Other Types	-	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Number of terminals	-	4	4
Maximum operating temperature	-	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C
Maximum output current	-	2 A	0.833 A
Nominal output voltage	-	5 V	12 V
Package body material	-	METAL	METAL
Encapsulate equivalent code	-	MODULE,4LEAD,.8	MODULE,4LEAD,.8
Package form	-	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	-	Not Qualified	Not Qualified
Temperature level	-	INDUSTRIAL	INDUSTRIAL
