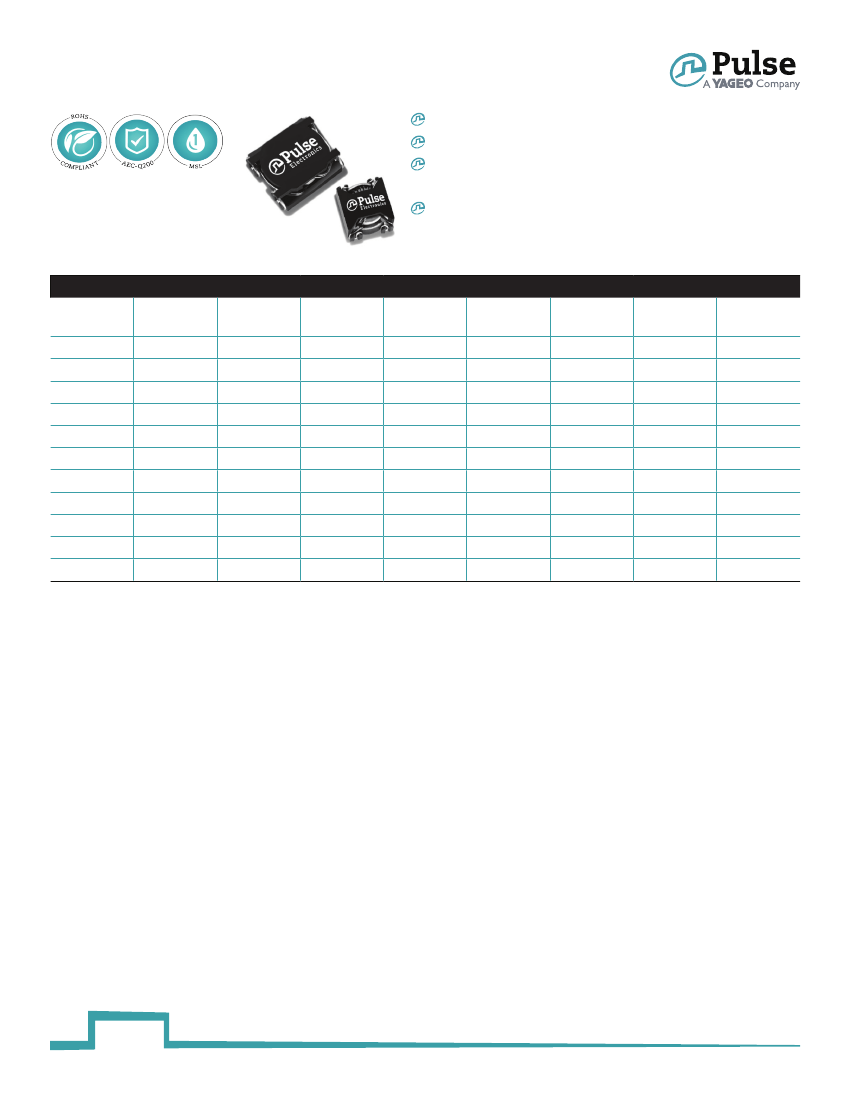

Wide variety of inductor sizes and current ratings
available
Dielectric strength:
1000V
RMS
(380Vrms continu-
ous)
Electrical Specifications @ 25°C - Operating Temperature -40°C to +120°C
3
Part
Number
P0502NL
P0469NL
P0429NL
P0527NL
P0353NL
P0422NL
P0421NL
P0420NL
P0351NL
P0473NL
P0354NL
Inductance
(mH±35%)
0.47
0.63
0.81
0.53
0.59
0.77
0.22
1.32
1.47
0.88
1.17
Irated
1
(A)
14.0
11.6
9.70
7.20
5.60
4.70
3.30
3.30
2.80
1.63
1.22
DCR (MAX)
(mΩ)
8
10
14
15
21
40
60
60
80
110
200
Curve
(see # below)
9
7
6
8
7
6
5
4
3
2
1
Package
Big Foot
Big Foot
Big Foot
HCCI-68
LCCI-50
LCCI-50
LCCI-50
LCCI-50
LCCI-50
Polecat
Polecat
Weight
(Grams)
14.8
14.3
13.5
7.7
5.2
4.9
4.7
4.6
4.3
1.5
1.4
Quantity
In Tube
15
20
20
15
30
30
30
30
30
35
35
Quantity
In Reel
75
75
75
100
200
200
200
200
200
500
500
Notes:
1.
2.
3.
The current rating (Irated) is based upon the temperature rise of the component and
represents the rms current which will cause a typical temperature rise of 55C with
50LFM forced cooling.
Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part
number (i.e. P0502 becomes P0502T). Pulse complies to industry standard tape and
reel specification EIAv481.
The temperature of the component (ambient plus temperature rise) must be within
the stated operating temperature range.
1
power.pulseelectronics.com
SPM2007_63 (02/19)
http://www.power.pulseelectronics.com/contact
SMT Common Mode Chokes
1.22A to 14.0 A

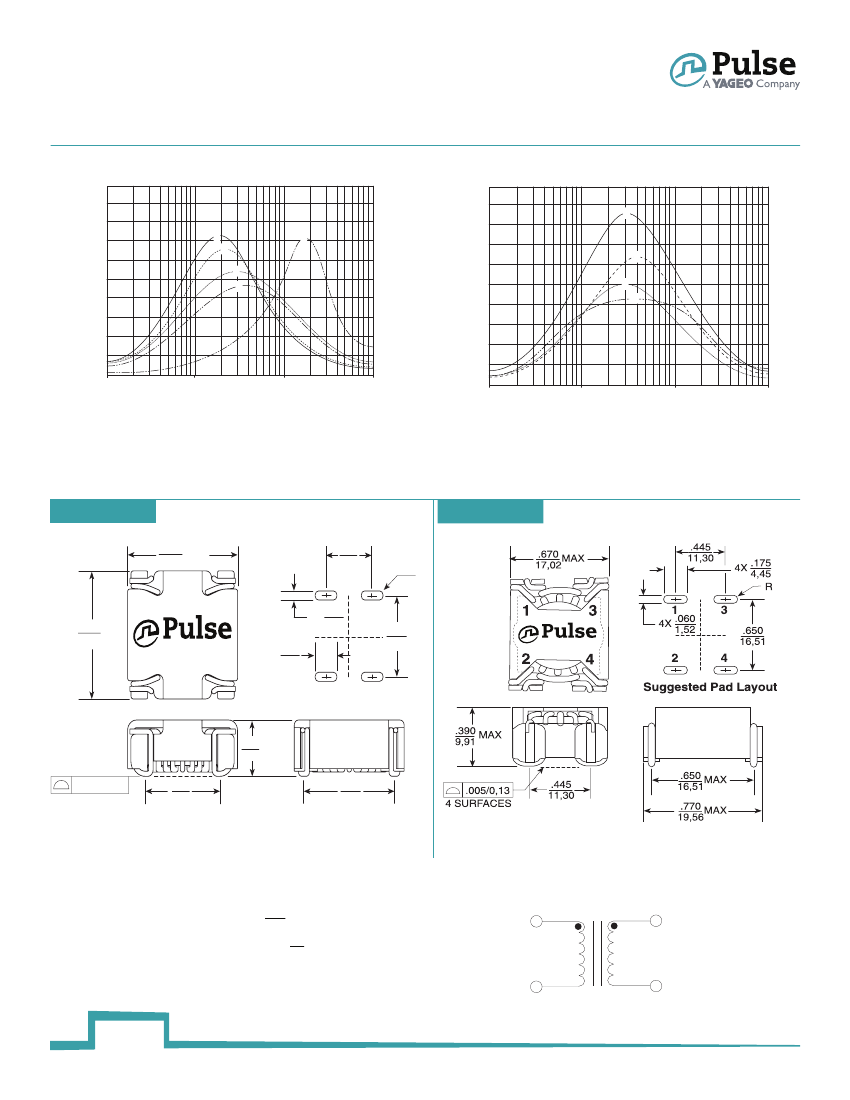

Impedance Curves
15K
12K
7.5K
6
4
Impedance
(Ω)
Impedance
(Ω)
3
9K
6K
3K
0
1
2
6.0K
5
4.5K
9
3.0K
1.5K
0
7
8
100 KHz
1 MHz
10 MHz
100 MHz
Frequency
100 KHz
1 MHz
10 MHz
100 MHz
Frequency
Mechanicals
Polecat
.500 MAX
12,70
.330
8,38
LCCI-50
1
1
.500 MAX
12,70
3
.410
10,41
R
3
4X .175
4,45
4X .060
1,52
2
4
2
4
Suggested Pad Layout
.215 MAX
5,46
.005/0,13
4 SURFACES
.330
8,38
.410
10,41
Schematic
Dimensions:
.
Inches
mm
Unless otherwise specified,
all tolerances are:
±
.
.005
0,13
1
2
3
4
2
power.pulseelectronics.com
SPM2007_63 (02/19)
http://www.power.pulseelectronics.com/contact
SMT Common Mode Chokes
1.22A to 14.0 A

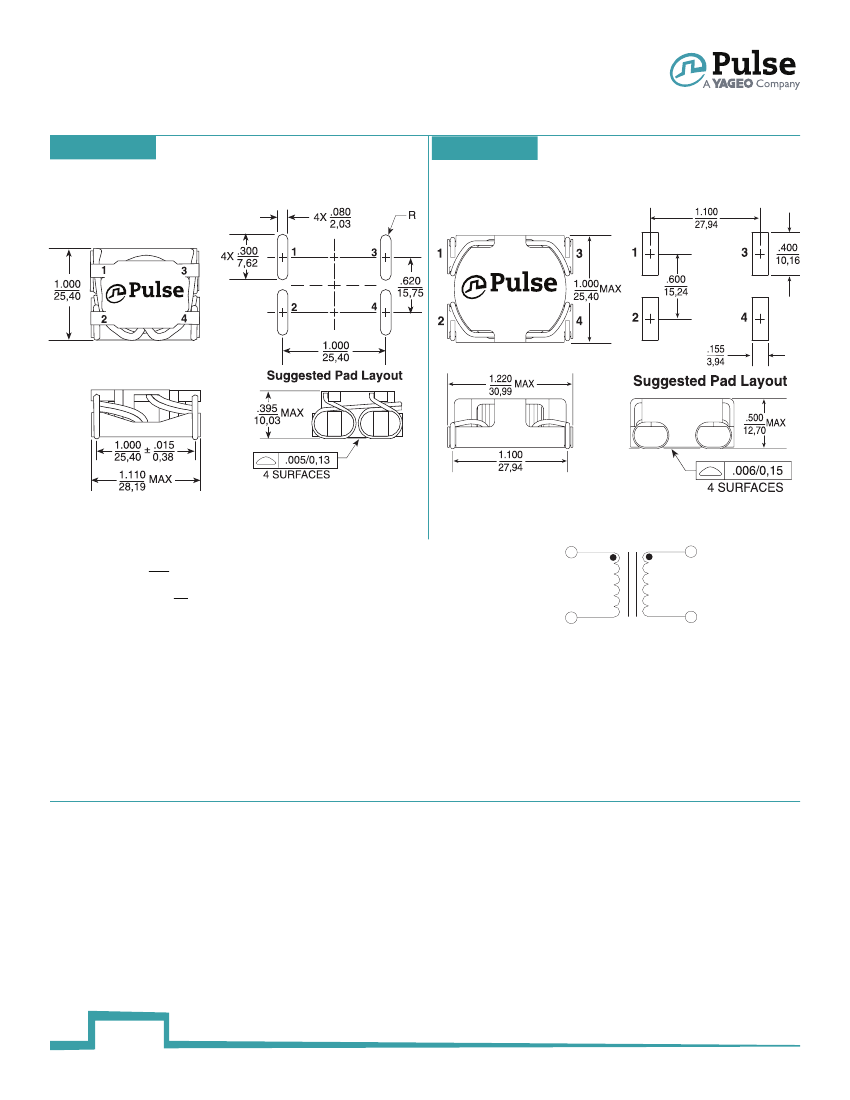

Mechanicals
HCCI-68
Big Foot
Schematic
Dimensions:
mm
Unless otherwise specified,
all tolerances are:
±
.
.005
0,13
.
Inches
1
2
3
4
For More Information
Pulse Worldwide Headquarters
15255 Innovation Drive Ste 100
San Diego, CA 92128
U.S.A.
Pulse Europe
Pulse Electronics GmbH
Am Rottland 12
58540 Meinerzhagen
Germany
Pulse China Headquarters
Pulse Electronics (ShenZhen) CO., LTD
D708, Shenzhen Academy of
Aerospace Technology,
The 10th Keji South Road,
Nanshan District, Shenzhen,
P.R. China 518057
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 2704/2705
Super Ocean Finance Ctr.
2067 Yan An Road West
Shanghai 200336
China
Tel: 86 21 62787060
Fax: 86 2162786973
Pulse South Asia
3 Fraser Street 0428
DUO Tower
Singapore 189352
Pulse North Asia
1F., No.111 Xiyuan Road
Zhongli District
Taoyuan City 32057
Taiwan (R.O.C)
Tel: 858 674 8100
Fax: 858 674 8262
Tel: 49 2354 777 100
Fax: 49 2354 777 168
Tel: 65 6287 8998
Fax: 65 6280 0080
Tel: 886 3 4356768
Fax: 886 3 4356820
