SUNON
SPECIFICATION FOR APPROVAL
CUSTOMER
DESCRIPTION
DIMENSIONS
MODEL
P/N
CUSTOMER
APPROVAL NO.
APPROVED BY
CUSTOMER
(AUTHORIZED)
:
:
:
:
:
AXIAL AC FAN
120X120X38 mm
DP200A
2123XBL.GN
A12003210G-00
SUNON SPEC. NO. :
:
:
SPEC.NO
DRAWN
A12003210G-00
04.30.2005
2
EA12108
Jeff
07/10
CHECKED
Kiddy
March
ISSUE DATE
APPROVED
Jacky
EDITION
E.SPEC
REVISION DATE
07.10.2013
建準電機工業股½有限公司
SUNONWEALTH ELECTRIC MACHINE INDUSTRY CO., LTD.
NO. 30, LN. 296, XINYA RD., QIANZHEN DIST., TEL:886-7-8135888
FAX:886-7-8230505/8230606/8231010
KAOHSIUNG CITY 80673, TAIWAN (R.O.C)
D.C.C.
E-mail: sunon@email.sunon.com.tw
URL:http://www.sunon.com
2013.07.15
SUNON
AXIAL AC FAN
MODEL : DP200A
P/N
: 2123XBL.GN
CHARACTERISTICS
1. Motor Design
2. Insulation Resistance
3. Dielectric Strength
4. Motor Protection
5. Noise Level
:
:
:
:
:
Reliable Shaded-Pole Motor Construction.
500 Megohms minimum at 500 VDC.
1800 VAC for one second.
Impedance protected.
Measured in a semi-anechoic chamber
with background noise level below 15
dB(A). The fan is running in free air with the
microphone at a distance of one meter
from the fan intake.
6. Tolerance
7. Air Performance
:
:
±
15% on rated power and current.
Measured by a double chamber. The values
are recorded when the fan speed has stabilized
at rated voltage.
SPEC.NO
A12003210G-00 REVISION DATE 07. 10. 2013
建準電機工業股½有限公司
ISSUE DATE 04. 30. 2005 E D I T I O N
2
SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.
P A G E
2 OF 9
D.C.C.
2013.07.15
SUNON
SPECIFICATIONS
MODEL : DP200A
P/N
: 2123XBL.GN
1-1. Rated Voltage
1-2. Operating Voltage Range
1-3. Starting Voltage
1-4. Rated Speed
1-5. Air Delivery
1-6. Static Pressure
1-7. Rated Current
1-8. Rated Power
1-9. Noise Level
1-10. Direction of Rotation
1-11. Operating Temperature
1-12. Storage Temperature
1-13. Bearing System
1-14. Weight
1-15. Safety
1-16. Protection
: 220-240 VAC 50/60 Hz
: 185~245 VAC
: 185 VAC (25 deg. C POWER ON/OFF)
: 2850/3150 RPM
±
10%
: 97/117 CFM
: 0.34/0.39 Inch-H
2
O
: 0.14/0.12 AMP
: 22.0/21.0 WATTS
: 45/50 dB(A)
: Counter-clockwise viewed from front of fan blade
: -10 to +70 deg. C
: -40 to +70 deg. C
: Precision ball bearing system
: 550 g
: TUV/ UL/CSA/CE Approvals
:
□
Automatic Restart Capability
Note: In a situation where the fan is locked by an external force
while the electricity is on, an increase in coil temperature will be
prevented by temporarily turning off the electrical power to the
motor. The fan will automatically restart when the locked rotor
condition is released.
□
Polarity
Protection
SPEC.NO
A12003210G-00 REVISION DATE 07.10. 2013
建準電機工業股½有限公司
ISSUE DATE 04. 30. 2005 E D I T I O N
2
SUNONWEALTH ELECTRIC
D.C.C.
MACHINE INDUSTRY CO., LTD.
P A G E
3 OF 9
2013.07.15
SUNON
MODEL : DP200A
P/N
: 2123XBL.GN
PERFORMANCE CURVES
STATIC
PRESSURE
mm-H
2
O
12
0.40
8
Inch-H
2
O
50 HZ
60 HZ
0.20
4
0
0
0
60
1.70
120
3.40
CFM
m
3
/min
SPEC.NO
A12003210G-00 REVISION DATE 07.10. 2013
建準電機工業股½有限公司
ISSUE DATE 04. 30. 2005 E D I T I O N
2
SUNONWEALTH ELECTRIC
D.C.C.
MACHINE INDUSTRY CO., LTD.
P A G E
4 OF 9
2013.07.15
SUNON
MATERIAL
2.
Material
:
:
:
DIE-CAST ALUMINUM
Thermoplastic PBT of UL 94V-0
UL3266, 24 awg, GRAY
2-1. Frame
2-2. Impeller
2-4. Lead Wire

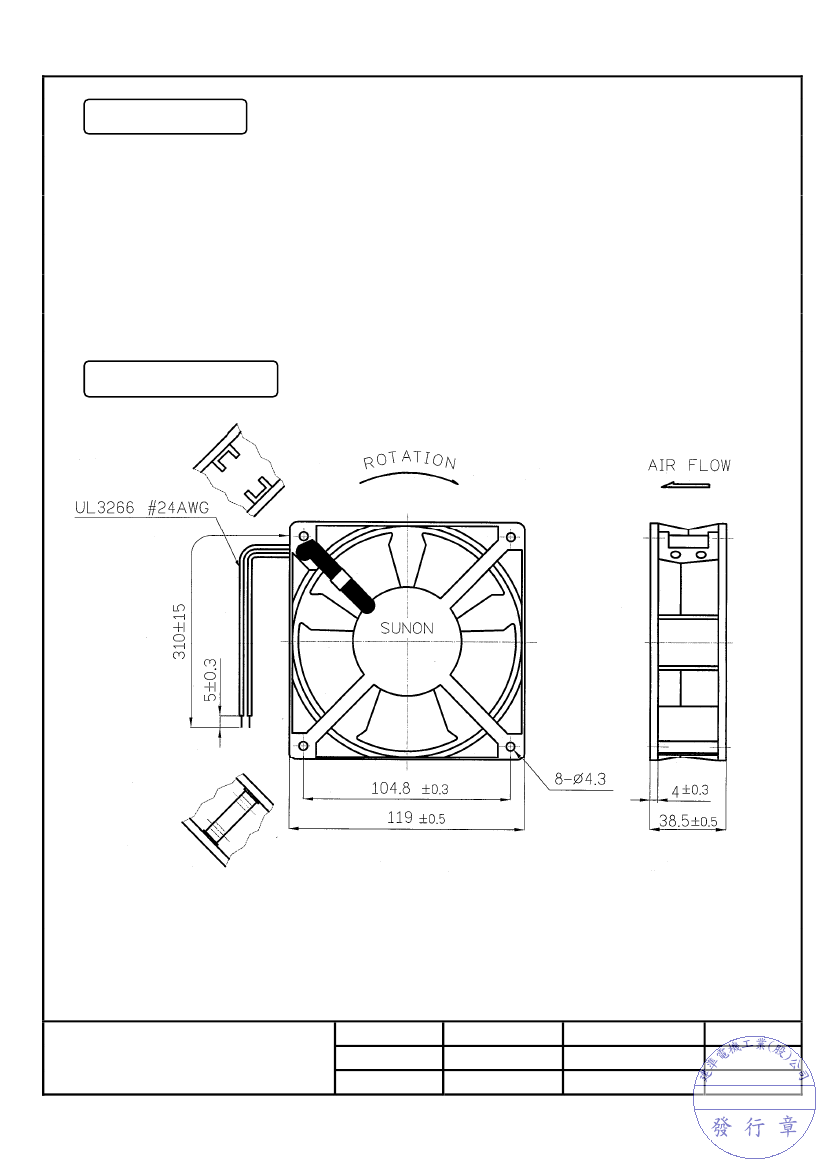

DIMENSIONS
1. Air Flow Direction: Toward label side.
2. Best Mounting Direction: Any orientation.
UNITS
：
mm
SPEC.NO
A12003210G-00 REVISION DATE 07.10. 2013
建準電機工業股½有限公司
ISSUE DATE 04. 30. 2005 E D I T I O N
2
SUNONWEALTH ELECTRIC
D.C.C.
MACHINE INDUSTRY CO., LTD.
P A G E
5 OF 9
2013.07.15
