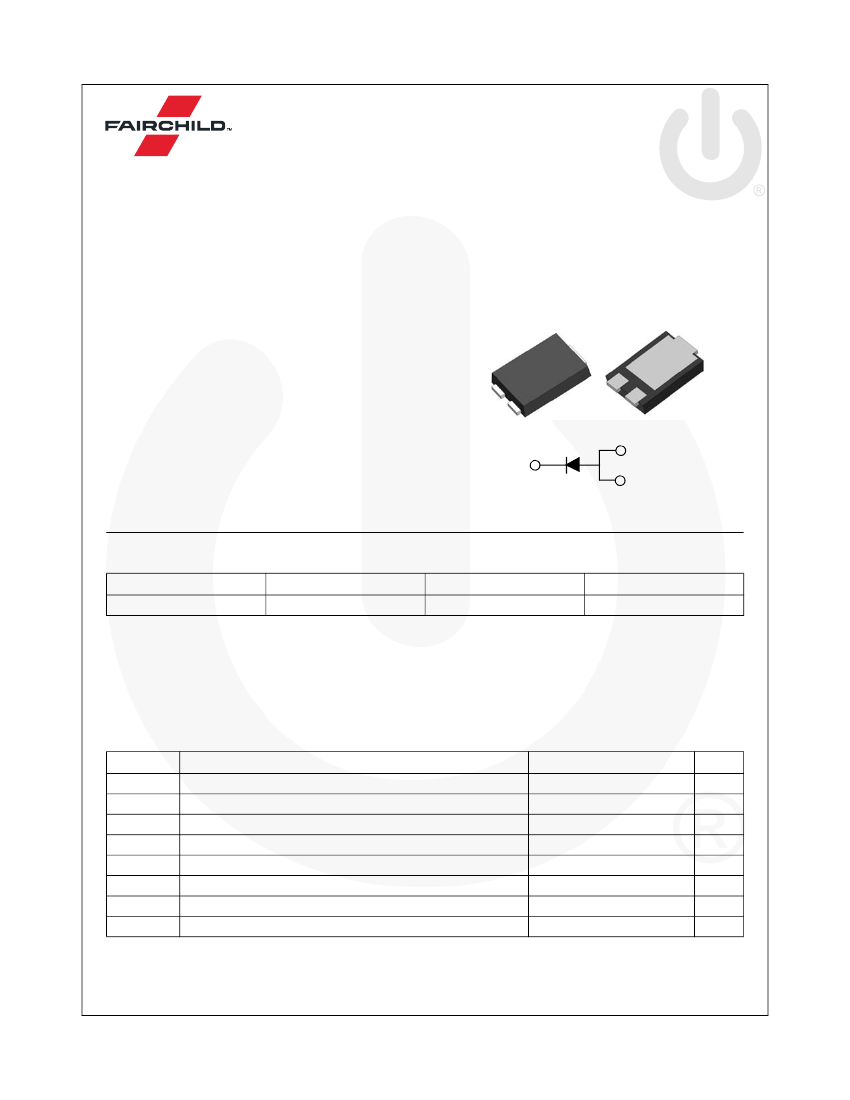

FSV15100V — 15 A, 100 V Ultra-Low VF Schottky Rectifier
July 2015
FSV15100V
15 A, 100 V Ultra-Low VF Schottky Rectifier
Features
•
•
•
•
•
•
•
•
Ultra-Low Forward Voltage Drop
Low Thermal Resistance
Very Low Profile: Typical Height of 1.1 mm
Trench Schottky Technology
RoHS Compliant
Green Molding Compound as per IEC61249 Standard
Lead Free in Compliance with EU RoHS 2011/65/EU Directive
Qualified per AEC-Q101 Rev. C Standard
3
2
1

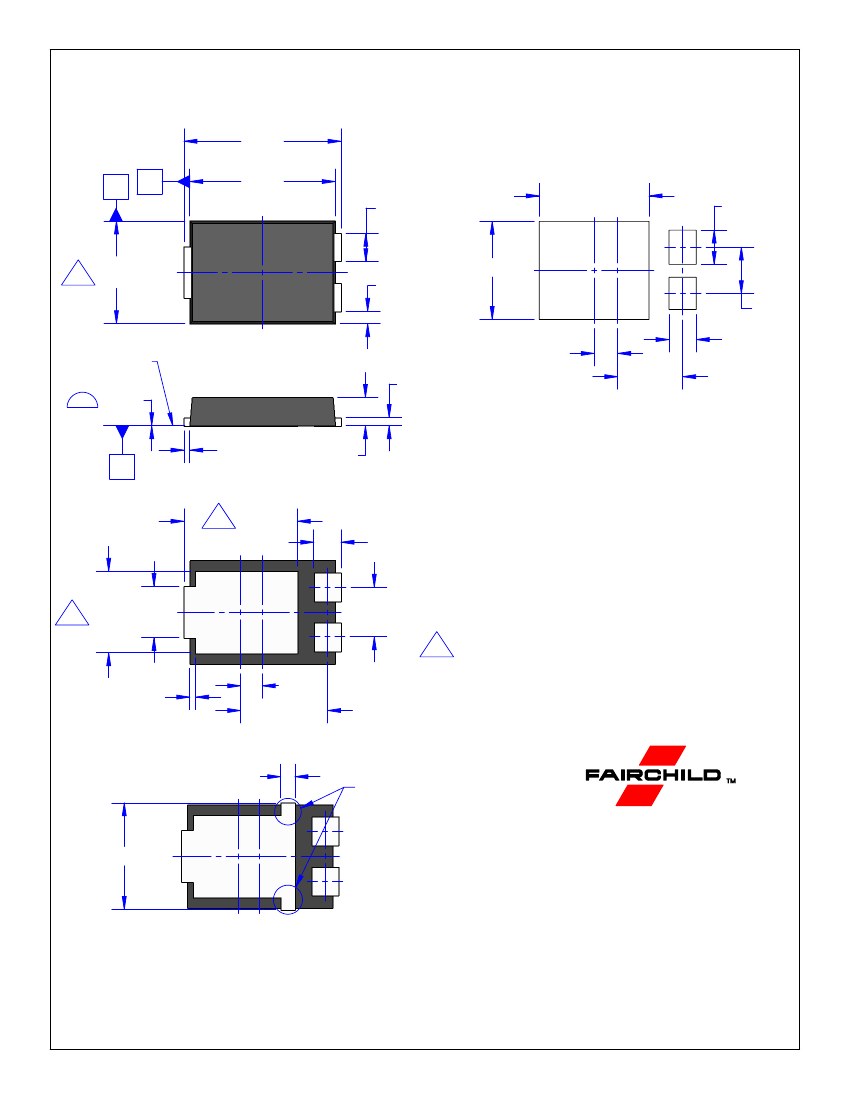

TO-277
3
Cathode
Anode 1
Anode 2
Ordering Information
Part Number
FSV15100V
Top Mark
FSV15100V
Package
TO-277 3L
Packing Method
Tape and Reel
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
