35RX302200MCPA16X35.5 datasheet, PDF

Datasheet> All Categories > Passive components> Linear aluminum electrolytic capacitor> 35RX302200MCPA16X35.5

35RX302200MCPA16X35.5: DescriptionCapacitance: 2200uF Accuracy: ±20% Rated voltage: 35V Working life: 4000Hrs @ 130℃ Rated ripple current: 2.55A @ 100kHz Appearance size (￠DxL, mm): 16x35.5; CategoryPassive components Linear aluminum electrolytic capacitor; File Size70KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

35RX302200MCPA16X35.5 Overview

Capacitance: 2200uF Accuracy: ±20% Rated voltage: 35V Working life: 4000Hrs @ 130℃ Rated ripple current: 2.55A @ 100kHz Appearance size (￠DxL, mm): 16x35.5

35RX302200MCPA16X35.5 Parametric

Parameter Name	Attribute value
type	Lead type
Foot distance (mm)	7.5
Capacitance	2200uF
Accuracy	±20%
Rated voltage	35V
ESR series resistor	31mΩ @ 100kHz
life span	4000Hrs @ 130℃
Rated ripple current	2.55A @ 100kHz
Appearance size(￠DxL,mm)	16x35.5
Operating temperature	-40℃ ~ +130℃

Preview

Download Datasheet

View All

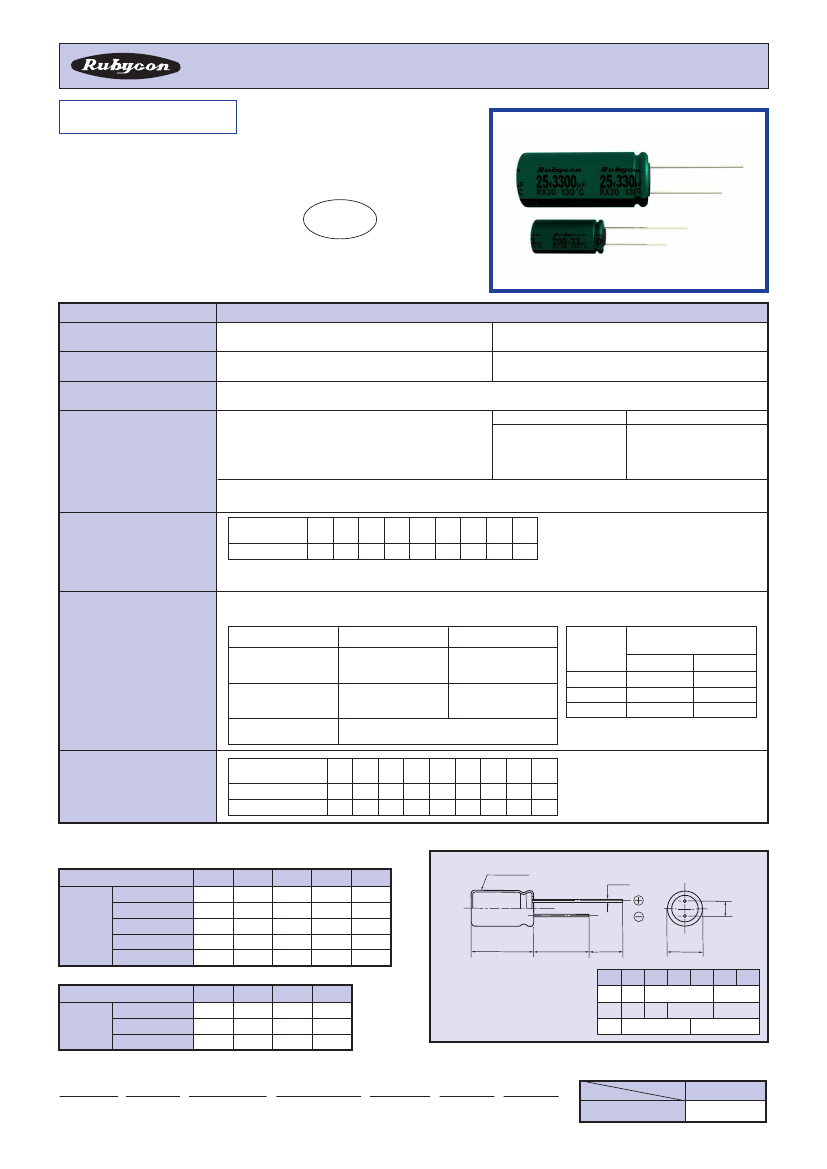

RADIAL LEAD ALUMINUM ELECTROLYTIC CAPACITORS

RX30

SERIES

Load Life : 130℃ 1000∼4000 hours

・

Automotive and LED Lighting applications.

For

・

AEC-Q200.

RoHS

compliance

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

−40∼＋130℃

10∼100Vdc

±20％

（20℃，

120Hz）

−25∼＋130℃

200, 400Vdc

CV≦1000

Leakage Current(MAX)

CV＞1000

I=0.04CV+100μA

(1 minute)

I＝0.01CV

or 3μA whichever is greater.

(After 2 minutes application of rated voltage)

I=0.1CV+40μA

(1 minute)

I=0.03CV+15μA

(5 minutes)

I=0.02CV+25μA

(5 minutes)

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(Vdc)

Rated Voltage

120Hz）

10 16 25 35 50 63 100 200 400

（20℃，

(Vdc)

tanδ

0.20 0.16 0.14 0.12 0.10 0.09 0.08 0.15 0.20

When capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After applying rated voltage with rated ripple current for speciﬁed time at 130℃,

the capacitors shall meet the following requirements.

Dissipation Factor(MAX)

(tanδ)

10∼100Vdc

Endurance

Capacitance Change

Within ±30％ of the

initial value.

200, 400Vdc

Within ±20％ of the

initial value.

Case Size

φD=6.3

φD=8, 10

φD≧12.5

−

Life Time

（hrs）

10∼100Vdc 200, 400Vdc

1000

2000

−

2000

4000

Dissipation Factor

Leakage Current

Not more than 300％ Not more than 200％

of the speciﬁed value. of the speciﬁed value.

Not more than the speciﬁed value.

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

(Vdc)

（−25℃）（20℃） 3

（−40℃）（20℃） 6

63 100 200 400

−

（120Hz）

◆MULTIPLIER FOR RIPPLE CURRENT

10∼100Vdc

（Hz）

Frequency

4.7μF

10∼33μF

Coeﬃcient

47∼330μF

470∼1500μF

2200∼4700μF

200, 400Vdc

Frequency

（Hz）

◆DIMENSIONS

SLEEVE(PET)

（mm）

φd

60 50） 120

（

0.35 0.42

0.45 0.55

0.60 0.70

0.65 0.75

0.75 0.80

120

0.20

0.30

0.50

0.40

0.60

0.80

0.60

0.75

0.85

0.90

0.95

10k 100k≦

0.80 1.00

0.90 1.00

0.95 1.00

0.98 1.00

1.00 1.00

L＋2MAX

15MIN

4MIN

φD＋ MAX

±0.5

φD

6.3

0.5

2.5

10 12.5 16

0.6

1∼5.6μF

Coeﬃcient

6.8∼15μF

22∼33μF

10k 100k≦

0.80 1.00

0.90 1.00

φd

0.8

7.5

1.0

3.5

0.5

5.0

◆PART NUMBER

□□□

Rated Voltage

◆OPTION

□□□□□

Capacitance

RX30

Series

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

PET Sleeve

Code

Blank
