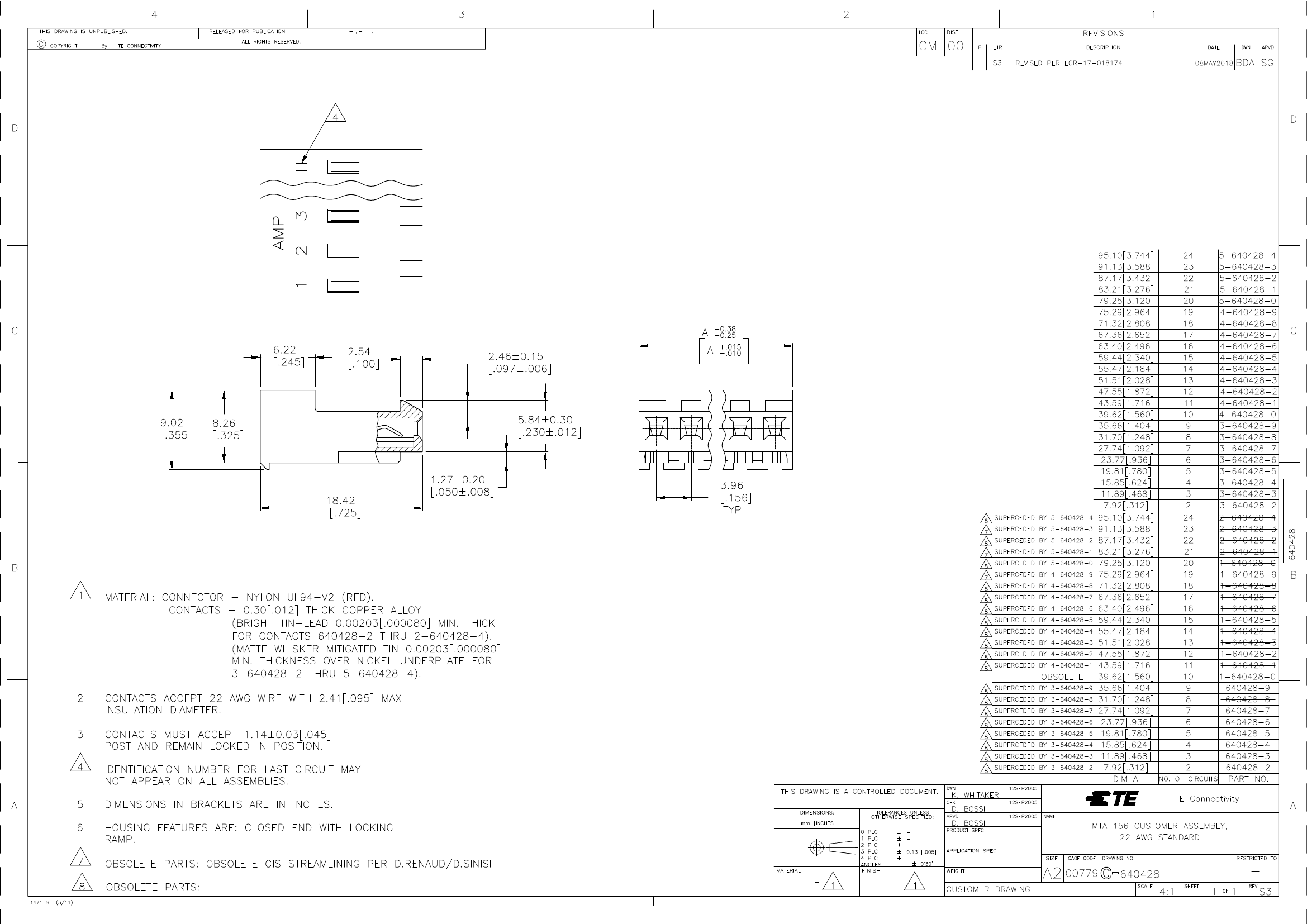

Preview

3-640428-2: Description2 Position Rectangular Socket Connector IDC Tin 22 AWG; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-640428-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-640428-2	-	-	View	Buy Now

3-640428-2 Overview

2 Position Rectangular Socket Connector IDC Tin 22 AWG

3-640428-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
body width	0.355 inch
subject depth	0.725 inch
body length	0.312 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	7 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	8.0064 N
Insulation resistance	5000000000 Ω
Insulator color	RED
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	80u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	2
UL Flammability Code	94V-2
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG
Evacuation force-minimum value	.8896 N
Base Number Matches	1

Preview

Download Datasheet

View All

3-640428-2 Related Products

	3-640428-2	640428-4
Description	2 Position Rectangular Socket Connector IDC Tin 22 AWG	04P MTA156 CONN ASSY 22AWG RED
Brand Name	AMP	AMP
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Reach Compliance Code	compliant	not_compliant
body width	0.355 inch	0.355 inch
subject depth	0.725 inch	0.725 inch
body length	0.312 inch	0.624 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	TIN	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	7 mΩ	7 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V
Durability	25 Cycles	25 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	8.0064 N	8.0064 N
Insulation resistance	5000000000 Ω	5000000000 Ω
Insulator color	RED	RED
insulator material	NYLON	NYLON
MIL compliance	NO	NO
Plug contact pitch	0.156 inch	0.156 inch
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation type	CABLE	CABLE
Number of rows loaded	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	80u inch	80u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC
Total number of contacts	2	4
UL Flammability Code	94V-2	94V-2
Maximum wire diameter	22 AWG	22 AWG
Minimum wire diameter	22 AWG	22 AWG
Evacuation force-minimum value	.8896 N	.8896 N
