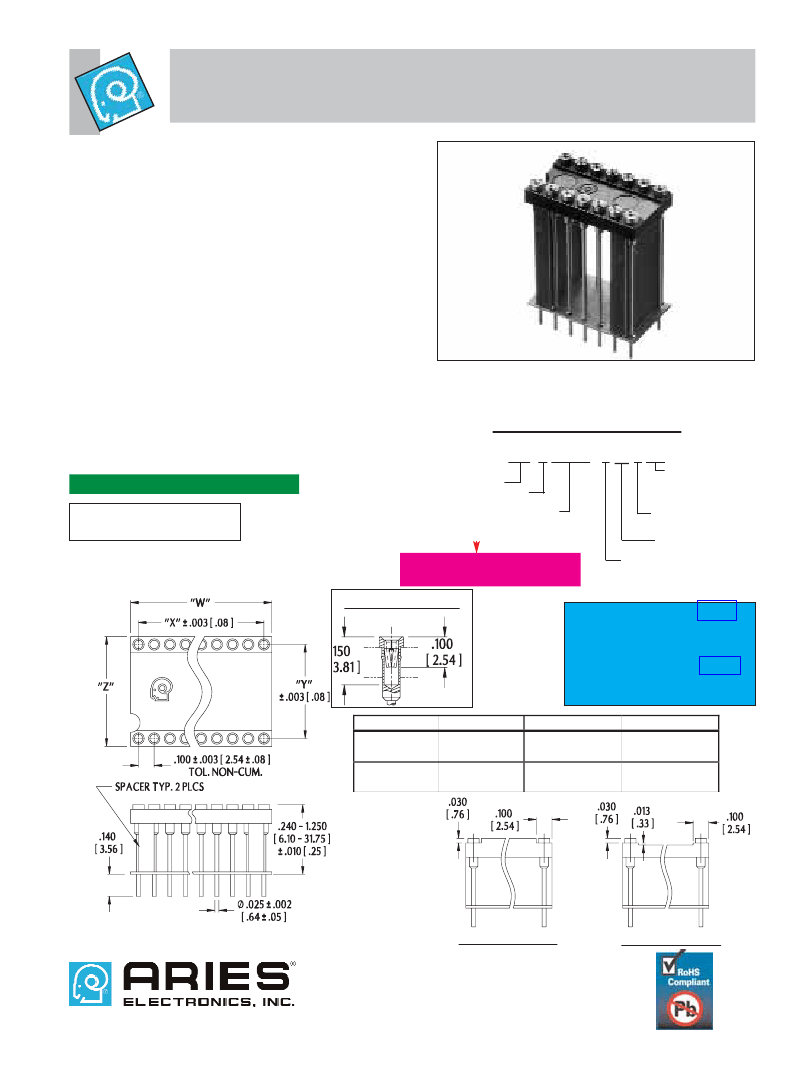

Series 8XXX Collet Elevator Sockets
on .300 [7.62] and .600 [15.24] Centers
FEATURES:
• Ideal for elevating devices (displays, switches, etc.) to desired level
with .240 to 1.250 [6.10 to 31.75] height extension.
SPECIFICATIONS:
• Standard socket body spacer are black UL 94V-0 Glass Filled 4/6
Nylon.
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-00.
• Pin body plating is either 10μ [.25μm] min. Gold per MIL-G-45204
or 200μ [5.08μm] min. 93/7 Tin/Lead per ASTM B545 or 200μ
[5.08μm] min. Tin per ASTM B545 Type 1 over 100μ [2.54μm] min.
Nickel per SAE-AMS-QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per UNS
C17200 ASTM-B194-01.
• Contact plating is 30μ [.76μm] min. Gold per MIL-G-45204 over
50μ [1.27μm] min. Nickel per SAE-AMS-QQ-N-290.
• Contact current rating=3 Amps.
• Operating temperature= -67°F to 221°F [-55°C to 105°C].
• Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin;
Normal Force=140 grams/pin; based on a .018 [.46] diameter test
lead.
• Accepts leads .015-.025 [.38-.64] in diameter, .110-.150
[2.79-3.81] long.
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.035 ± .002 [.89 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-8XXXX-X10CXX
No. of pins
(see table)
Series
Optional suffix:
TL=Tin/Lead plated
solder tail pin
Collet style
Tin plated
solder tail pin
Row-to-row spacing:
3: “Y”=.300 [7.62]
6: “Y”=.600 [15.24]
Consult Data Sheet No. 13007 for
collet elevator sockets on .200
[5.08] centers.
Consult Data Sheet No. 13006 for
elevator sockets with bifurcated
contacts.
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“W”=NO. OF PINS PER ROW X .100 [2.54]
“X”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Seating plane height
.240 [6.10] to 1.250 [31.75]
ex: .240 height= “-8245-”
1.250 height= “81250-”
CONTACT DETAIL
Centers “Y ”
.300 [7.62]
.600 [15.24]
Dim “Z”
.400 [10.16]
.700 [17.78]
Body Style
C
B
C
B
Available Sizes
6 thru 20
22 thru 40
6 thru 40
42 thru 48
BODY STYLE B
NORTH AMERICA
Frenchtown, NJ USA
TEL:(908) 996-6841
FAX:(908) 996-3891
BODY STYLE C
13008
http://www.arieselec.com • info@arieselec.com
REV.E
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
