776428-1: CategoryThe connector Wire terminal plastic shell; File Size206KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Compare View All

776428-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	776428-1	-	-	View	Buy Now

Preview

Download Datasheet

View All

4

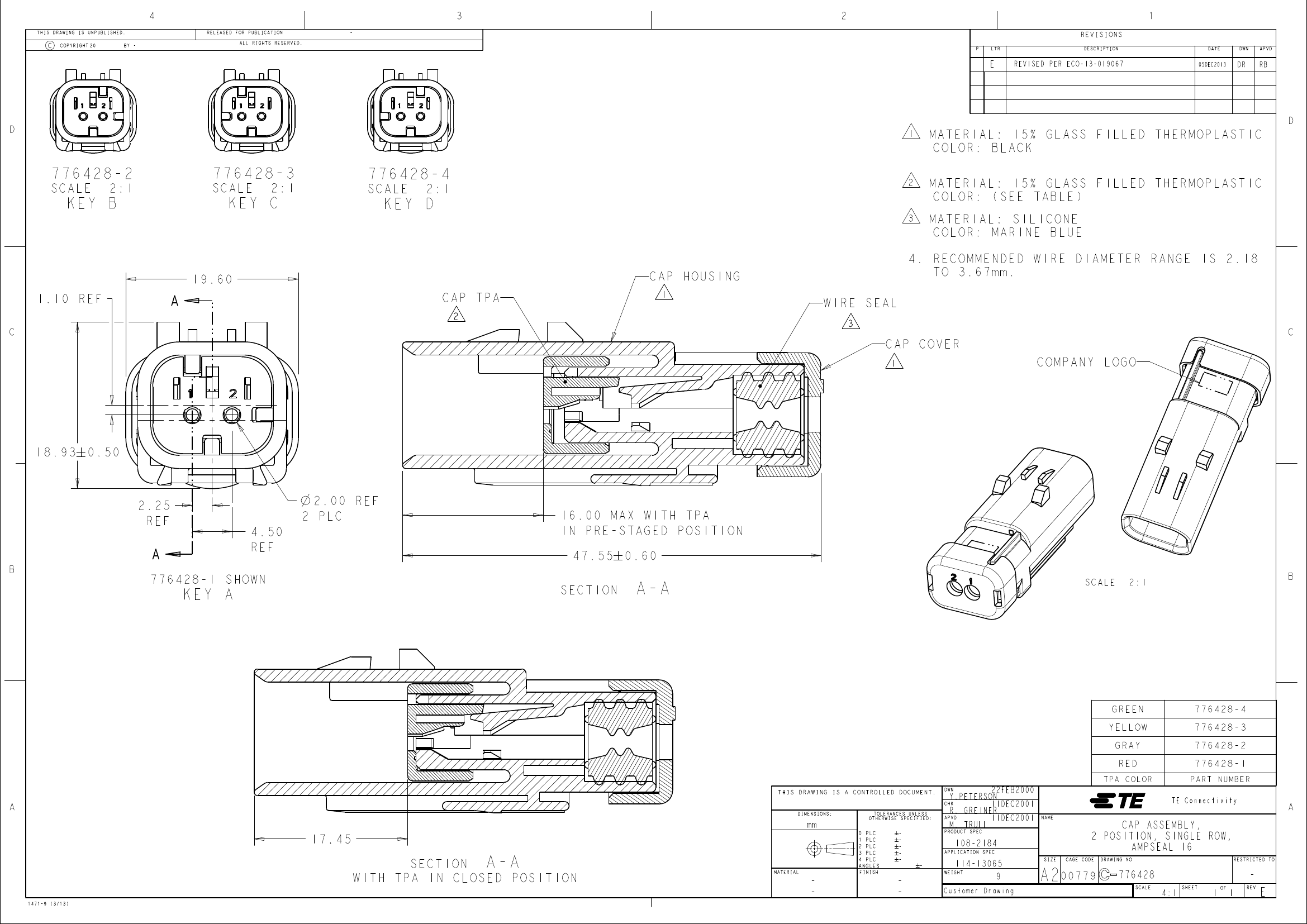

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

-

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

E

REVISED PER ECO-13-019067

05DEC2013

DR

RB

D

1

MATERIAL: 15% GLASS FILLED THERMOPLASTIC

COLOR: BLACK

MATERIAL: 15% GLASS FILLED THERMOPLASTIC

COLOR: (SEE TABLE)

MATERIAL: SILICONE

COLOR: MARINE BLUE

D

SCALE

776428-2

KEY B

2:1

SCALE

776428-3

KEY C

2:1

SCALE

776428-4

KEY D

2:1

2

3

1.10

C

REF

19.60

CAP HOUSING

CAP TPA

2

1

4. RECOMMENDED WIRE DIAMETER RANGE IS 2.18

TO 3.67mm.

WIRE SEAL

3

CAP COVER

1

C

COMPANY LOGO

18.93

0.50

2.25

REF

4.50

REF

2.00

2 PLC

REF

16.00 MAX WITH TPA

IN PRE-STAGED POSITION

47.55

SECTION

0.60

B

776428-1 SHOWN

KEY A

A-A

SCALE

2:1

GREEN

YELLOW

GRAY

RED

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

776428-4

776428-3

776428-2

776428-1

PART NUMBER

TE Connectivity

A

Y.PETERSON

R. GREINER

22FEB2000

11DEC2001

NAME

TPA COLOR

17.45

SECTION

A-A

WITH TPA IN CLOSED POSITION

1471-9 (3/13)

MATERIAL

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

A

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

PRODUCT SPEC

M. TRULL

APPLICATION SPEC

108-2184

114-13065

9

-

WEIGHT

Customer Drawing

A2

00779

SIZE

CAGE CODE

CAP ASSEMBLY,

2 POSITION, SINGLE ROW,

AMPSEAL 16

DRAWING NO

RESTRICTED TO

776428

SCALE

4:1

SHEET

1

OF

1

REV

-

E

776428-1 Related Products

	776428-1	776428-3	776428-4
Description		AS 16, 2P CAP ASSY, KEY 3	AS 16, 2P CAP ASSY, KEY 4
Connector type	-	Male terminal housing	Male terminal housing
Connector System	-	line to line	line to line
Sealable	-	yes	yes
Hybrid connector	-	no	no
Main locking features	-	Housing integration	Housing integration
strain relief	-	Add according to attachment	Add according to attachment
Number of Positions	-	2	2
Rows	-	1	1
Nominal Voltage Structure (V)	-	12, 24, 42, 48, 80, 90, 125, 240	12, 24, 42, 48, 80, 90, 125, 240
Operating voltage (VDC)	-	250	250
color	-	yellow	green
connector code	-	3	4
Cable exit angle	-	180°	180°
Main material	-	PBT GF	PBT GF
Engage pin diameter	-	1.5 mm [ .059 in ]	1.5 mm [ .059 in ]
Installation features	-	Without	Without
Terminal position guarantee	-	yes	yes
polarization	-	yes	yes
Centerline (Pitch)	-	4.5 mm [ .177 in ]	4.5 mm [ .177 in ]
width	-	47.55 mm [ 1.872 in ]	47.55 mm [ 1.872 in ]
high	-	18.93 mm [ 0.745 in ]	18.93 mm [ 0.745 in ]
length	-	19.6 mm [ .772 in ]	19.6 mm [ .772 in ]
Working group temperature range	-	-40 – 125 °C [ -40 – 257 °F ]	-40 – 125 °C [ -40 – 257 °F ]
protection level	-	IP67	IP67
UL flammability rating	-	UL 94-HB	UL 94-HB
Encapsulation method	-	Package	Package
Package quantity	-	400	400
Able to ensure connector position	-	yes	yes
Repairable	-	yes	yes
