8-215460-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8-215460-4

8-215460-4: DescriptionPin Count: 14 Connector Type: Head Contact Type: Forked Pitch: 0.100" (2.54mm) Series: - 14 Position Socket Connector 2.54mm Pitch Through Hole, Right Angle Tin; CategoryThe connector The connector; File Size607KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8-215460-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-215460-4	-	-	View	Buy Now

8-215460-4 Overview

Pin Count: 14 Connector Type: Head Contact Type: Forked Pitch: 0.100" (2.54mm) Series: - 14 Position Socket Connector 2.54mm Pitch Through Hole, Right Angle Tin

8-215460-4 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED, SIDE ENTRY
body width	0.228 inch
subject depth	0.209 inch
body length	0.78 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	215460
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	14
Evacuation force-minimum value	1.0008 N
Base Number Matches	2

Preview

Download Datasheet

View All

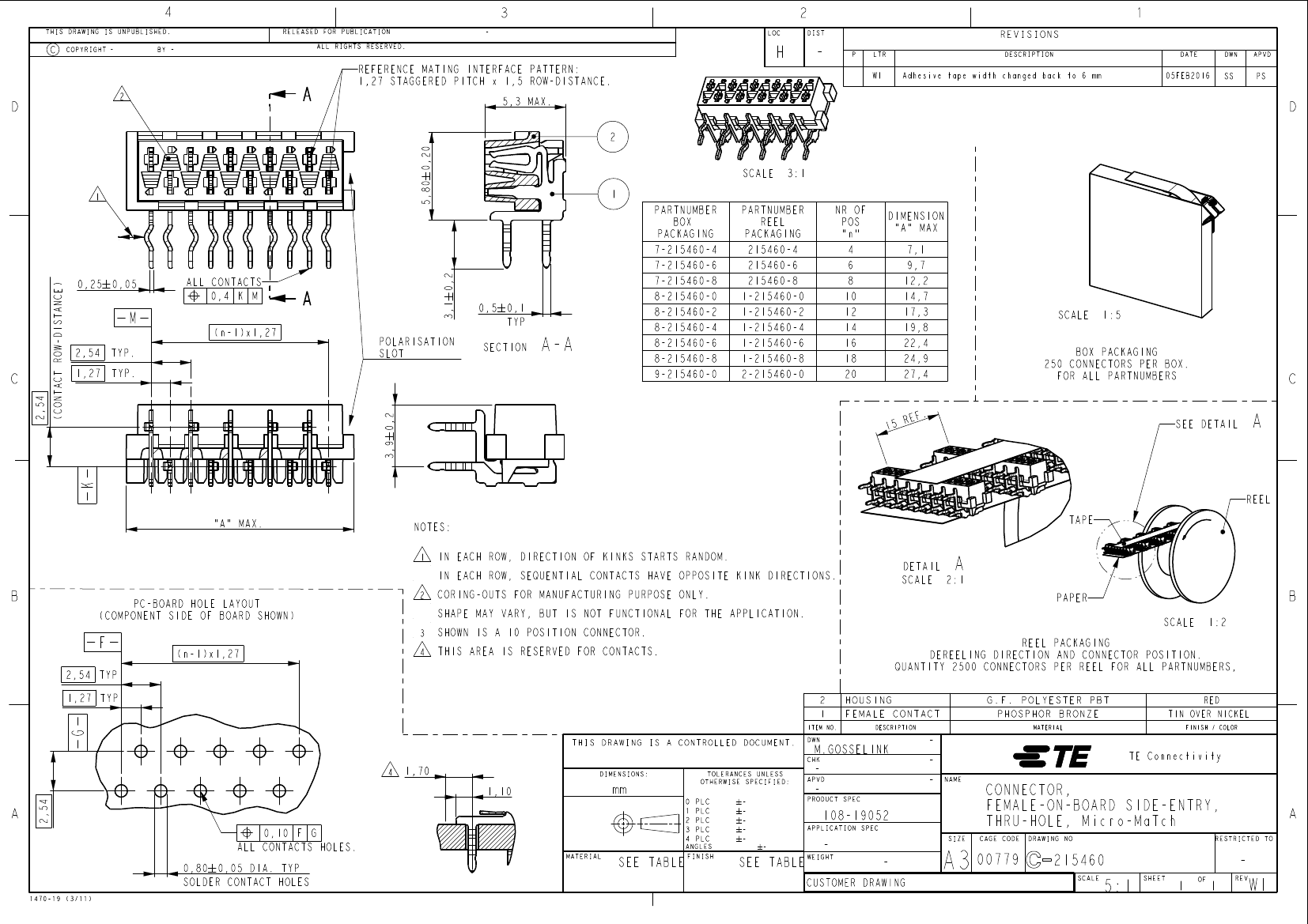

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

BY -

REFERENCE MATING INTERFACE PATTERN:

1,27 STAGGERED PITCH x 1,5 ROW-DISTANCE.

5,3 MAX.

5,80 # 0,20

SCALE

PARTNUMBER

BOX

PACKAGING

7-215460-4

3,1 0,2

7-215460-6

7-215460-8

0,5 0,1

TYP

SECTION

8-215460-0

8-215460-2

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

Adhesive tape width changed back to 6 mm

05FEB2016

3:1

NR OF

POS

"n"

DIMENSION

"A" MAX

7,1

12,2

14,7

17,3

19,8

22,4

24,9

27,4

EF.

5 R

PARTNUMBER

REEL

PACKAGING

215460-4

215460-6

1-215460-0

1-215460-2

1-215460-4

1-215460-6

1-215460-8

2-215460-0

215460-8

(CONTACT ROW-DISTANCE)

0,25 0,05

ALL CONTACTS

0,4 K M

(n-1)x1,27

9,7

2,54

1,27

TYP.

POLARISATION

SLOT

A-A

8-215460-4

8-215460-6

8-215460-8

9-215460-0

SCALE

1:5

2,54

BOX PACKAGING

250 CONNECTORS PER BOX.

FOR ALL PARTNUMBERS

3,9 # 0,2

SEE DETAIL

REEL

"A" MAX.

NOTES:

TAPE

IN EACH ROW, DIRECTION OF KINKS STARTS RANDOM.

IN EACH ROW, SEQUENTIAL CONTACTS HAVE OPPOSITE KINK DIRECTIONS.

CORING-OUTS FOR MANUFACTURING PURPOSE ONLY.

SHAPE MAY VARY, BUT IS NOT FUNCTIONAL FOR THE APPLICATION.

SHOWN IS A 10 POSITION CONNECTOR.

THIS AREA IS RESERVED FOR CONTACTS.

PC-BOARD HOLE LAYOUT

(COMPONENT SIDE OF BOARD SHOWN)

DETAIL

SCALE 2:1

PAPER

SCALE

1:2

2,54 TYP

1,27 TYP

(n-1)x1,27

REEL PACKAGING

DEREELING DIRECTION AND CONNECTOR POSITION.

QUANTITY 2500 CONNECTORS PER REEL FOR ALL PARTNUMBERS,

ITEM NO.

HOUSING

FEMALE CONTACT

DESCRIPTION

G.F. POLYESTER PBT

PHOSPHOR BRONZE

MATERIAL

TIN OVER NICKEL

FINISH / COLOR

RED

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

M.GOSSELINK

NAME

1,70

1,10

TE Connectivity

DIMENSIONS:

2,54

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

PRODUCT SPEC

0,10 F G

ALL CONTACTS HOLES.

0,80 0,05 DIA. TYP

SOLDER CONTACT HOLES

1470-19 (3/11)

MATERIAL

ANGLES

PLC

APPLICATION SPEC

108-19052

SIZE

SEE TABLE

FINISH

SEE TABLE

WEIGHT

CUSTOMER DRAWING

00779

CAGE CODE

CONNECTOR,

FEMALE-ON-BOARD SIDE-ENTRY,

THRU-HOLE, Micro-MaTch

DRAWING NO

RESTRICTED TO

215460

SCALE

5:1

SHEET

REV
