794896-1: Description2-pin rectangular housing connector socket; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

794896-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	794896-1	-	-	View	Buy Now

794896-1 Overview

2-pin rectangular housing connector socket

794896-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Other features	MATE-N-LOK, COMPATIBLE CONTACTS: 170539; 170360; 170361; 170362
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	794896
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Total number of contacts	2
UL Flammability Code	94V-0
Base Number Matches	2

Preview

Download Datasheet

View All

8

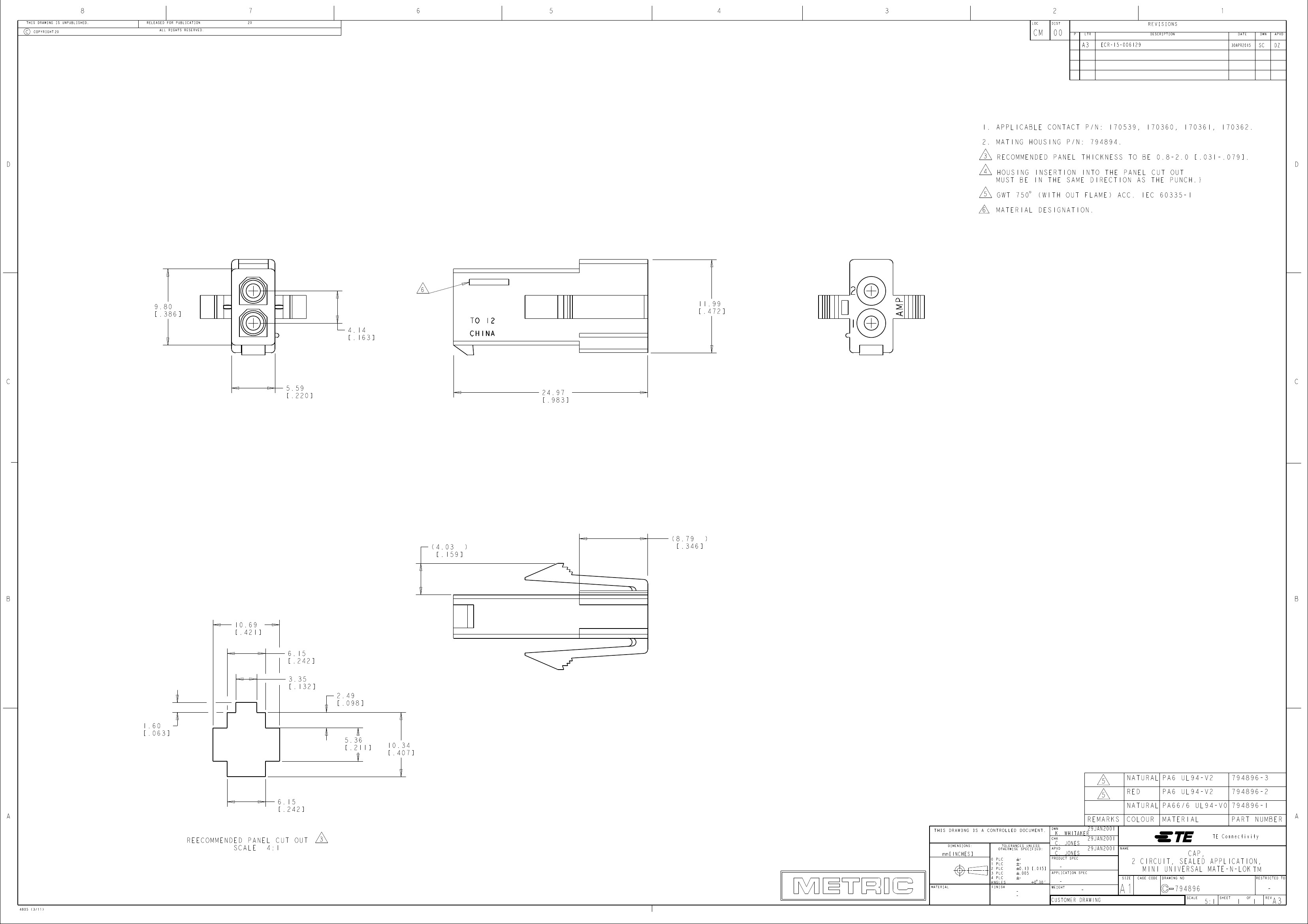

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

CM

00

A3

ECR-15-006129

30APR2015

SC

DZ

1. APPLICABLE CONTACT P/N: 170539, 170360, 170361, 170362.

2. MATING HOUSING P/N: 794894.

D

3

4

5

RECOMMENDED PANEL THICKNESS TO BE 0.8-2.0 [.031-.079].

HOUSING INSERTION INTO THE PANEL CUT OUT

MUST BE IN THE SAME DIRECTION AS THE PUNCH.}

GWT 750 $

(WITH OUT FLAME) ACC. IEC 60335-1

D

6

MATERIAL DESIGNATION.

6

9.80

[ .386 ]

4.14

[ .163 ]

11.99

[ .472 ]

C

5.59

[ .220 ]

C

24.97

[ .983 ]

( 4.03

)

[ .159 ]

( 8.79

)

[ .346 ]

B

10.69

[ .421 ]

6.15

[ .242 ]

3.35

[ .132 ]

B

2.49

[ .098 ]

1.60

[ .063 ]

5.36

[ .211 ]

10.34

[ .407 ]

NATURAL

RED

NATURAL

COLOUR

PA6 UL94-V2

PA66/6 UL94-V0

MATERIAL

794896-3

794896-2

794896-1

PART NUMBER

TE Connectivity

NAME

5

6.15

[ .242 ]

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

5

REMARKS

3

K. WHITAKER

C. JONES

-

29JAN2001

A

REECOMMENDED PANEL CUT OUT

SCALE

4:1

mm[INCHES]

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.13 [.015]

.005

-

0 $ 30'

PRODUCT SPEC

APPLICATION SPEC

-

WEIGHT

-

CUSTOMER DRAWING

A1

SIZE

CAP,

2 CIRCUIT, SEALED APPLICATION,

MINI UNIVERSAL MATE-N-LOK

CAGE CODE

DRAWING NO

TM

RESTRICTED TO

794896

SCALE

4805 (3/11)

5:1

SHEET

1

OF

1

REV

-

A3
