3-1415055-1: DescriptionSPECIAL RELAY-SAFETY RELAY, 4PST, MOMENTARY, 0.033A (COIL), 24VDC (COIL), 800mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size303KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1415055-1 Overview

SPECIAL RELAY-SAFETY RELAY, 4PST, MOMENTARY, 0.033A (COIL), 24VDC (COIL), 800mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

3-1415055-1 Parametric

Parameter Name	Attribute value
Brand Name	CII
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2142360381
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	17 weeks 3 days
Samacsys Description	SR4D4024
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-04 19:49:56
body width	13 mm
body height	16.5 mm
Body length or diameter	40 mm
Coil current (AC) maximum value	0.033 A
Maximum coil current (DC)	0.033 A
Coil operating voltage (DC)	18 V
Coil power	800 mW
Coil release voltage (DC)	2.4 V
Coil resistance	720 Ω
Maximum coil voltage (DC)	24 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	8A@240VAC
Maximum contact current (AC)	8 A
Maximum contact current (DC)	8 A
Contact resistance	100 mΩ
Maximum contact voltage (AC)	400 V
Dielectric strength between coil and contacts	4000 Vrms
Dielectric strength between breaking contacts	1500 Vrms
End contact material	SILVER TIN OXIDE
Input switching control type	Random
Installation features	PANEL MOUNT
Number of terminals	10
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count	10
method of packing	BOX; TUBE
physical size	40mm x 13mm x 16.5mm
Guideline	EN; IEC; UL; VDE
Relay action	MOMENTARY
Relay function	4PST
Relay type	SAFETY RELAY
seal	RT3
surface mount	NO
Terminal length	0.0033 inch
Termination type	SOLDER/QUICK CONNECT
weight	30 g

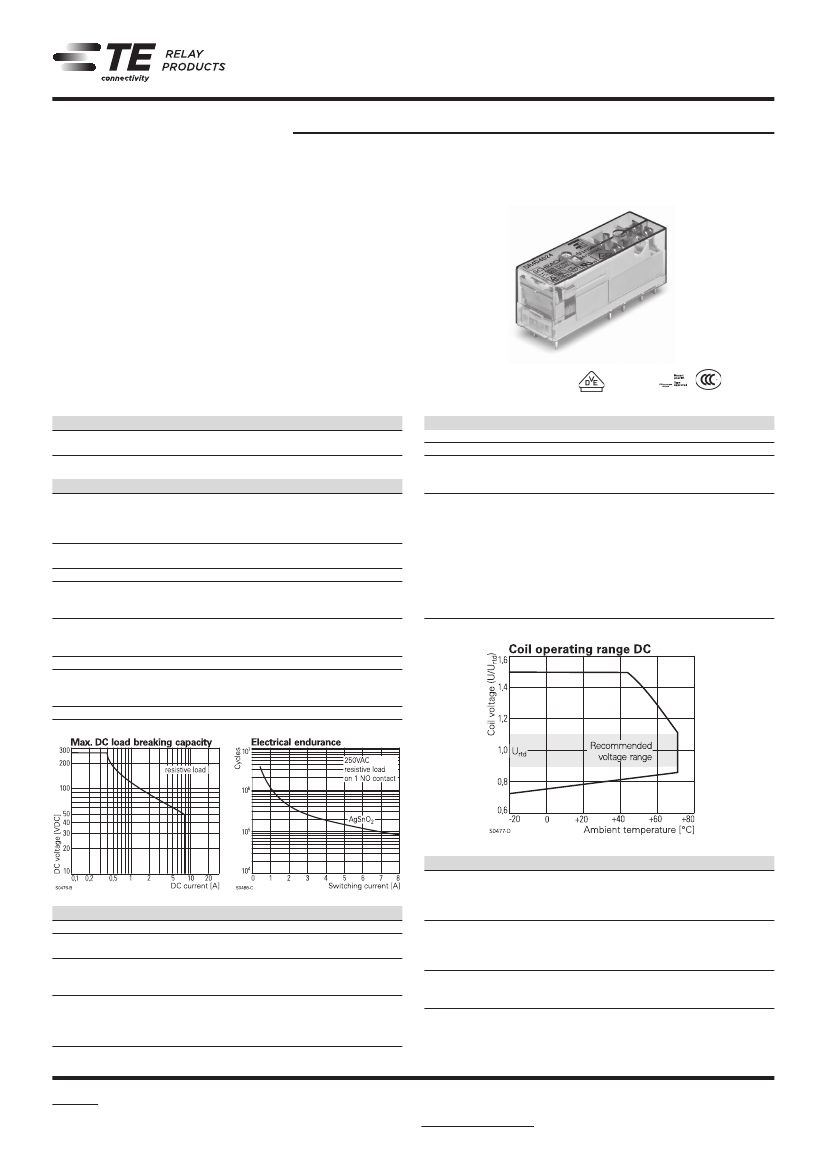

Preview

Download Datasheet

View All

General Purpose Relays

Force Guided Relays

Force Guided Relay SR4 D/M

SCHRACK

4 pole relay with force guided contacts according to EN 50205

Compact design and space efficient

Typical applications

Emergency shut-off, press control, machine control, elevator and escalator

control, safety relays

F0244-C

Approvals

VDE Cert. No. 40005334, UL E214025, TUV 968/EL 230,

CCC 2012010304537809

Technical data of approved types on request

Coil data

(continued)

Coil versions, DC-coil

Coil

Rated

Operate

code

voltage

VDC

015

11.3

018

13.5

021

16.0

024

18.0

036

27.0

040

30.0

048

36.0

060

45.0

085

63.8

110

83.0

Release

voltage

VDC

1.5

1.8

2.1

2.4

3.6

4.0

4.8

6.0

8.5

11.0

Coil

resistance

Ω±10%

281

405

551

720

1620

2000

2880

4500

9031

15125

Rated coil

power

801

800

3 form A + 1 form B contacts

3 NO + 1 NC

2 form A + 2 form B contacts

2 NO + 2 NC

Rated voltage

250VAC

Max. switching voltage

400VAC

Rated current

Contact material

AgSnO

Contact style

single contact, force guided

type A according to EN 50205

Min. recommended contact load

5V/10mA

Initial contact resistance

≤100mΩ at 1A, 24VDC

≤20Ω at 10mA, 5VDC

Frequency of operation, with/without load

6/150min

-1

Contact ratings, IEC60947-5-1,

on 1 form A (NO) contact

AC15-3A

DC13-3A

Mechanical endurance

10x10

operations

Contact Data

Contact arrangement

All figures are given for coil without pre-energization, at ambient temperature +23°C.

Insulation Data

Coil data

Coil voltage range

Coil versions, DC-coil

Coil

Rated

Operate

code

voltage

VDC

005

3.8

006

4.5

009

6.8

012

9.0

Release

voltage

VDC

0.5

0.6

0.9

1.2

5 to 110VDC

Coil

resistance

Ω±10%

101

180

Rated coil

power

806

800

802

800

Initial dielectric strength

between open contacts

1500Vrms

between contact and coil

4000Vrms

between adjacent contacts

2500Vrms

Clearance/creepage

between open contacts

microdisconnection

between contact and coil

≥10/10mm

between adjacent contacts

≥3/3.5mm

Insulation to EN 50178, type of insulation

between contact and coil

reinforced

between adjacent contacts

basic

04-2015, Rev. 0415

www.te.com

a TE Connectivity Ltd. company

Datasheets and product specification

according to IEC 61810-1 and to be used

only together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.

3-1415055-1 Related Products

	3-1415055-1	SR4M4005	SR4D4060	SR4D4048	SR4D4018	SR4M4018	SR4M4085	SR4D4040
Description	SPECIAL RELAY-SAFETY RELAY, 4PST, MOMENTARY, 0.033A (COIL), 24VDC (COIL), 800mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	SR4M4005	SR4D4060	SR4D4048	SR4D4018	SR4M4018	SR4M4085	SR4D4040
Power relay type	-	forced orientation	forced orientation	forced orientation	forced orientation	forced orientation	forced orientation	forced orientation
Coil current (A)	-	161.29	13.33	16.67	44.444	44.444	8.858	20
Terminal limit breaking current (A)	-	8	8	8	8	8	8	8
Coil excitation system	-	Monostable, DC	Monostable, DC	Monostable, DC	Monostable, DC	Monostable, DC	Monostable, DC	Monostable, DC
Coil Power Rating Class (mW)	-	800 – 1000	600 – 800	600 – 800	600 – 800	600 – 800	600 – 800	600 – 800
Coil Power Rating (DC) (mW)	-	806	800	800	800	800	800	800
Coil resistance (Ω)	-	31	4500	2880	405	405	9031	2000
Coil Voltage Rating (VDC)	-	5	60	48	18	18	80	40
Terminal switch load (minimum)	-	10mA @ 5V	10mA @ 5V	10mA @ 5V	10mA @ 5V	10mA @ 5V	10mA @ 5V	10mA @ 5V
Terminal switching voltage (max) (VAC)	-	400	400	400	400	400	400	400
Terminal Voltage Rating (VAC)	-	250	250	250	250	250	250	250
Insulation leakage between terminal and coil	-	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]
Initial dielectric between terminal and coil (Vrms)	-	4000	4000	4000	4000	4000	4000	4000
Initial dielectric between adjacent terminals (Vrms)	-	2500	2500	2500	2500	2500	2500	2500
Insulation leakage type (mm)	-	8	8	8	8	8	8	8
Terminal limit continuous current (A)	-	8	8	8	8	8	8	8
Terminal limit short-time current (A)	-	8	8	8	8	8	8	8
Terminal limit closing current (A)	-	8	8	8	8	8	8	8
Open terminal insulation initial dielectric (Vrms)	-	1500	1500	1500	1500	1500	1500	1500
Coil/terminal insulation initial dielectric type (V)	-	3500 – 4000	3500 – 4000	3500 – 4000	3500 – 4000	3500 – 4000	3500 – 4000	3500 – 4000
product weight	-	30 g [ 1.058 oz ]	30 g [ 1.058 oz ]	30 g [ 1.058 oz ]	30 g [ 1.058 oz ]	30 g [ 1.058 oz ]	30 g [ 1.058 oz ]	30 g [ 1.058 oz ]
Terminal arrangement	-	3 Form A (NO) + 1 Form B (NC)	2 Form A (NO) + 2 Form B (NC)	2 Form A (NO) + 2 Form B (NC)	2 Form A (NO) + 2 Form B (NC)	3 Form A (NO) + 1 Form B (NC)	3 Form A (NO) + 1 Form B (NC)	2 Form A (NO) + 2 Form B (NC)
Terminal current type (A)	-	5 – 10	5 – 10	5 – 10	5 – 10	5 – 10	5 – 10	5 – 10
Contact Current Rating (Max) (A)	-	8	8	8	8	8	8	8
Terminal material	-	AgSnO2	AgSnO2	AgSnO2	AgSnO2	AgSnO2	AgSnO2	AgSnO2
Number of terminal poles	-	4	4	4	4	4	4	4
Terminal type	-	PCB-THT	PCB-THT	PCB-THT	PCB-THT	PCB-THT	PCB-THT	PCB-THT
Terminal characteristics	-	Forced guided terminals	Forced guided terminals	Forced guided terminals	Forced guided terminals	Forced guided terminals	Forced guided terminals	Forced guided terminals
Relay installation type	-	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board
Product height	-	16.5 mm [ .65 in ]	16.5 mm [ .65 in ]	16.5 mm [ .65 in ]	16.5 mm [ .65 in ]	16.5 mm [ .65 in ]	16.5 mm [ .65 in ]	16.5 mm [ .65 in ]
Product length	-	40 mm [ 1.575 in ]	40 mm [ 1.575 in ]	40 mm [ 1.575 in ]	40 mm [ 1.575 in ]	40 mm [ 1.575 in ]	40 mm [ 1.575 in ]	40 mm [ 1.575 in ]
Product width	-	13 mm [ .512 in ]	13 mm [ .512 in ]	13 mm [ .512 in ]	13 mm [ .512 in ]	13 mm [ .512 in ]	13 mm [ .512 in ]	13 mm [ .512 in ]
Width type (mechanical) (mm)	-	12 – 16	12 – 16	12 – 16	12 – 16	12 – 16	12 – 16	12 – 16
Insulation gap between terminal and coil	-	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]
Height type (mechanical) (mm)	-	16 – 20	16 – 20	16 – 20	16 – 20	16 – 20	16 – 20	16 – 20
Insulation gap type (mm)	-	8	8	8	8	8	8	8
Length type (mechanical) (mm)	-	35 – 40	35 – 40	35 – 40	35 – 40	35 – 40	35 – 40	35 – 40
Environmental Protection Category	-	RTIII	RTIII	RTIII	RTIII	RTIII	RTIII	RTIII
Ambient temperature (maximum)	-	70 °C [ 158 °F ]	70 °C [ 158 °F ]	70 °C [ 158 °F ]	70 °C [ 158 °F ]	70 °C [ 158 °F ]	70 °C [ 158 °F ]	70 °C [ 158 °F ]
Ambient temperature category (°C)	-	-25 – 70	-25 – 70	-25 – 70	-25 – 70	-25 – 70	-25 – 70	-25 – 70
Encapsulation method	-	Tube, box and tube	Tube, box and tube	Tube, box and tube	Tube, box and tube	Tube, box and tube	Tube, box and tube	Tube, box and tube
Comment	-	Ideal for emergency shutdown, machine control, elevator and escalator control, and light barrier control	Ideal for emergency shutdown, machine control, elevator and escalator control, and light barrier control	Ideal for emergency shutdown, machine control, elevator and escalator control, and light barrier control	Ideal for emergency shutdown, machine control, elevator and escalator control, and light barrier control	Ideal for emergency shutdown, machine control, elevator and escalator control, and light barrier control	Ideal for emergency shutdown, machine control, elevator and escalator control, and light barrier control	Ideal for emergency shutdown, machine control, elevator and escalator control, and light barrier control
