8-215464-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8-215464-0

8-215464-0: Description(8-215464-0) 10P.MICRO-MATCH MOB; CategoryThe connector The connector; File Size275KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

8-215464-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-215464-0	-	-	View	Buy Now

8-215464-0 Overview

(8-215464-0) 10P.MICRO-MATCH MOB

8-215464-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2103835410
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	TE Connectivity Micro-Match, 1.27mm Pitch, 10 Way, 1 Row, Straight PCB Header
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-08 14:50:42
YTEOL	9.15
Other features	POLARIZED
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.197 inch
subject depth	0.27 inch
body length	0.45 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	1A
Plug contact pitch	0.1 inch
Match contact row spacing	0.059 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Panel mounting	NO
Plating thickness	196.85u inch
polarization key	POLARIZED
Rated current (signal)	1 A
Rated voltage	100 V
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	1.0008 N

Preview

Download Datasheet

View All

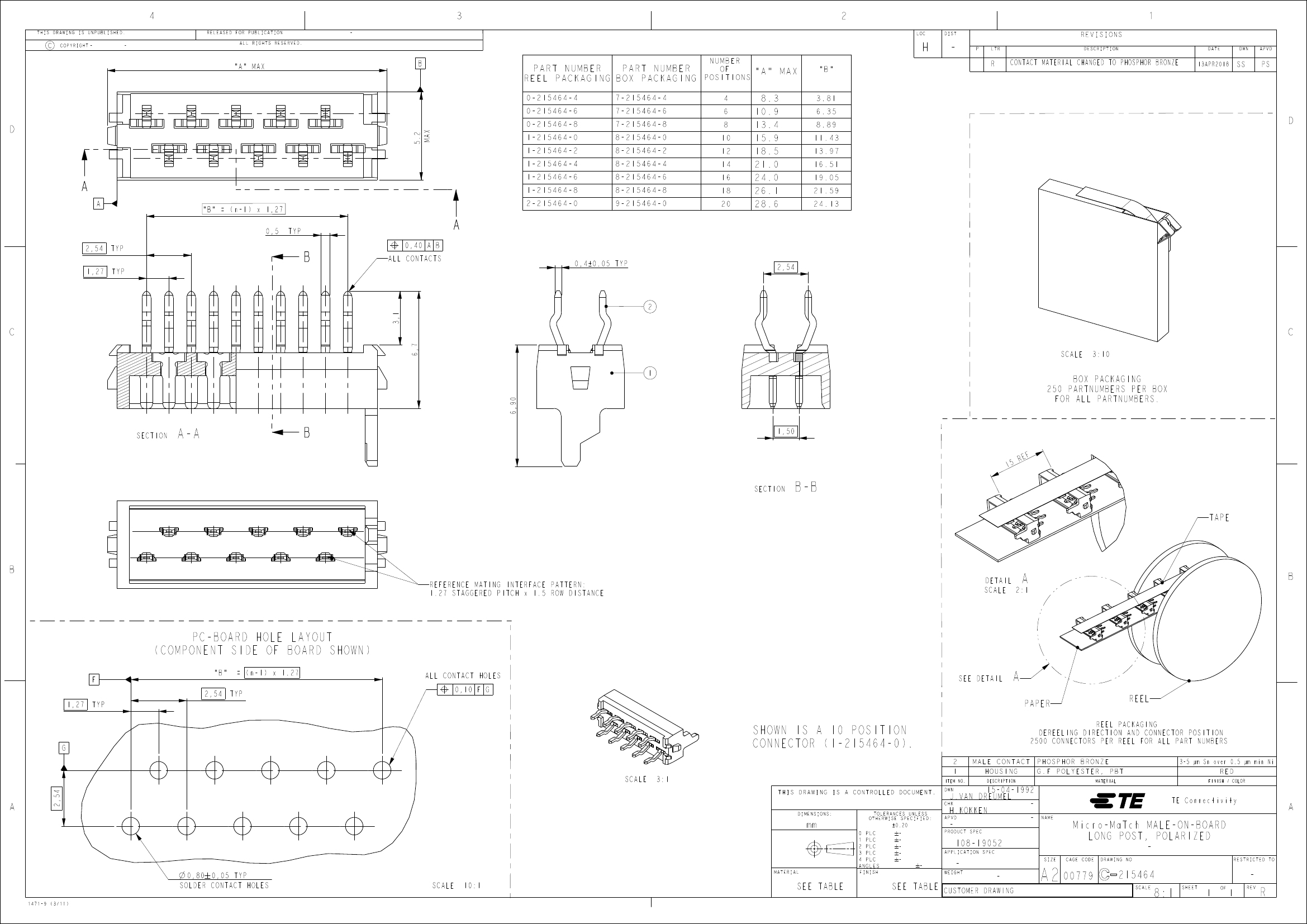

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

"A" MAX

PART NUMBER

"A" MAX

POSITIONS

REEL PACKAGING BOX PACKAGING

0-215464-4

0-215464-6

0-215464-8

1-215464-0

1-215464-2

1-215464-4

1-215464-6

1-215464-8

7-215464-4

7-215464-6

7-215464-8

8-215464-0

8-215464-2

8-215464-4

8-215464-6

8-215464-8

9-215464-0

NUMBER

"B"

3.81

6.35

8.89

11.43

13.97

16.51

19.05

21.59

24.13

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

CONTACT MATERIAL CHANGED TO PHOSPHOR BRONZE

13APR2018

10.9

13.4

15.9

18.5

21.0

24.0

26.1

28.6

8.3

5.2

MAX

"B" = (n-1) x 1,27

0,5

TYP

ALL CONTACTS

2-215464-0

2,54

1,27

TYP

0,4 ±0.05 TYP

2,54

3,1

6,7

SCALE

6,90

3:10

BOX PACKAGING

250 PARTNUMBERS PER BOX

FOR ALL PARTNUMBERS.

1,50

SECTION

A-A

SECTION

B-B

TAPE

REFERENCE MATING INTERFACE PATTERN:

1.27 STAGGERED PITCH x 1.5 ROW DISTANCE

DETAIL

SCALE 2:1

PC-BOARD HOLE LAYOUT

(COMPONENT SIDE OF BOARD SHOWN)

1,27

TYP

"B"

2,54

= (n-1) x 1.27

TYP

ALL CONTACT HOLES

SEE DETAIL

PAPER

REEL

REEL PACKAGING

DEREELING DIRECTION AND CONNECTOR POSITION

2500 CONNECTORS PER REEL FOR ALL PART NUMBERS

SHOWN IS A 10 POSITION

CONNECTOR (1-215464-0).

SCALE

2,54

3:1

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

ITEM NO.

MALE CONTACT

HOUSING

DESCRIPTION

PHOSPHOR BRONZE

G.F POLYESTER, PBT

MATERIAL

3-5 µm Sn over 0.5 µm min Ni

RED

FINISH / COLOR

0,80 0,05 TYP

SOLDER CONTACT HOLES

1471-9 (3/11)

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

±0.20

15-04-1992

J.VAN DREUMEL

CHK

H.KOKKEN

APVD

DWN

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

NAME

108-19052

SIZE

WEIGHT

SCALE

10:1

SEE TABLE

CUSTOMER DRAWING

00779

CAGE CODE

Micro-MaTch MALE-ON-BOARD

LONG POST, POLARIZED

DRAWING NO

RESTRICTED TO

215464

SCALE

8:1

SHEET

REV
