350433-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 350433-1

350433-1: DescriptionNumber of Pins: 12 Connector Type: Head Contact Type: Male Pin Pitch: 0.250" (6.35mm) Series: -; CategoryThe connector The connector; File Size259KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

350433-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	350433-1	-	-	View	Buy Now

350433-1 Overview

Number of Pins: 12 Connector Type: Head Contact Type: Male Pin Pitch: 0.250" (6.35mm) Series: -

350433-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
Other features	MATE-N-LOK
body width	0.8 inch
subject depth	0.58 inch
body length	1.05 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact arrangement	S0P12
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2900VAC V
Durability	50 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug information	1-480708-0
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.185 inch
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

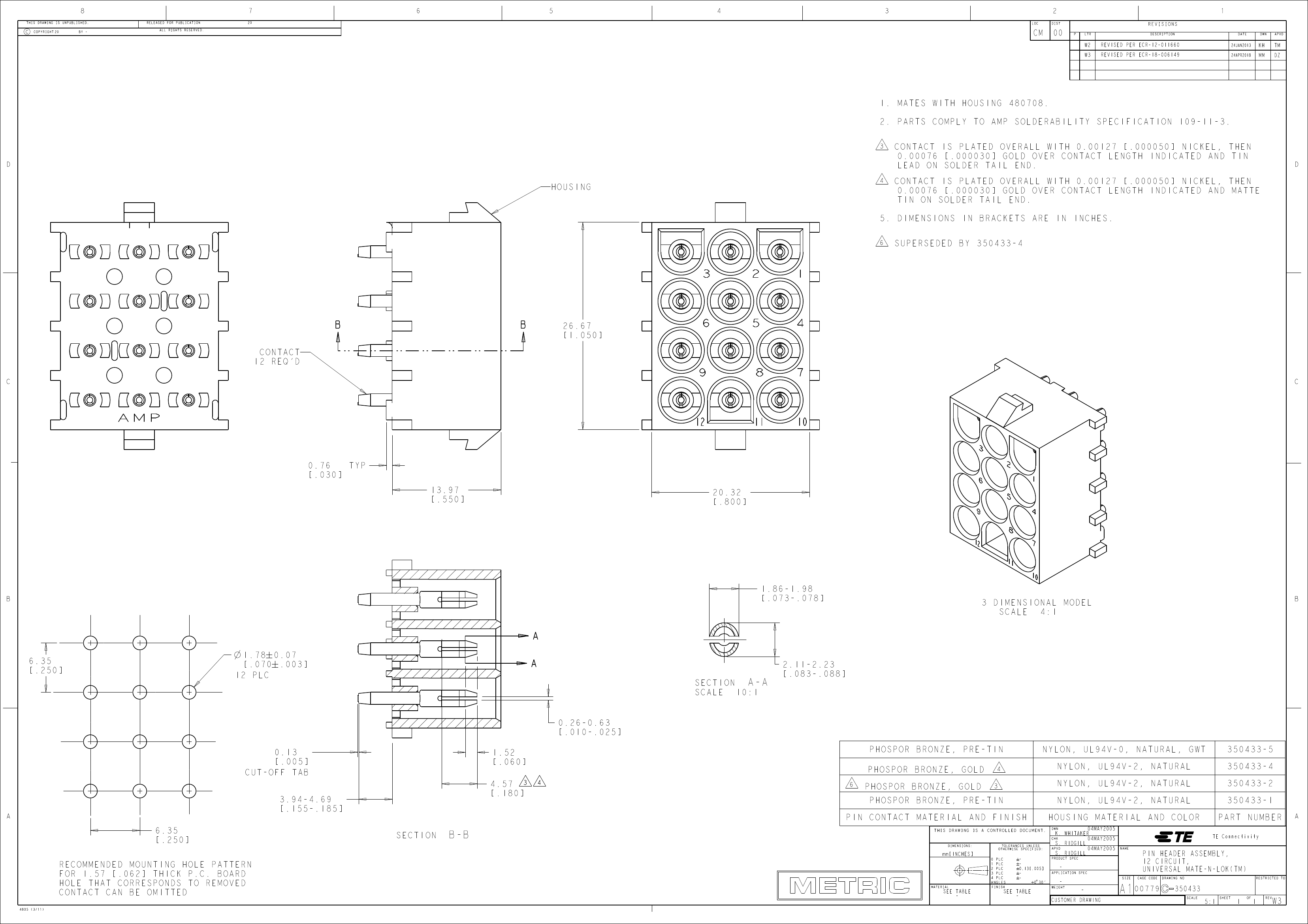

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-12-011660

REVISED PER ECR-18-006149

24JAN2013

24APR2018

1. MATES WITH HOUSING 480708.

2. PARTS COMPLY TO AMP SOLDERABILITY SPECIFICATION 109-11-3.

CONTACT IS PLATED OVERALL WITH 0.00127 [.000050] NICKEL, THEN

0.00076 [.000030] GOLD OVER CONTACT LENGTH INDICATED AND TIN

LEAD ON SOLDER TAIL END.

CONTACT IS PLATED OVERALL WITH 0.00127 [.000050] NICKEL, THEN

0.00076 [.000030] GOLD OVER CONTACT LENGTH INDICATED AND MATTE

TIN ON SOLDER TAIL END.

HOUSING

5. DIMENSIONS IN BRACKETS ARE IN INCHES.

SUPERSEDED BY 350433-4

26.67

[ 1.050 ]

CONTACT

12 REQ'D

0.76

TYP

[ .030 ]

13.97

[ .550 ]

20.32

[ .800 ]

1.86 -1.98

[ .073 -.078 ]

3 DIMENSIONAL MODEL

SCALE

4:1

6.35

[ .250 ]

1.78 0.07

[ .070 .003 ]

12 PLC

SECTION

A-A

SCALE

10:1

0.26 -0.63

[ .010 -.025 ]

2.11 -2.23

[ .083 -.088 ]

0.13

[ .005 ]

CUT-OFF TAB

3.94 -4.69

[ .155 -.185 ]

6.35

[ .250 ]

RECOMMENDED MOUNTING HOLE PATTERN

FOR 1.57 [.062] THICK P.C. BOARD

HOLE THAT CORRESPONDS TO REMOVED

CONTACT CAN BE OMITTED

4805 (3/11)

1.52

[ .060 ]

4.57

[ .180 ]

PHOSPOR BRONZE, PRE-TIN

PHOSPOR BRONZE, GOLD

PHOSPOR BRONZE, PRE-TIN

PIN CONTACT MATERIAL AND FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

NYLON, UL94V-0, NATURAL, GWT

350433 -5

350433 -4

350433 -2

350433 -1

PART NUMBER

TE Connectivity

NYLON, UL94V-2, NATURAL

HOUSING MATERIAL AND COLOR

DWN

CHK

SECTION

B-B

K. WHITAKER

S. RIDGILL

04MAY2005

NAME

mm[INCHES]

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13[.005]

0 $ 30'

PRODUCT SPEC

APPLICATION SPEC

SIZE

SEE TABLE

WEIGHT

CUSTOMER DRAWING

00779

CAGE CODE

PIN HEADER ASSEMBLY,

12 CIRCUIT,

UNIVERSAL MATE-N-LOK(TM)

DRAWING NO

RESTRICTED TO

350433

SCALE

5:1

SHEET

REV

350433-1 Related Products

	350433-1	350433-4
Description	Number of Pins: 12 Connector Type: Head Contact Type: Male Pin Pitch: 0.250" (6.35mm) Series: -	12P UMNL PIN HDR ASSY NATL LF
Brand Name	AMP	AMP
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli
ECCN code	EAR99	EAR99
Factory Lead Time	14 weeks	12 weeks
Other features	MATE-N-LOK	MATE-N-LOK
Connector type	POWER CONNECTOR	POWER CONNECTOR
Contact to complete cooperation	TIN	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Plug information	1-480708-0	1-480708-0
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE	POLYAMIDE
Termination type	SOLDER	SOLDER
Total number of contacts	12	12
UL Flammability Code	94V-2	94V-2
Base Number Matches	1	1
