TC74HC4053AFT datasheet, PDF - EEWORLD Datasheet

TC74HC4053AFT: DescriptionLogical Type:- Extra Features:-; CategoryAnalog mixed-signal IC The signal circuit; File Size383KB，9 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric View All

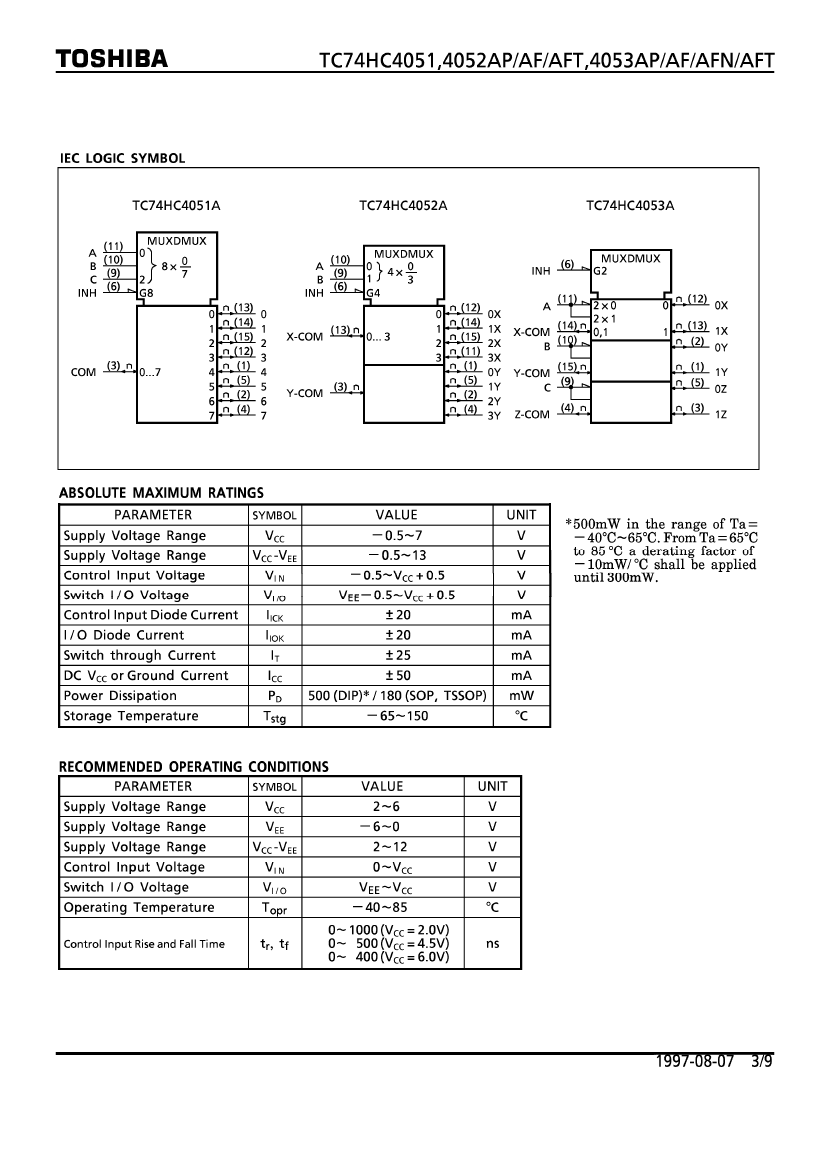

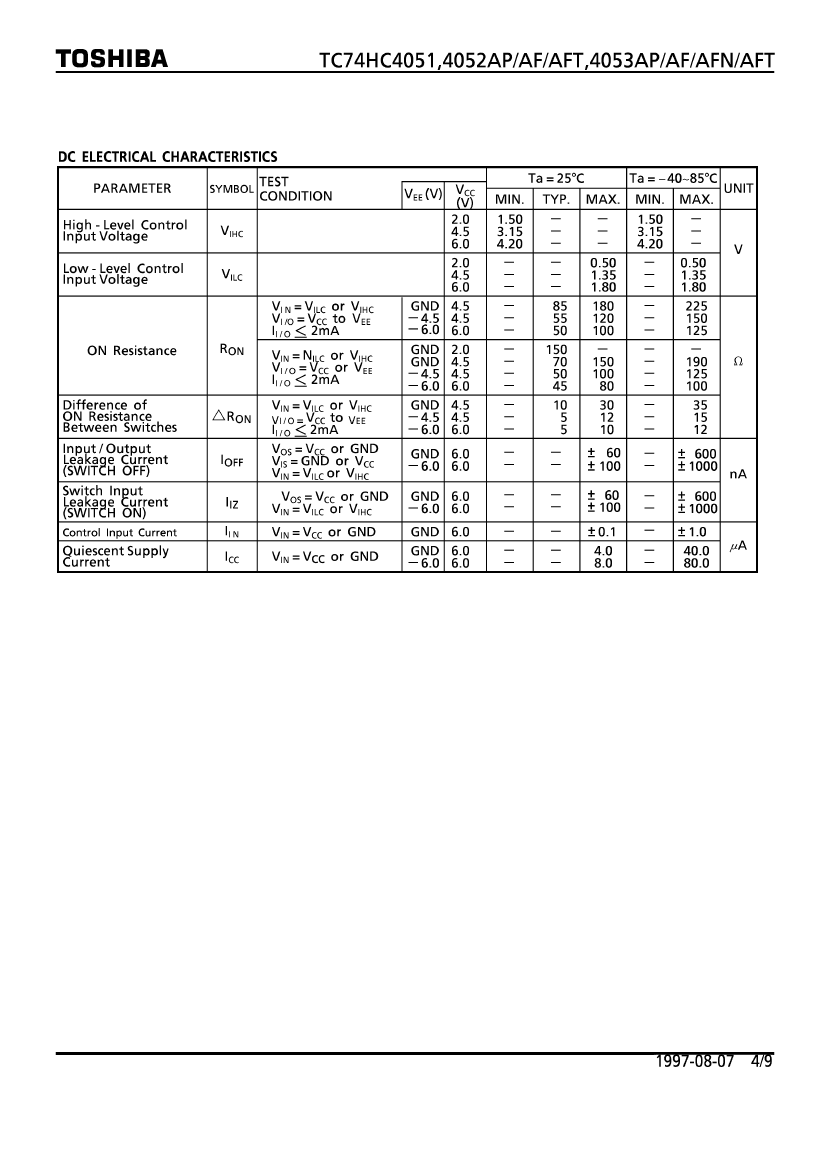

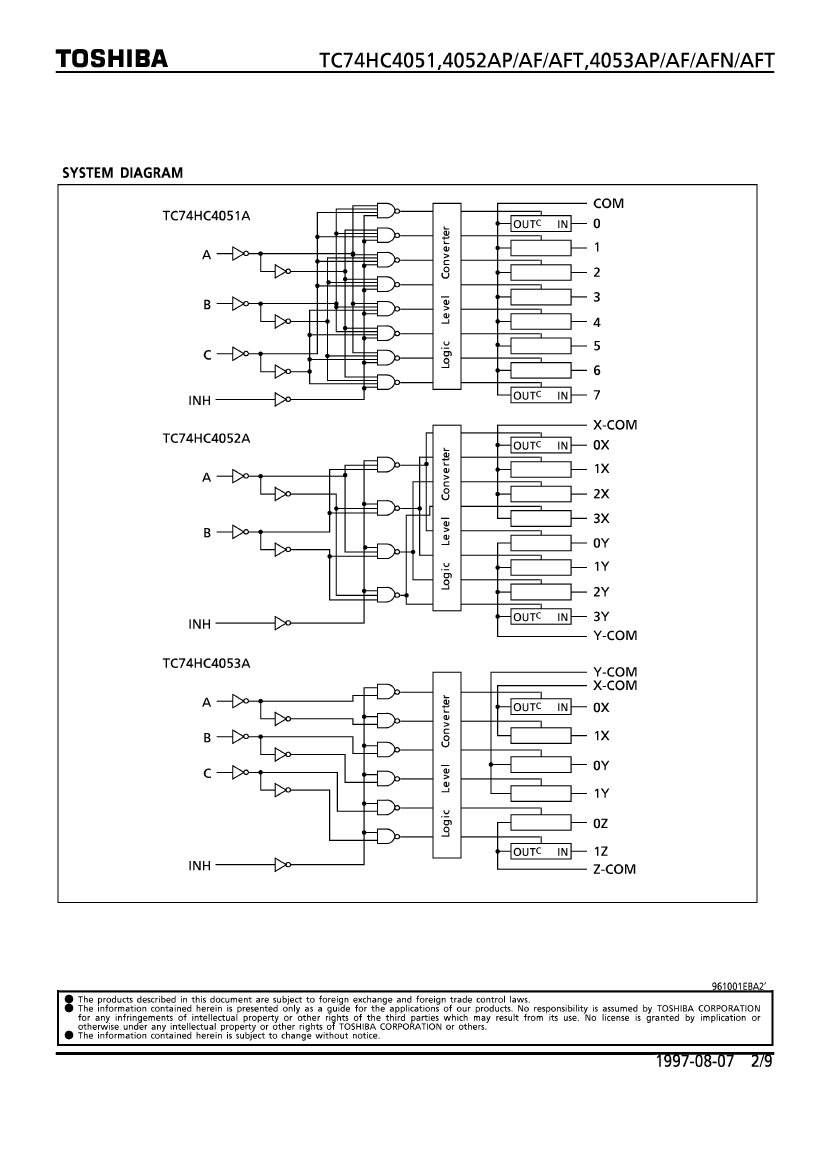

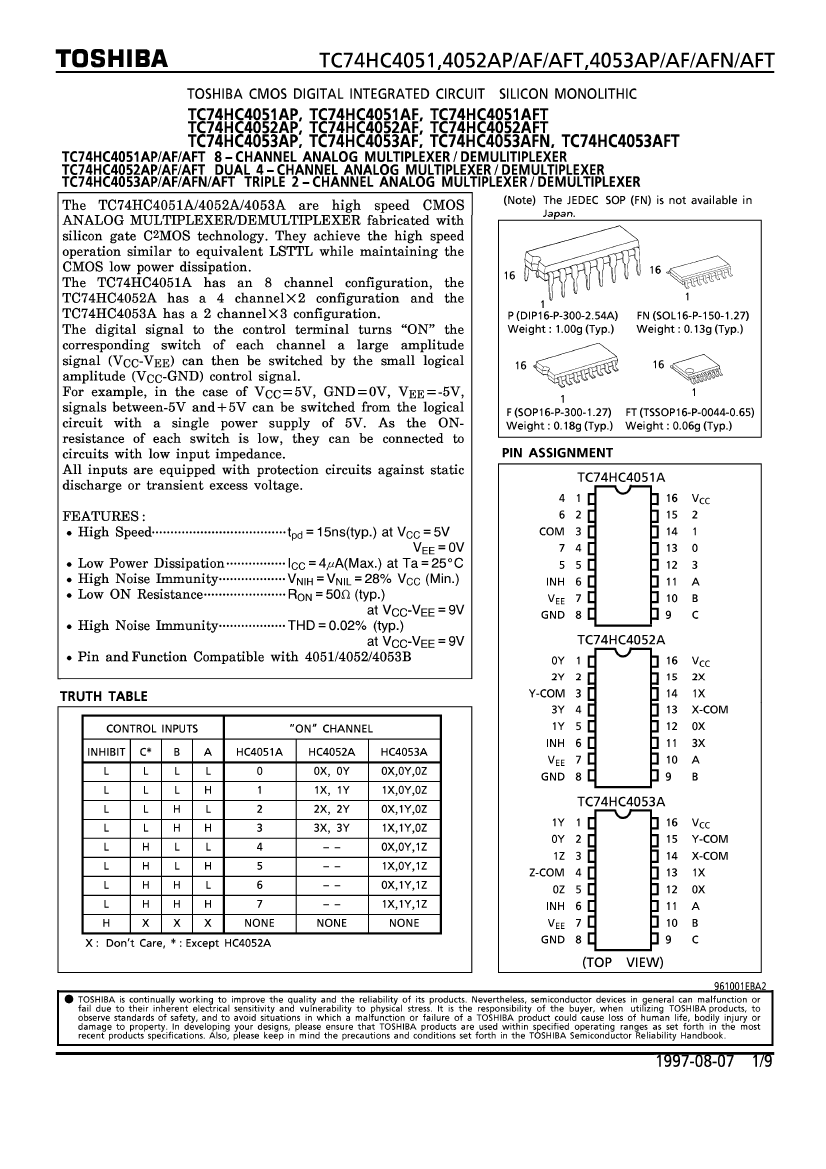

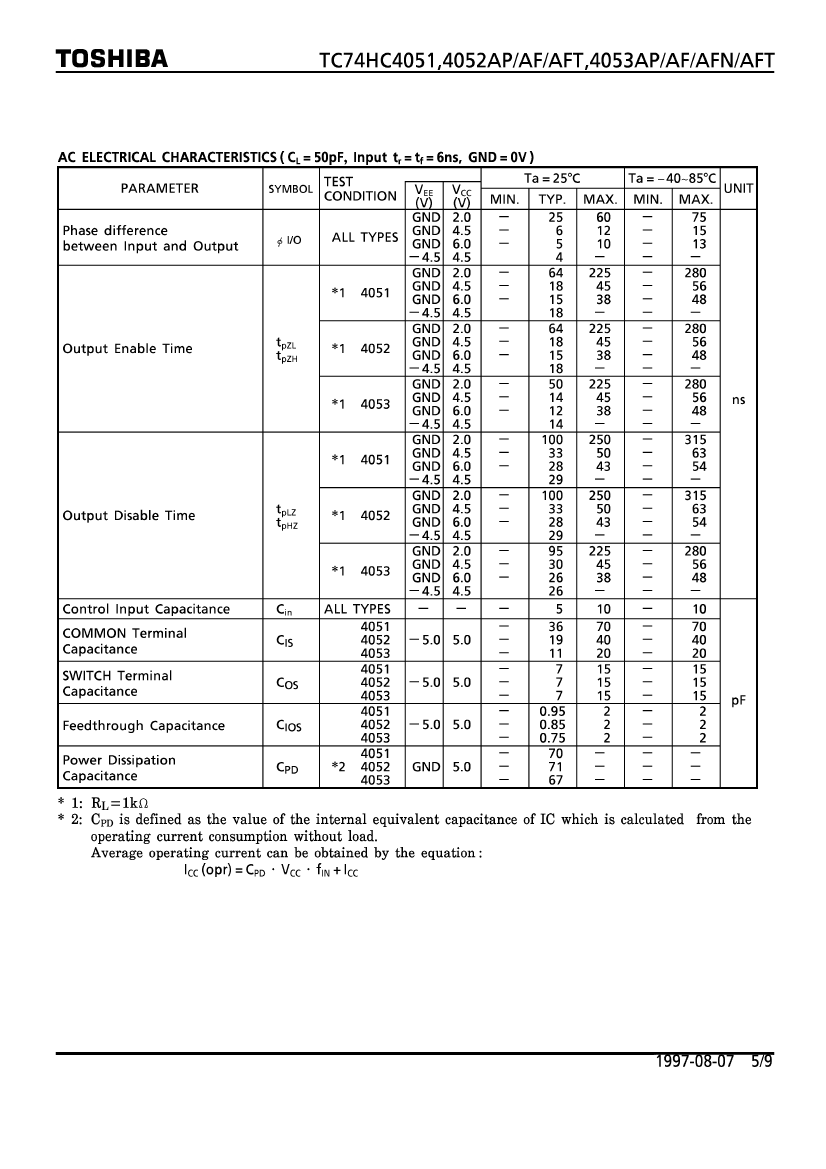

TC74HC4053AFT Overview

Logical Type:- Extra Features:-

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Toshiba Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP-16
Contacts	16
Reach Compliance Code	unknown
Other features	IT CAN ALSO OPERATE WITH 2 TO 12 V SUPPLY
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
length	5 mm
Maximum negative supply voltage (Vsup)	-6 V
Negative supply voltage minimum (Vsup)
Nominal Negative Supply Voltage (Vsup)	-4.5 V
Number of channels	6
Number of functions	1
Number of terminals	16
Nominal off-state isolation	50 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	55 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6,GND/-6 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum signal current	0.025 A
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
Maximum disconnect time	45 ns
Maximum connection time	45 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
