HDP054095304

Description
Board Connector, 54 Contact(s), 4 Row(s), Male, Solder Terminal, Plug, ROHS COMPLIANT
CategoryThe connector    The connector
File Size344KB,8 Pages
ManufacturerSmiths Group
Environmental Compliance
Download Datasheet Parametric View All

HDP054095304 Overview

Board Connector, 54 Contact(s), 4 Row(s), Male, Solder Terminal, Plug, ROHS COMPLIANT

HDP054095304 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSmiths Group
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Other featuresPANEL MOUNTABLE
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL
Contact completed and terminatedGOLD (50) OVER NICKEL
Contact point genderMALE
Contact materialBRASS
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded4
OptionsGENERAL PURPOSE
Termination typeSOLDER
Total number of contacts54
UL Flammability Code94V-0

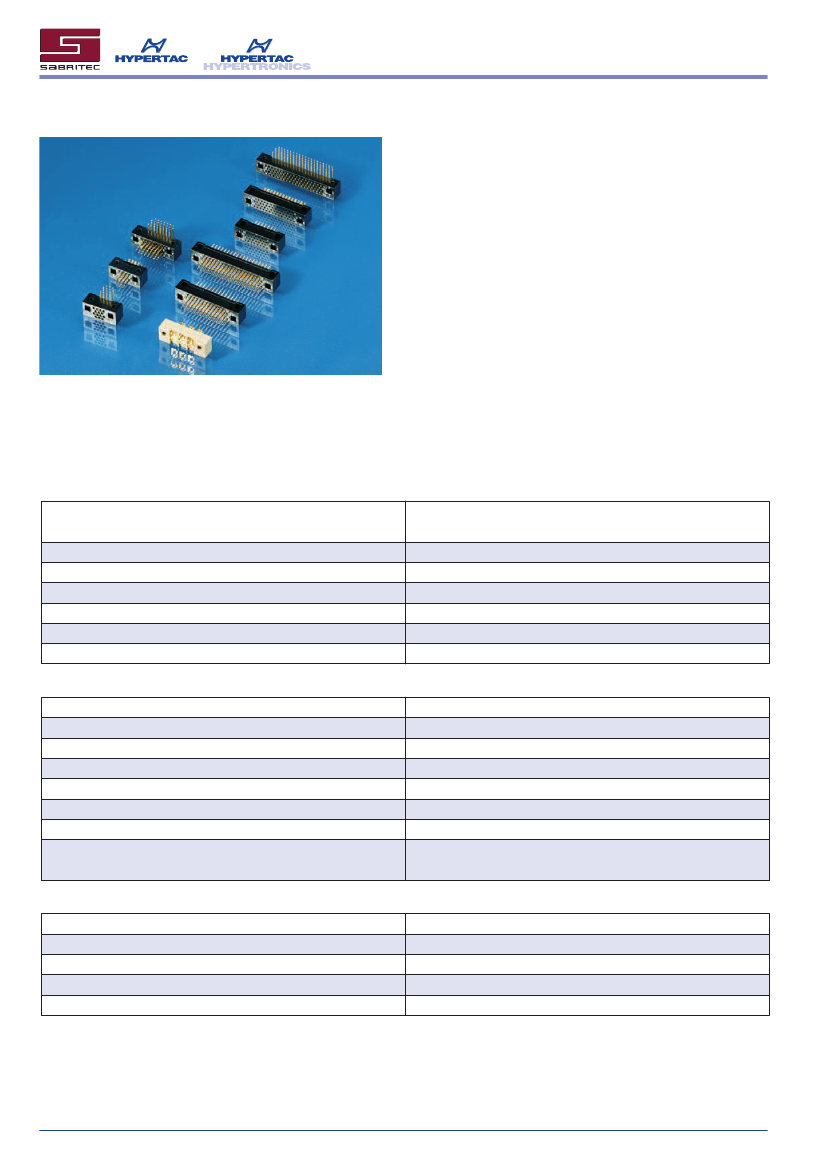

HD Series
High Density PCB and Cable
Connectors with Bayonet Keying
4 row PCB connectors

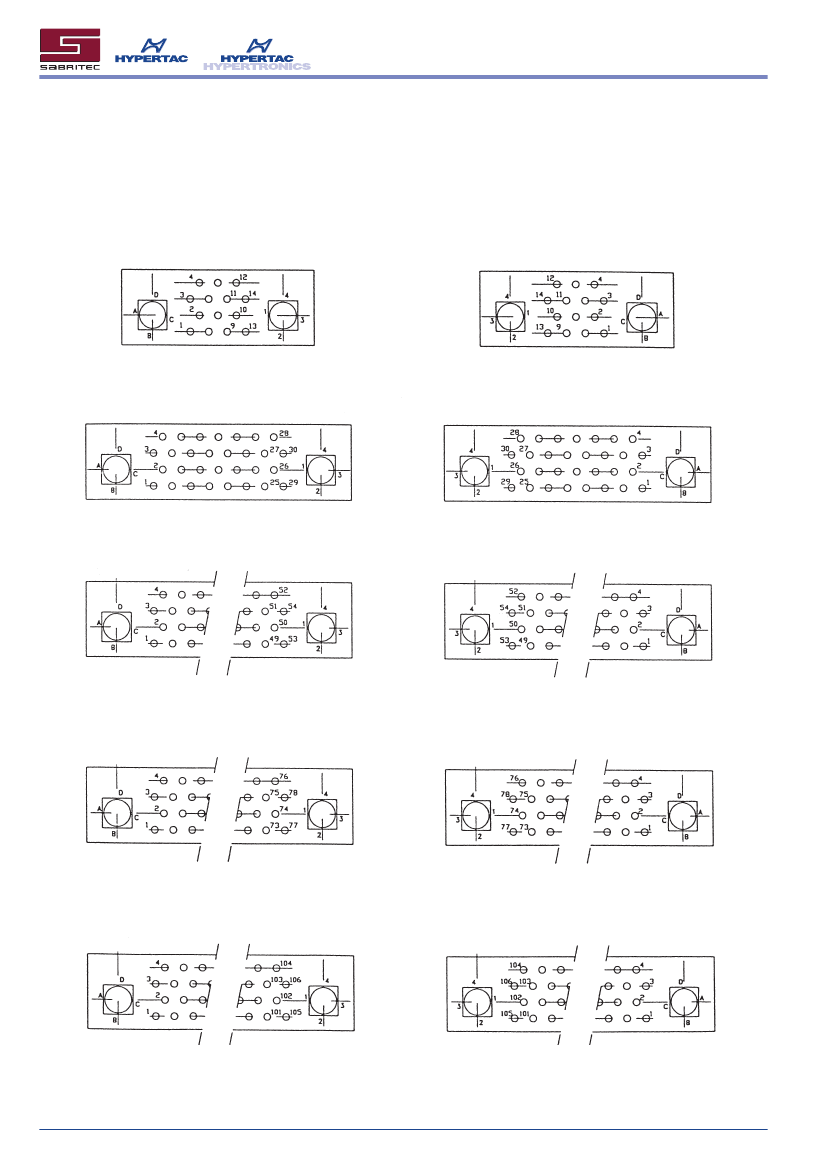

14/30/54/78/106 ways
Quarter turn locking
Horizontal or vertical fixing
Hyperboloid contacts, contact diameter 0.5 mm
Solder cup, TBS
3way with coaxial contacts
RoHS compliant
Technical Characteristics
Contacts
Contact type
hyperboloid contacts
0,5 mm
Material
Plating
Nominal current
Contact resistance
Interruption under vibration
Mating cycles
Insulating Body
Material
Deformation resistance
UL temperature index
Insulation resistance
Dielectric strength
Flamability UL94
MIL-specification

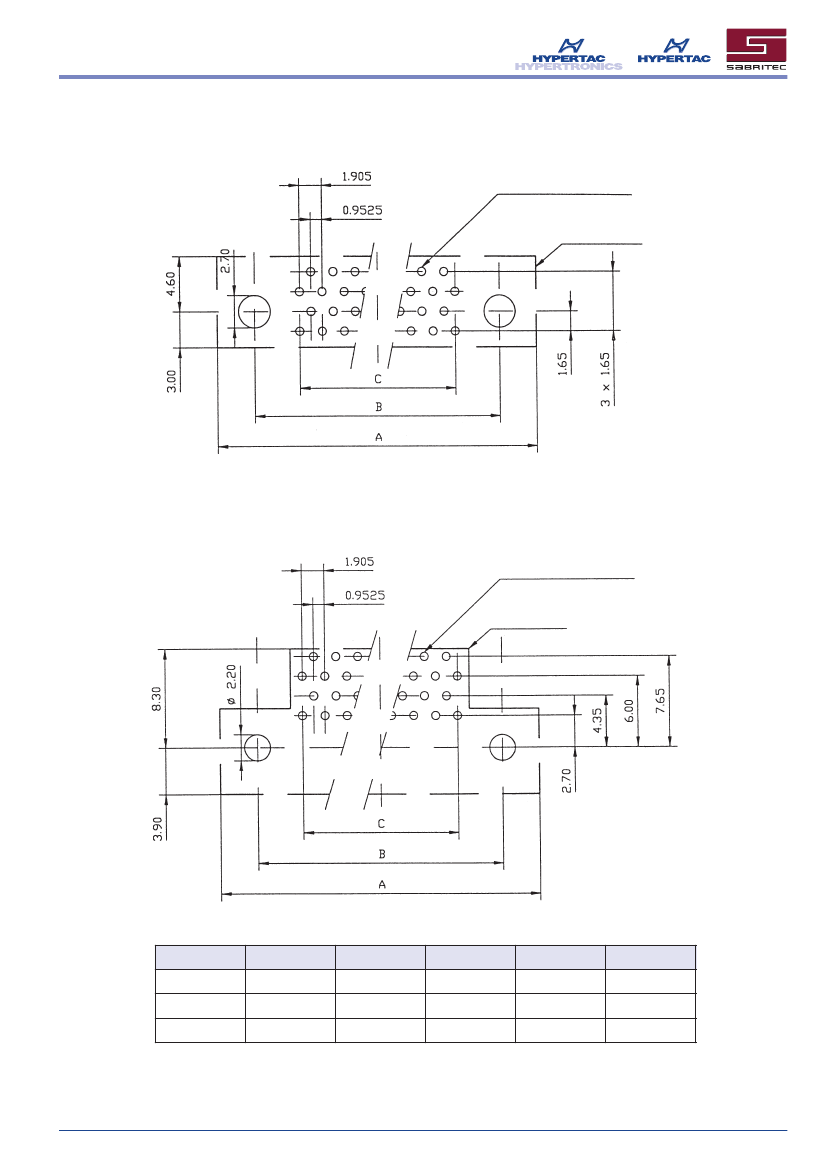

Pitch
PPS
260°C
200/220°C
1 x 10
15
Ωcm
17 kV/mm
V-0
MIL 46174(MR) Typ E
1,905 mm center-to-center-spacing
1,65 mm row-to-row-spacing
Fixing
Material
Alignment and keying
Coding
Locking

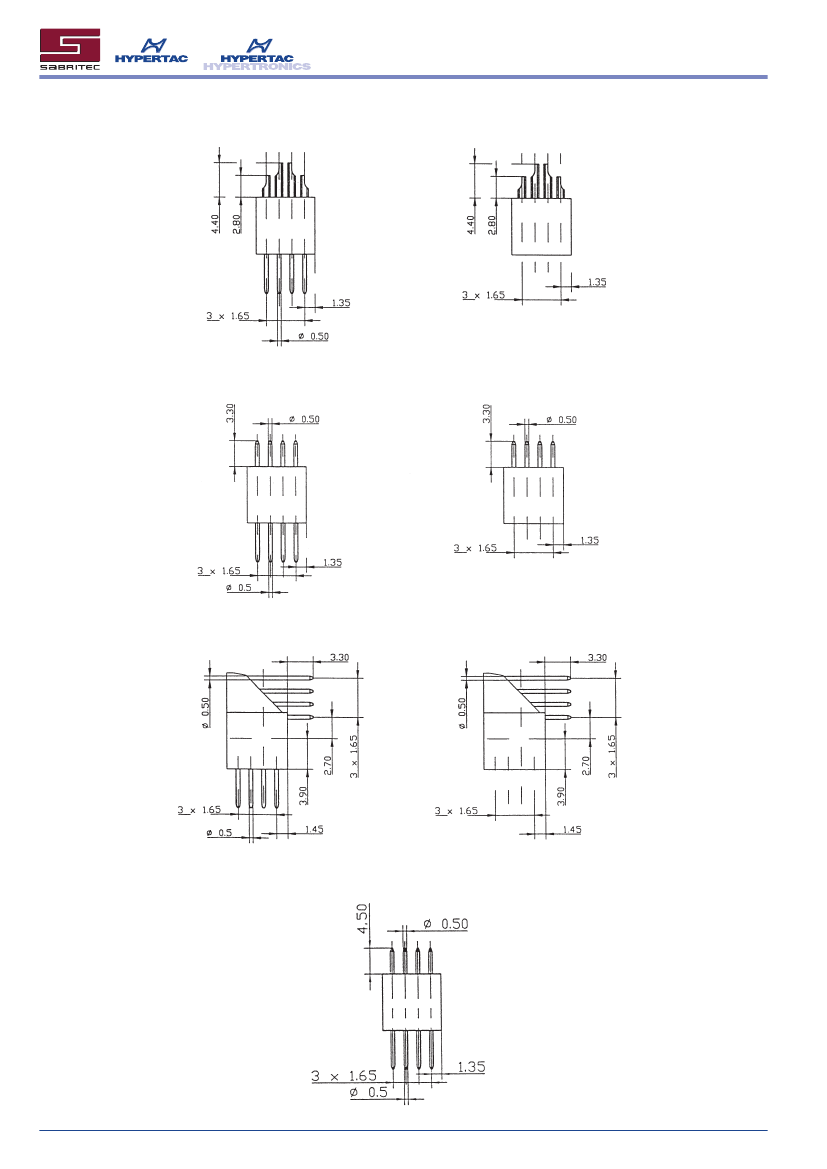

PCB fixing
Stainless steel
Guiding pin and socket
Guide lug and slot/ 4 coding possibilities per guide element
Bayonet locking or threaded connection without coding
Optional: horizontal or vertical
Brass
2µm Ni + 1,27
µm
Au
3 Amp.
<6 mΩ
<2 ns
≥1000
JULY
2007
31
