TLP172A
TOSHIBA Photocoupler
Photorelay
TLP172A
Telecommunications
Control Equipment
Data Acquisition System
Security Equipment
Measurement Equipment

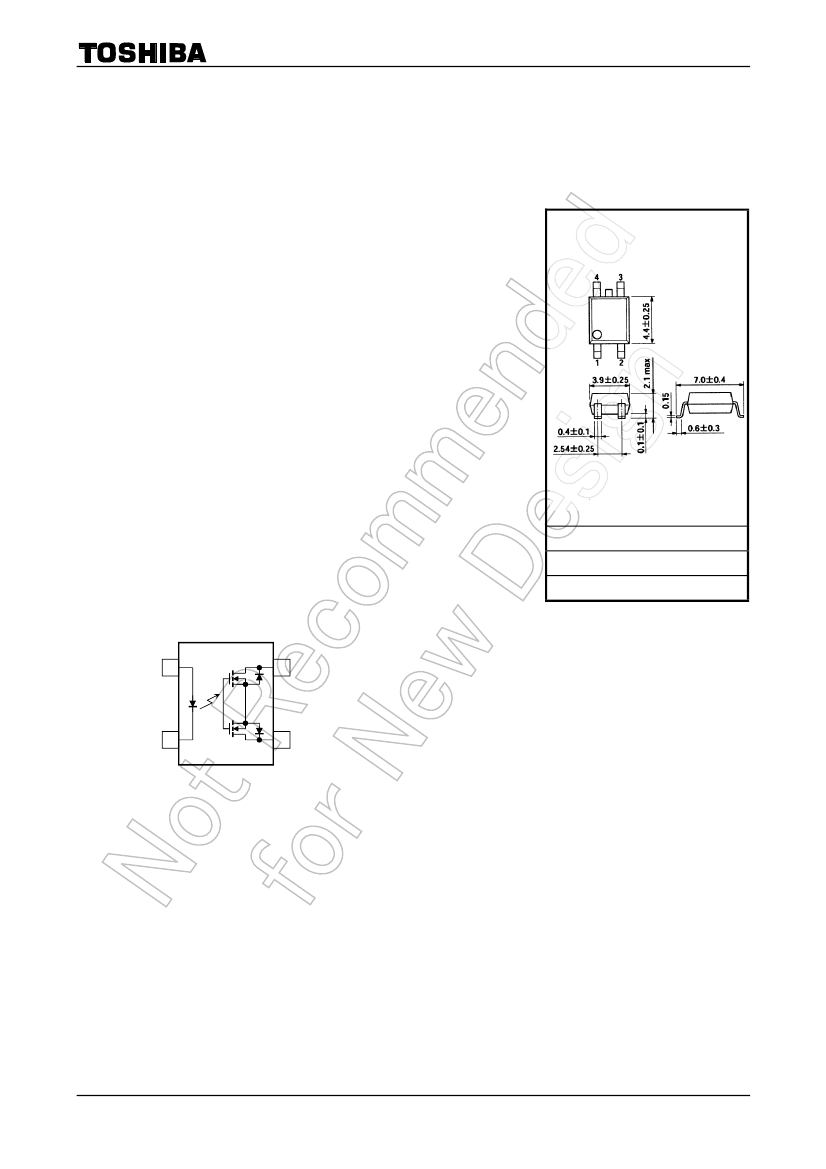

The Toshiba TLP172A consists of a gallium arsenide infrared emitting
diode optically coupled to a photo-MOSFET in a 4-pin SOP package. This
photorelay has higher output current rating than phototransistor-type
photocoupler; hence, it is suitable for use as On/Off control for high
current.
•
•
•
•
•
•
•
•
4-pin SOP (2.54SOP4): Height = 2.1 mm, pitch = 2.54 mm
Normally open (1-form-A) device
Peak off-state voltage: 60 V (min)
Trigger LED current: 3 mA (max)
On-state current: 400 mA (max)
On-state resistance: 2
Ω
(max)
Isolation voltage: 1500 Vrms (min)
UL recognized: UL1557, File No.E67349
JEDEC
JEITA
TOSHIBA
Weight: 0.1 g (typ.)
―
―
11-5H1
Unit: mm
Pin Configuration
(top view)
1
4
1: Anode
2: Cathode
3: Drain
4: Drain
2
3
Start of commercial production
2002/03
1
2014-09-01
TLP172A
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Forward current
LED
Forward current derating
(Ta
≥
25°C)
Reverse voltage
Junction temperature
Off-state output terminal
voltage
Detector
On-state current
Forward current derating
(Ta
≥
25°C)
Junction temperature
Storage temperature
Operating temperature
Lead soldering temperature (10 s)
Isolation voltage
(AC, 1 minute, R.H.
≤
60%)
(Note 1)
Symbol

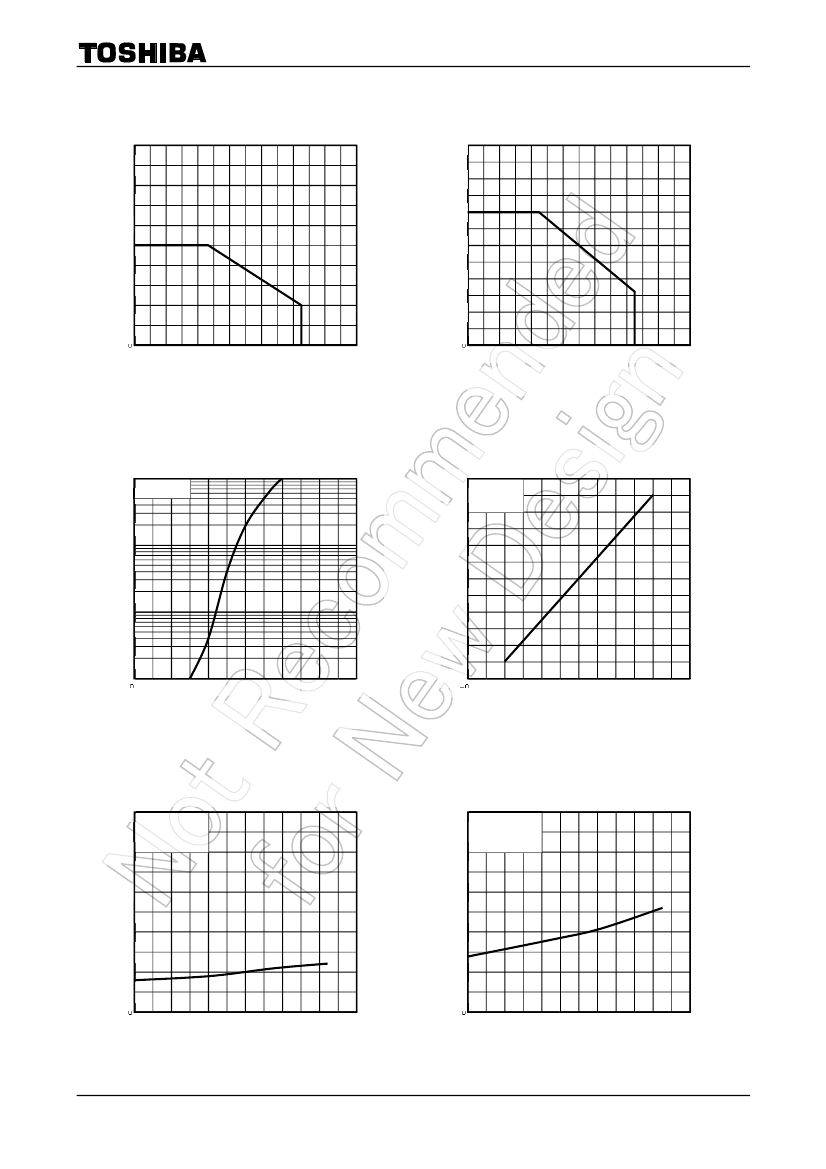

I
F
ΔI
F
/°C
V
R
T
j
V
OFF
I
ON
ΔI
ON
/°C
T
j
T
stg
T
opr
T
sol
BV
S
Rating
50
−0.5
5
125
60
400
−4.0
125
−55
to 125
−40
to 85
260
1500
Unit
mA
mA/°C
V
°C
V
mA
mA/°C
°C
°C
°C
°C
Vrms
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if
the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 1: LED pins are shorted together. Detector pins are also shorted together.
Recommended Operating Conditions
Characteristics
Supply voltage
Forward current
On-state current
Operating temperature
Symbol
V
DD
I
F
I
ON
T
opr
Min
⎯
5
⎯
−20
Typ.
⎯
7.5
⎯
⎯
Max
48
25
400
65
Unit
V
mA
mA
°C
Note: Recommended operating conditions are given as a design guideline to obtain expected performance of the
device. Additionally, each item is an independent guideline respectively. In developing designs using this
product, please confirm specified characteristics shown in this document.
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Forward voltage
LED
Reverse current
Capacitance
Detector
Off-state current
Capacitance
Symbol
V
F
I
R
C
T
I
OFF
C
OFF
Test Condition
I
F
=
10 mA
V
R
=
5 V
V
=
0, f
=
1 MHz
V
OFF
=
60 V
V
=
0, f
=
1 MHz
Min
1.0
⎯
⎯
⎯
⎯
Typ.
1.15
⎯
30
⎯
130
Max
1.3
10
⎯
1
⎯
Unit
V
μA
pF
μA
pF
2
2014-09-01
TLP172A
Coupled Electrical Characteristics
(Ta
=
25°C)
Characteristics
Trigger LED current
Return LED current
On-state resistance
Symbol
I
FT
I
FC
R
ON
Test Condition
I
ON
=
400 mA
I
OFF
=
100
μA
I
ON
=
400 mA, I
F
=
5 mA
Min
⎯
0.1
⎯
Typ.
1.6
⎯
1
Max
3
⎯
2
Unit
mA
mA
Ω
Isolation Characteristics
(Ta
=
25°C)
Characteristics
Capacitance input to output
Isolation resistance
Symbol
C
S
R
S
Test Condition
V
S
=
0 V, f
=
1 MHz
V
S
=
500 V, R.H.
≤
60%
AC, 1 minute
Isolation voltage
BV
S
AC, 1 second, in oil
DC, 1 minute, in oil
Min
⎯
5
×
10
10
Typ.
0.8
10
14
Max
⎯
⎯
⎯
⎯
⎯
Unit
pF
Ω
Vrms
Vdc
1500
⎯
⎯
⎯
3000
3000

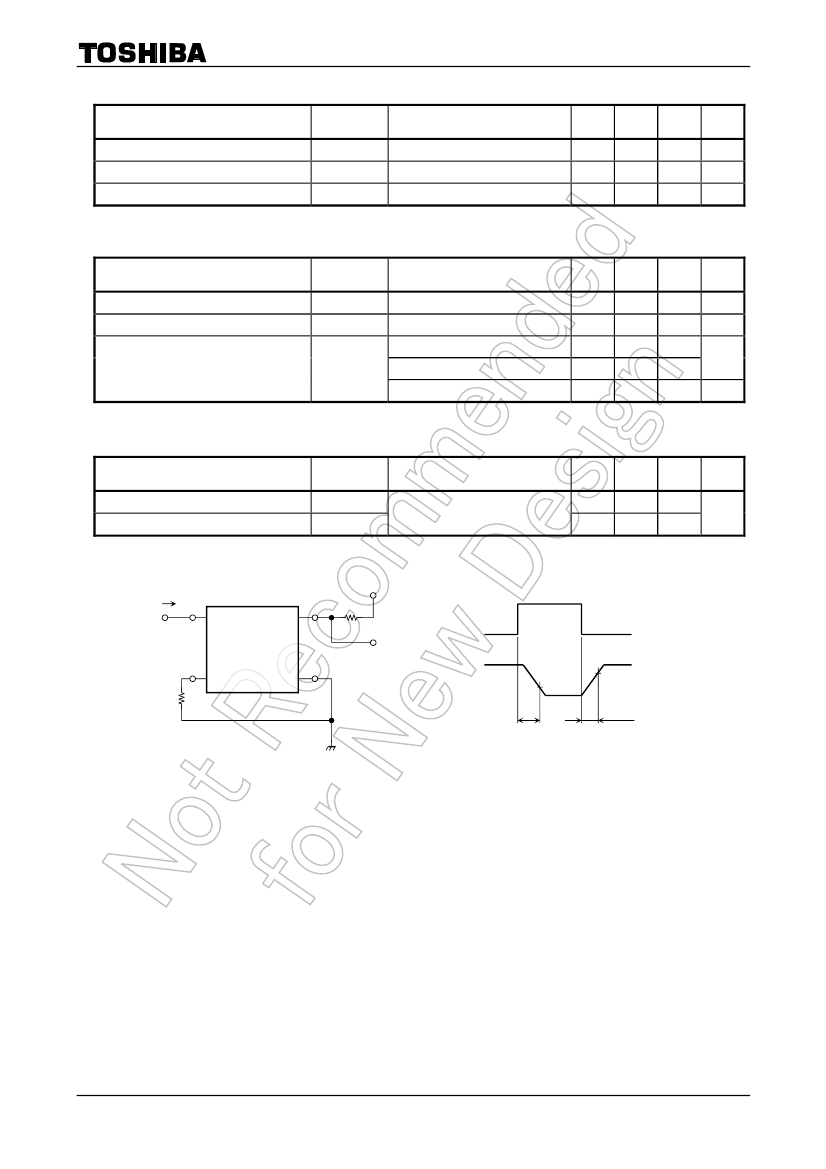

Switching Characteristics
(Ta
=
25°C)
Characteristics
Turn-on time
Turn-off time
Symbol

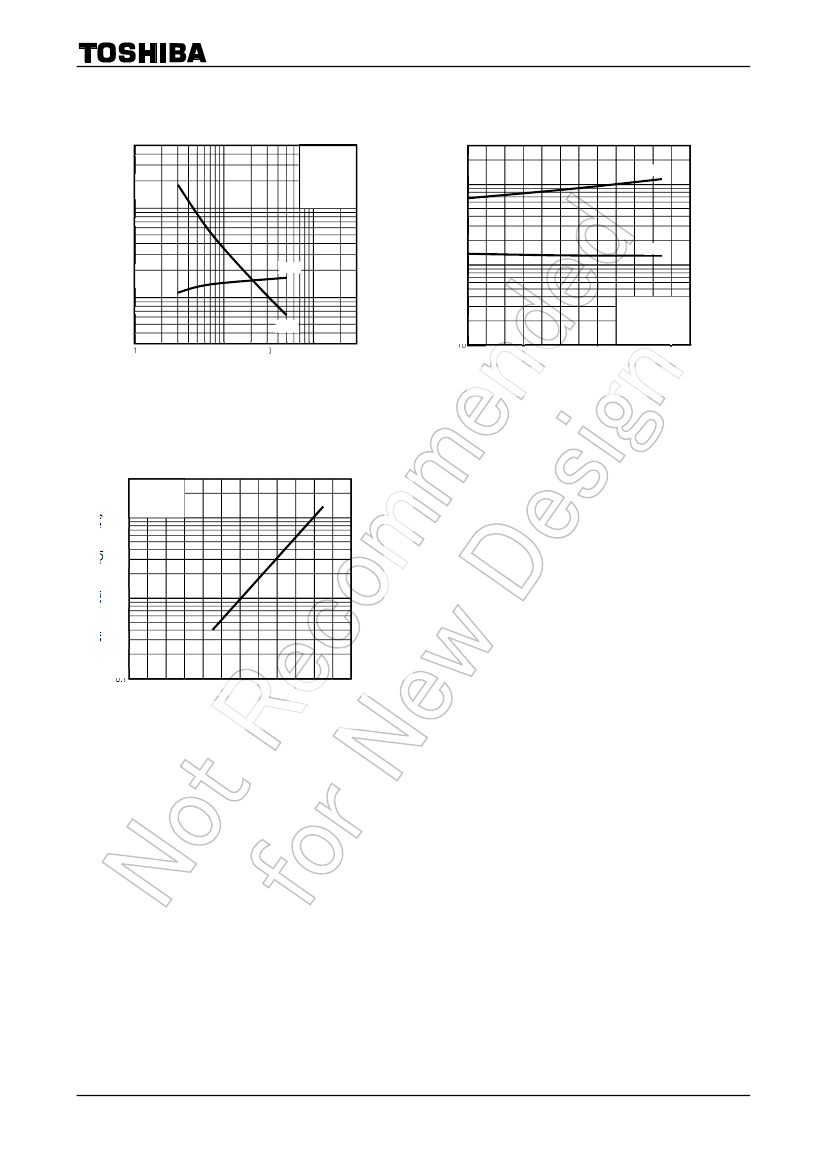

t
ON
t
OFF
Test Condition
R
L
=
200
Ω
V
DD
=
20 V, I
F
=
5 mA
(注 2)
Min
⎯
⎯
Typ.
0.8
0.1
Max
2
0.5
Unit
ms
Note 2: Switching time test circuit
I
F
V
DD
I
F
V
OUT
2
3
V
OUT
10%
t
ON
90%
t
OFF
1
4
R
L
3
2014-09-01
TLP172A
I
F
– Ta
100
600
I
ON
– Ta
IF (mA)
(mA)
ION
On-sate current
0
20
40
60
80
100
120
80
500
Allowable forward current
400
60
300
40
200
20
100
0
−20
0
−20
0
20
40
60
80
100
120
Ambient temperature Ta (°C)
Ambient temperature Ta (°C)
I
F
– V
F
100
Ta
=
25°C
600
Ta
=
25°C
IF
=
5 mA
I
ON
– V
ON
(mA)
On-state current ION
10
(mA)
30
400
200
Forward current IF
3
0
1
−200
0.3
−400
0.1
0.6
0.8
1
1.2
1.4
1.6
1.8
−600
−0.6
−0.4
−0.2
0
0.2
0.4
0.6
Forward voltage VF
(V)
On-state voltage VON (V)
R
ON
– Ta
5
ION
=
400 mA
IF
=
5 mA
t
<
1s
5
ION
=
400 mA
t
<
1s
4
I
FT
– Ta
On-state resistance RON (Ω)
4
3
Trigger LED Current IFT
40
60
80
100
(mA)
3
2
2
1
1
0
−20
0
20
0
−20
0
20
40
60
80
100
Ambient temperature Ta (°C)
Ambient temperature Ta (°C)
4
2014-09-01
TLP172A
t
ON
, t
OFF
– I
F
5000
3000
Ta
=
25°C
t
ON
, t
OFF
– Ta
tON
1000
Switching time tON, tOFF (μs)
3000
RL
=
200
Ω
1000
500
300
tOFF
100
50
30
1
3
5
10
30
tON
50
100
300
Switching time tON, tOFF (μs)
VDD
=
20 V
300
tOFF
100
30
VDD
=
20 V
RL
=
200
Ω
IF
=
5 mA
0
20
40
80
80
100
10
−20
Input current IF (mA)
Ambient temperature Ta (°C)
I
OFF
– Ta
30
VOFF
=
60 V
(nA)
IOFF
Off-state current
10
3
1
0.3
0.1
−20
0
20
40
80
80
100
Ambient temperature Ta (°C)
5
2014-09-01
