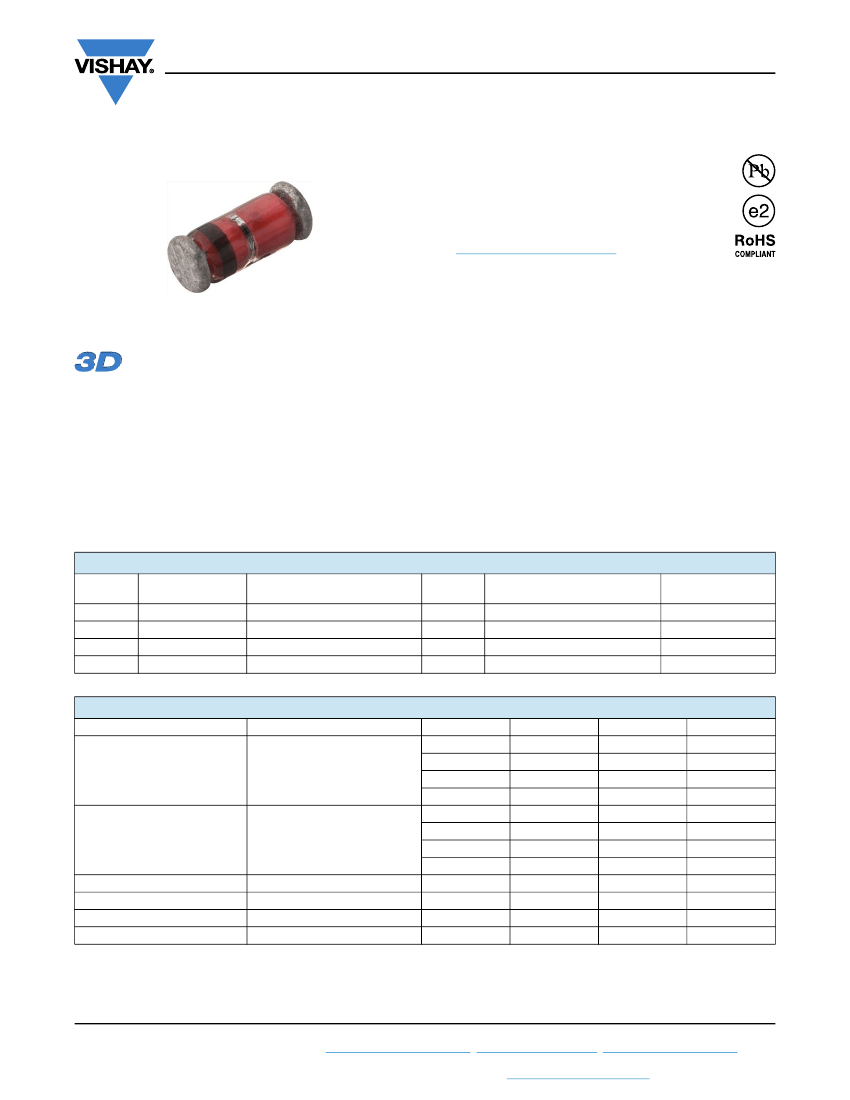

BAV100, BAV101, BAV102, BAV103
www.vishay.com
Vishay Semiconductors
Small Signal Switching Diodes, High Voltage
FEATURES
• Silicon epitaxial planar diode
• AEC-Q101 qualified
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• General purposes
DESIGN SUPPORT TOOLS
click logo to get started
Models
Available
MECHANICAL DATA
Case:
MiniMELF (SOD-80)
Weight:
approx. 31 mg
Cathode band color:
black
Packaging codes / options:
GS18/10K per 13" reel (8 mm tape), 10K/box
GS08/2.5K per 7" reel (8 mm tape), 12.5K/box
PARTS TABLE
PART
BAV100
BAV101
BAV102
BAV103
TYPE
DIFFERENTIATION
V
RRM
= 60 V
V
RRM
= 120 V
V
RRM
= 200 V
V
RRM
= 250 V
ORDERING CODE
BAV100-GS18 or BAV100-GS08
BAV101-GS18 or BAV101-GS08
BAV102-GS18 or BAV102-GS08
BAV103-GS18 or BAV103-GS08
TYPE
MARKING
-
-
-
-
CIRCUIT CONFIGURATION
Single
Single
Single
Single
REMARKS
Tape and reel
Tape and reel
Tape and reel
Tape and reel
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
PART
BAV100
Repetitive peak reverse voltage
BAV101
BAV102
BAV103
BAV100
Reverse voltage
BAV101
BAV102
BAV103
Peak forward surge current
Repetitive peak forward current
Forward continuous current
Power dissipation
t
p
= 1 s
SYMBOL
V
RRM
V
RRM
V
RRM
V
RRM
V
R
V
R
V
R
V
R
I
FSM
I
FRM
I
F
P
tot
VALUE
60
120
200
250
50
100
150
200
1
625
250
500
UNIT
V
V
V
V
V
V
V
V
A
mA
mA
mW
Rev. 1.8, 12-Jul-17
Document Number: 85542
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
