IN09011: DescriptionGeneral Purpose Inductor, 0.38uH, 10%, 1 Element, SMD, ROHS COMPLIANT; Categoryinductor Fixed inductance; File Size31KB，2 Pages; ManufacturerICE Components; Websitehttp://www.icecomponents.com/; Environmental Compliance

Download Datasheet Parametric View All

IN09011 Overview

General Purpose Inductor, 0.38uH, 10%, 1 Element, SMD, ROHS COMPLIANT

IN09011 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ICE Components
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
DC Resistance	0.0065 Ω
Nominal inductance(L)	0.38 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	DCR IS MEASURED AT 5% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

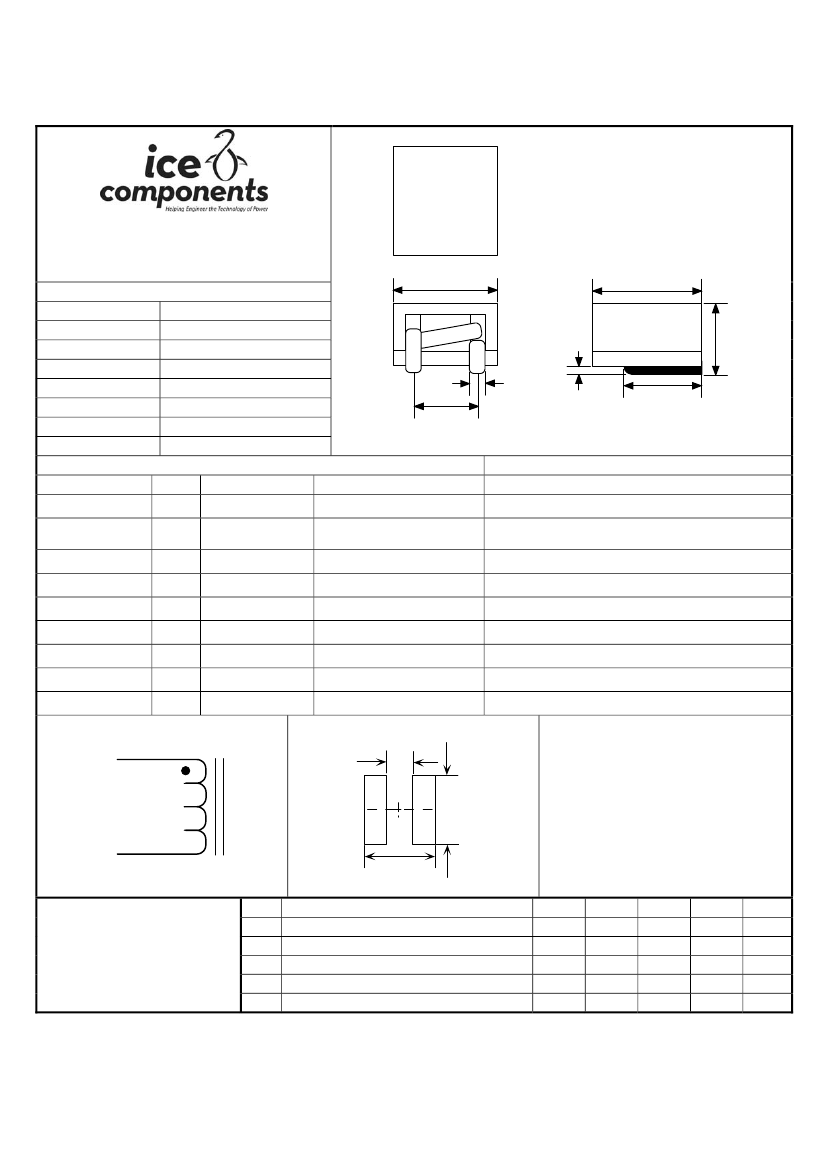

Data Sheet

Mechanical Drawing

ICE Components, Inc.

Tel 678-560-9172 Fax 678-560-9304

cust.serv@icecomp.com

www.icecomponents.com

1165 Allgood Rd., Ste. #20, Marietta, GA 30062

IN09011

YYWW

10.3 MAX

11.6 MAX

General Information

Customer

Part Number

Revision

Description

Date

Reference

Doc Control #

Issue

(For ICE use only)

Item

6.3 MAX

IN09011

0

Inductor

JUL-21-2009

--

Specification

Pins

Spec

380 nH +/- 10%

1.1

1.5+/-0.1(X2)

5.7 +/- 0.3

7.85 +/- 0.5

0.12 mm for co-planarity

unit:mm

Sample Test Data

Test Condition

Inductance @0Adc S - F

Inductance @40Adc

S-F

at 25degC

DCR

S-F

Isat at 25degC

Isat at +125degC

S-F

100 kHz, 1Vrms, series

290 nH min

(42Adc)

0.65mOhm +/- 5% +25 deg C

42 Adc

35 Adc

Schematic

S

Recommended PCB Layout

3.1

Remark

Isat is the current at which the inductance

drops by 15%.

2. Idc is the current at which the temperature

of the part increases by 50 deg C.

3.

This is RoHS compliant product.

4.

The operating temperature is 130degC

max (ambient + temperature rise).

5.

Inductance vs. Current Curve as attached.

1.

8.3

F

8.3

unit:mm

Rev.

0

Initial release

Sample approval is required before

release to production. Sample

specifications take precedence over

customer specifications.

__________________________

Customer Signature

Description

PRD

Emily

CHK

Gary

APP

Date NTFY

L. L. Chou 2009/7/21 2009/7/21

FORM NO. : I10105-02

PAGE 1 OF 2
