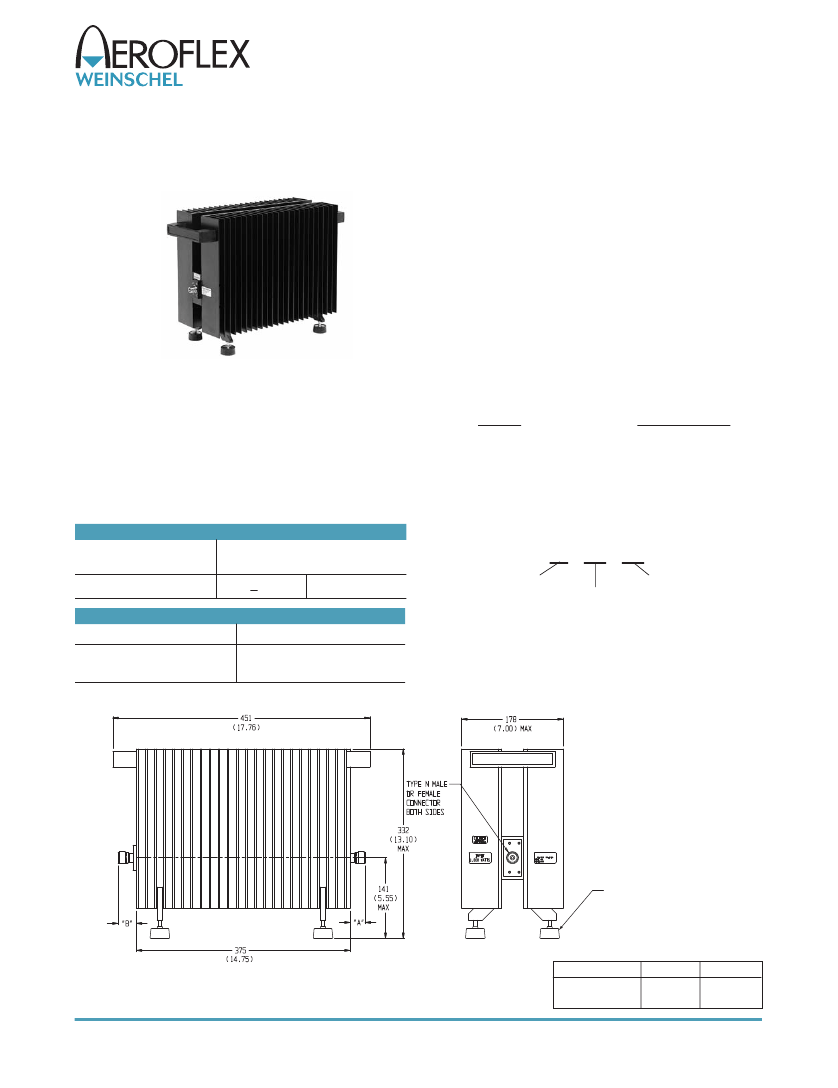

Fixed Coaxial Attenuators
Model 82
High Power, N Connectors
dc to 3.0 GHz
1,000 Watts
RoHS
POWER RATING:
1,000 watts
average (unidirectional)
to 25°C ambient temperature, derated linearly to 100 watts
@ 125°C. 10 kilowatt
peak
(5
μsec
pulse width; 5% duty
cycle). Maximum power into output is 75 Watts
average.
TEMPERATURE COEFFICIENT:
<0.0004 dB/dB/°C
TEMPERATURE RANGE:
derating applied.
-55°C to +125°C with power
Features
o
o
Quality connectors with special high temperature
support beads.
Designed to meet environmental requirements of
MIL-DTL-3933.
TEST DATA:
Swept data plots of attenuation and SWR
from 50 MHz to 3.0 GHz is available at additional cost.
CONNECTOR:
Type N connectors - mate nondestructively
with MIL-C-39012 connectors .
Options
3
4
Type/Description
Type N, Female
Type N, Male
Specifications
NOMINAL IMPEDANCE:
50
Ω
FREQUENCY RANGE:
dc to 3.0 GHz
CONSTRUCTION:
Black, finned aluminum body, stainless
steel with gold plated beryllium copper contacts.
WEIGHT:
Net 13 kg (28.7 lbs) maximum
MODEL NUMBER DESCRIPTION:
MAXIMUM DEVIATION OVER FREQUENCY (dB):
NOM ATTN (dB)
10, 20, 30, 40
MAXIMUM SWR:
Deviation
dc - 1.5 GHz
1.5 - 3.0 GHz
+1.0
+1.5, -1.0 dB
Basic Model
Number
82 - XX - XX
Attenuation
Value
Connector Options
- 1st Digit is input side
- 2nd digit is output side.
Frequency (GHz)
dc - 1.5
1.5 - 3.0
PHYSICAL DIMENSIONS:
SWR
1.15
1.25
Aeroflex / Weinschel
Aeroflex / Weinschel
FEET ARE SPRING LOADED
FOR SELF LEVELING AND
ARE SHOWN FULLY EXTENDED
AND CAN BE COMPRESSED
UP TO 0.16 INCHES
(4 PLCS)
NOTE:
1. All dimensions are given in mm (inches) and are maximum, unless otherwise specified.
2. Unit available with RoHS compliant materials, specify when ordering.
Connector Type
N female
N male
DIM A
15.0 (0.59)
22.9 (0.90)
DIM B
21.4 (0.84)
29.3 (1.15)
72
5305 Spectrum Drive, Frederick, MD 21703-7362
s
TEL: 301-846-9222, 800-638-2048
s
Fax: 301-846-9116
web: www.aeroflex.com/weinschel
s
email: weinschel-sales@aeroflex.com
Revision Date: 9/30/2012
