BAT22J: Description0.4A, 16 ELEMENT, SILICON, SIGNAL DIODE, HERMETIC SEALED, CERAMIC, DIP-14; Categorydiode Rectifier diode; File Size51KB，1 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

BAT22J Overview

0.4A, 16 ELEMENT, SILICON, SIGNAL DIODE, HERMETIC SEALED, CERAMIC, DIP-14

BAT22J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	R-CDIP-T14
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Configuration	COMPLEX
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
Number of components	16
Number of terminals	14
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Maximum output current	0.4 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	235
Maximum power dissipation	0.6 W
Certification status	Not Qualified
Guideline	CECC50001-015F
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	0.1 µA
Maximum reverse recovery time	0.02 µs
Reverse test voltage	25 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

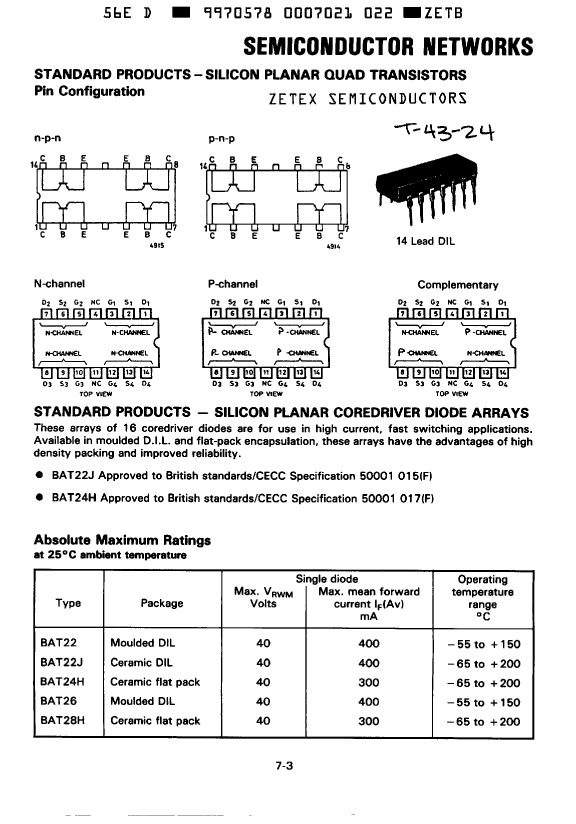

Preview

Download Datasheet

View All

BAT22J Related Products

	BAT22J	BAT26	BAT22	BAT24H
Description	0.4A, 16 ELEMENT, SILICON, SIGNAL DIODE, HERMETIC SEALED, CERAMIC, DIP-14	0.4A, 16 ELEMENT, SILICON, SIGNAL DIODE, PLASTIC, DIP-14	0.4A, 16 ELEMENT, SILICON, SIGNAL DIODE, PLASTIC, DIP-14	0.3A, 16 ELEMENT, SILICON, SIGNAL DIODE, 6.35 X 4.44 MM, HERMETIC SEALED, CERAMIC, FP-10
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	R-CDIP-T14	R-PDIP-T14	R-PDIP-T14	R-CDFP-F10
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	COMPLEX	COMPLEX	COMPLEX	COMPLEX
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V
JESD-30 code	R-CDIP-T14	R-PDIP-T14	R-PDIP-T14	R-CDFP-F10
JESD-609 code	e0	e0	e0	e0
Number of components	16	16	16	16
Number of terminals	14	14	14	10
Maximum operating temperature	200 °C	150 °C	150 °C	200 °C
Minimum operating temperature	-65 °C	-55 °C	-55 °C	-65 °C
Maximum output current	0.4 A	0.4 A	0.4 A	0.3 A
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	235	235	235	235
Maximum power dissipation	0.6 W	0.5 W	0.6 W	0.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	40 V	40 V	40 V
Maximum reverse current	0.1 µA	0.1 µA	0.1 µA	0.1 µA
Maximum reverse recovery time	0.02 µs	0.02 µs	0.02 µs	0.02 µs
Reverse test voltage	25 V	25 V	25 V	25 V
surface mount	NO	NO	NO	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Diodes Incorporated	Diodes Incorporated	-	Diodes Incorporated
Base Number Matches	1	1	1	-
