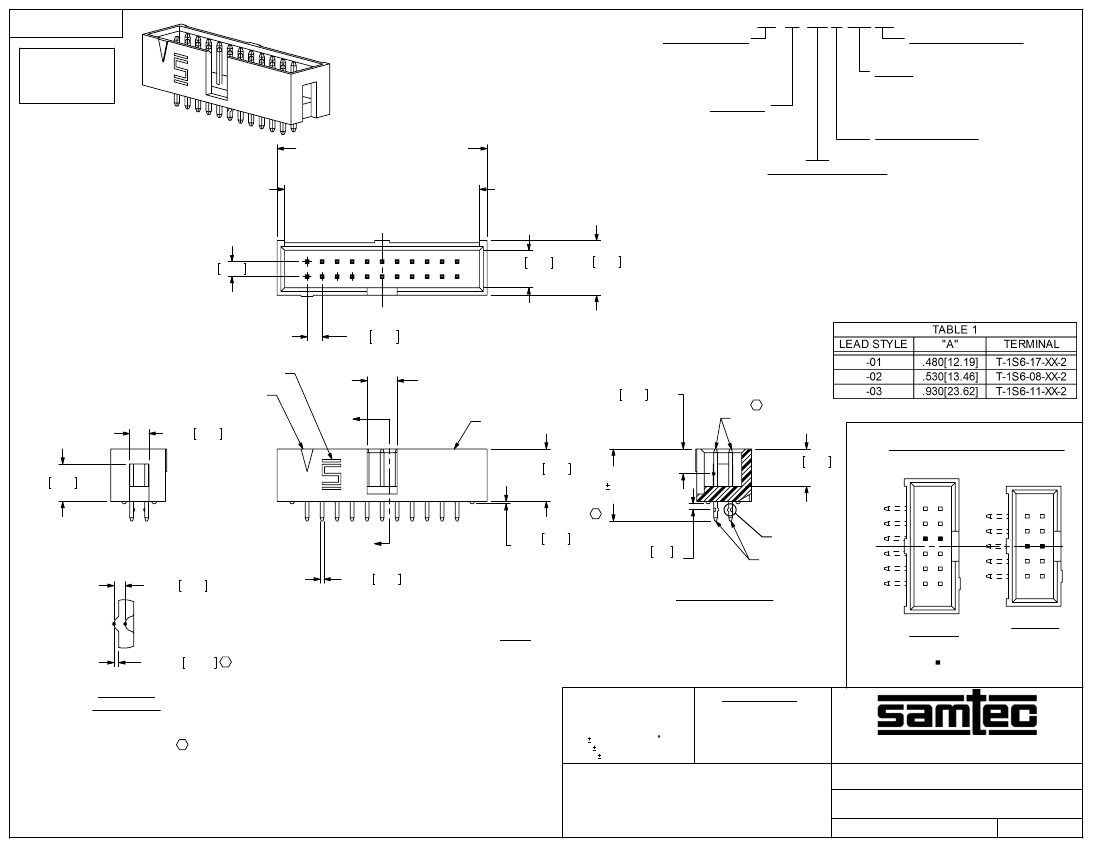

REVISION R
DO NOT
SCALE FROM
THIS PRINT
HTST-1XX-XX-XX-D-XX-XX
No OF POSITIONS
-02 (STRAIGHT ONLY)
-03 THRU -18, -20, -24,
-25, -28, -30, -32 & -36
LEAD STYLE
SEE TABLE 1
& TABLE 2
POLARIZATION OPTION
-XX: INDICATES POSITION OMITTED
OPTION
BLANK: STRAIGHT (STYLES -04 & -05 N/A)
-RA: RIGHT ANGLE (STYLES -01, -02 & -03 N/A)
-LL: LOCKING LEAD (STRAIGHT ONLY)
-LA: -RA OPTION WITH -LL OPTION
((No OF POS x .100) + .300) REF
[2.54] [7.62]
((No OF POS x .100) + .200) REF
[2.54] [5.08]
02 04
C
L
.100 2.54 REF
.250 6.35
REF
01
03
.365 9.27
REF
ROW SPECIFICATION
-D: DOUBLE ROW
(USE HTST-XX-D)
PLATING SPECIFICATION
-G: GOLD, 10 Au / 50 Ni MIN ON CONTACT, 3 Au / 50 NI MIN ON TAIL
-T: MATTE TIN, CONTACT AND TAIL
-S: SELECTIVE, 30 Au / 50 NI MIN ON CONTACT, MATTE TIN TAIL
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON CONTACT, MATTE TIN TAIL
-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON CONTACT, 3Au / 50 NI MIN ON TAIL
-F: FLASH SELECTIVE, 3 Au / 50 Ni ON CONTACT, MATTE TIN TAIL
-TM: MATTE TIN CONTACT AND TAIL
-SM: SELECTIVE, 30 Au / 50 Ni ON CONTACT, MATTE TIN TAIL
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON CONTACT, MATTE TIN TAIL
-LM: LIGHT SELECTIVE, 10 Au / 50 Ni MIN, MATTE TIN TAIL
.100 2.54
SEE NOTE 6
POS #1 INDICATOR
.160[4.06] REF (-03 POS)
.200[5.08] REF (ALL OTHER POS)
"A"
.130 3.30
REF
.250 6.35 REF
HTST-XX-D
.165 4.19 REF
GOLD PLATE
(SEE NOTE 3)
SEE NOTE 4
C
-LL & -LA CRIMP LOCATIONS
.350 8.89
REF
"A"
.000[0.00]
(SEE NOTE 4)
C
.010[0.25]
.250 6.35
REF
"A"
*.019 0.47 MIN
.025 0.64 SQ
REF (TYP)
.015 0.38
REF
*.04 1.0
(TYP)
'B'
TERMINAL
(SEE TABLE 1)
C
L
SECTION "A"-"A"
FIG 1
EVEN POS
ODD POS
*.0080 0.203
C
HTST-111-01-XX-D-LL SHOWN
* DIMENSIONS APPLY WHEN USING -LL OPTION ONLY
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
= CRIMP LOCATION
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DETAIL 'B'
SCALE 6 : 1
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. TERMINAL PUSHOUT FORCE: 3 lbs.
3. ASSEMBLE GOLD PLATED END AS SHOWN.
4. TERMINALS TO BE FLUSH TO .010[.25] BELOW
TOP OF SHROUD.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR:
LCP, UL 94 VO
COLOR: NATURAL
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\HTST-1XX-XX-XX-D-XX-XX-MKT.SLDDRW
HIGH TEMP TOP SHROUD TERMINAL STRIP
BY:
BRATCHER 01/16/04
HTST-1XX-XX-XX-D-XX-XX
SHEET
1
OF
2
REVISION R
"B" REF
(SEE TABLE 2)
90°
C
.010[0.25]
.000[0.00]
TERMINAL #1
(SEE TABLE 2)
"C"
(SEE TABLE 2)
"D"
.000[0.00]
(SEE NOTE 4)
.010[0.25]
.035±.010 0.89±0.25
(TYP)
TERMINAL #1
(SEE TABLE 2)
TERMINAL #2
(SEE TABLE 2)

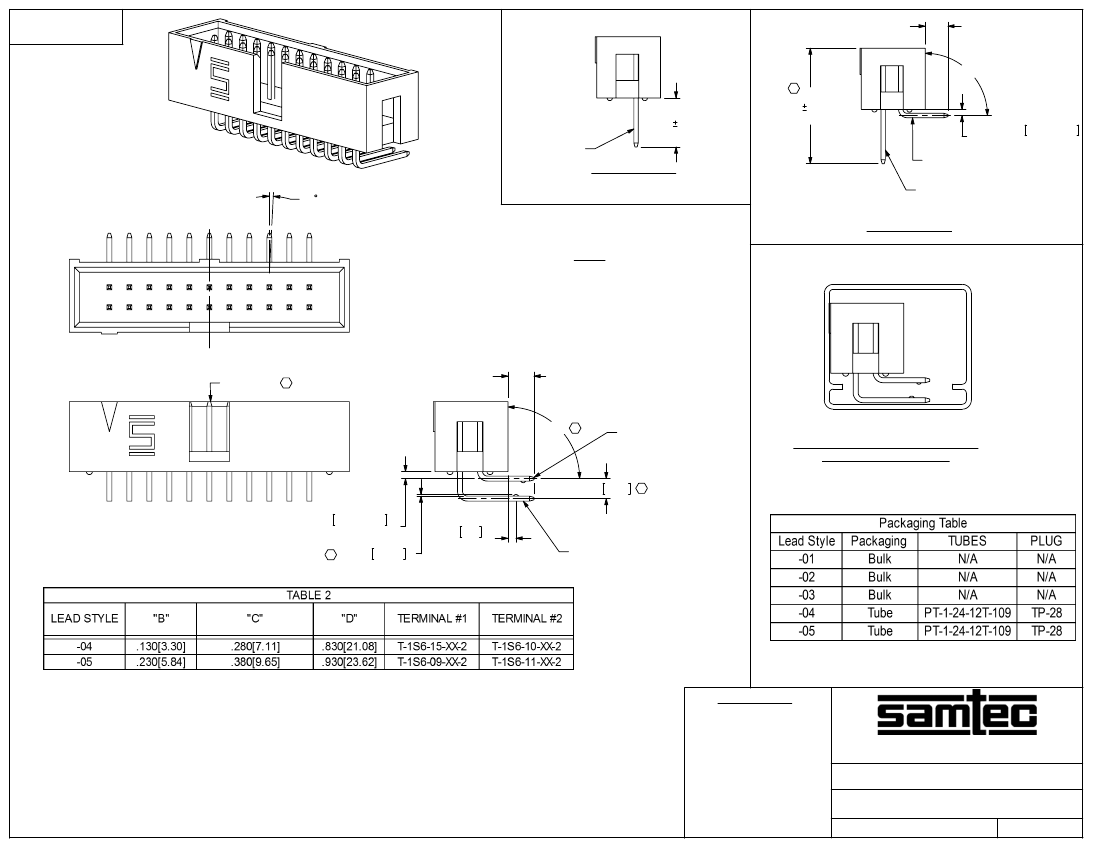

IN-PROCESS 1
2 MAX SWAY
(TYP)
02
04
C
L
IN-PROCESS 2
-RA & -LA OPTIONS
(HTST-111-04-XX-D-LA SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
* DIMENSIONS APPLY WHEN USING -LA OPTION ONLY
FIG 2
01
03
SEE NOTE 4
C
"B" REF
(SEE TABLE 2)
90°
C
TERMINAL #1
(SEE TABLE 2)
TUBE PACKAGING VIEW FOR
04 & 05 LEAD STYLES
.100 2.54
.035±.010 0.89±0.25
(TYP)
C
C
*.0080 0.203
(TYP)
*.04 1.0
(TYP)
TERMINAL #2
(SEE TABLE 2)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
HIGH TEMP TOP SHROUD TERMINAL STRIP
F:\DWG\MISC\MKTG\HTST-1XX-XX-XX-D-XX-XX-MKT.SLDDRW
BY:
BRATCHER 01/16/04
HTST-1XX-XX-XX-D-XX-XX
SHEET
2
OF
2
