BX1194W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > transformer> BX1194W

BX1194W: DescriptionTelecom Transformer; Categorytransformer; File Size61KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

BX1194W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BX1194W	-	-	View	Buy Now

BX1194W Overview

Telecom Transformer

BX1194W Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Certification	UL; CSA
high	12.32 mm
length	14.1 mm
Manufacturer's serial number	BX1194W
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL; TUBE
physical size	14.10mm X 13.46mm X 12.32mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	13.46 mm
Base Number Matches	1

Preview

Download Datasheet

View All

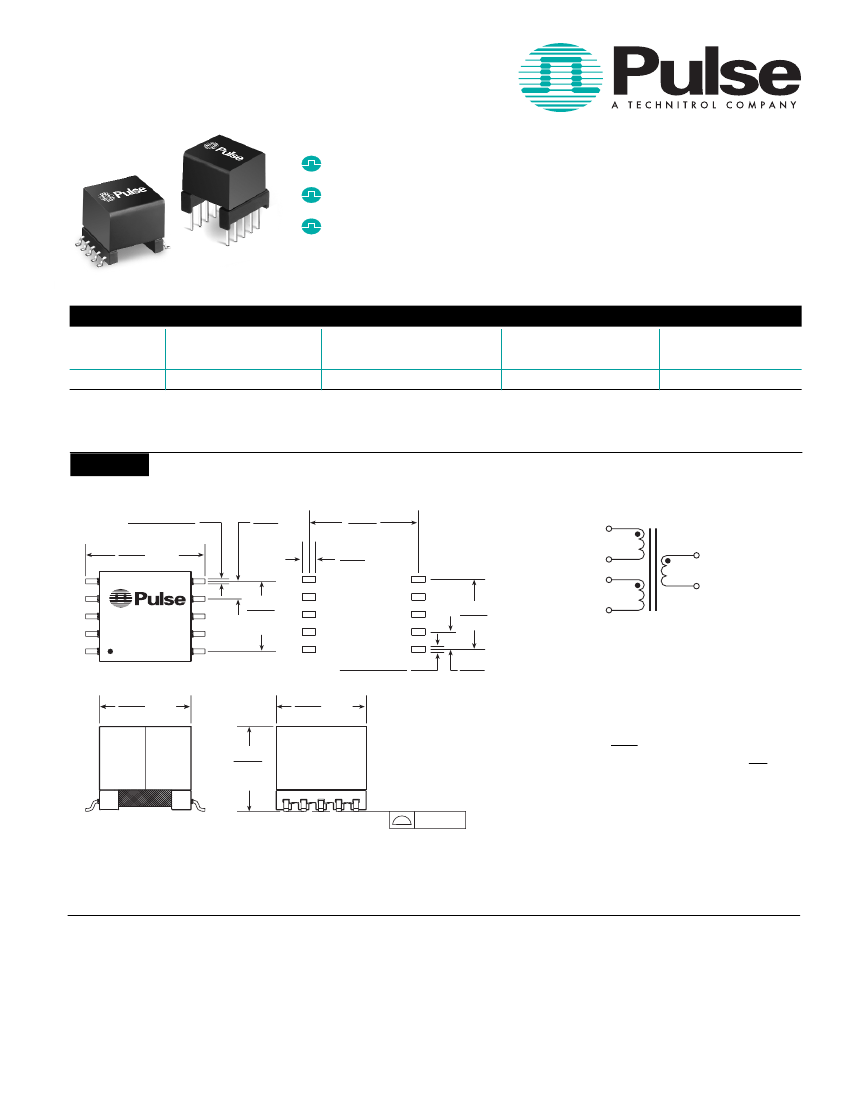

SHDSL LINE TRANSFORMERS

For use with Infineon Chipset

Matched to Infineon PEF24624, Socrates Bis 16 Chipset

Excellent THD performance with bias current

Designed to meet UL, CSA and EN60950 requirements

for supplementary insulation and 250V working voltage

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

Part

Number

BX1194W

OCL

Line

(mH ±6%)

3.0

Turns Ratio

(line:chip)

(line:sense)

4.5:1

Isolation

Voltage

(Vrms)

2000

THD @ 3kHz

1Vrms, 35mA

(dB MIN)

-76

Mechanical

BX1194W

Schematic

10 X .028

± .002

0,71

± 0,05

.695

17,65 MAX

.098

2,50

.605

15,37

.100

2,54

Primary

(Line)

.394

10,00

4.5:1:1

Secondary

(Chip)

Date Code

Country of Mfg.

BX1194W

.394

10,00

MAX

10 X .051

± .002

1,30

± 0,05

.098

2,50

Weight

......................6.2 grams

Tape & Reel.................150/reel

Tray/Tube

......................60/tray

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

.555

14,10MAX

.485

12,32

MAX

.530

13,46MAX

.005/0,13

10 SURFACES

For More Information :

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

UNITED KINGDOM

(Northern Europe)

1 & 2 Huxley Road

The Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

FRANCE

(Southern Europe)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

SINGAPORE

(Southern Asia)

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 6287 8998

FAX: 65 6280 0080

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

HONG KONG

(China/Hong Kong)

9/F, Phase 2, Tai Sang

Shatin Warehouse Centre

6 Wong Chuk Yeung Street

Fotan, Shatin, Hong Kong

TEL: 852 2788 6588

FAX: 852 2776 1055

DISTRIBUTOR

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

B835.A (2/04)
