MKH8129-1-00-900 datasheet, PDF

Datasheet> All Categories > The connector> MKH8129-1-00-900

MKH8129-1-00-900: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Natural Insulator, Plug; CategoryThe connector; File Size41KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MKH8129-1-00-900 Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Natural Insulator, Plug

MKH8129-1-00-900 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stocko Contact GmbH & Co Kg
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	COMPATIBLE CONTACT: RFB8002.003
body width	0.142 inch
subject depth	0.303 inch
body length	0.787 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.024 inch
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	MKH8120
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	115 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	VDE
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	9
Maximum wire diameter	24 AWG
Minimum wire diameter	30 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

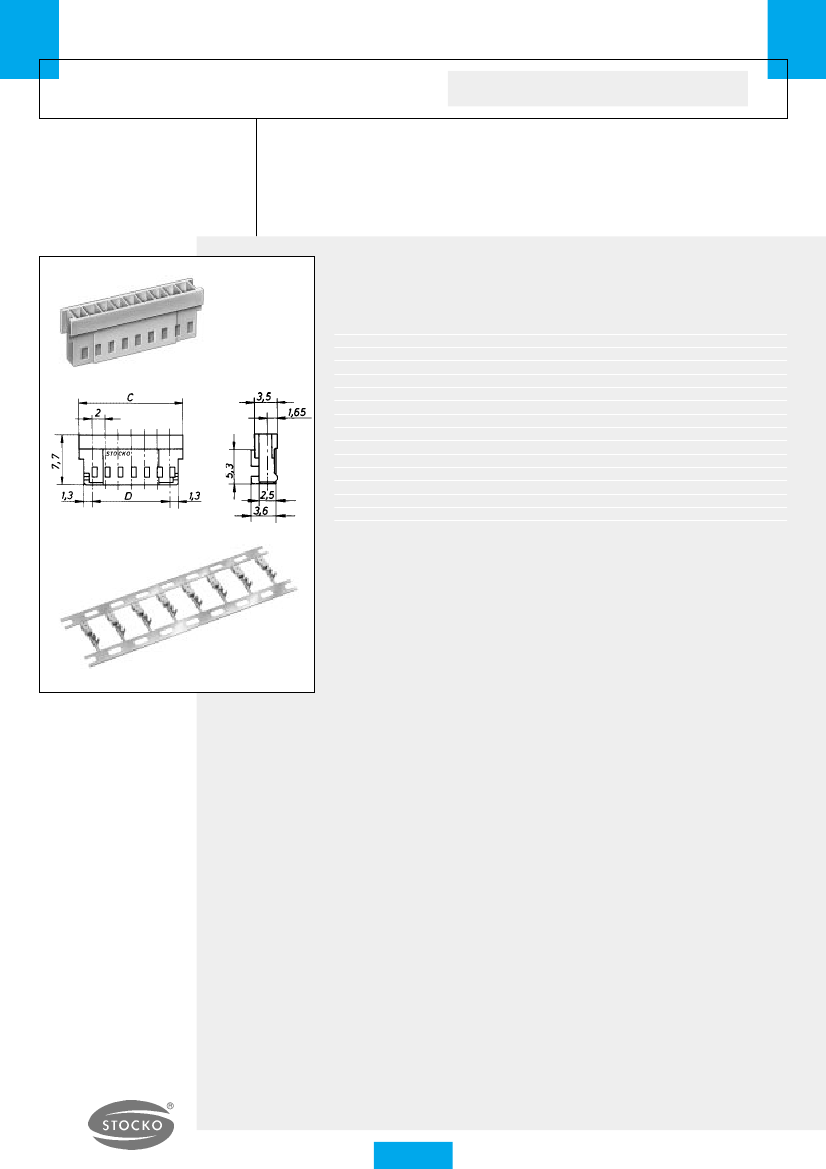

Serie / Series

Einzelleiter

F ederleisten für Einz elleiter

discrete wire

Socket connectors for discr ete wire

MKH 8120

Serie MKH 8120 mit Crimpanschluß, Isolations-Ø 0,6 - 1,4 mm

Series MKH 8120 with crimp termination, insulation-Ø 0.6 - 1.4 mm

Polzahl

Positions

Artikel-Nummer

Part number

MKH

8122 - 1 - 00 - 200

8123 - 1 - 00 - 300

8124 - 1 - 00 - 400

8125 - 1 - 00 - 500

8126 - 1 - 00 - 600

8127 - 1 - 00 - 700

8128 - 1 - 00 - 800

8129 - 1 - 00 - 900

8130 - 1 - 00 - 1000

8131 - 1 - 00 - 1100

8132 - 1 - 00 - 1200

8133 - 1 - 00 - 1300

8134 - 1 - 00 - 1400

8135 - 1 - 00 - 1500

Abmessungen C

Dimensions C

Abmessungen D

Dimensions D

Crimpfeder

RFB 8002.003 für Leiterquerschnitt 0,05 - 0,2 mm

(AWG 30 - 24) mit Isolations-Ø 0,6 - 1,4 mm

Crimp contact

RFB 8002.003 for 0.05 - 0.2 mm

wire size (AWG 30 - 24) with insulation -Ø 0.6 - 1.4 mm
