H11D2: Description1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER; Categoryphotoelectric; File Size80KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

H11D2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H11D2	-	-	View	Buy Now

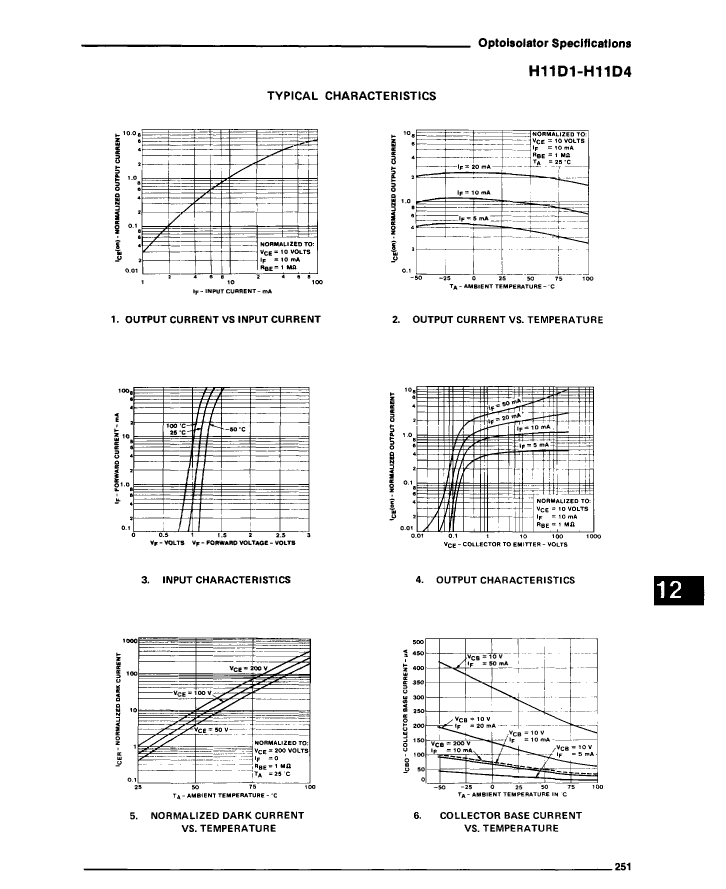

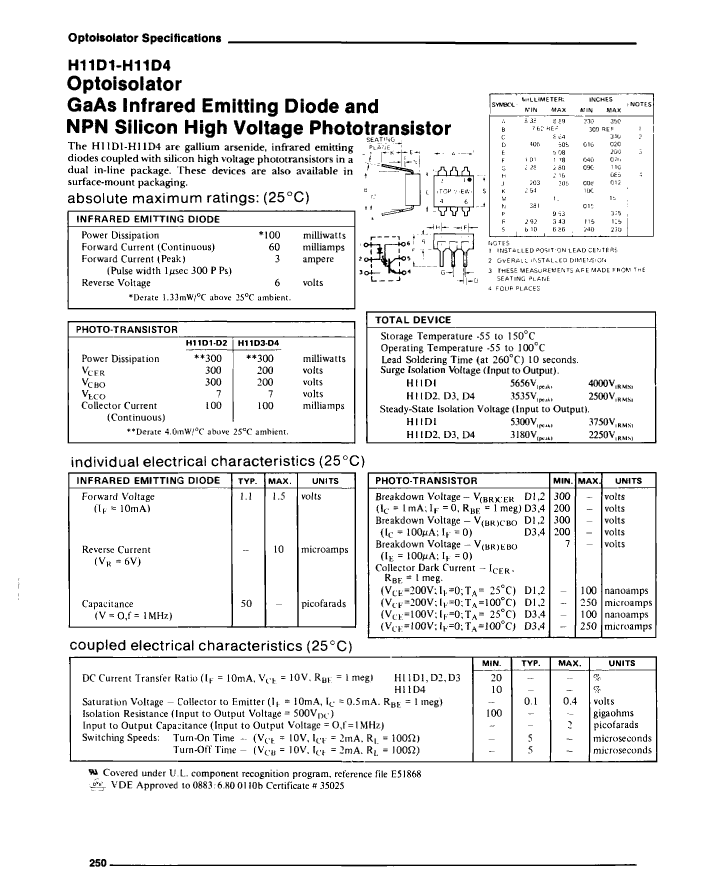

1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Reach Compliance Code	not_compliant
Is Samacsys	N
Other features	VDE APPROVED, UL RECOGNIZED
Configuration	SINGLE
Nominal current transfer ratio	20%
Maximum forward current	0.06 A
Maximum insulation voltage	2250 V
JESD-609 code	e0
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

	H11D2	PTN2208E2183BSTP	H11D3
Description	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	Fixed Resistor, Thin Film, 0.75W, 218000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 2208, CHIP	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER
Is it Rohs certified?	incompatible	conform to	incompatible
Reach Compliance Code	not_compliant	compliant	not_compliant
Other features	VDE APPROVED, UL RECOGNIZED	ANTI-SULFUR; LASER TRIMMABLE; NON-INDUCTIVE	VDE APPROVED, UL RECOGNIZED
JESD-609 code	e0	e3	e0
Maximum operating temperature	100 °C	155 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation
Is Samacsys	N	-	N
Configuration	SINGLE	-	SINGLE
Nominal current transfer ratio	20%	-	20%
Maximum forward current	0.06 A	-	0.06 A
Maximum insulation voltage	2250 V	-	2250 V
Number of components	1	-	1
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	-	TRANSISTOR OUTPUT OPTOCOUPLER
Base Number Matches	1	-	1
