BP5005 datasheet, PDF - EEWORLD Datasheet

BP5005: DescriptionDC-DC Regulated Power Supply Module, 1 Output, SIP-9; CategoryThe power supply circuit; File Size451KB，7 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

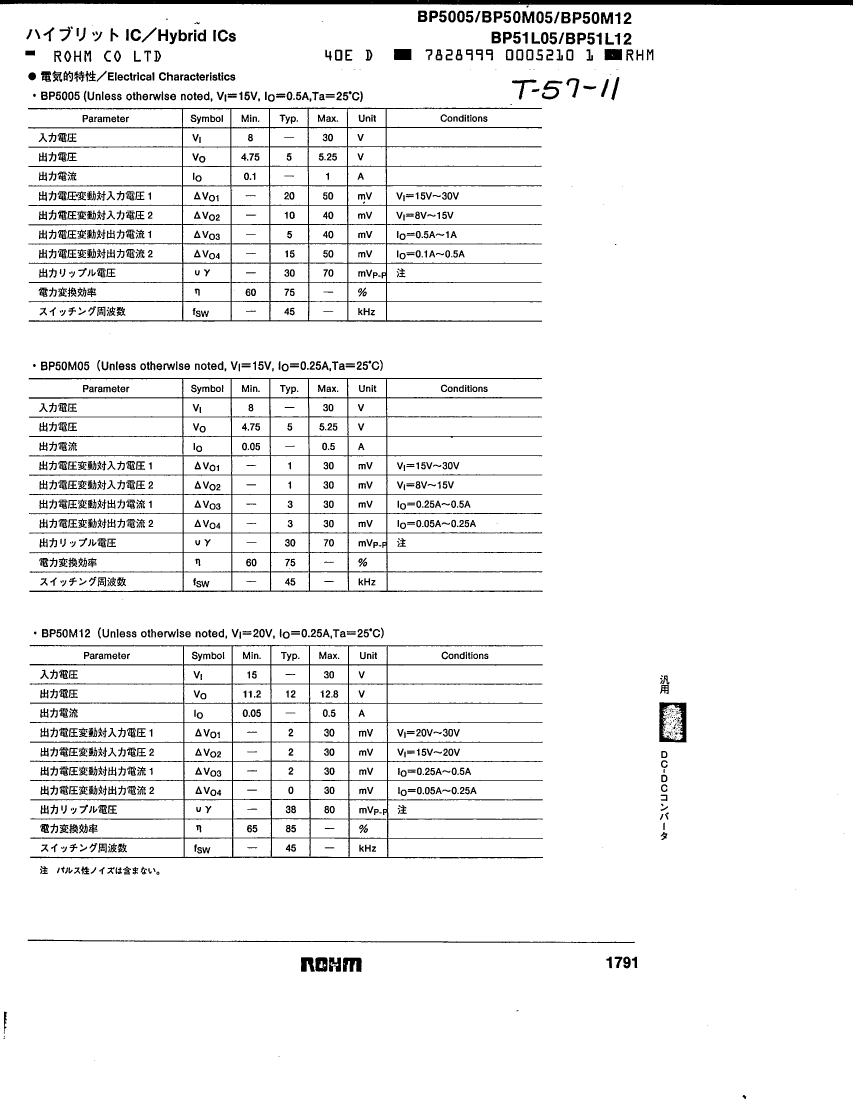

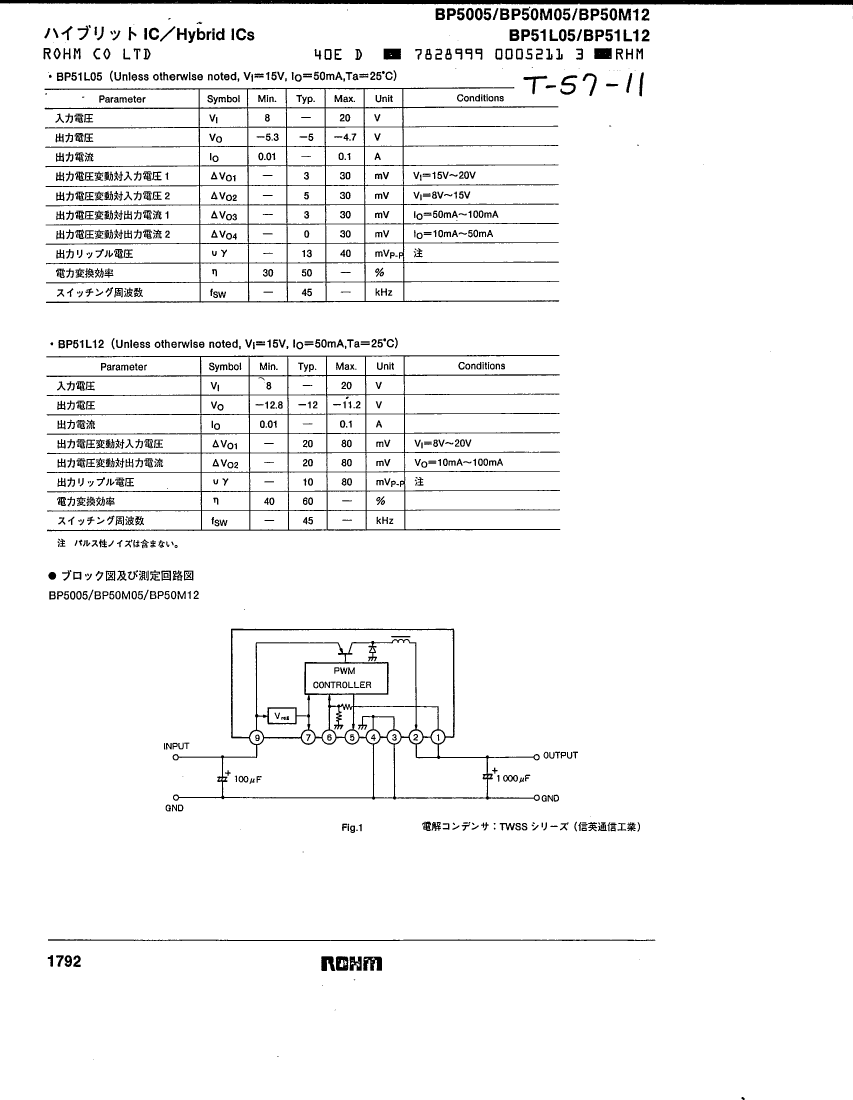

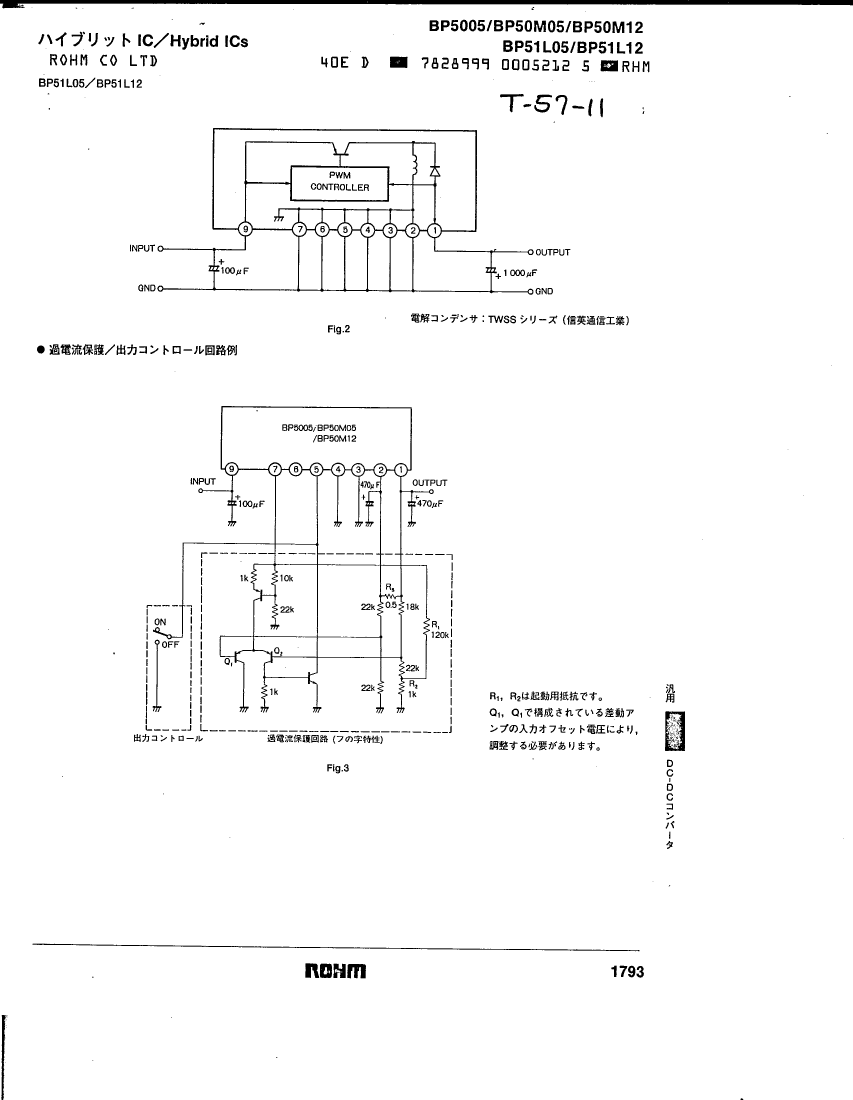

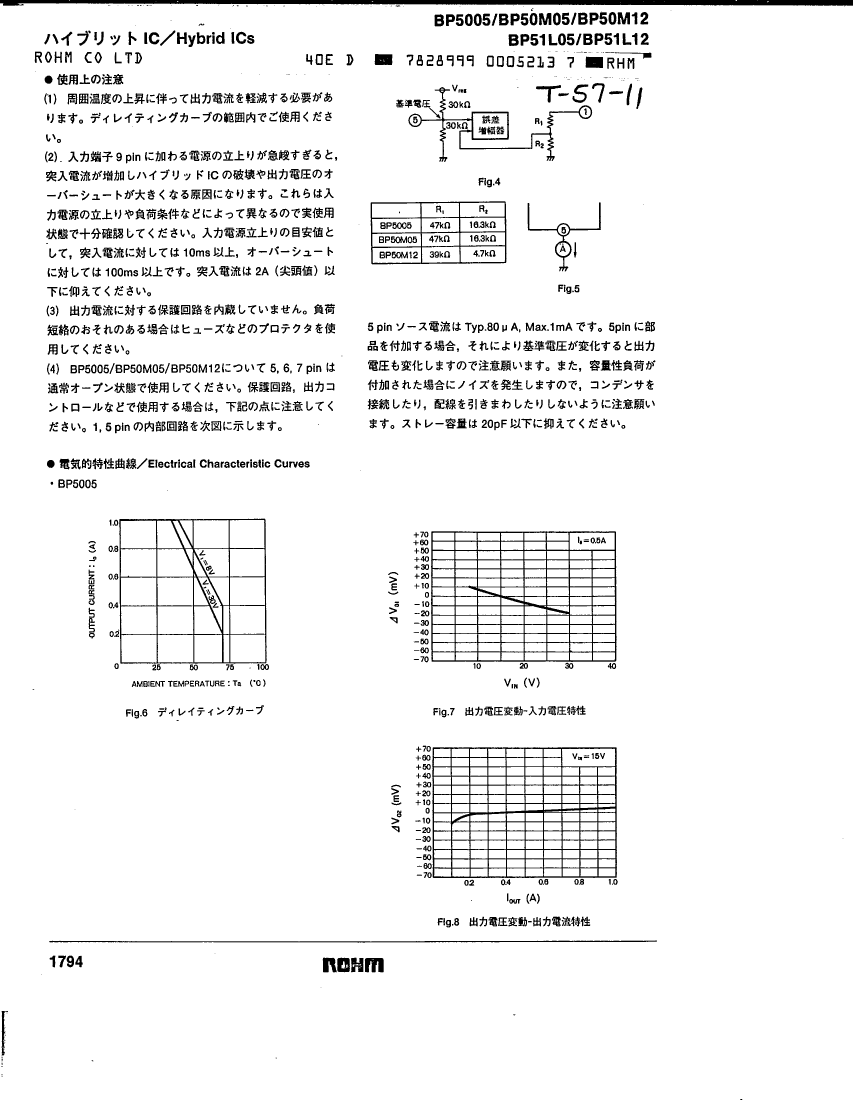

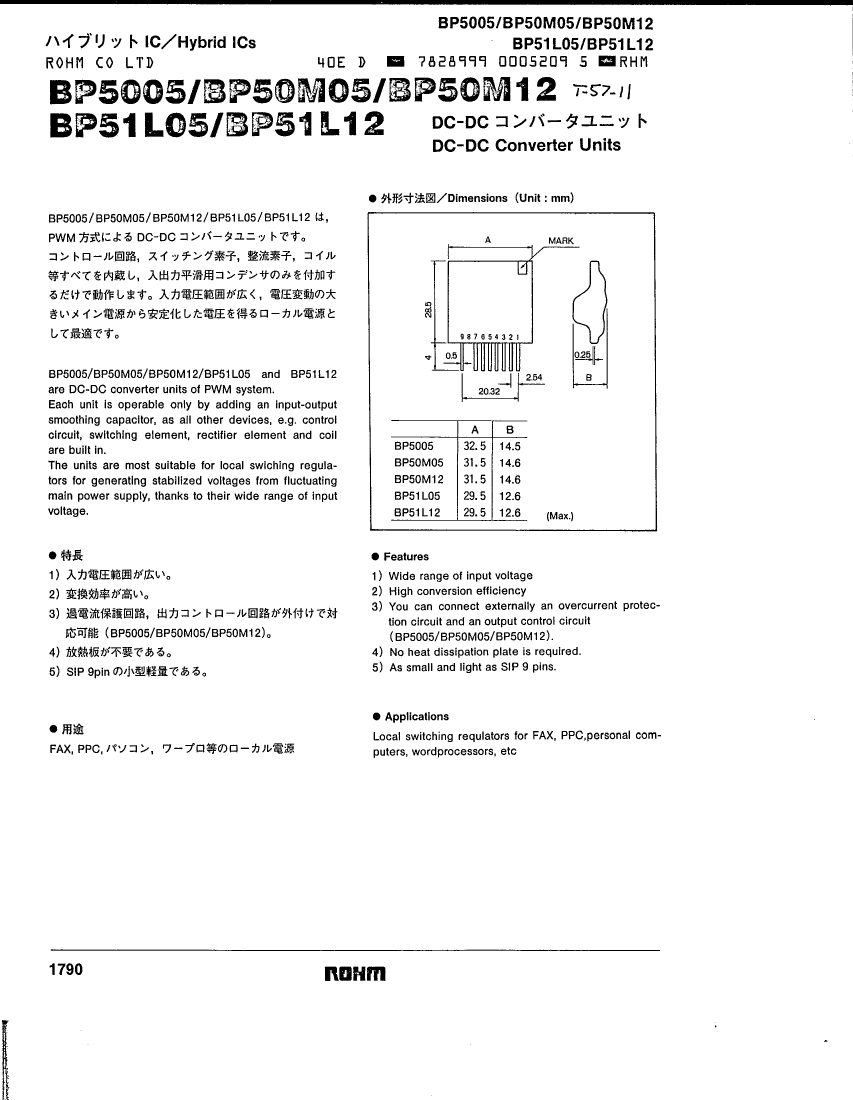

BP5005 Overview

DC-DC Regulated Power Supply Module, 1 Output, SIP-9

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	MODULE
package instruction	SIP,
Contacts	9
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	30 V
Minimum input voltage	8 V
JESD-30 code	R-PSIP-T9
length	21.8 mm
Number of functions	1
Output times	1
Number of terminals	9
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	7.2 mm
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Fine-tuning/adjustable output	NO
width	2.8 mm
Base Number Matches	1

	BP5005	BP50M12	BP50M05
Description	DC-DC Regulated Power Supply Module, 1 Output, SIP-9	DC-DC Regulated Power Supply Module, 1 Output, SIP-9	DC-DC Regulated Power Supply Module, 1 Output, SIP-9
Parts packaging code	MODULE	MODULE	MODULE
package instruction	SIP,	SIP,	SIP,
Contacts	9	9	9
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	30 V	30 V	30 V
Minimum input voltage	8 V	15 V	8 V
JESD-30 code	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9
length	21.8 mm	21.8 mm	21.8 mm
Number of functions	1	1	1
Output times	1	1	1
Number of terminals	9	9	9
Nominal output voltage	5 V	12 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIP	SIP	SIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	7.2 mm	7.2 mm	7.2 mm
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE
Fine-tuning/adjustable output	NO	NO	NO
width	2.8 mm	2.8 mm	2.8 mm
Base Number Matches	1	1	1
