Surface Mount Schottky Barrier Diode
FEATURES
Low Forward voltage drop.
Fast switching.
Production specification
BAS40W/-04/-05/-06
Pb
Lead-free
BAS40W
BAS40-04
Ultra-small surface mount package.
PN junction guard ring for transient
and ESD protection.
BAS40W-05
BAS40W-06
APPLICATIONS
For general purpose switching applications.
SOT-323
ORDERING INFORMATION
Type No.
BAS40W
BAS40W-04
BAS40W-05
BAS40W-06
Marking
43
43
43
43
Package Code
SOT-323
SOT-323
SOT-323
SOT-323
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Parameter
RMS Reverse voltage
Repetitive Peak reverse voltage
Working peak reverse voltage
Diode reverse voltage
Forward continuous Current
Non-Repetitive peak forward surge Current
@t=1μs
Power Dissipation
Junction temperature
Storage temperature range
Symbol
V
R(RMS)
V
RRM
V
RWM
V
R
I
F
I
FS
P
d
T
j
T
stg
Limits
28
40
200
600
200
150
-65-+150
Unit
V
V
mA
mA
mW
℃
℃
Document number: BL/SSSKF017
Rev.A
www.galaxycn.com
1
BL
Galaxy Electrical
Surface Mount Schottky Barrier Diode
Production specification
BAS40W/-04/-05/-06
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Parameter
Reverse breakdown voltage
Reverse voltage leakage current
Forward voltage
Diode capacitance
Reverse recovery time
Symbol
V
(BR)R
I
R
V
F
C
D
t
rr
Test
I
R
= 10μA
V
R
=30V
I
F
=1.0mA
I
F
=40mA
V
R
=0V
f=1MHz
conditions
MIN
40
200
380
1000
5
5
MAX
UNIT
V
nA
mV
pF
nS
I
F
=I
R
=10mA R
L
=100Ω

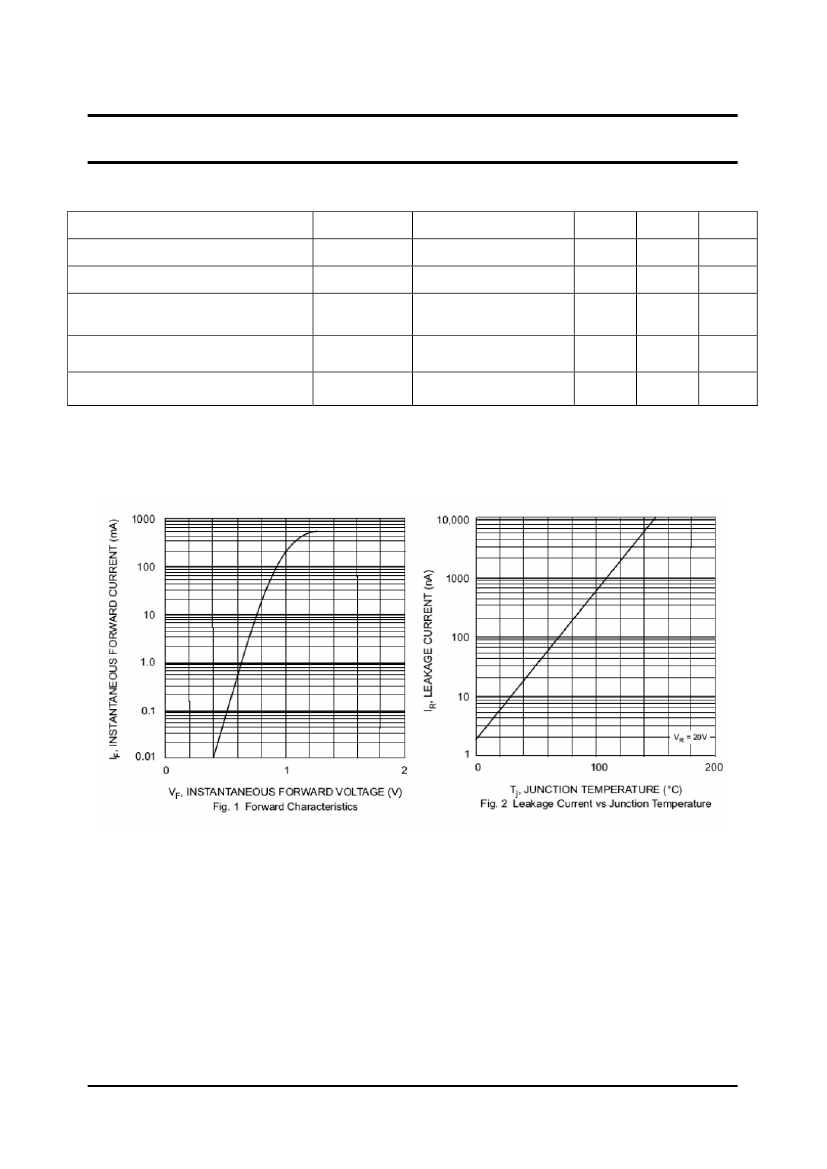

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Document number: BL/SSSKF017
Rev.A
www.galaxycn.com
2
BL
Galaxy Electrical
Surface Mount Schottky Barrier Diode
PACKAGE OUTLINE
Plastic surface mounted package
Production specification
BAS40W/-04/-05/-06
SOT-323
SOT-323
Dim
A
B
C
D
E
G
H
J
K
Min
1.8
1.15
0.15
0.25
1.2
0.02
2.1
Max
2.2
1.35
0.35
0.40
1.4
0.1
2.3
1.0Typical
0.1Typical
All Dimensions in mm
PACKAGE INFORMATION
Device
BAS40W/-04/-05/-06
Package
SOT-323
Shipping
3000/Tape&Reel
Document number: BL/SSSKF017
Rev.A
www.galaxycn.com
3
