BAT54W-TP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > diode> Rectifier diode> BAT54W-TP

BAT54W-TP: DescriptionRectifier Diode, Schottky, 1 Element, 0.2A, Silicon, ROHS COMPLIANT, ULTRA SMALL, PLASTIC PACKAGE-2; Categorydiode Rectifier diode; File Size272KB，3 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

BAT54W-TP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAT54W-TP	-	-	View	Buy Now

BAT54W-TP Overview

Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, ROHS COMPLIANT, ULTRA SMALL, PLASTIC PACKAGE-2

BAT54W-TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
package instruction	R-PDSO-G2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	FAST SWITCHING
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

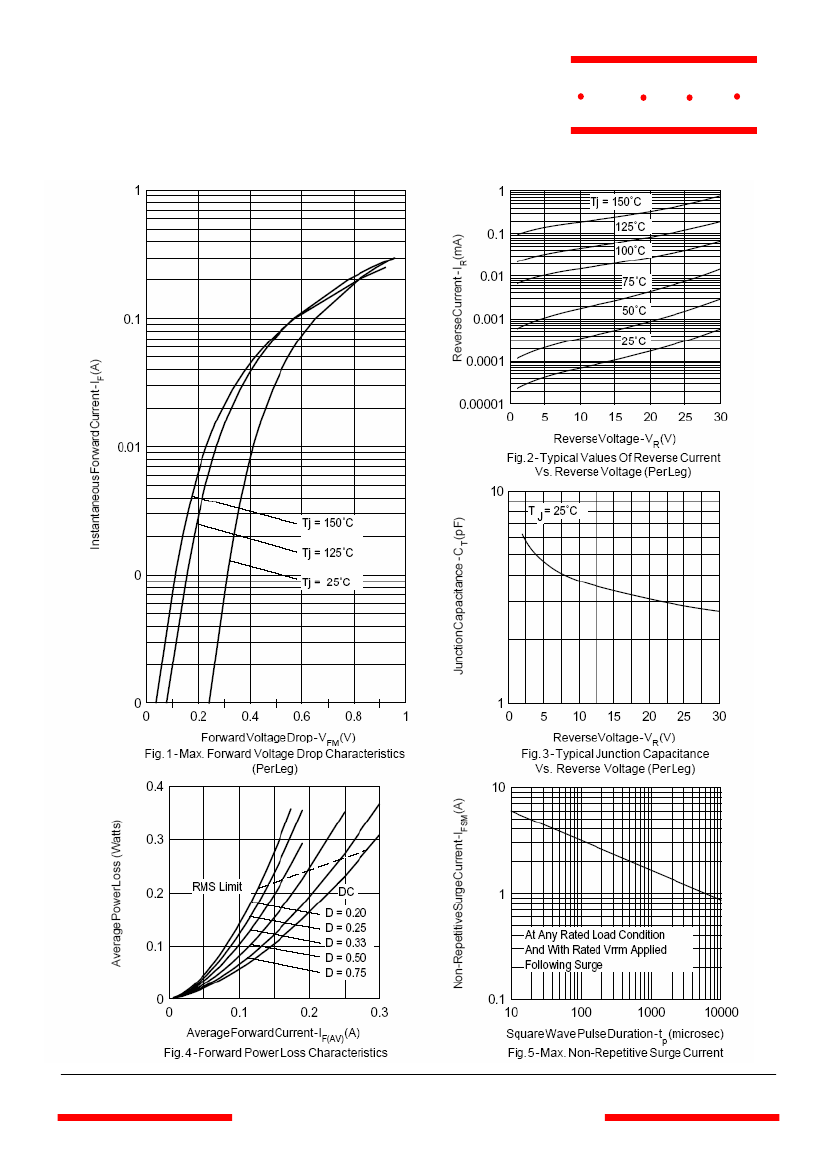

BAT54W

Features

•

Lead Free Finish/Rohs Compliant ("P"Suffix designates

RoHS Compliant. See ordering information)

Halogen

free available upon request by adding suffix "-HF"

Low Turn-on Voltage

and Fast Switching

Ultra-Small Surface Mount Package

PN Junction Guard Ring for Transient and ESD Protection

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

200mWatt, 30Volt

Schottky Barrier Diode

Maximum Ratings

//( . - '

Continuous Forward Current

SOD123

200mA

Forwar Surge Current

1 5

78°

;/1

' 1

/ ( '

FSM

600mA

8°

°50°

Device Marking : L9

DIM

DIMENSIONS

INCHES

MIN

MAX

MIN

MAX

NOTE

Electrical Characteristics @ 25°C Unless Otherwise Specified

( '

$ ,- '

( . /

( . = 3,

- '

1 (

;/)

320

.0µ

.140

.100

.055

-----

.012

.006

-----

.152

.112

.071

.053

.031

-----

.01

.006

3.55

2.55

1.40

-----

0.30

0.15

-----

3.85

2.85

1.80

1.35

0.78

-----

0.25

0.15

(

78-

/ ,

&<-

SUGGESTED SOLDER

PAD LAYOUT

0.093"

0.048”

625?:9

0.036”

Revision:

www.mccsemi.com

1 of 3

2013/01/01

BAT54W-TP Related Products

	BAT54W-TP	BAT54W-TP-HF
Description	Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, ROHS COMPLIANT, ULTRA SMALL, PLASTIC PACKAGE-2	Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, ULTRA SMALL, PLASTIC PACKAGE-2
Is it Rohs certified?	conform to	conform to
Maker	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)
package instruction	R-PDSO-G2	HALOGEN FREE AND ROHS COMPLIANT, ULTRA SMALL, PLASTIC PACKAGE-2
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G2	R-PDSO-G2
Number of components	1	1
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Maximum output current	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED
Maximum power dissipation	0.2 W	0.2 W
surface mount	YES	YES
technology	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	10	NOT SPECIFIED
