JCOS-EDR4783 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > oscillator> JCOS-EDR4783

JCOS-EDR4783: DescriptionVoltage Controlled Oscillator, 91MHz Min, 106MHz Max, CASE BG291, 14 PIN; Categoryoscillator; File Size94KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

JCOS-EDR4783 Overview

Voltage Controlled Oscillator, 91MHz Min, 106MHz Max, CASE BG291, 14 PIN

JCOS-EDR4783 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Is Samacsys	N
Other features	TAPE AND REEL
Maximum control voltage	8 V
Minimum control voltage	0.5 V
JESD-609 code	e0
Modulation sensitivity	5 MHz/V
Installation features	SURFACE MOUNT
offset frequency	1 kHz
Maximum operating frequency	106 MHz
Minimum operating frequency	91 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	9.5 dBm
phase noise	-93 dBc/Hz
physical size	22.098mm x 20.32mm x 6.35mm
Maximum slew rate	25 mA
Nominal supply voltage	9 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

Voltage Controlled Oscillator

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

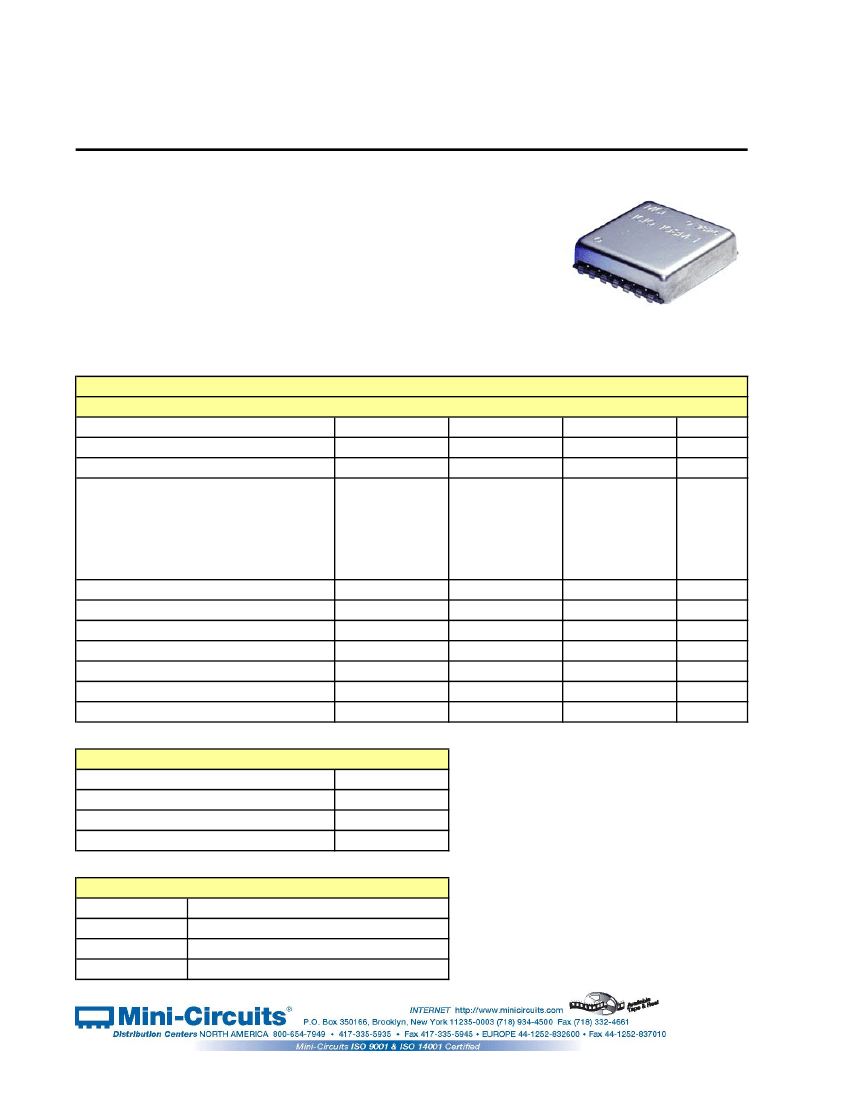

CASE STYLE : BG291

JCOS-EDR4783

ELECTRICAL SPECIFICATIONS 50Ω

Parameter

Frequency

Tuning

Voltage

Power Output

Min.

0.5

Typ.

Max.

106

+9.5

-93

-115

-136

-156

0.15

0.2

2-5

-17

7500

Units

MHz

dBm

dBc/Hz

MHz

MHz/V

dBc

kHz

Phase Noise

at 1 kHz offset

at 10 KHz offset

at 100 KHz offset

at 1000 kHz offset

Pulling at 12 dBr PK-PK all phases

Pushing at Vcc=5V±0.25V

Tuning Sensitivity

Harmonic Suppression

3 dB Modulation Bandwidth

Supply Voltage

Supply Current

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

Absolute Supply Voltage (Vcc)

Absolute Tuning Voltage (Vtune)

-9

-55°C to 85°C

-55°C to 100°C

+11V

+10V

RF OUT

VCC

V-TUNE

GROUND

PIN CONNECTIONS

2,3,4,5,6,9,10,11,12,13,14

REV. X1

JCOS-EDR4783

60522
