MC74VHCU04ML2

Description
AHC/VHC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, SOIC-14
Categorylogic
File Size135KB，7 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

MC74VHCU04ML2 Overview

AHC/VHC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, SOIC-14

MC74VHCU04ML2 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerON Semiconductor
Parts packaging codeSOIC
package instructionEIAJ, SOIC-14
Contacts14
Reach Compliance Codenot_compliant
Is SamacsysN
seriesAHC/VHC
JESD-30 codeR-PDSO-G14
JESD-609 codee0
length10.2 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeINVERTER
MaximumI(ol)0.008 A
Number of functions6
Number of entries1
Number of terminals14
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP14,.3
Package shapeRECTANGULAR
Package formSMALL OUTLINE
method of packingTAPE AND REEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply2/5.5 V
Prop。Delay @ Nom-Sup8 ns
propagation delay (tpd)13 ns
Certification statusNot Qualified
Schmitt triggerNO
Maximum seat height2.05 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width5.275 mm
Base Number Matches1

Preview

Download Datasheet

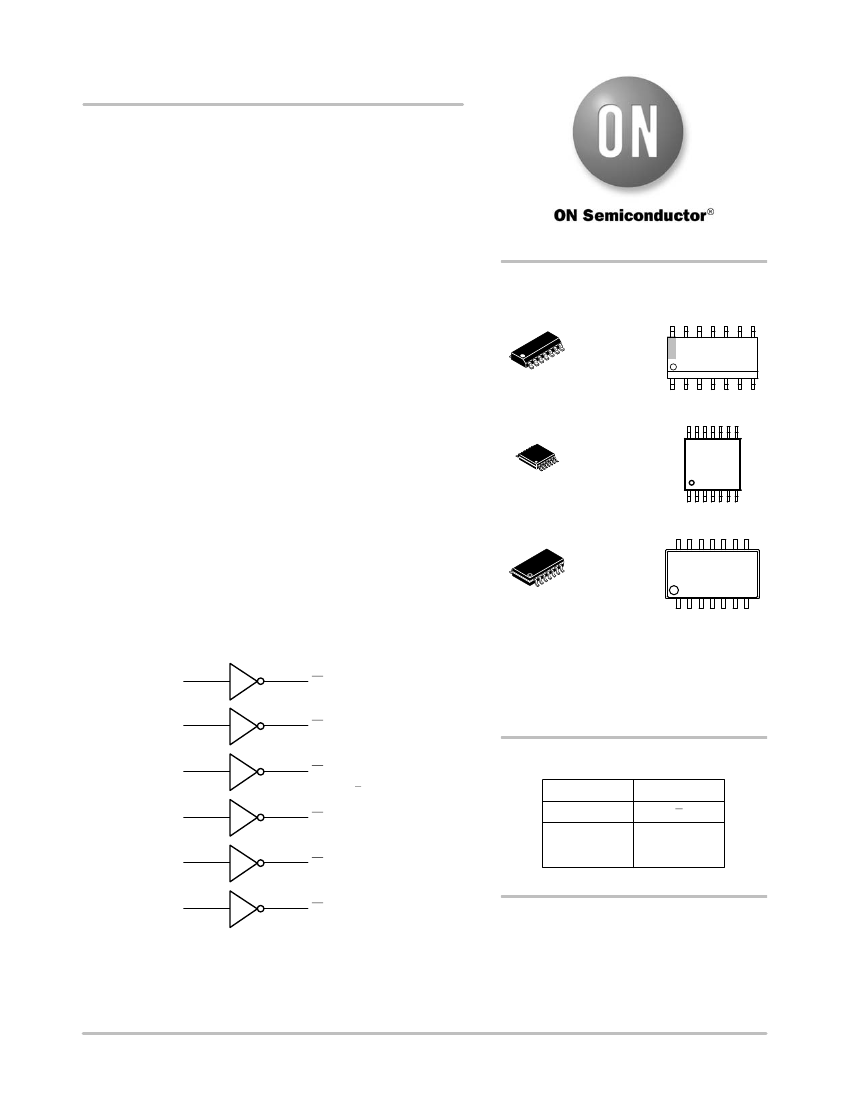

MC74VHCU04
Hex Inverter
(Unbuffered)
The MC74VHCU04 is an advanced high speed CMOS unbuffered
inverter fabricated with silicon gate CMOS technology. It achieves
high speed operation similar to equivalent Bipolar Schottky TTL
while maintaining CMOS low power dissipation.
The inputs tolerate voltages up to 7.0 V, allowing the interface of
5.0 V systems to 3.0 V systems.
Features
http://onsemi.com
MARKING
DIAGRAMS
14
SOIC−14
D SUFFIX
CASE 751A
1
14
TSSOP−14
DT SUFFIX
CASE 948G
1
14
SOEIAJ−14
M SUFFIX
CASE 965
1
VHCU04
ALYWG
VHCU
04
ALYWG
G
VHCU04G
AWLYWW
•
•
•
•
•
•
•
•
•
•
High Speed: t
PD
= 3.5 ns (Typ) at V
CC
= 5.0 V
Low Power Dissipation: I
CC
= 2
mA
(Max) at T
A
= 25°C
High Noise Immunity: V
NIH
= V
NIL
= 10% V
CC
(Min.)
Power Down Protection Provided on Inputs
Balanced Propagation Delays
Designed for 2.0 V to 5.5 V Operating Range
Low Noise: V
OLP
= 0.8 V (Max)
Pin and Function Compatible with Other Standard Logic Families
Latchup Performance Exceeds 300 mA
ESD Performance:
Human Body Model > 2000 V;
Machine Model > 200 V
•
Chip Complexity: 12 FETs or 3 Equivalent Gates
•
These Devices are Pb−Free and are RoHS Compliant
1
1
1
A1
1
2
Y1
A2
3
4
Y2
A
= Assembly Location
WL, L = Wafer Lot
Y, YY = Year
WW, W = Work Week
G or
G
= Pb−Free Package
(Note: Microdot may be in either location)
A3
5
6
Y3
Y=A
FUNCTION TABLE
Inputs
A
L
H
Outputs
Y
H
L
A4
9
8
Y4
A5
11
10
Y5
A6
13
12
Y6
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
Figure 1. Logic Diagram
©
Semiconductor Components Industries, LLC, 2011
May, 2011
−
Rev. 5
1
Publication Order Number:
MC74VHCU04/D

MC74VHCU04ML2 Related Products

MC74VHCU04ML2 MC74VHCU04ML1 MC74VHCU04MR2 MC74VHCU04DTRG
Description AHC/VHC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, SOIC-14 AHC/VHC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, SOIC-14 AHC/VHC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, SOIC-14 AHC/VHC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, LEAD FREE, TSSOP-14
Is it Rohs certified? incompatible incompatible incompatible conform to
Maker ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor
Parts packaging code SOIC SOIC SOIC TSSOP
package instruction EIAJ, SOIC-14 SOP, SOP14,.3 EIAJ, SOIC-14 LEAD FREE, TSSOP-14
Contacts 14 14 14 14
Reach Compliance Code not_compliant not_compliant compliant compliant
series AHC/VHC AHC/VHC AHC/VHC AHC/VHC
JESD-30 code R-PDSO-G14 R-PDSO-G14 R-PDSO-G14 R-PDSO-G14
JESD-609 code e0 e0 e0 e4
length 10.2 mm 10.2 mm 10.2 mm 5 mm
Logic integrated circuit type INVERTER INVERTER INVERTER INVERTER
Number of functions 6 6 6 6
Number of entries 1 1 1 1
Number of terminals 14 14 14 14
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP SOP TSSOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED 225 260
propagation delay (tpd) 13 ns 13 ns 13 ns 13 ns
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 2.05 mm 2.05 mm 2.05 mm 1.2 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 2 V 2 V 2 V 2 V
Nominal supply voltage (Vsup) 3.3 V 3.3 V 3.3 V 3.3 V
surface mount YES YES YES YES
technology CMOS CMOS CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) TIN LEAD Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form GULL WING GULL WING GULL WING GULL WING
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 0.65 mm
Terminal location DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED 40
width 5.275 mm 5.275 mm 5.275 mm 4.4 mm
