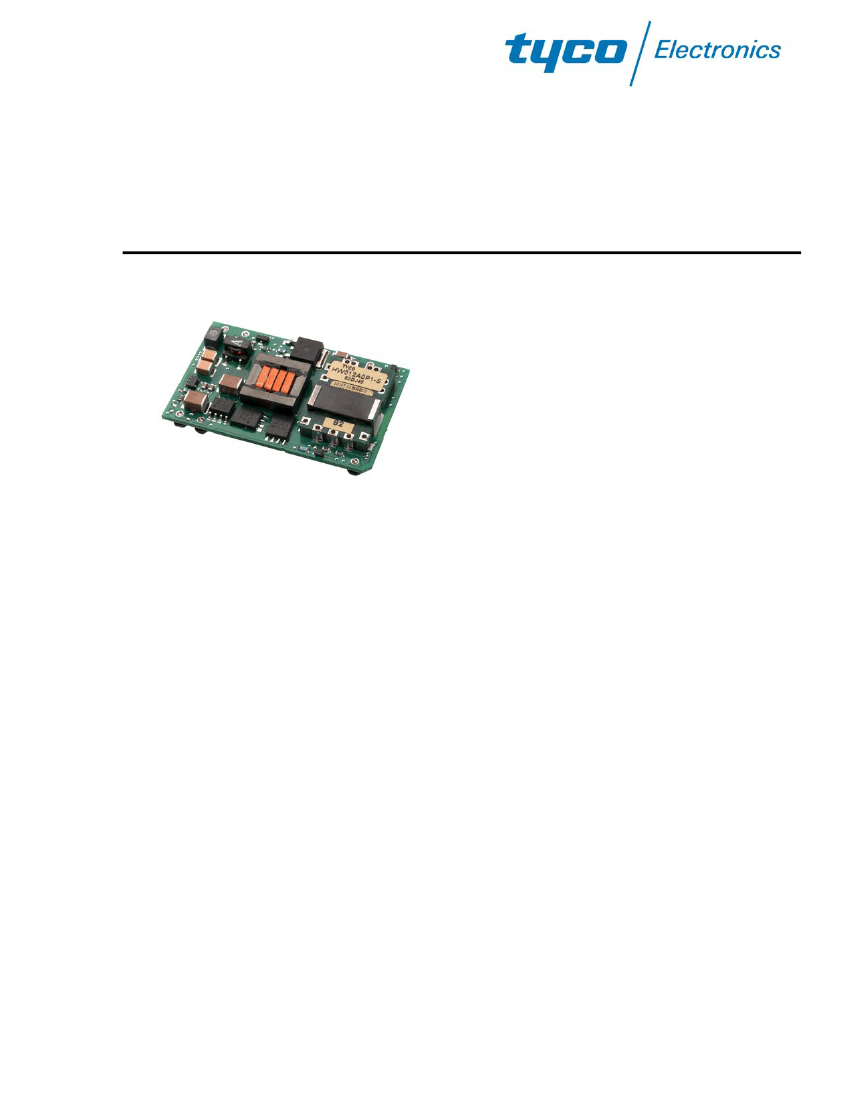

HW/HC006/010/012 Series Power Modules; dc-dc Converters
18-36 Vdc & 36-75 Vdc Input; 1.2 Vdc to 5 Vdc Output; 6.6A to 12A
Features
RoHS Compliant
n
Compatible with RoHS EU Directive 200295/EC (-Z Ver-
sions)
Compatible in RoHS EU Directive 200295/EC with lead
solder exemption (non -Z versions)
Delivers up to 12A output current
High efficiency: 90% at 3.3V full load (VIN = 48V)
Small size and low profile:
47.2 mm x 29.5 mm x 8.50 mm
(1.86 in x 1.16 in x 0.335 in)
Low output ripple and noise
Exceptional thermal performance
High reliability: MTBF > 4.5M hours at 25 °C
Remote On/Off positive logic (primary referenced)
Constant switching frequency (285 KHz typical)
Output overvoltage and overcurrent protection
Overtemperature protection
Input undervoltage lockout
Adjustable output voltage (± 10%)
Surface mount or through-hole package
n
n
n
n
n
n
Applications
n
n
n
n
n
n
n
Distributed Power Architectures
n
Wireless Networks
n
Access and Optical Network Equipment
n
Enterprise Networks
n
Latest generation IC’s (DSP, FPGA, ASIC) and Micropro-
cessor-powered applications.
n
n
Options
n
n
n
n
Remote On/Off negative logic
Surface-mount package (–S Suffix)
Basic Insulation (–B Suffix)
Meets the voltage and current requirements for
ETSI 300-132-2 and complies with and is approved for
Basic Insulation rating per IEC60950 3
rd
(-B version only)
UL*
60950 Recognized,
CSA
†
C22.2 No. 60950-00 Certi-
fied, and VDE
‡
0805 (IEC60950, 3rd edition) Licensed
CE mark meets 73/23/EEC and 93/68/EEC directives
§
ISO** 9001 and ISO14001 certified manufacturing facili-
ties
n
n
n
Description
The HW/HC series power modules are isolated dc-dc converters that can deliver up to 12A of output current and provide a pre-
cisely regulated output voltage over a wide range of input voltages (VI = 18 to 36 Vdc for HC modules & 36 V to 75 Vdc for HW
modules). The modules achieve full load efficiency of 90% at 3.3 V output voltage. The open frame modules, available in both sur-
face-mount and through-hole packaging, enable designers to develop cost- and space-efficient solutions. Standard features
include remote On/Off, output voltage adjustment, overvoltage, overcurrent and overtemperature protection.
*
†
‡
§
**
UL
is a registered trademark of Underwriters Laboratories, Inc.
CSA
is a registered trademark of Canadian Standards Association.
VDE
is a trademark of Verband Deutscher Elektrotechniker e.V.
This product is intended for integration into end-use equipment. All the required procedures for CE marking of end-use equipment should be followed. (The CE mark is placed on selected products.)
ISO is a registered trademark of the Internation Organization of Standards
Document No: ADS02-006EPS ver.1.3
PDF Name: fds03-0031.pdf
Data Sheet
November 13, 2007
HW/HC006/010/012 Series Power Modules; dc-dc Converters
18-36 Vdc & 36-75 Vdc Input; 1.2 Vdc to 5 Vdc Output; 6.6A to 12A
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress
ratings only, functional operation of the device is not implied at these or any other conditions in excess of those given in the
operations sections of the data sheet. Exposure to absolute maximum ratings for extended periods can adversely affect the
device reliabiltiy.
Parameter
Input Voltage:Continuous
Transient (100ms)
Operating Ambient Temperature
(See Thermal Considerations section)
Storage Temperature
Device
HW
HC
HW
All
All
Symbol
VI
VI
VI, trans
TA
Tstg
Min
–0.3
–0.3
—
–40
–55
Max
80
50
100
85
125
Unit
Vdc
Vdc
Vdc
°C
°C
Electrical Specifications
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature conditions.
Parameter
Operating Input Voltage
Maximum Input Current
(VI = 0 V to 75 V; IO = IO, max)
Inrush Transient
Input Reflected Ripple Current, peak-peak
(5 Hz to 20 MHz, 12 µH source impedance
See Test configuration section)
Input Ripple Rejection (120 Hz)
Device
HC
HW
HC
HW
All
All
Symbol
VIN
VIN
II, max
II, max
I
2
t
II
Min
18
36
Typ
24
48
Max
36
75
3.2
1.6
1
Unit
Vdc
Vdc
Adc
Adc
A
2
s
mAp-p
3
All
50
dB
CAUTION: This power module is not internally fused. An input line fuse must always be used.
This power module can be used in a wide variety of applications, ranging from simple stand-alone operation to an integrated
part of a sophisticated power architecture. To preserve maximum flexibility, internal fusing is not included however, to achieve
maximum safety and system protection, always use an input line fuse. The safety agencies require a time-delay fuse with a
maximum rating of 5 A (see Safety Considerations section). Based on the information provided in this data sheet on inrush
energy and maximum dc input current, the same type of fuse with a lower rating can be used. Refer to the fuse manufacturer’s
data sheet for further information.
Tyco Electronics Power Systems
2
Data Sheet
November 13, 2007
HW/HC006/010/012 Series Power Modules; dc-dc Converters
18-36 Vdc & 36-75 Vdc Input; 1.2 Vdc to 5 Vdc Output; 6.6A to 12A
Electrical Specifications
(continued)
Parameter
Output Voltage Set Point
(VI = 48 Vdc; IO = IO, min to IO, max, TA = 25 °C)
Device
HW012A0P1
HW012A0M1
HW012A0Y1
HW010A0G1
HW010A0F1
HW006A6A1
HW012A0P1
HW012A0M1
HW012A0Y1
HW010A0G1
HW010A0F1
HW006A6A1
All
All
All
Symbol
Vo, set
Vo, set
Vo, set
Vo, set
Vo, set
Vo, set
VO
VO
VO
VO
VO
VO
—
—
—
Min
1.17
1.46
1.75
2.46
3.25
4.92
1.15
1.44
1.73
2.42
3.2
4.85
—
—
—
Typ
1.2
1.5
1.8
2.5
3.3
5.0
—
—
—
—
—
—
—
—
0.2
Max
1.23
1.54
1.85
2.54
3.35
5.08
1.25
1.56
1.87
2.57
3.4
5.15
0.1
10
—
Unit
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
%, VO, set
mV
%, VO, set
Output Voltage
(Over all operating input voltage, resistive load, and
temperature conditions at steady state until end of life.)
Output Regulation:
Line (VI = VI, min to VI, max)
Load (IO = IO, min to IO, max)
Temperature (TA = TA, min to TA, max)
Output Ripple and Noise
Measured across 10µF Tantalum, 1µF
Ceramic, VI = VI, nom TA = 25 °C, IO = IO, max See test
Configuration section
RMS (5 Hz to 20 MHz bandwidth)
Peak-to-peak (5 Hz to 20 MHz bandwidth)
External Load Capacitance
Output Current
(At Io < Io,min, the output ripple may exceed the
maximum specifications. All modules shall operate at no
load without damage and without exceeding 110% of VO,
set.)
Output Current-limit Inception
(VO = 90% of VO, set)
All
All
HW006A6A1
All others
HW012A0P1
HW012A0M1
HW012A0Y1
HW010A0G1
HW010A0F1
HW006A6A1
HW012A0P1
HW012A0M1
HW012A0Y1
HW010A0G1
HW010A0F1
HW006A6A1
HW012A0P1
HW012A0M1
HW012A0Y1
HW010A0G1
HW010A0F1
HW006A6A1
HW012A0P1
HW012A0M1
HW012A0Y1
HW010A0G1
HW010A0F1
HW006A6A1
All
HW012A0P1
HW012A0M1
HW012A0Y1
HW010A0G1
HW010A0F1
HW006A6A1
CO, max
CO, max
IO
IO
IO
IO
IO
IO
IO, lim
IO, lim
IO, lim
IO, lim
IO, lim
IO, lim
IO, s/c
IO, s/c
IO, s/c
IO, s/c
IO, s/c
IO, s/c
h
h
h
h
h
h
fSW
h
h
h
h
h
h
—
—
0
0
0.15
0.15
0.15
0.05
0.05
0.05
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
8
40
—
—
—
—
—
—
—
—
18
18
18
12
12
8
20
20
20
17
17
13
82
83
85
89
90
91
285
82
83
85
89
90
91
20
75
470
1000
12
12
12
10
10
6.6
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
mVrms
mVp-p
µF
µF
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
%
%
%
%
%
%
kHz
%
%
%
%
%
%
Output Short-circuit Current (Average)
VO = 0.25 V
Efficiency
(VI = VIN, nom; IO = IO, max), TA = 25 °C
Switching Frequency
Efficiency
(VI = VIN, nom; IO = IO, max), TA = 25 °C
Tyco Electronics Power Systems
3
Data Sheet
November 13, 2007
HW/HC006/010/012 Series Power Modules; dc-dc Converters
18-36 Vdc & 36-75 Vdc Input; 1.2 Vdc to 5 Vdc Output; 6.6A to 12A
Electrical Specifications
(continued)
Parameter
Dynamic Load Response
(di/dt = 0.1 A/ µs, VI = VI, nom, TA = 25 °C)
Load change from IO = 50% to 75% of IO, max,
Peak Deviation
Settling Time (VO < 10% of peak deviation)
Load Change from IO = 50% to 25% of IO, max,
Peak Deviation
Setting Time (VO < 10% peak deviation)
Device
Symbol
Min
Typ
Max
Unit
All
All
All
All
—
—
—
—
—
—
—
—
200
0.2
200
0.2
—
—
—
—
mV
msec
mV
msec
Isolation Specifications
Parameter
Isolation Capacitance
Isolation Resistance
Isolation Voltage
Symbol
Ciso
Riso
Viso
Min
—
10
—
Typ
1000
—
—
Max
—
—
1500
Unit
PF
MΩ
Vdc
General Specifications
Parameter
Calculated MTBF (IO = 80% of IO, max TA = 25 °C)
Tyco RIN (Reliability Infomation Notebook) Method
Weight
—
Min
Typ
4,537,000
13 (0.46)
—
Max
Unit
Hours
g (oz.)
Tyco Electronics Power Systems
4
Data Sheet
November 13, 2007
Feature Specifications
HW/HC006/010/012 Series Power Modules; dc-dc Converters
18-36 Vdc & 36-75 Vdc Input; 1.2 Vdc to 5 Vdc Output; 6.6A to 12A
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature conditions. See
Feature Descriptions for additional information
.
Parameter
Remote On/Off Signal interface
(VI = VI, min to VI, max; Open collector or compatible, signal
referenced to VI (-) terminal
Negative Logic: Device code with suffix "1"
Logic Low—Module On / Logic High—Module Off
Positive Logic: If device code suffix "1" is not specified
Logic Low—Module Off / Logic High—Module On
Module Specifications:
On/Off Current—Logic Low
On/Off Voltage:
Logic Low
Logic High
Open Collector Specifications:
Leakage Current during Logic High
(Von/off = 15 V)
Output Low Voltage during Logic Low
(Ion/Off – 1 mA)
Turn-On Delay and Rise Times
(IO = 80% of IO, max, VIN = 48 Vdc, TA = 25 °C)
Case 1: On/Off input is set to Logic high and then input power
is applied (delay from instant at which VI = VI, min until VO =
10% of VO, set)
Case 2: Input power is applied for at least one second and
then the On/Off input is set to logic high (delay from instant at
which Von/off = 0.9 V until VO = 10% of VO, set)
Output voltage Rise time (time for VO to rise from 10% of VO,
set to 90% of VO, set)
Output voltage overshoot
(IO = 80% of IO, max, VI = 48 Vdc TA = 25 °C)
Output voltage adjustment (see Feature Description section)
As shown in the figure, this is an interrupt function handler that runs on M4. The corresponding C code function should be the following function, temp = h_0x10000158 & 0x3; switch(temp) { case 0,1,2,...
[align=left][color=rgb(51, 51, 51)][font=微软雅黑][size=3]According to Southern Metropolis Daily, the Shenzhen Court recently made a first-instance judgment on the DJI source code leak case. Taking into a...
The forum is now carrying out a lanuchpad learning activity, and everyone is very passionate.But I found that the TI section now has sections such as MCU, DSP, M3, etc., but there is no special sectio...
[i=s] This post was last edited by Buzhulun on 2015-3-15 21:01 [/i] I received a magazine from AD today. I think I wrote my information on the forum and received its brochure. Well, let's talk about A...
This board has the hardware for digital tube display. Next, I will conduct a simple test, a 3-input lookup table test, to verify the use of digital tubes and make a digital display module.
module segt...
When the WDP500-2A plane grating monochromator is used to test the emission wavelength of a high-power laser diode at different currents, the matching of the laser diode has the disadvantages of lo...[Details]
Google's driverless technology is not only an eye-catching technology, but also a subversion of the car usage model.
Those who have watched anti-terrorism films and TV dramas must have been im...[Details]
1. Introduction
Since the 1980s, with the continuous development of automotive electronic technology, there are more and more electronic control units in automobiles, such as electronic fuel i...[Details]
The Portable Digital Data Acquisition System (PDDAS) uses LabVIEW Real-Time and PXI to control the wind tunnel test and record air pressure data from 128 different channels.
"The LabVIEW Real-...[Details]
1. Introduction
With the gradual automation and modernization of industrial control systems, fieldbus control systems have received more and more attention and application. CAN bus is currentl...[Details]
Aromatic gases are widely present in food, medicine, cosmetics and various daily chemical products, such as snacks, liquor, spices, Chinese herbal medicines, plasters, perfumes, soaps, shampoos, et...[Details]
Overview
As a remote network communication control method with advanced technology, high reliability, complete functions and reasonable cost, CAN-bus has been widely used in various automa...[Details]
1 Introduction
The Third Steel Plant of Jigang Group is a key investment project of Jigang Group during the "15th Five-Year Plan". It has introduced first-class domestic and foreign advanced eq...[Details]
1 Introduction
In recent years, there have been many major advances in the production technology and processes of automotive headlights, which have greatly improved the performance of automoti...[Details]
0 Introduction
With the rise and continuous improvement of the solid-state lighting industry, light-emitting diodes (LEDs) have become an alternative lighting technology and are gr...[Details]
VP2188 is a color STN LCD module produced by Jingdian Pengyuan. This module is a dot matrix transmissive color STN display screen with a color scale of 65 k colors and white LED backlight. Its core...[Details]
Different initialization between C8051F and 80C51 series microcontrollers
In the past 30 years, major electronic component manufacturers in the world have launched their own unique single-chip...[Details]
OC faults may be the most frequent and the most frequent of all faults in the inverter. They alarm during the startup process, during the shutdown process, during operation, and even when powered o...[Details]
Abstract: Aiming at the needs of coal-rock acoustic emission signal monitoring system, a data acquisition circuit with 24-bit resolution and 16-channel synchronous data acquisition function is desi...[Details]
Preface
In recent years, white light LEDs have gradually replaced incandescent bulbs and fluorescent lamps because they have unparalleled advantages over traditional light sources in terms...[Details]
ARM Technology
京公网安备 11010802033920号
EEWORLD
