CY54FCT158CTDM datasheet, PDF - EEWORLD Datasheet

CY54FCT158CTDM: DescriptionMultiplexer, FCT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, CDIP16, 0.300 INCH, CERDIP-16; Categorylogic; File Size173KB，6 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

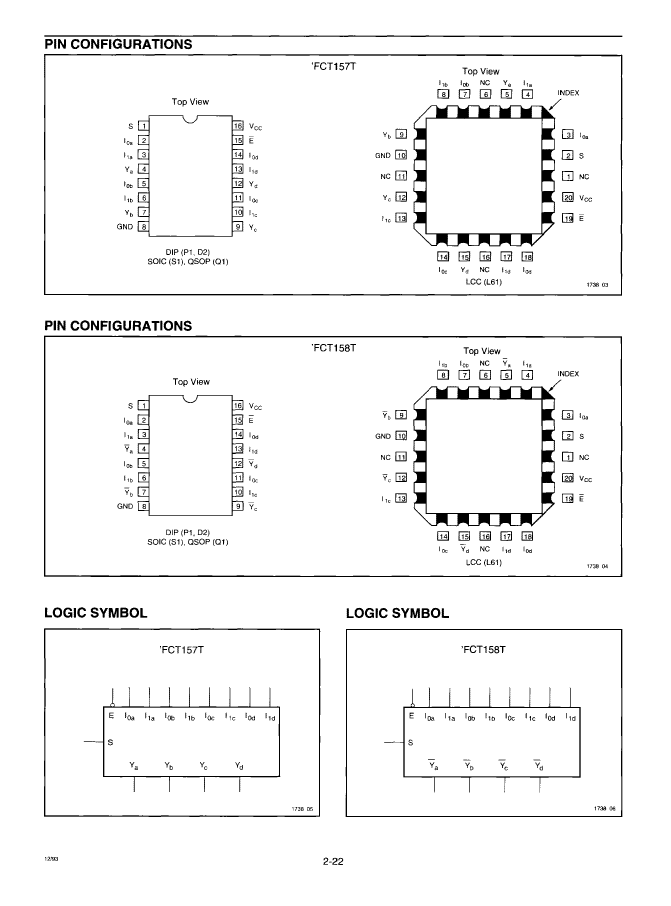

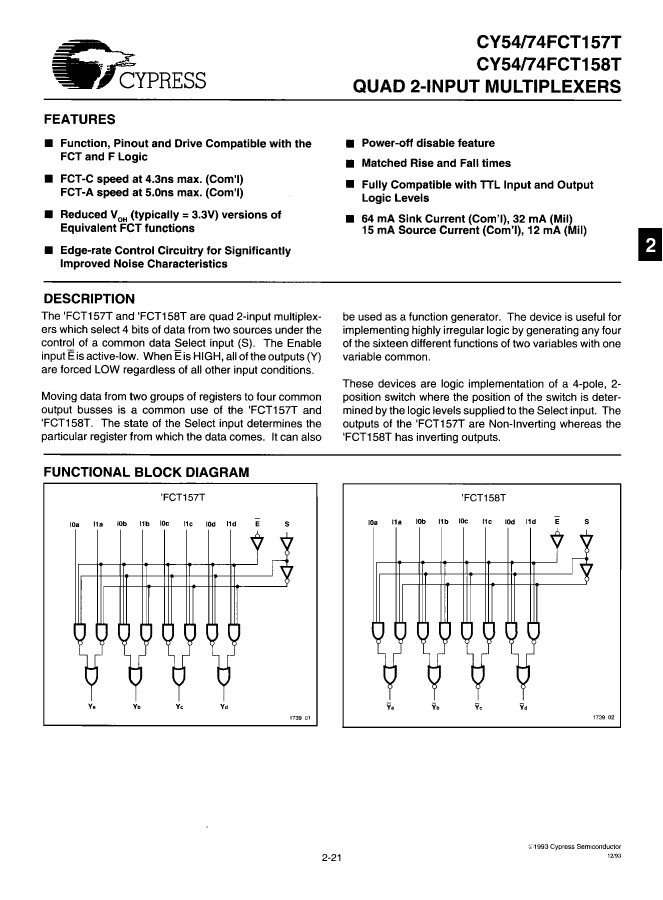

CY54FCT158CTDM Overview

Multiplexer, FCT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, CDIP16, 0.300 INCH, CERDIP-16

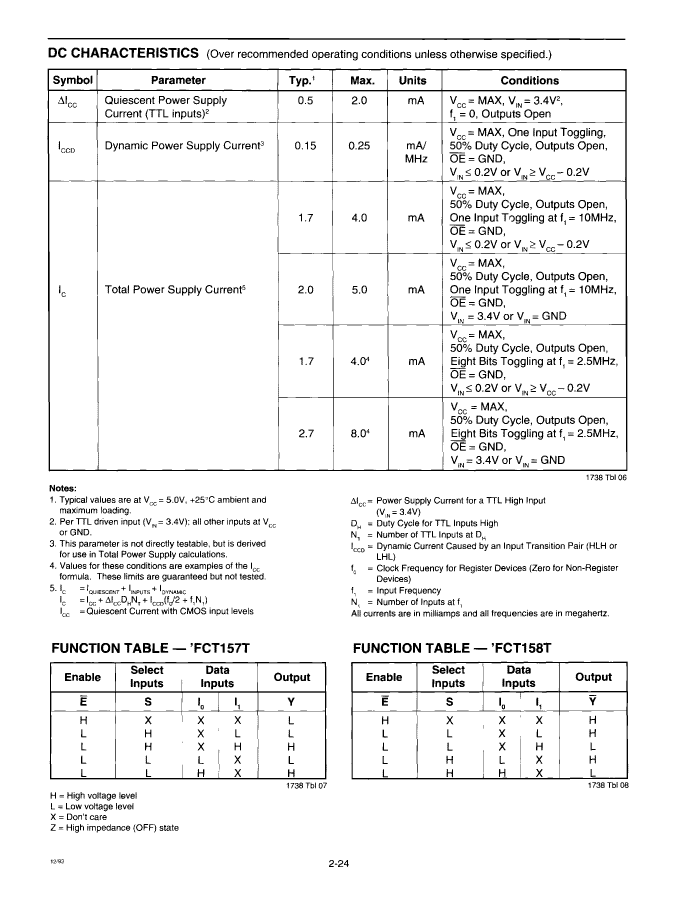

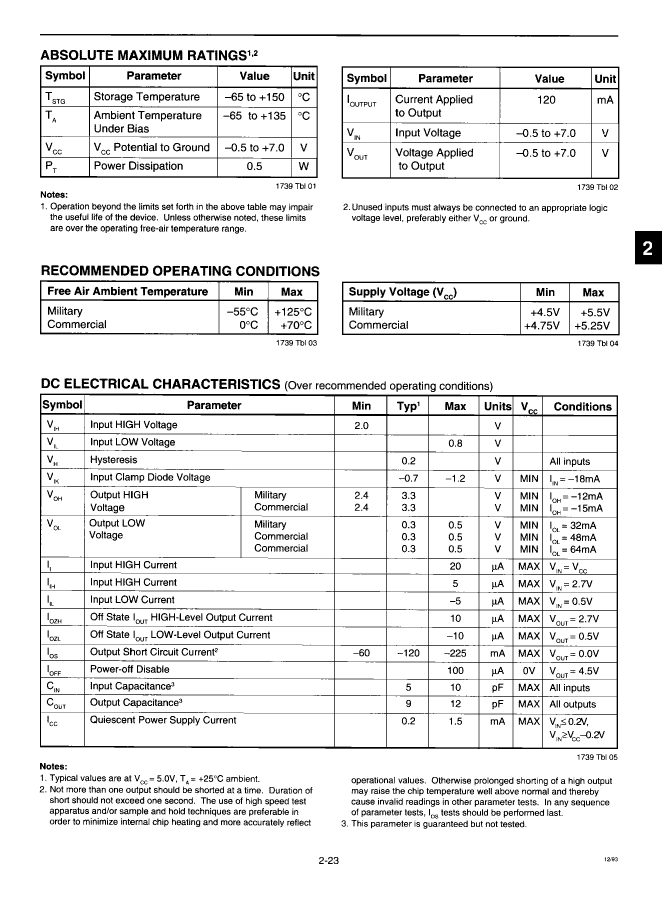

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	DIP
package instruction	0.300 INCH, CERDIP-16
Contacts	16
Reach Compliance Code	compliant
Is Samacsys	N
series	FCT
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.431 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.032 A
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V

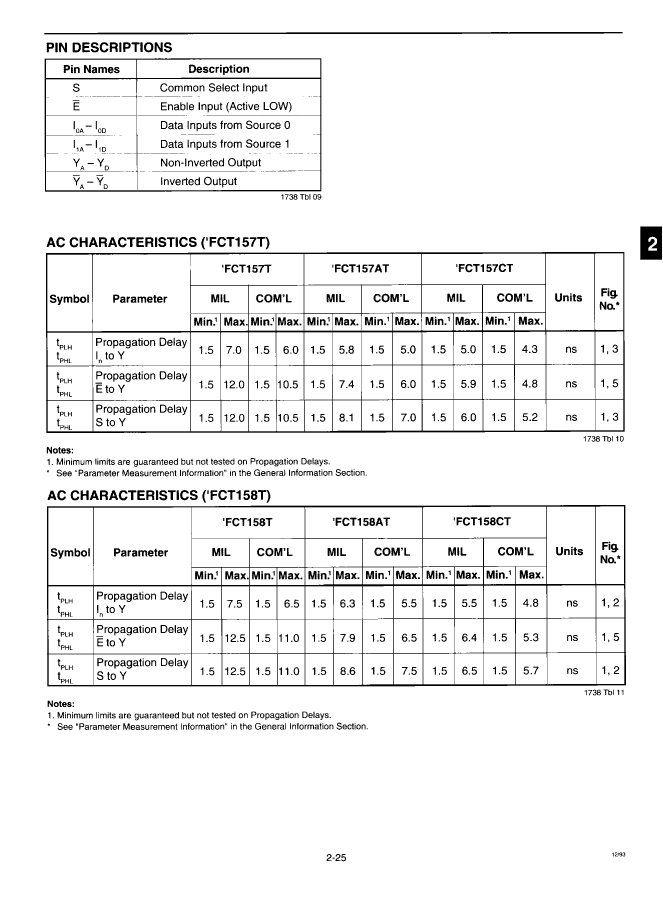

Prop。Delay @ Nom-Sup	5.5 ns
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
