ASM3P2107A
Peak EMI Reducing Solution
Features
FCC approved method of EMI attenuation.
Generates a 1X low EMI spread spectrum clock of
the input frequency.
Input frequency range: 12MHz to 22MHz.
Internal loop filter minimizes external components
and board space.
Frequency deviation: - 0.8%( Typ) @ 20MHz.
Low cycle-to-cycle jitter.
5.0V ± 5% operating voltage range.
TTL or CMOS compatible outputs.

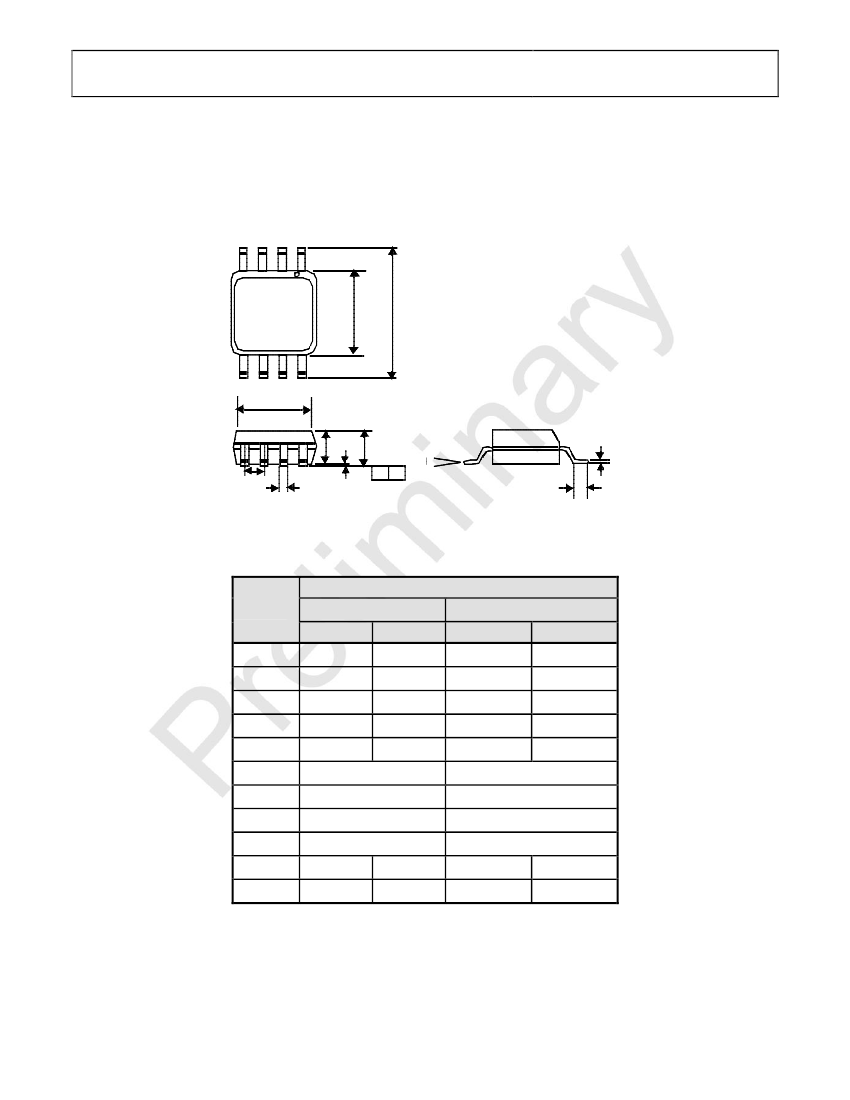

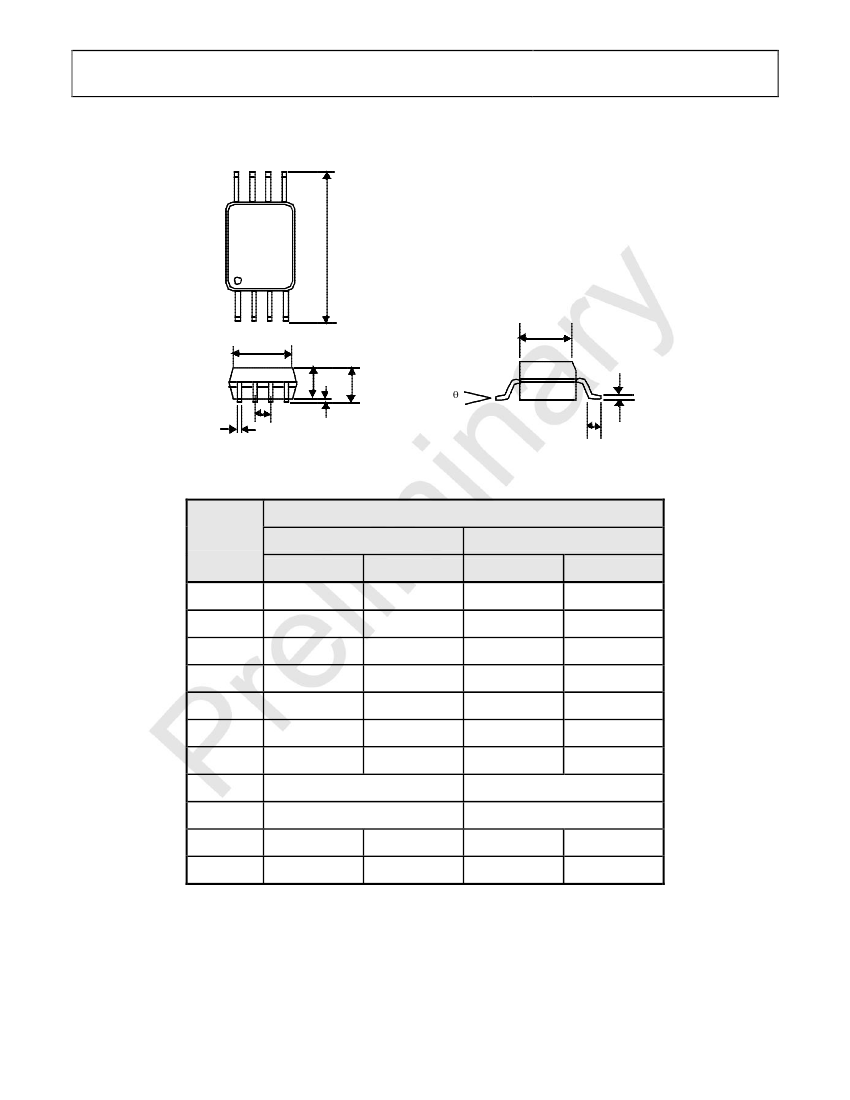

Available in 8-pin TSSOP and SOIC package.
by reducing the number of circuit board layers ferrite
beads, shielding and other passive components that are
traditionally required to pass EMI regulations.
The ASM3P2107A uses the most efficient and optimized
modulation profile approved by the FCC and is
implemented in a proprietary all digital method.
The ASM3P2107A modulates the output of a single PLL
in order to “spread” the bandwidth of a synthesized clock,
and more importantly, decreases the peak amplitudes of
its harmonics. This results in significantly lower system
EMI compared to the typical narrow band signal produced
by oscillators and most frequency generators. Lowering
EMI by increasing a signal‟s bandwidth is called „spread
spectrum clock generation.‟
Product Description
The ASM3P2107A is a versatile spread spectrum
frequency modulator designed specifically for input clock
frequencies from 12MHz to 22MHz. The ASM3P2107A
can generate an EMI reduced clock from crystal, ceramic
resonator, or system clock.
The ASM3P2107A reduces electromagnetic interference
(EMI) at the clock source, allowing system wide reduction
of EMI of down stream clock and data dependent signals.
The ASM3P2107A allows significant system cost savings
Applications
The ASM3P2107A is targeted towards EMI management
for high speed digital applications such as PC peripheral
devices, consumer electronics and embedded controller
systems.

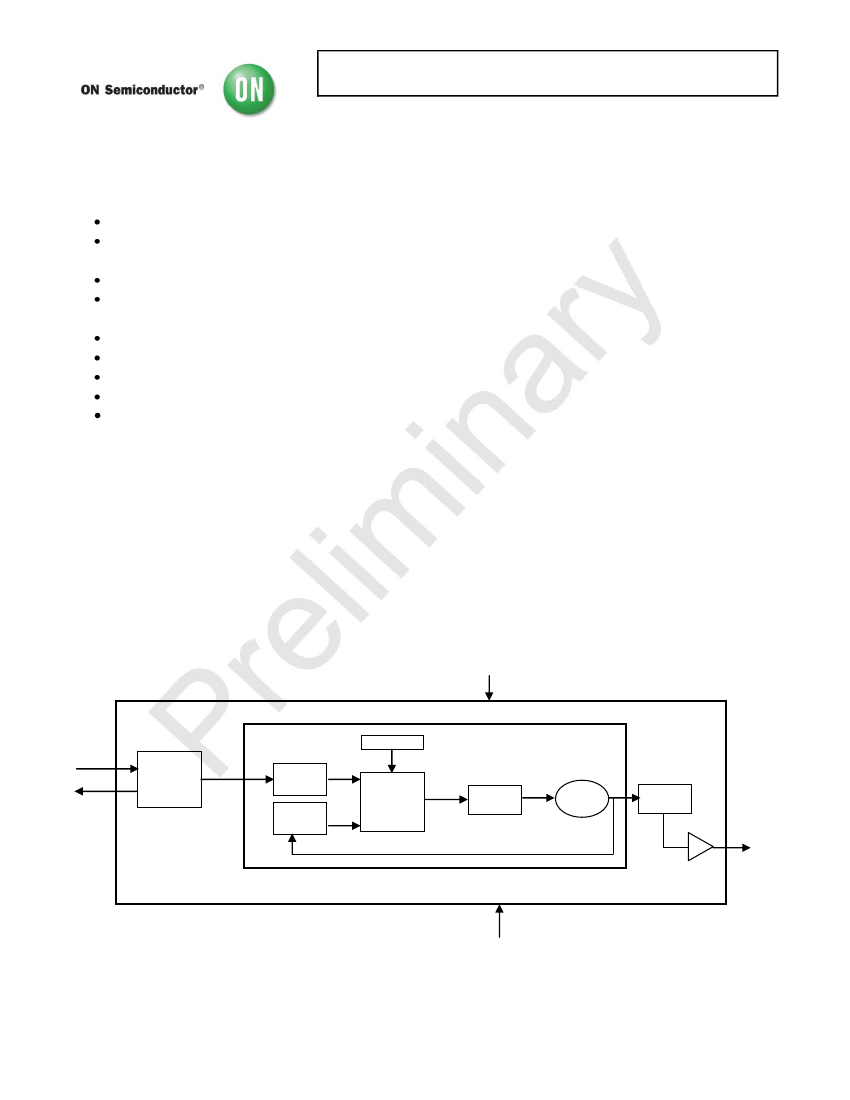

Block Diagram
V
DD
Modulation
XIN
XOUT
Crystal
Oscillator
Frequency
Divider
Feedback
Divider
Phase
Detector
Loop
Filter
VCO
PLL
Output
Divider
CLOCKOUT
GND
©2010 SCILLC. All rights reserved.
JANUARY 2010 – Rev. 1
Publication Order Number:
ASM3P2107/D
ASM3P2107A

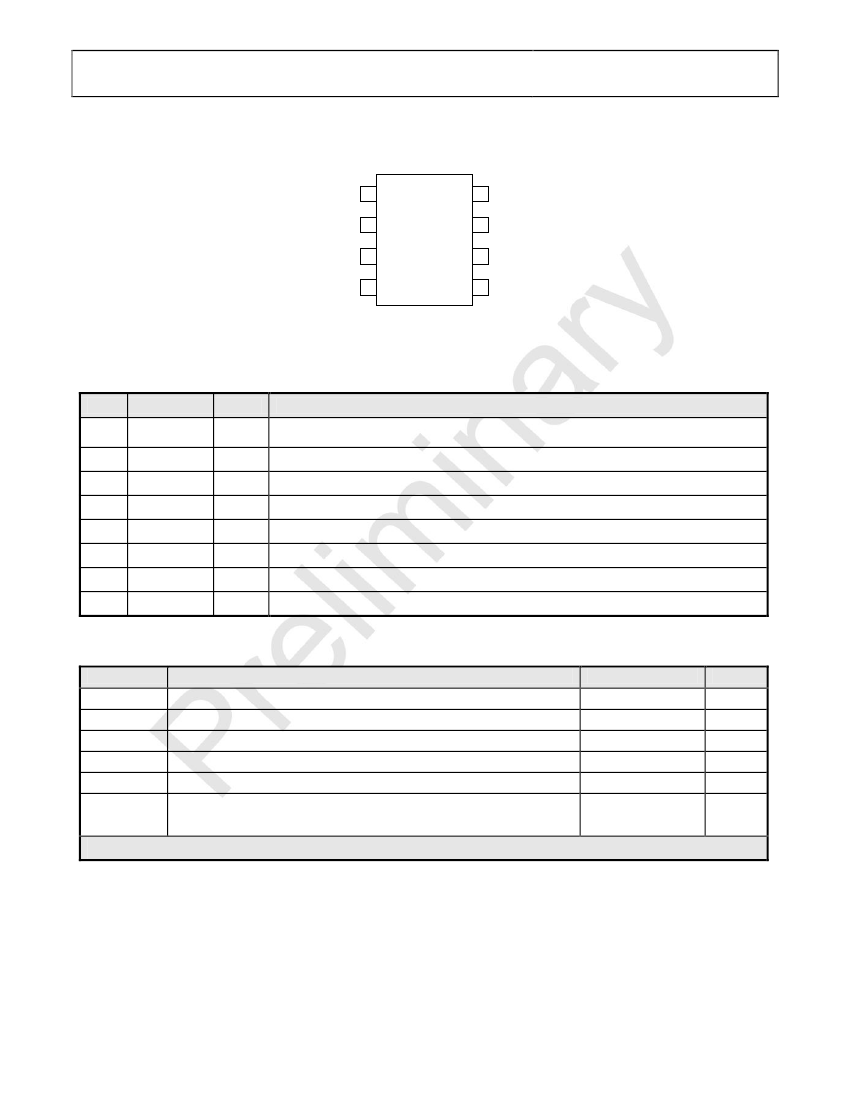

Pin Configuration
XIN / CLKIN
XOUT
1
2
ASM3P2107A
8
NC
7
NC
6
VDD
5
CLOCKOUT
GND
3
NC
4
Pin Description
Pin#
1
2
3
4
5
6
7
8
Pin Name
XIN / CLKIN
XOUT
GND
NC
CLOCKOUT
VDD
NC
NC
Type
I
O
P
-
O
P
-
-
Description
Crystal connection or external reference frequency input. This pin has dual functions. It
can be connected to either an external crystal or an external reference clock.
Crystal connection. If using an external reference, this pin must be left unconnected.
Ground to entire chip.
No connect.
Spread spectrum low EMI output.
Power supply for the entire chip (5V).
No connect.
No connect.
Absolute Maximum Ratings
Symbol
V
DD
, V
IN
T
STG
T
A
T
s
T
J
T
DV
Storage temperature
Operating temperature
Parameter
Rating
-0.5 to +7.0
-65 to +125
0 to 70
260
150
2
Unit
V
°C
°C
°C
°C
KV
Voltage on any pin with respect to Ground
Max. Soldering Temperature (10 sec)
Junction Temperature
Static Discharge Voltage
(As per JEDEC STD22- A114-B)
Note: These are stress ratings only and are not implied for functional use. Exposure to absolute maximum ratings for prolonged periods of time may affect
device reliability.
Rev. 1 | Page 2 of 7 | www.onsemi.com
ASM3P2107A
DC Electrical Characteristics
Symbol
Parameter
V
IL
V
IH
I
IL
I
IH
I
XOL
I
XOH
V
OL
V
OH
I
CC
I
DD
V
DD
t
ON
Z
OUT
Input low voltage
Input high voltage
Input low current
Input high current
X
OUT
output low current (@ 0.4, V
DD
= 5V)
X
OUT
output high current (@2.5V, V
DD
= 5V)
Output low voltage (V
DD
= 5V, I
OL
= 20mA)
Output high voltage (V
DD
= 5V, I
OH
= 20mA)
Dynamic supply current normal mode
(5V, 18MHz and 15pF loading)
Static supply current standby mode
Operating voltage
Power up time (first locked clock cycle after power up)
Clock out impedance
Min
GND – 0.3
2.0
-
-
-
-
-
2.5
-
-
4.75
-
-
Typ
-
-
44
66
3
3
-
-
40
40
5.0
0.18
50
Max
0.8
V
DD
+ 0.3
-
-
-
-
0.4
-
-
-
5.25
-
-
Unit
V
V
µA
µA
mA
mA
V
V
mA
µA
V
mS
Ω
AC Electrical Characteristics
Symbol
f
IN
MODOUT
f
d
t
LH
*
t
HL
*
t
JC
t
D
Input frequency
Output frequency
Parameter
Min
12
12
-
-
-
-
-
45
Typ
-
-
-2.13
-0.62
440
300
-
50
Max
22
22
-
-
-
-
360
55
Unit
MHz
MHz
%
pS
pS
pS
%
Input Frequency = 12MHz
Input Frequency = 22MHz
Output rise time (measured at 0.8V to 2.0V)
Frequency Deviation
Output fall time (measured at 2.0V to 0.8V)
Jitter (cycle to cycle)
Output duty cycle
* V
DD
= +5V, Input Frequency = 18MHz, t
LH
and t
HL
are measured into a capacitive load of 15pF
Rev. 1 | Page 3 of 7 | www.onsemi.com
