HDSP-511x/513x
14.22 mm (0.56 inch) General Purpose
Seven-Segment Display
Data Sheet
Description

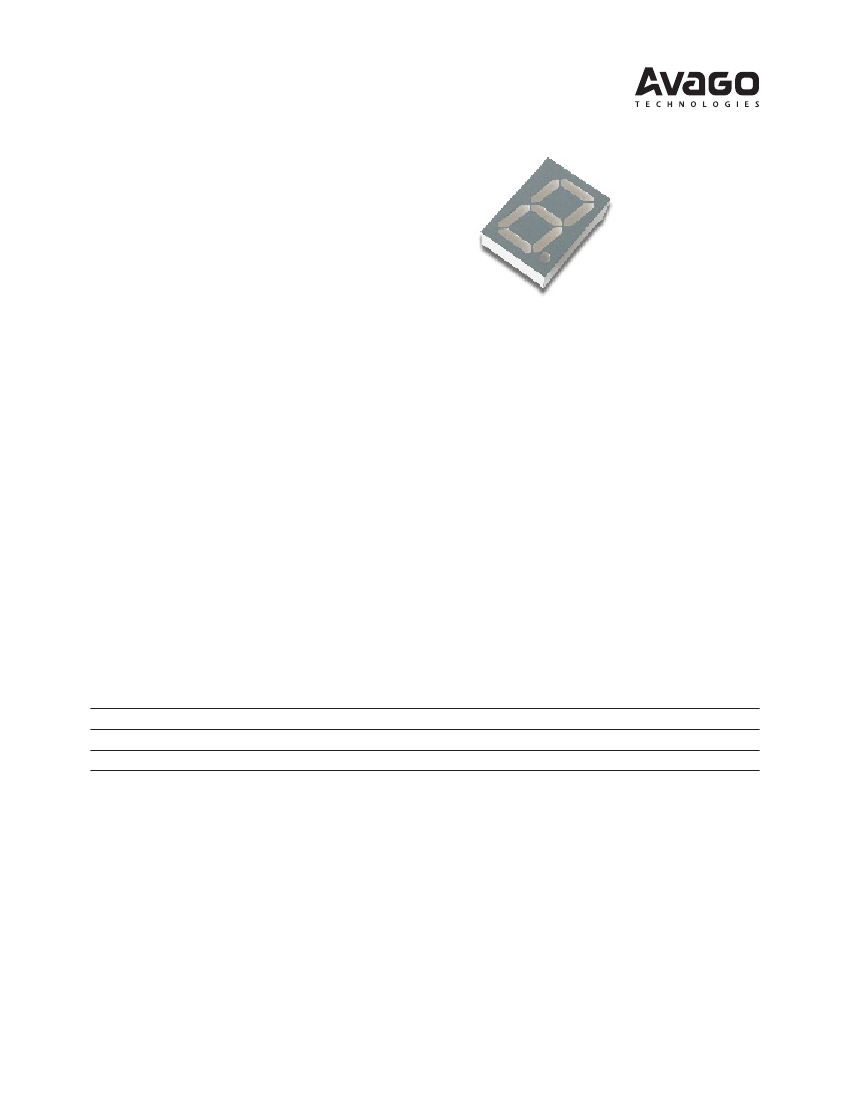

This 14.22 mm (0.56 inch) LED seven-segment
display uses industry standard size package and pinout.
The device is available in either common anode or
common cathode. The choice of colors includes High
Efficiency Red (HER), Green, AlGaAs Red, and Yellow. The
gray face displays are suitable for indoor use.
Features
•
Industry standard size
•
Industry standard pinout
14.22 mm (0.56 inch)
DIP lead on 2.54 mm
•
Choice of colors
High Efficiency Red (HER), Green, AlGaAs Red, and
Yellow
•
Excellent appearance
Evenly lighted segments gray package gives optimum
contrast
± 50° viewing angle
•
Design flexibility
Common anode or common cathode
Single digit
Left and right hand decimal point
•
Categorized for luminous intensity
Green and yellow categorized for color
Applications
•
Suitable for indoor use
•
Not recommended for industrial application, i.e.,
operating temperature requirements exceeding
+85˚C or below –25˚C
[1]
•
Extreme temperature cycling not recommended
Note:
1. For additional details, please contact your local Avago sales office or
an authorized distributor.
Devices
HER
HDSP-511E
HDSP-513E
Green
HDSP-511G
HDSP-513G
AlGaAs Red
HDSP-511A
HDSP-513A
Yellow
HDSP-511Y
HDSP-513Y
Description
Common Anode, Right Hand Decimal
Common Cathode, Right Hand Decimal
Part Numbering System
5082 -X X X X-X X X X X
HDSP-X X X X-X X X X X
Mechanical Options
[1]
00: No Mechanical Option
Color Bin Options
[1,2]
0: No Color Bin Limitation
Maximum Intensity Bin
[1,2]
0: No Maximum Intensity Bin Limitation
Minimum Intensity Bin
[1,2]
0: No Minimum Intensity Bin Limitation
Device Configuration/Color
[1]
A: AlGaAs Red
E: High Efficiency Red
G: Green
Y: Yellow
Device Specific Configuration
[1]
Refer to Respective Datasheet
Package
[1]
Refer to Respective Datasheet
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest Avago rep-
resentative for details.
2. Bin options refer to shippable bins for a part number. Color and Intensity Bins are typically restricted to 1 bin per
tube (exceptions may apply). Please refer to respective datasheet for specific bin limit information.
2
Package Dimensions
TOP END VIEW
0.50 ± 0.05 TYP. 10 PLACES
(0.020)
COUNTRY OF ORIGIN
HDSP-XXXX
YWW XZ COO
2.54 x 4 = 10.16 ± 0.1
(0.100 x 4 = 0.400)
7.90 ± 0.05
(0.311)
+ 0.05
1.50 ± 0.05 – 0.08
(0.059)
10 ± 0.15
DATE CODE
8.0
(0.312)
LUMINOUS
INTENSITY
CATEGORY
0.30
(0.012)
17.10 ± 0.15
(0.673)
14.22 ± 0.05
(0.560)
Æ1.70 ± 0.05
(0.067)
15.24
(0.600)
4.85
(0.191)
12.40 ± 0.15
(0.488)
5.0
(0.197)
FRONT VIEW
SIDE VIEW
ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
Internal Circuit Diagram
10
9
8
a
f
b
f
7
6
10
9
8
a
b
PIN
g
g
1
2
c
d
DP
1
2
3
4
5
1
2
3
4
DP
5
3
4
5
6
7
8
9
10
7
6
HDSP-511E/511G/511Y/511A
COMMON ANODE
FUNCTION
CATHODE e
CATHODE d
COMMON ANODE
CATHODE c
CATHODE DP
CATHODE b
CATHODE a
COMMON ANODE
CATHODE f
CATHODE g
PIN
1
2
3
4
5
6
7
8
9
10
HDSP-513E/513G/513Y/513A
COMMON CATHODE
FUNCTION
ANODE e
ANODE d
COMMON CATHODE
ANODE c
ANODE DP
ANODE b
ANODE a
COMMON CATHODE
ANODE f
ANODE g
e
d
c
e
COMMON ANODE
COMMON CATHODE
3
Absolute Maximum Ratings at T
A
= 25˚C
Description
Power Dissipation Segment
Forward Current Segment
Peak Forward Current per Segment
(1/10 Duty Factor at 10 KHz)
Operating Temperature Range
Storage Temperature Range
Reverse Voltage per Segment or DP
Wavesoldering Temperature for 3 seconds
(at 2 mm Distance from the body)
Notes:
1. Derate above 25˚C at 0.33 mA/˚C.
2. Derate above 25˚C at 0.33 mA/˚C.
3. Derate above 25˚C at 0.2 mA/˚C.
4. Derate above 25˚C at 0.27 mA/˚C.
HER
HDSP-51xE
60
25
[1]
100
–35 to +85
–35 to +85
5
250
Green
HDSP-51xG
65
25
[2]
100
–35 to +85
–35 to +85
5
250
AlGaAs Red
HDSP-51xA
30
15
[3]
80
–35 to +85
–35 to +85
5
250
Yellow
HDSP-51xY
52
20
[4]
80
–35 to +85
–35 to +85
5
250
Units
mW
mA
mA
˚C
˚C
V
˚C
Electrical/Optical Characteristics at T
A
= 25˚C
High Efficiency Red (HER)
Device
HDSP-
511E
513E
Parameter
Luminous Intensity/Segment
Forward Voltage
Peak Wavelength
Dominant Wavelength
Reverse Voltage
Symbol
I
V
V
F
λ
PEAK
λ
d
VR
Min.
2.001
Typ.
1.73
4.100
2.05
635
620
Max.
Units
mcd
mcd
Test Conditions
I
F
= 5 mA
I
F
= 10 mA
I
F
= 20 mA
2.40
V
nm
nm
V
5
I
R
= 100 µA
Green
Device
HDSP-
511G
513G
Parameter
Luminous Intensity/Segment
Forward Voltage
Peak Wavelength
Dominant Wavelength
Reverse Voltage
Symbol
I
V
V
F
λ
PEAK
λ
d
VR
Min.
2.001
1.80
Typ.
4.100
2.06
2.25
568
573
Max.
Units
mcd
V
V
nm
nm
V
Test Conditions
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
2.60
5
I
R
= 100 µA
4
AlGaAs Red
Device
HDSP-
511A
513A
Parameter
Luminous Intensity/Segment
Forward Voltage
Peak Wavelength
Dominant Wavelength
Reverse Voltage
Symbol
I
V
V
F
λ
PEAK
λ
d
VR
Min.
3.201
Typ.
4.93
6.500
1.85
660
643
Max.
Units
mcd
mcd
Test Conditions
I
F
= 5 mA
I
F
= 10 mA
I
F
= 20 mA
2.00
V
nm
nm
V
5
I
R
= 100 µA
Yellow
Device
HDSP-
511Y
513Y
Parameter
Luminous Intensity/Segment
Forward Voltage
Peak Wavelength
Dominant Wavelength
Reverse Voltage
Symbol
I
V
V
F
λ
PEAK
λ
d
VR
Min.
1.251
Typ.
1.03
2.600
2.15
595
590
Max.
Units
mcd
mcd
Test Conditions
I
F
= 5 mA
I
F
= 10 mA
I
F
= 20 mA
2.60
V
nm
nm
V
5
I
R
= 100 µA
Intensity Bin Limits (mcd at 10 mA)
Bin
Name
H
I
J
K
L
HER/Green
Min.
[1]
Max.
[1]
NA
2.001
3.201
5.051
NA
NA
3.200
5.050
8.000
NA
Yellow
Min.
[1]
1.251
2.001
3.201
NA
NA
Max.
[1]
2.000
3.200
5.050
NA
NA
AlGaAs Red
Min.
[1]
Max.
[1]
NA
NA
3.201
5.051
8.001
NA
NA
5.050
8.000
12.650
Note:
1. Tolerance for each bin limit is ± 10%.
Color Bin Limits (nm at 10 mA)
Color
Green
Bin
3
4
5
Dominant Wavelength (nm)
Min.
[1]
Max.
[1]
569.1
571.1
573.1
585.5
588.5
591.5
571.0
573.0
575.0
588.5
591.5
594.5
Yellow
1
2
3
Note:
1. Tolerance for each bin limit is 1 nm.
5
