NJU6433BC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> NJU6433BC

NJU6433BC: DescriptionLiquid Crystal Driver, 54-Segment, CMOS, DIE; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size209KB，12 Pages; ManufacturerNew Japan Radio Co., Ltd..

Download Datasheet Parametric Compare View All

NJU6433BC Overview

Liquid Crystal Driver, 54-Segment, CMOS, DIE

NJU6433BC Parametric

Parameter Name	Attribute value
Maker	New Japan Radio Co., Ltd..
Parts packaging code	DIE
package instruction	DIE,
Contacts	64
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
data entry mode	SERIAL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-XUUC-N64
Multiplex display function	YES
Number of functions	1
Number of segments	54
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	SQUARE
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	2.4 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	NO LEAD
Terminal location	UPPER
minfmax	2 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

NJU6433B

PRELIMINARY

1/4 DUTY LCD DRIVER

GENERAL DESCRIPTION

The NJU6433B is a 1/4 duty LCD driver for segment type

LCD panel.

The LCD driver consists of 4-common and 50-segment

drives up to 200 segments.

The NJU6433B is useful for the digital tuning system or

others segment type display driver.

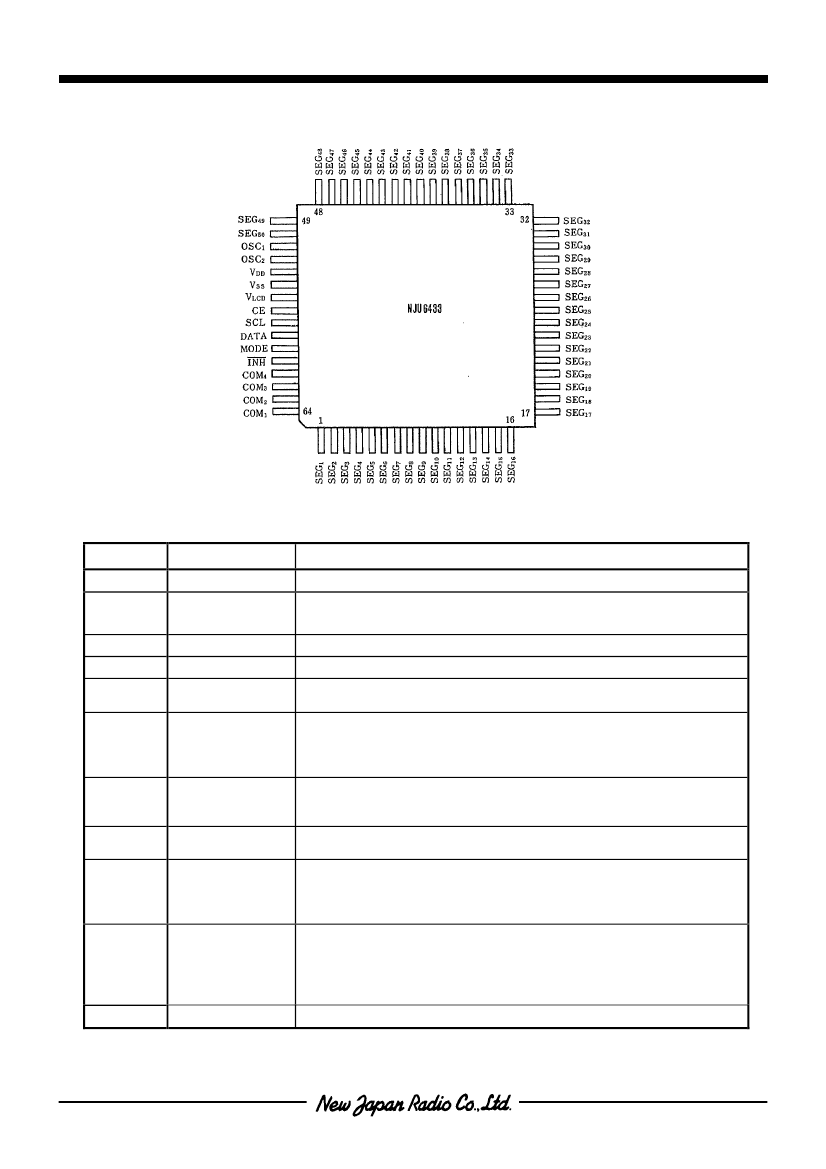

PACKAGE OUTLINE

NJU6433BFG1

NJU6433BFH1

FEATURES

50 Segment Drivers

Duty Ratio 1/4 (Up to 200-Segments)

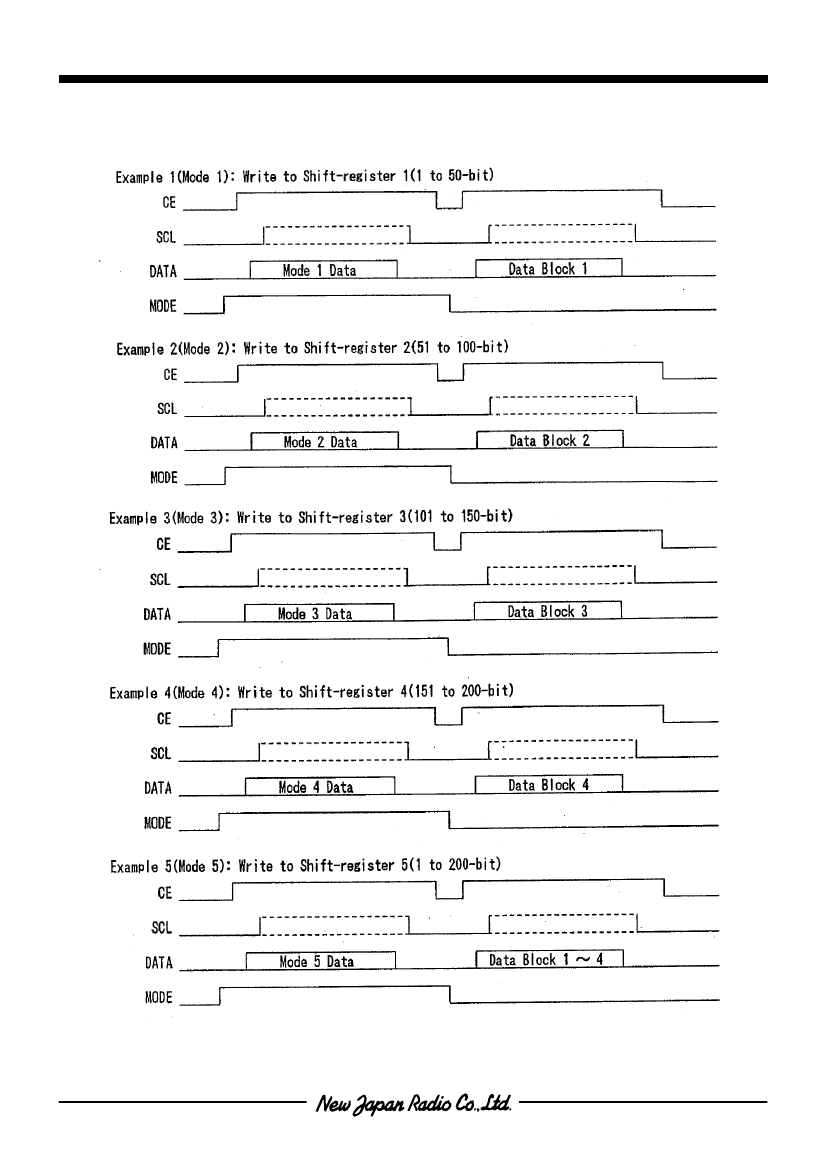

Serial Data Transmission (Shift Clock 2MHz max.)

Oscillation Circuit On-chip (External Resistance Required)

Display Off Function (INHb Terminal)

Operating Voltage

2.4 to 5.5V

LCD Driving Voltage

6.5V Max.

Package Outline

Bump Chip, Chip, QFP 64-G1, QFP64-H1

C-MOS Technology

NJU6433BC/BCH

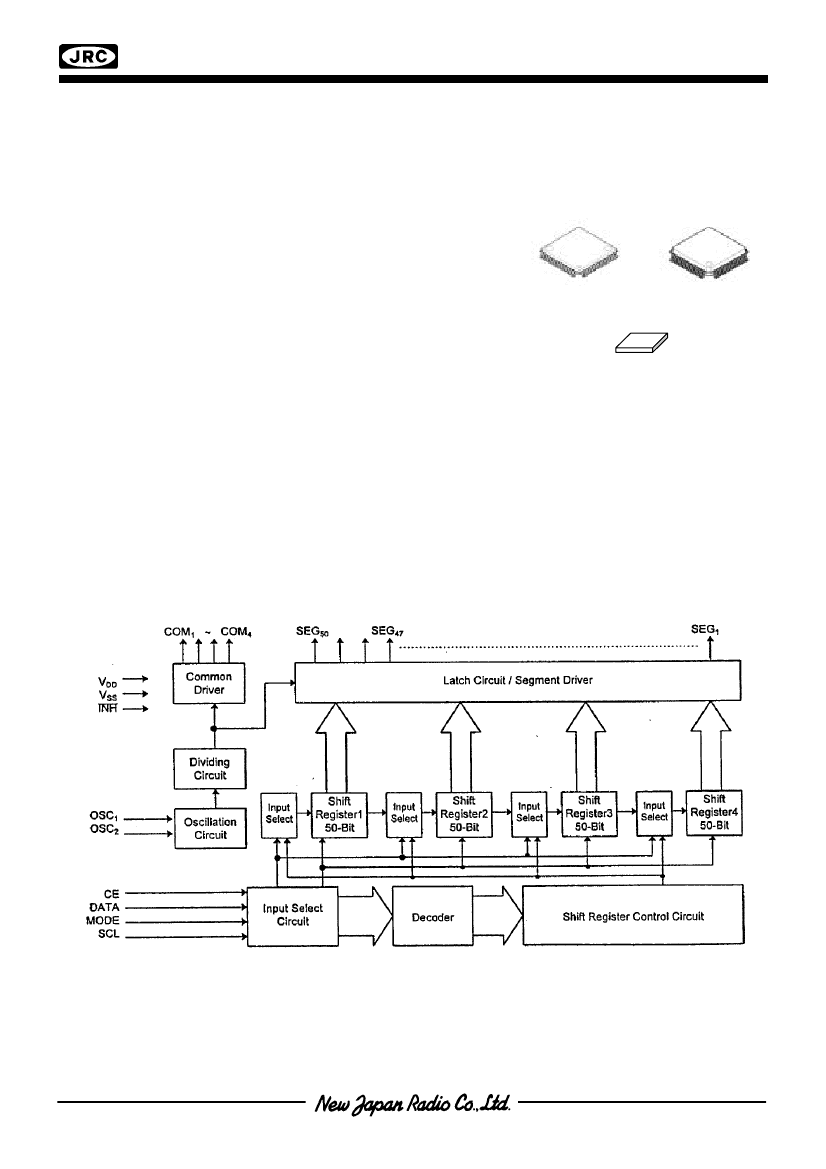

BLOCK DIAGRAM

Ver.2005-07-08

-1-

NJU6433BC Related Products

	NJU6433BC	NJU6433BFH1	NJU6433BCH	NJU6433BFG1
Description	Liquid Crystal Driver, 54-Segment, CMOS, DIE	Liquid Crystal Driver, 54-Segment, CMOS, PQFP64, QFP-64	Liquid Crystal Driver, 54-Segment, CMOS, DIE	Liquid Crystal Driver, 54-Segment, CMOS, PQFP64, QFP-64
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	DIE	QFP	DIE	QFP
package instruction	DIE,	FQFP,	DIE,	LQFP,
Contacts	64	64	64	64
Reach Compliance Code	compliant	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N
data entry mode	SERIAL	SERIAL	SERIAL	SERIAL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-XUUC-N64	S-PQFP-G64	S-XUUC-N64	S-PQFP-G64
Multiplex display function	YES	YES	YES	YES
Number of functions	1	1	1	1
Number of segments	54	54	54	54
Number of terminals	64	64	64	64
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C
Package body material	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY
encapsulated code	DIE	FQFP	DIE	LQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	UNCASED CHIP	FLATPACK, FINE PITCH	UNCASED CHIP	FLATPACK, LOW PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.4 V	2.4 V	2.4 V	2.4 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	NO LEAD	GULL WING	NO LEAD	GULL WING
Terminal location	UPPER	QUAD	UPPER	QUAD
minfmax	2 MHz	2 MHz	2 MHz	2 MHz
Base Number Matches	1	1	1	1
