0316-0-15-15-34-80-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 0316-0-15-15-34-80-10-0

0316-0-15-15-34-80-10-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size96KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

0316-0-15-15-34-80-10-0 Overview

PCB Terminal, ROHS COMPLIANT

0316-0-15-15-34-80-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	0316
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

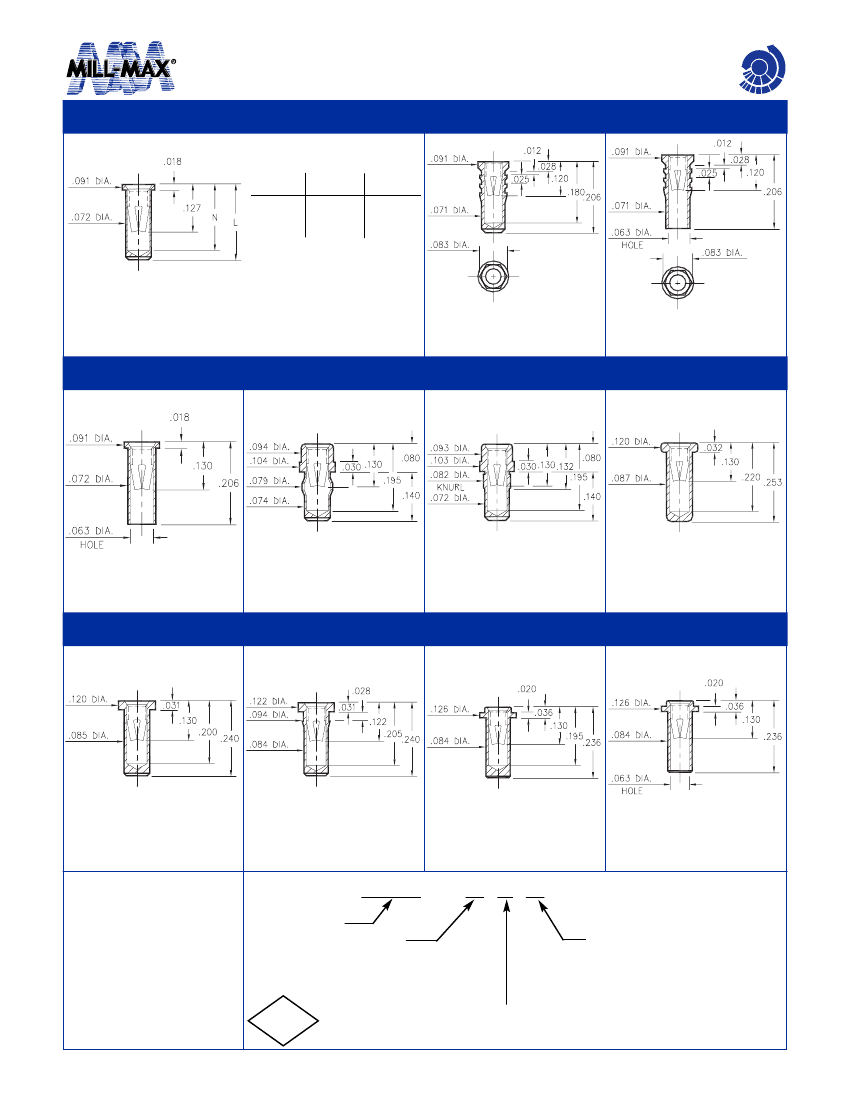

PIN RECEPTACLES

for .032” - .046” diameter pins

CHI

PINS

0327/0351/0373

Basic Part

Number

Length

Depth

0328

0334

0327-0

0351-0

0373-0

.206

.226

.270

.180

.200

.241

03XX-0-15-XX-34-XX-10-0

Solder mount in .075 min. mounting hole

Also available on 12mm wide carrier

tape: 1,400 parts per 13” reel.

Order as: 0327-0-57-XX-34-XX-10-0

0328-0-15-XX-34-XX-10-0

Hex press-fit in .079

plated thru hole

0334-0-15-XX-34-XX-10-0

Hex press-fit in .079

plated thru hole

0312

0333

0357

0317

0312-0-15-XX-34-XX-10-0

Solder mount in .075 min.

mounting hole

0333-0-42-XX-34-XX-10-0

Press-fit in .076 mounting hole

0357-0-15-XX-34-XX-10-0

Press-fit in .078 mounting hole

0317-0-15-XX-34-XX-10-0

Solder mount in .091min.

mounting hole

0340

0345

0316

0314

0340-0-15-XX-34-XX-10-0

Solder mount in .087 min.

mounting hole

0345-0-15-XX-34-XX-10-0

Press-fit in .089 mounting hole

0316-0-15-XX-34-XX-10-0

Solder mount in .087 min.

mounting hole

0314-0-15-XX-34-XX-10-0

Solder mount in .087 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - 34 - XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

10μ” GOLD OVER NICKEL

RoHS

SPECIFY CONTACT FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

30μ” GOLD OVER NICKEL

2002/95/EC

CONTACT

#34

CONTACT (DATA ON PAGE 222)

w w w. m i l l - m a x . c o m

153

516-922-6000
