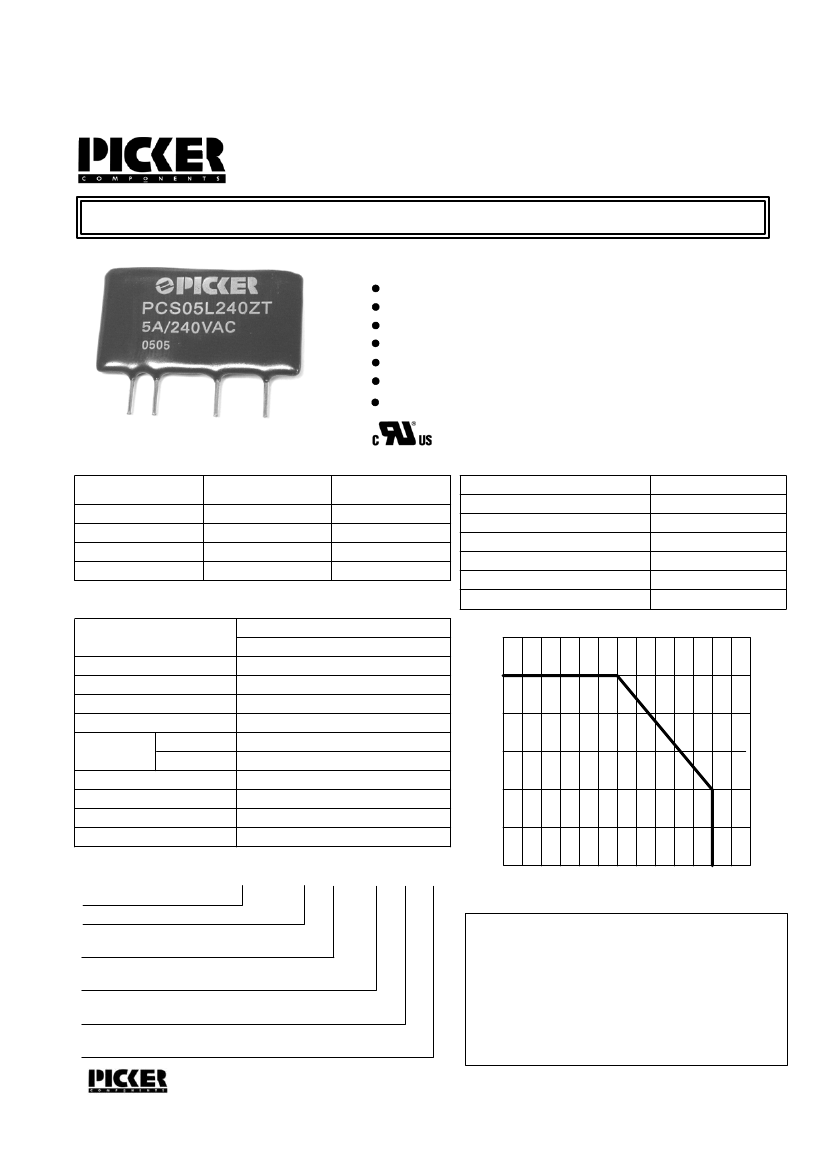

Printed Circuit Board Solid State Relay
FEATURES
5 amp rating @ 30 degrees C
Industry standard footprint
4000 volt dielectric strength
Will switch up to 440 volts
Built in snubbers
Back to back SCR or Triac output
Solid epoxy encapsulation
PCS05
Pending
INPUT PARAMETERS
Input
Input Voltage
Must Operate Voltage
Must Release Voltage
Typical Input Current
Low Range (L)
3 VDC to 15 VDC
Max 3 VDC
Min 1.0 VDC
15 mA DC
High Range (H)
15 VDC to 32 VDC
Max 15 VDC
Min 1.0 VDC
15 mA DC
GENERAL PARAMETERS
Dielectric strength (input to output)
Insulation Resistance
Vibration Resistance
Ambient operating temperature
Ambient storage temperature
Ambient humidity
Weight
48 to 264 VAC for 240 VAC rated relay
48 to 440 VAC for 380 VAC rated relay
0.1 Amps to 5 Amps
250 Amps Peak
1.5 milliamps
1.5 Volts
4000 Vrms
1000 megohms @ 500VDC
DA 1.5 mm 10 to 50 Hz
-30 to +80 degrees C
-30 to +100 degrees C
45% to 85%
15 grams max
OUTPUT PARAMETERS
Load Voltage Range
Load Current Range
Max Surge current (10 ms)
Max off-state leakage current
Max on-state voltage drop
Maximum
Turn-on
Time
6
5
4
3
2
1
Maximum Load Current vs. Ambient Temperature
Zero Crossing
10 milliseconds
Random
1 millisecond
10 milliseconds
600 V for 240 VAC and 800 V for 380 VAC
200V / micro second
0.5
Maximum turn-off time
Transient overvoltage
Minimum off-state dv/dt
Minimum power factor
Maximum Load Current Amps
ORDERING INFORMATION
Example:
Model
DC Input Range
L: 3 VDC to 15 VDC, H: 15 VDC to 32 VDC
Load Voltage
240 or 380
Type of Operation
Z: Zero cross turn on; R: Random turn on
Output Type
S: SCR, T: Triac
PCS05
L
240
Z
T
0
-30
0 10 20 30 40 50 60 70 80
100
Ambient Temperature (degrees C)
Description
The PCS05 relay is pin for pin compatible with standard
OAC type I/O modules.
The PCS05 is available with random turn-on as an alternate to
zero-cross turn-on.
The PCS05 SSR offers a choice of 240VAC or 380VAC versions
and input ranges of 3 to 15 vDC and 15 to 32 VDC.
All Models include an internal snubber.
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PCS05 Rev A 4-28-05
PAGE 1
PCS05
PCS05
Dimensions in Inches (millimeters)
.275
(7.0)
1.70
(43.1)
1.00
(25.4)
INPUT
-4 +3
.300
(7.6)
.040
(1.0)
.200
(5.1)
.700
(17.8)
LOAD
2
1
.100
(2.5)
1.100
(27.9)
PRECAUTIONS
1. Soldering must be completed within 10 seconds at 260 degrees C or less
or within 5 seconds at 350 degrees C.
2. The SSR case serves to dissipate heat. Install the relays so that they are
adequately ventilated. If poor ventilation is unavoidable, reduce the load current.
3. The input circuitry does not incorporate a circuit protecting the SSR from a reversed
polarity connection. Confirm that the polarity is correct when connecting the input.
Notes:
Tolerances + .010 unless otherwise noted
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888) 997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PAGE 2
