254314FA007S501PA

Description
PCMCIA Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Surface Mount Terminal, Gray Insulator, Receptacle
CategoryThe connector    The connector
File Size104KB，1 Pages
ManufacturerSUYIN-USA
Websitehttp://www.suyinusa.com
Download Datasheet Parametric Compare View All

254314FA007S501PA Overview

PCMCIA Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Surface Mount Terminal, Gray Insulator, Receptacle

254314FA007S501PA Parametric

Parameter NameAttribute value
MakerSUYIN-USA
Reach Compliance Codeunknown
Is SamacsysN
Other featuresTRAY PACKAGE WITHOUT CAP
Board mount optionsPEG
body width0.898 inch
subject depth0.114 inch
body length1.181 inch
Body/casing typeRECEPTACLE
Connector typePCMCIA CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Dielectric withstand voltage100VAC V
Insulator colorGRAY
Manufacturer's serial number254314FA
Plug contact pitch0.098 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of ports1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Plating thickness30u inch
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.4892 mm
Termination typeSURFACE MOUNT
Total number of contacts7
Base Number Matches1

Preview

Download Datasheet

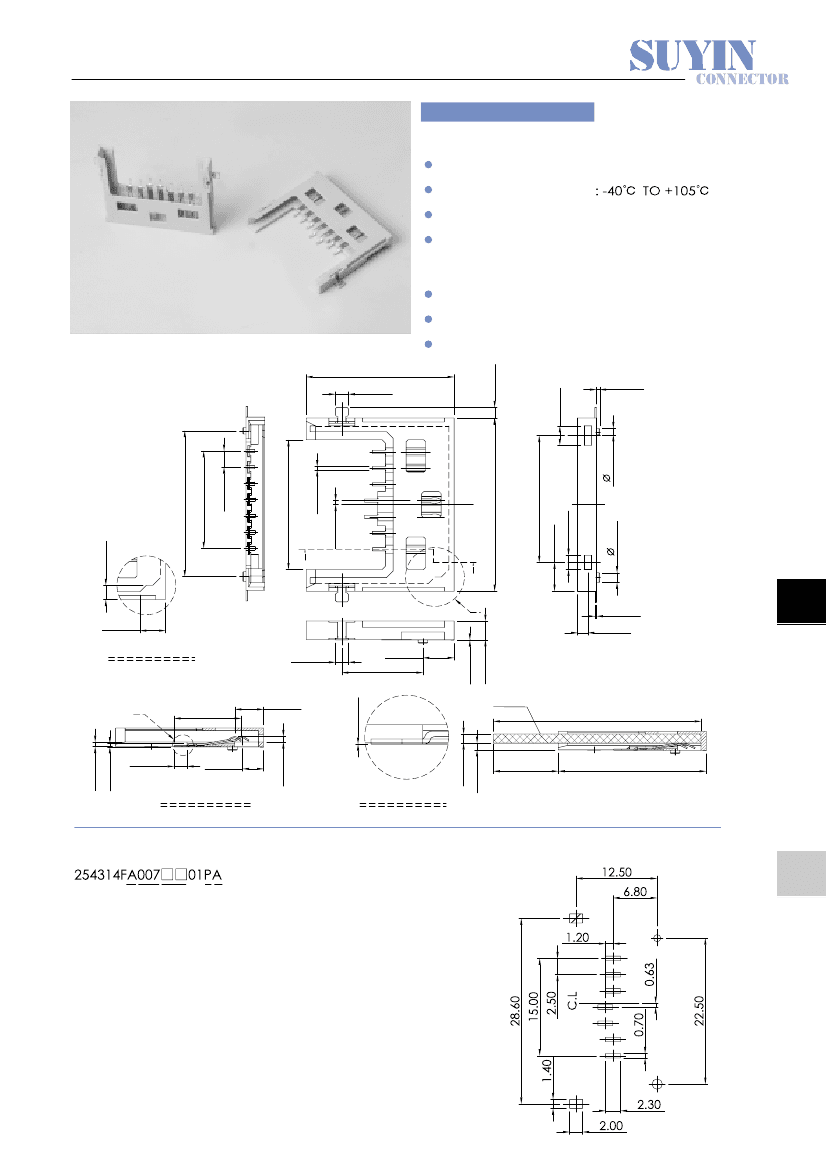

7 PINS M.M.C. CONNECTOR SMD TYPE
254314FA Series
Specifications:
Insulator material
Operating Type Range
Terminal Material
Platings
: Phos. Bronze
: Contact-Selective Gold
Plated or Full Gold Plated
Max. Current Rating
Max. Voltage Rating
Dielectric Strength
22.80
2.00
: Warm Gray High Temp. Plastic
: 0.5A
: 25V AC
: 100V AC For 60 Seconds
0.50
1.65
3.00
15.00
22.50
20.00
26.70
19.55
2.50
0.50
4.45
2.20
0.63
4.40
A
A'
1.50
1.00
7.90
SCALE B(1:1)
BEFORE INSERT
0.25
1.58
Mobile
+0.12
0 -0.00
0.05
2.90
CARD
32.00
2.00
4.80
12.50
10.35
4.42
0 ZERO LINE
0.86
1.40
1.05
0.70
0.52
2.00
3.22
SECTION A-A'
10.00
22.80
CARD INSERTED
SCALE C(2:1)
Order Information
1 2 3
45
1. 'A' : Straight SMT Type
2. No. of pins.
3. Plating
4. Color 'P' : Warm Gray
5. Package
'A' : Tray Package Without Cap
Reference Page 11
Recommended P.C.B Layout
OTHERS
317
