MCSJK-2N-36.00-2.5-50-C datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MCSJK-2N-36.00-2.5-50-C

MCSJK-2N-36.00-2.5-50-C: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size193KB，2 Pages; ManufacturerSPC Multicomp

Download Datasheet Parametric View All

MCSJK-2N-36.00-2.5-50-C Overview

CMOS Output Clock Oscillator,

MCSJK-2N-36.00-2.5-50-C Parametric

Parameter Name	Attribute value
Maker	SPC Multicomp
Reach Compliance Code	unknown
Is Samacsys	N
Oscillator type	CMOS
Base Number Matches	1

Preview

Download Datasheet

View All

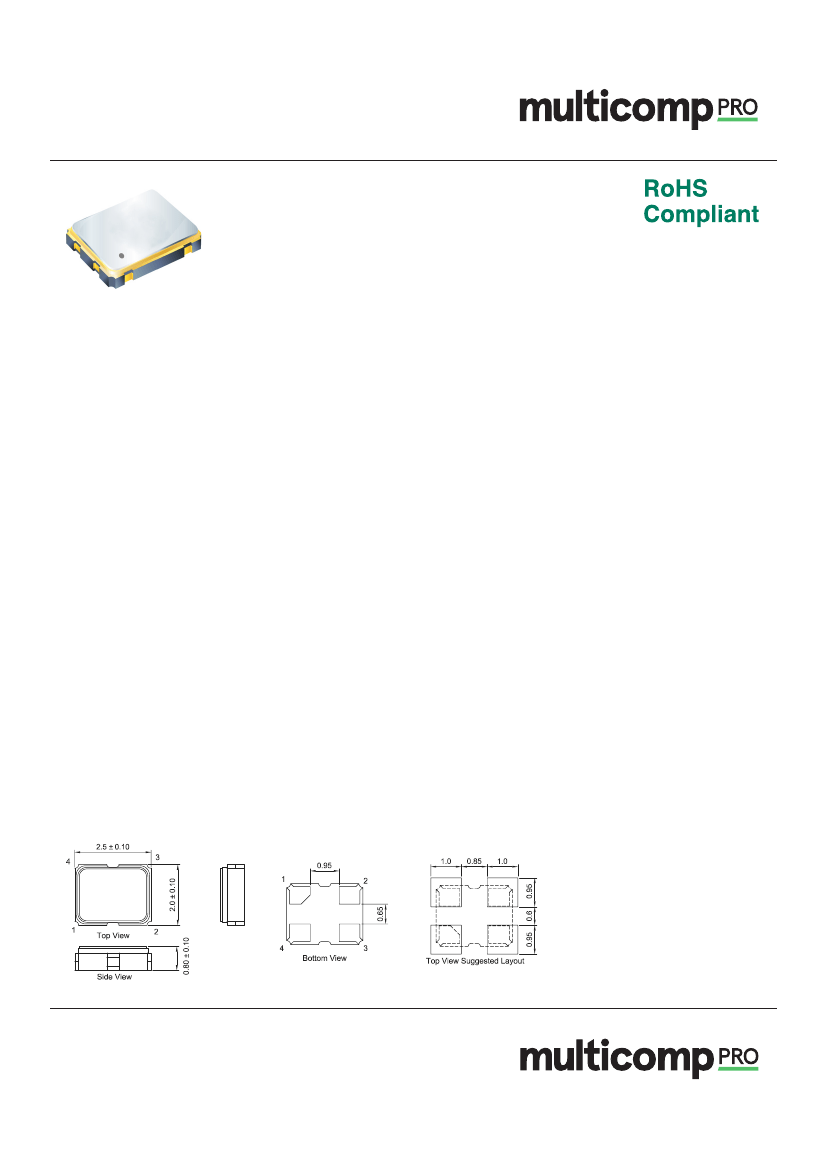

Crystal Oscillator

SMD 2520 (2.5mm

2mm

0.8mm)

Application

Used in WLAN, Bluetooth, DSC, PC, Mobile phone, TV, DVC, Telecommunications, HDD, etc

Features

•

2520 size, 0.8mm height, ultra small SMD seam sealed clock oscillator unit.

Low voltage operation

Frequency Range: 4MHz to 48MHz

3-state function

Automatic mounting and reflow soldering

Electrical Specifications

Output Type

Output Load

Oscillation Mode

Supply Voltage

Frequency Range

Frequency stability

Operating Temperature Range

Storage Temperature Range

Voltage Vol (Max.) / Voh (Min.)

Rise(Tr) / Fall(Tf) Time

Supply Current

Symmetry

Start-up Time

Phase Jitter (12kHz ~ 20MHz)

Aging (at 25°C)

: CMOS

: 15pF

: Fundamental

: 2.5V

: 4 ~ 48MHz

: ±50ppm

: -40°C ~ +85°C

: -55°C ~ +125°C

: 0.1VDD / 0.9VDD

: 5ns Max.

: 10mA Max.

: 45 ~ 55%

: 5ms Max.

: 1ps Max.

: ±3ppm/Year Max.

Diagram

PAD Function

1. Enable Control

2. GND

3. Out

4. VDD

Dimensions : Millimetres

Newark.com/multicomp-pro

Farnell.com/multicomp-pro

Element14.com/multicomp-pro

Page <1>

09/09/19

V1.0
