1SMA4752-GT3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1SMA4752-GT3

1SMA4752-GT3: DescriptionZener Diode, 33V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size249KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/; Environmental Compliance

Download Datasheet Parametric View All

1SMA4752-GT3 Overview

Zener Diode, 33V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN

1SMA4752-GT3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SENSITRON
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Nominal reference voltage	33 V
surface mount	YES
technology	ZENER
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	7.5 mA
Base Number Matches	1

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

Data Sheet 2677, Rev.

Features

Glass Passivated Die Construction

1.0W Power Dissipation

11 –100V Nominal Zener Voltage

5% Standard Vz Tolerance

Low Inductance

Typical I

Less Than 5.0µA Above 11V

Plastic Case Material has UL Flammability

Classification Rating 94V-O

1SMA4741–1SMA4764

1.0W SURFACE MOUNT ZENER DIODE

Mechanical Data

Case: JEDEC DO-214AC Low Profile Molded Plastic

Terminals: Solder Plated,Solderable

per

MIL-STD-202,Method 208

Polarity: Cathode Band

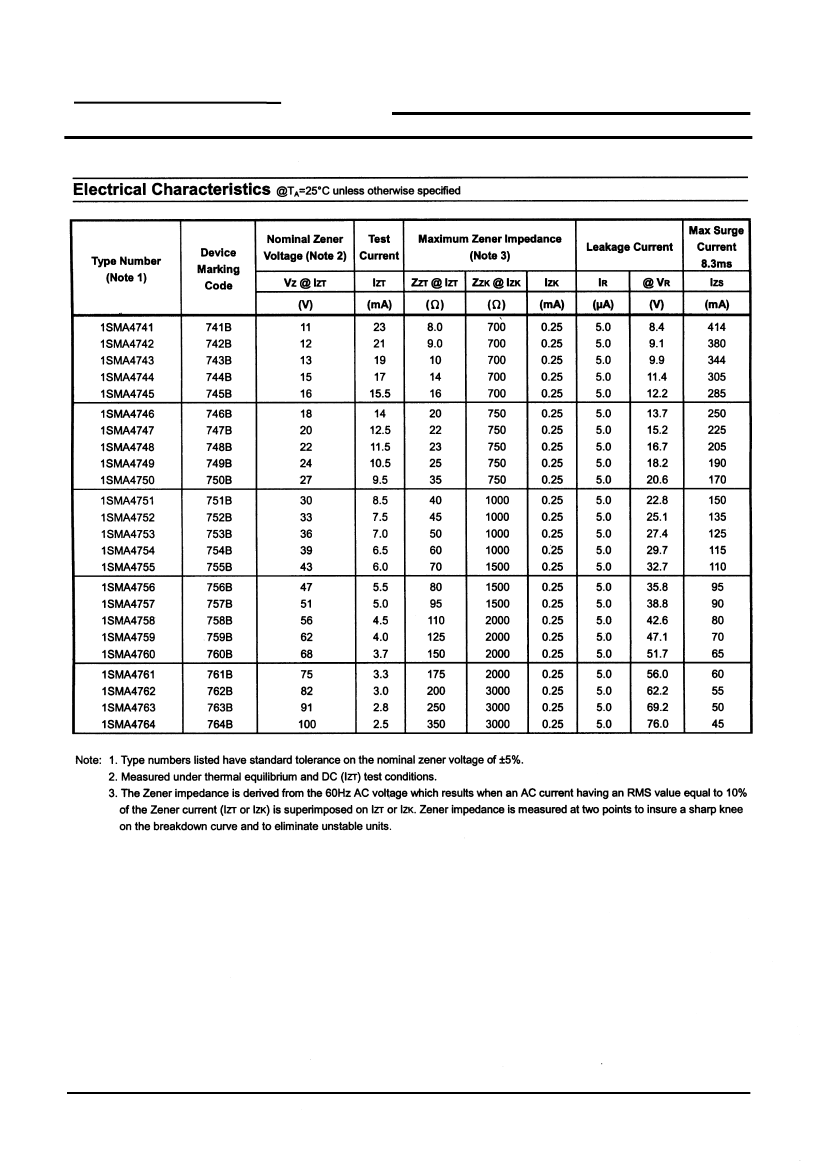

Marking: Device Code (See Table Next Page)

Weight: 0.064 grams (approx.)

Dim

2.50 2.90

4.00 4.60

1.40 1.60

0.152 0.305

4.80 5.28

2.00 2.44

0.051 0.203

0.76 1.52

In mm

SMA/DO-214AC

Min Max Min

Max

0.098 0.114

0.157 0.181

0.055 0.063

0.006 0.012

0.189 0.208

0.079 0.096

0.002 0.008

0.030 0.060

In inch

Maximum Ratings

=25°C unless otherwise specified

Characteristic

Power Dissipation (Note 1)

Derate Above 25°C

Forward Voltage @I

= 200mA

Non repetitive peak surge power dissipation

Tp = 100 µs sq.pulse,Tj = 25°C prior to surge

Thermal Resistance Junction to Ambient (Note 1)

Operating and Storage Temperature Range

Symbol

Value

1.0

8.0

1.2

Unit

mW/°C

ZSM

θJA

, T

STG

600

120

-65 to +150

°C /W

°C

Note:1.Valid provided that device terminals are kept at ambient temperature

•

!!"#$•

•

% & '(&)*+,,---. &

./0•12&%#

%3 &

./0•

1 of 3
